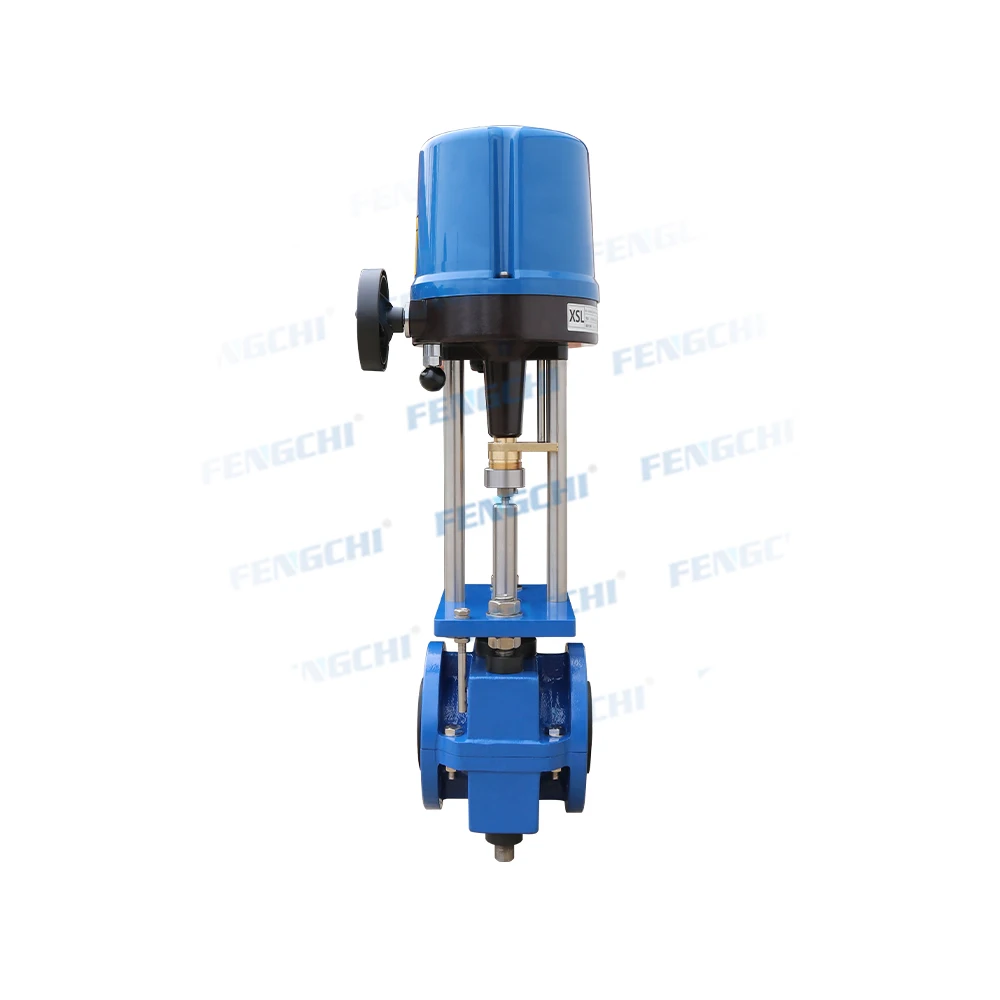

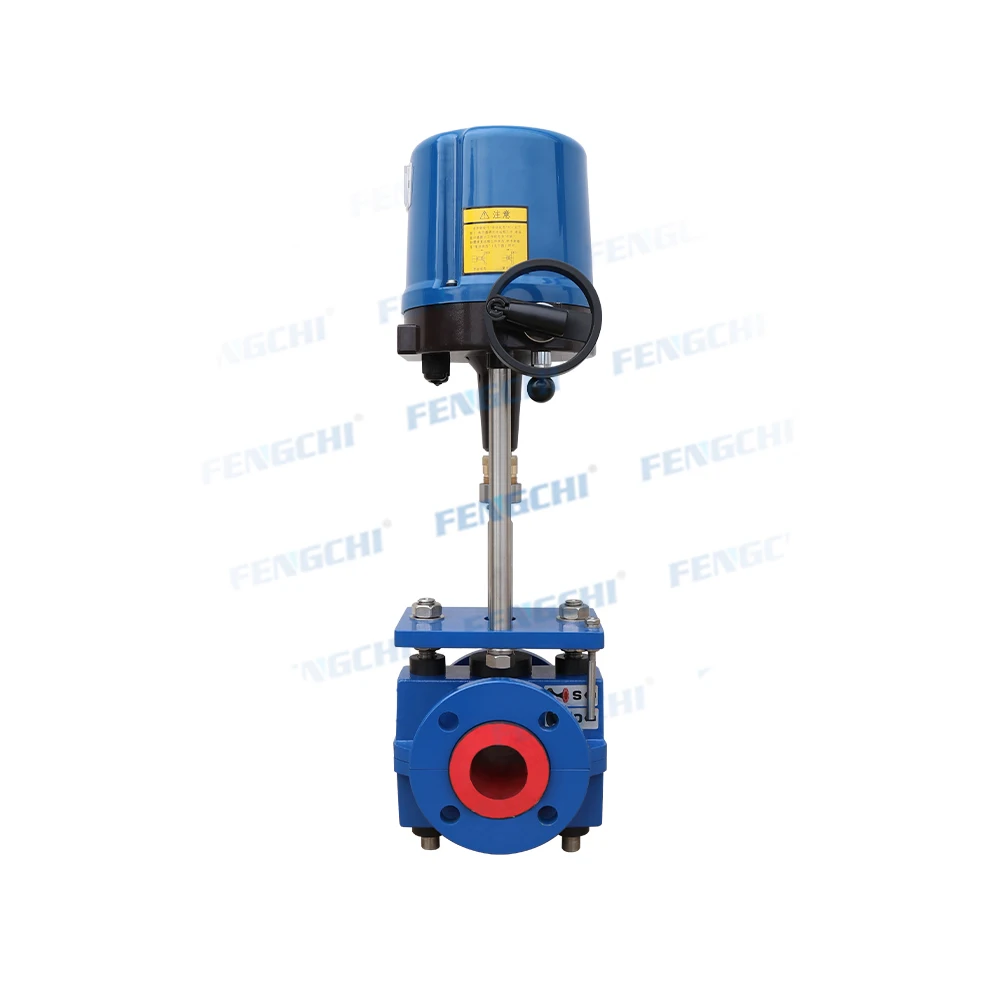

Электрический шламовый клапан с прямым ходом
Электрический шламовый клапан с прямым ходом
Электрический шламовый клапан с прямым ходом
Электрический шламовый клапан с прямым ходом

Электрический шламовый клапан с прямым ходом

Share on (1600765308796):


Price:

Quantity:


Product Overview

Description





Specifications


TYPE
Articlegroup
Electric Pinch Valve
Nominal diameter
20mm-65mm
Connection
Flange
Control system
Straight stroke electric actuator
Article number
FCE20-65E
Paintwork
RAL5010/Other


MATERIALS
Body material
Aluminium/Carbon steel/Cast iron/SS304/SS316/SS904
Sleeve material
Rubber
Stem material
45# steel
Protective case
POM

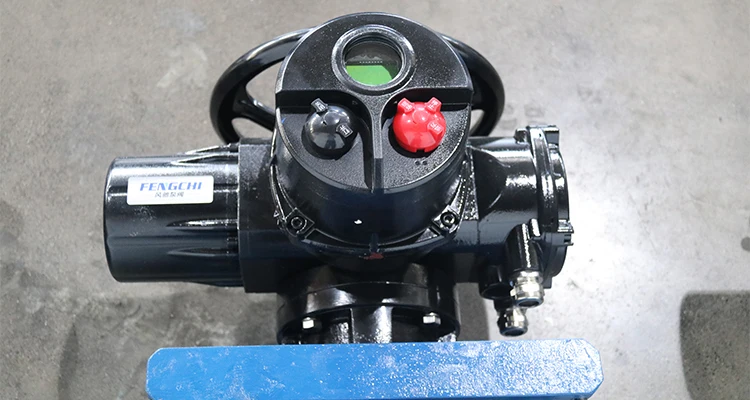

The standard electromechanical actuator types are AUMA Norm SA-series and Rotork IQ-series actuators equipped with build-in limit switches and manual handwheel. The standard voltage is 380V 50Hz, others on request.

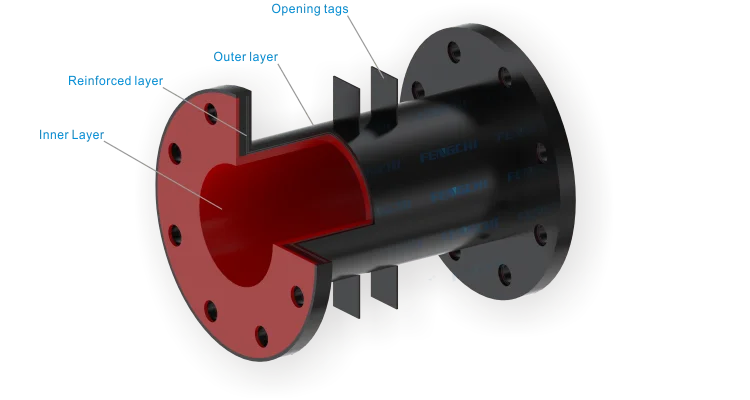

Rubber Sleeve



Inner Layer: adopt various kinds of rubber materials or formulas in order to fit for the high demanding applications involving abrasion, corrosion or high temperature, etc.

Reinforced layer: the perfect combination of synthetic rubber and synthetic fibre technology forms a unique reinforced skeleton,which enables the sleeve to bear pressure and fatigue.

Outer layer: Using Natural Rubber to protect and reinforce the flexure resistance of valve sleeve.

Opening tags: the middle part of the outer layer is equipped with opening tags to solve the problem of fixation and tensile strength of the inner sleeve and actuator, also to ensure full opening of valves in all process conditions.

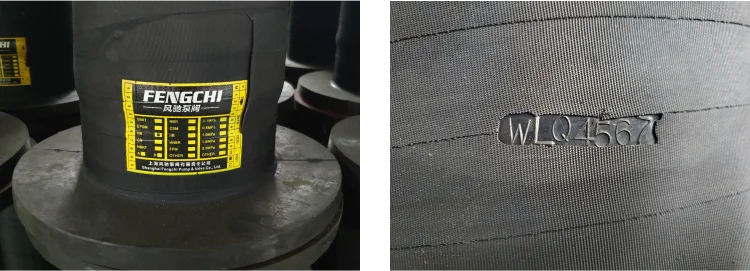

Each FENGCHI pinch valve sleeve is handcrafted by professionally trained personnel, each sleeve is affixed with labels, which contains relevant parameters and numbers in order to provide a basis for quality traceability.
