Epc Edge Position Controller Servo Brushless Overload Web Guiding Controller System with Plc Controlling Programmable GL 2000B
- Category: >>>
- Supplier: Wuxi,Galy,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

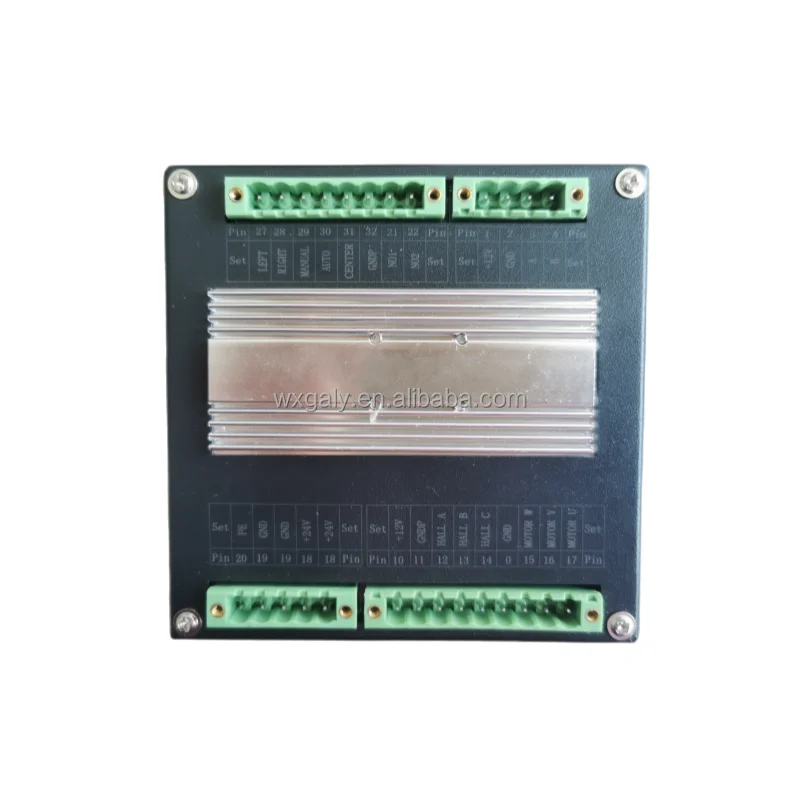

Servo Web Guide Controller GL-2000B features:
◆ High-performance brushless DC motor makes the deviation correction response fast, and supports acceleration and
deceleration speed limit.
◆ High-speed CPU operation, support EPC tracking, LPC tracking, CPC centering, and other correction methods.
◆ Can support ultrasonic sensor, photoelectric sensor, CCD sensor. Cope with different coils.
◆ Touch keys plus Chinese and English LCD menu display, beautiful man-machine interface, simple and practical operation
◆ The pusher adopts DC brushless motor to drive the ball screw, which has high precision, low noise, maintenance-free
◆ High-speed CPU operation, support EPC tracking, LPC tracking, CPC centering, and other correction methods.
◆ Can support ultrasonic sensor, photoelectric sensor, CCD sensor. Cope with different coils.
◆ Touch keys plus Chinese and English LCD menu display, beautiful man-machine interface, simple and practical operation
◆ The pusher adopts DC brushless motor to drive the ball screw, which has high precision, low noise, maintenance-free
and long service life.
◆ The pusher calculates the position by sampling the Hall pulse of the motor, and adapts to different mechanical strokes
◆ The pusher calculates the position by sampling the Hall pulse of the motor, and adapts to different mechanical strokes
without limit switches.
◆ It can be connected with remote control and fault alarm.
◆ Flexible installation method.
◆ It can be connected with remote control and fault alarm.
◆ Flexible installation method.
Parameter Configuration :
Supply voltage | DC24V switching power supply 150W |
sensor signal input | 2 channels 0-5V analog |
output | 6A ±24VDC PWM voltage output |
Control Method | Closed-loop control |
control response | ≤0.01sec _ |
Use environment | 0℃-40℃ (humidity below 80%RH) |
weight | 4K g |
Installation method | Inlay installation |
Wire Connection
Installation Instructions
Main Hot Products
Successful Project
Company Profile
FAQ
Galy On Sales Epc Edge Position Controller Servo Web Guiding Controller System with Plc Controlling Programmable GL-2000B
1. What parts are included?
Controller andTerminal
Please let us know if you need power wire and switching power supply.
Please let us know if you need power wire and switching power supply.
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it generally takes 10-15 days to ship.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
