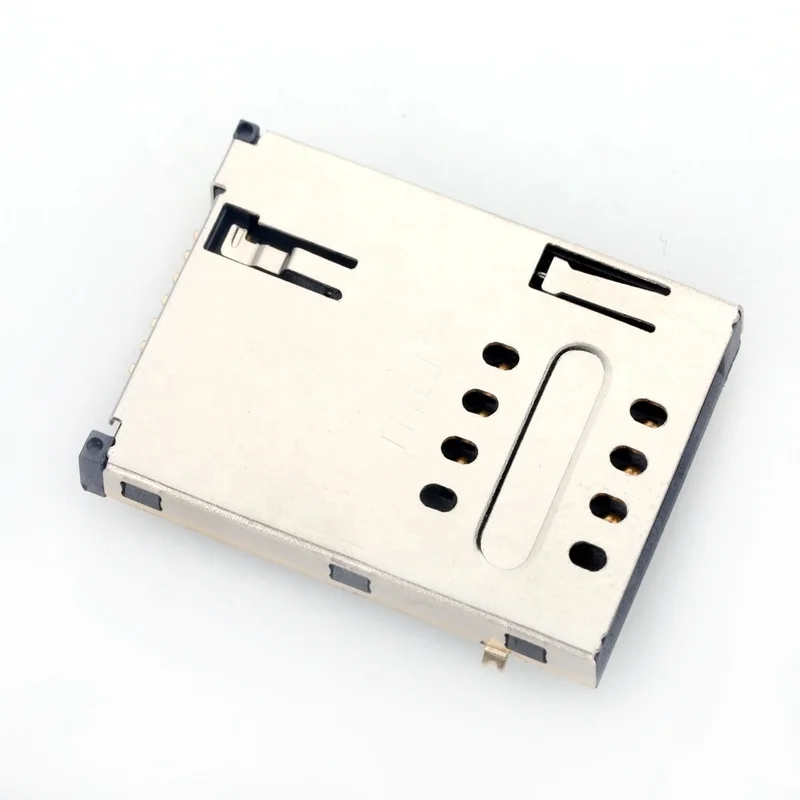

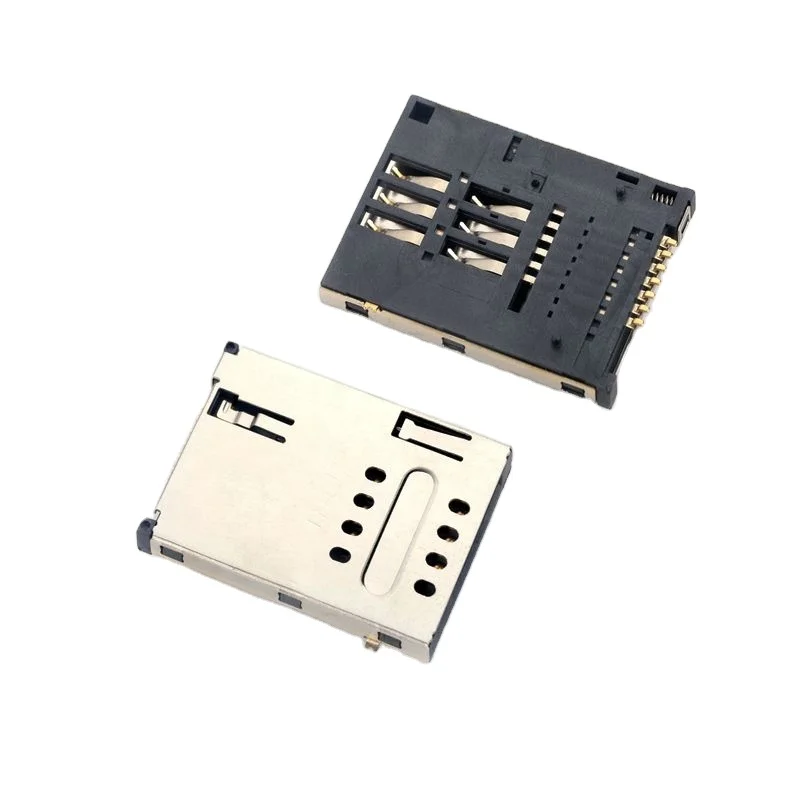

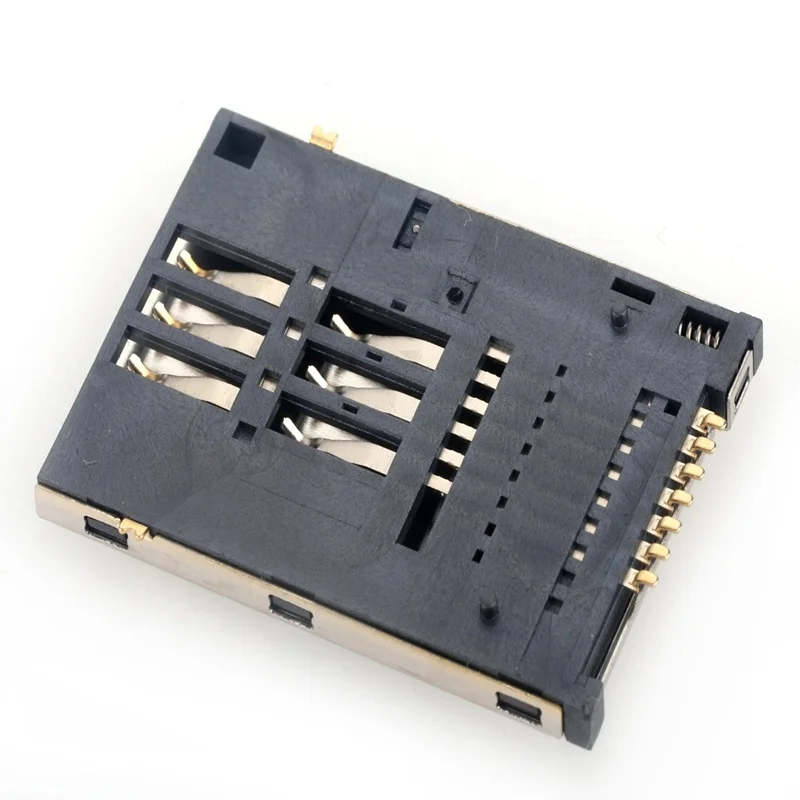

MUP Push push TYPE normally close PCB sim card holder connector for GPS
MUP Push push TYPE normally close PCB sim card holder connector for GPS
MUP Push push TYPE normally close PCB sim card holder connector for GPS
MUP Push push TYPE normally close PCB sim card holder connector for GPS
MUP Push push TYPE normally close PCB sim card holder connector for GPS
MUP Push push TYPE normally close PCB sim card holder connector for GPS
MUP Push push TYPE normally close PCB sim card holder connector for GPS

MUP Push push TYPE normally close PCB sim card holder connector for GPS

Share on (1600765398535):


Price:$0.50

Quantity:


Product Overview

Description







● MUP Founded in 2003 ,many years of R&D and manufacturing experience in the connector industry

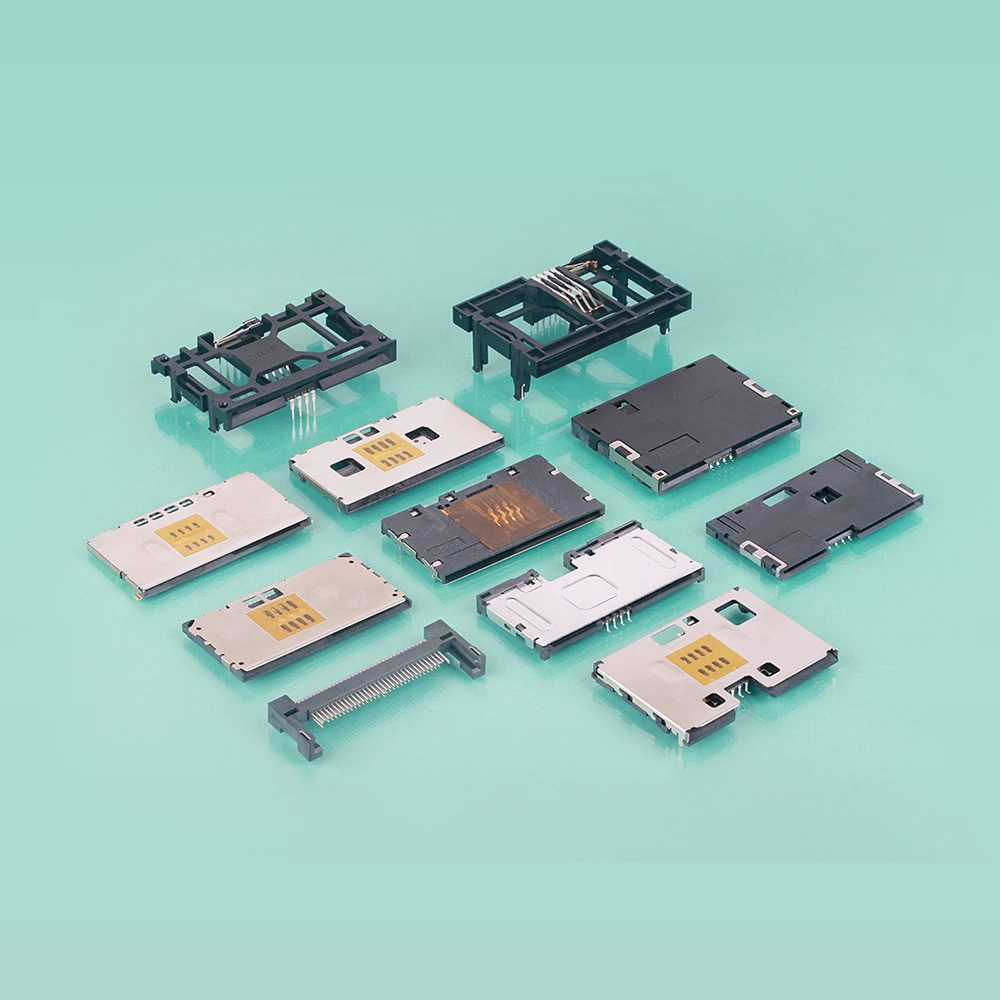

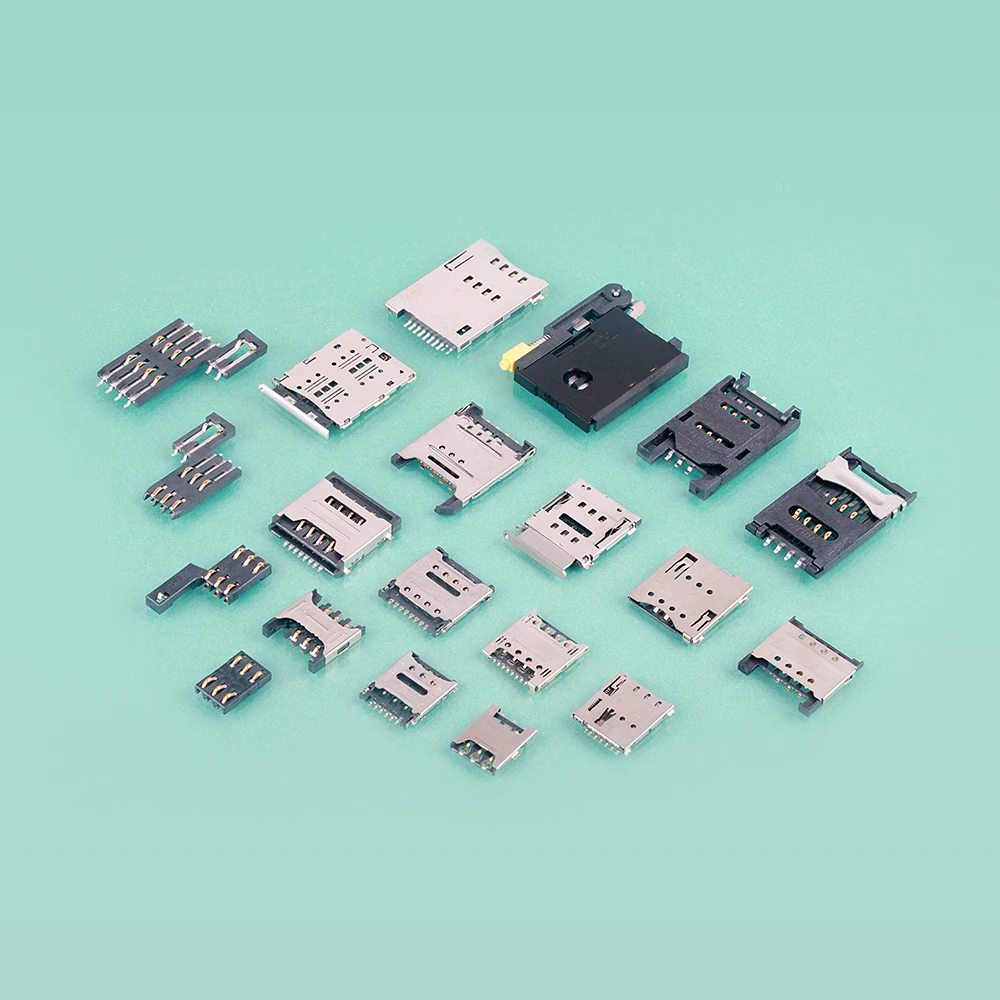

● Offering IC,SIM,memory card,HDMI,USB Type-C battery, RF ,FPC ,BTB and other kinds of precision connectors
● Products widely used in POS, STB,DTV,automotive electronics, network communication,smart meters and other
electronic products
● Exporting to 50+countries in Europe,North and South America,Asia and Africa
● Supplying Ingenico,Sagemcom,Tech-Front and Teltonika
● IS0 9001:2015- and 150 14001:2015-certifed
● Holding RoHS.EMV.NDS.PCL.HDMI and TID certifcations






                                                                   General Characteristics
Items
      Standard
 Descriptions
Dimensions
27.60LX18.70WX1.80H mm
Card size
     GSM11.11
25.0×15.0×0.76mm
Contact principle
 Friction technology
Mounting System
SMT(Without Post)
Durability
5,000 cycles Min.
Insulator
Thermoplastic UL94V-0
                                                                      Material
Insulator
Thermoplastic UL94V-0
Shell
SUS
Contact
Phosphor bronze
Plating
Gold over nickel
Coll spring
SWP
Switch
Gold over nickel
                                                             Electrical Characteristics
Items
Standard
Descriptions
Number of Contacts
6 Pins
Contact highly
0.60±0.15mm
Insulation resistance pin to pin
 IEC512-2-3a
>1000 MΩ/500 VDC
Rated voltage
50V max
Rated current
1A max., 10μA min.
Contact resistance
IEC512-2-2a
50 mΩ typical, 100mΩ max.
Dielectric withstanding voltage
IEC512-2-4a
500V AC rms 1min
