7~14m Working height Single man vertical mast lift
OEM&ODM&OBM

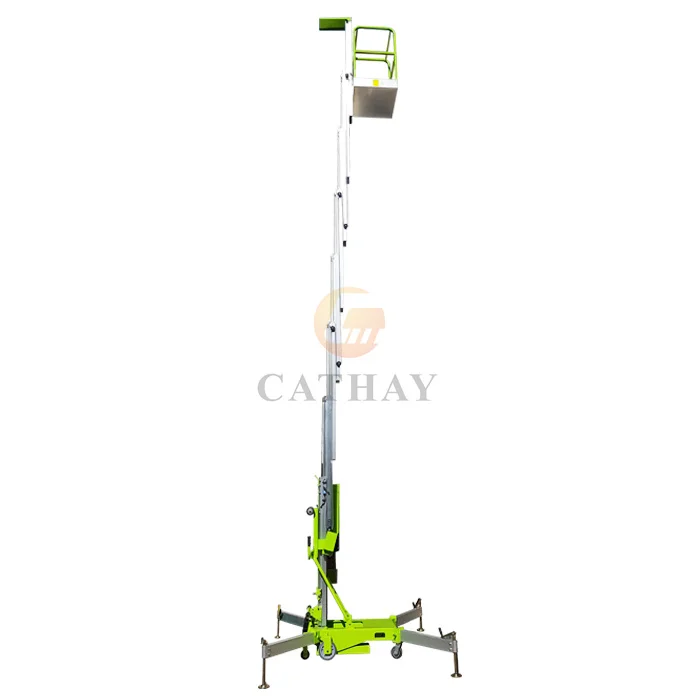

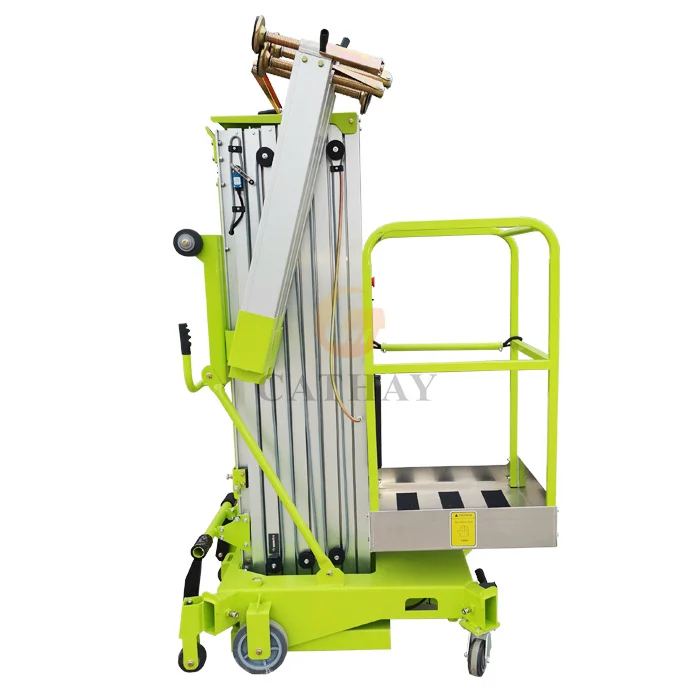

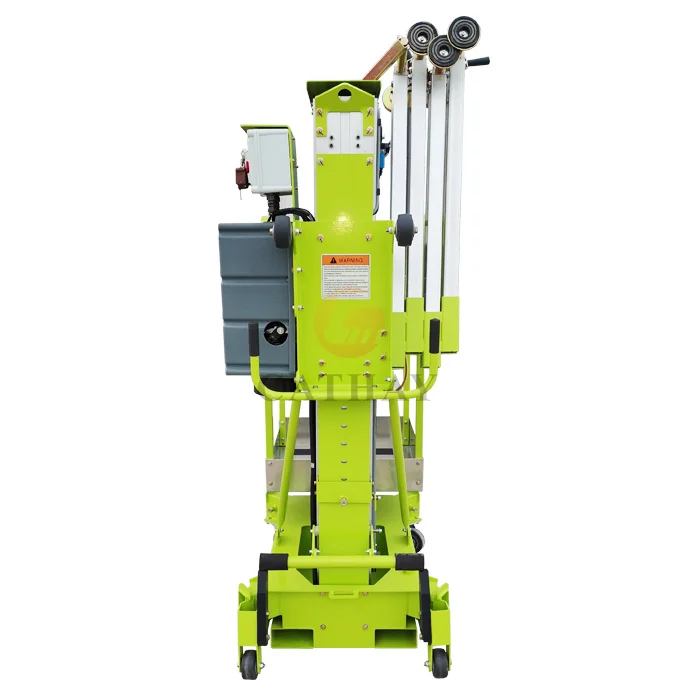

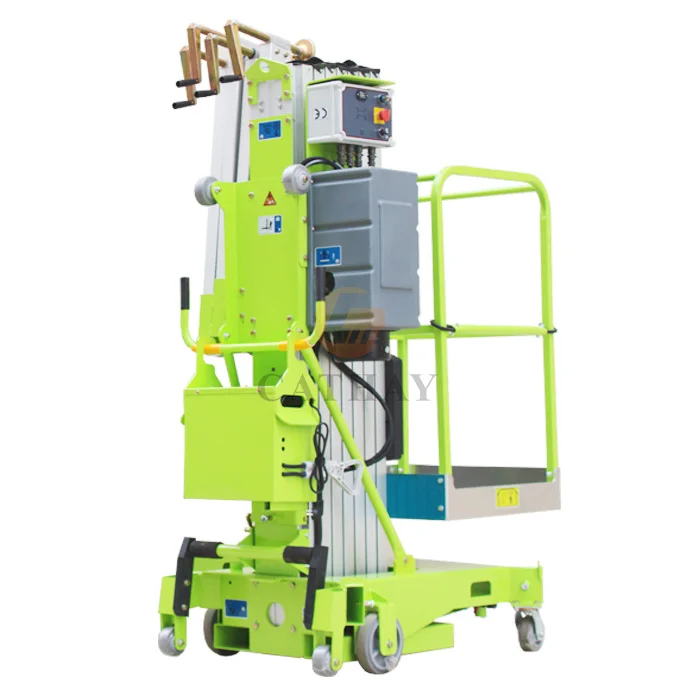

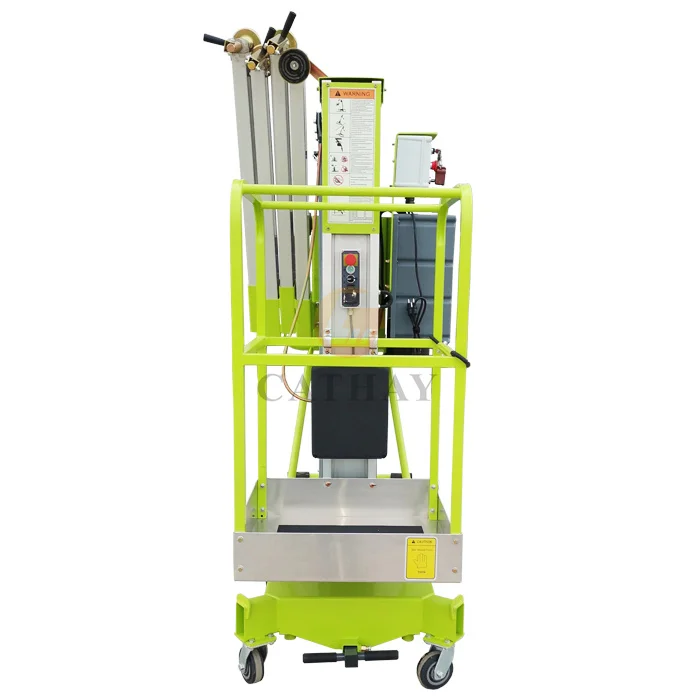

The Cathaylift single-man vertical Mast Lift is Lightweight, compact, and designed for all indoor aerial works. It can easily pass through standard doorways, through narrow aisles, into elevators, and to more previously inaccessible work areas, without causing any damage to fragile surfaces such as carpets, tiles, floors, and parquet floors. And only one person loading and unloading operation can be easily realized by utility vehicle such as a van or trailer for long-distance transportation.

Model No. | CUP-5H | CUP-6H | CUP-8H | CUP-9H | CUP-10H | CUP-12H | |
Max.Platform Height | 5m | 6m | 8m | 9m | 10m | 12m | |
Max Working Height | 6m | 8m | 10m | 11m | 12m | 14m | |
Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg | |
Platform Size | 0.67*0.66m | ||||||
Occupants | One person | ||||||
Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.6*1.6m | 1.7*1.7m | 1.9*1.7m | 2.3*1.9m | |
Overall Size(m) | 1.24*0.74*1.99 | 1.24*0.74*1.99 | 1.36*0.74*1.99 | 1.4*0.74*1.99 | 1.42*0.74*1.99 | 1.46*0.81*2.68 | |
Net Weight | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg | |
Motor Power | 0.75kw | ||||||
| DC | 12v | |||||
DC Motor | 1.5kw | ||||||
Charger | 12v15A | ||||||












1. How do l service my machine locally?
We will provide a solution within 24 hours and send spare parts within 48 hours.And the parts used for the machine can be found at the local hardware store for quick repairs.
2. What about the delivery time?
Please ask us if we have stock when placing an order,
The delivery time is 10~30days according to different products.
3. What kind of payment do you support?
T/T,L/C, West Union,PayPal,Credit Card, Alibaba Trade Assurance. T/T is usually.
4. Do you offer OEM,ODM service?
Yes, for standard products we also accept custom colors,custom logos, or name brands, etc.
5. What is the quality warranty?
One year warranty for the whole machine, five years for the main structure.
