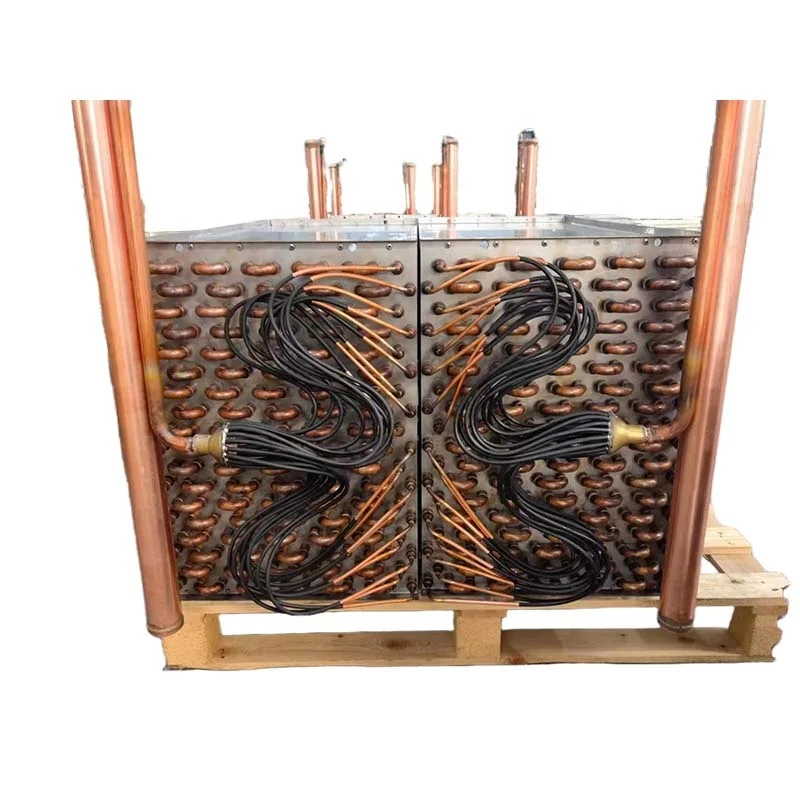

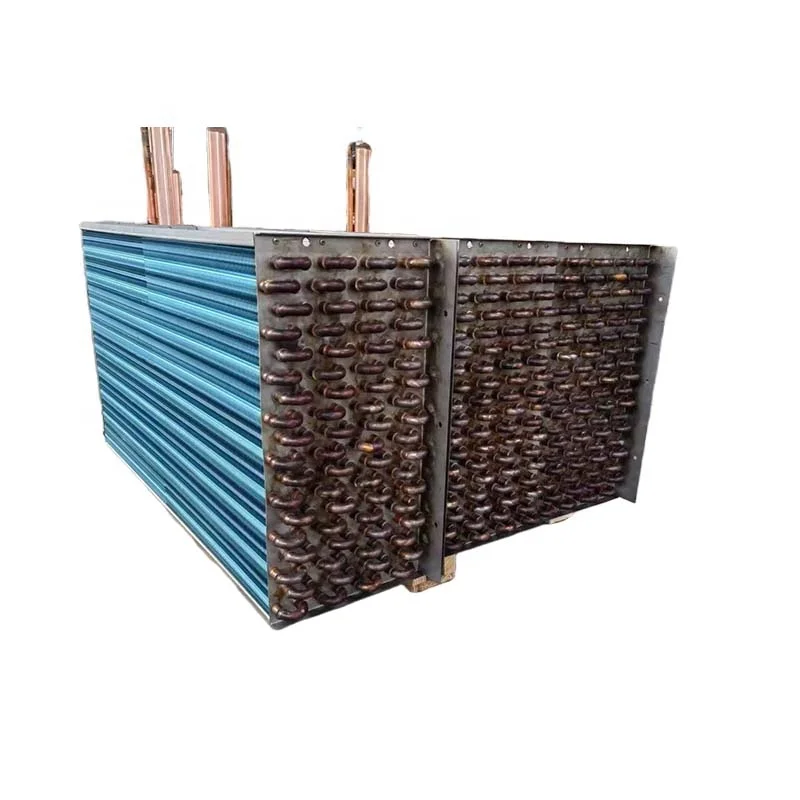

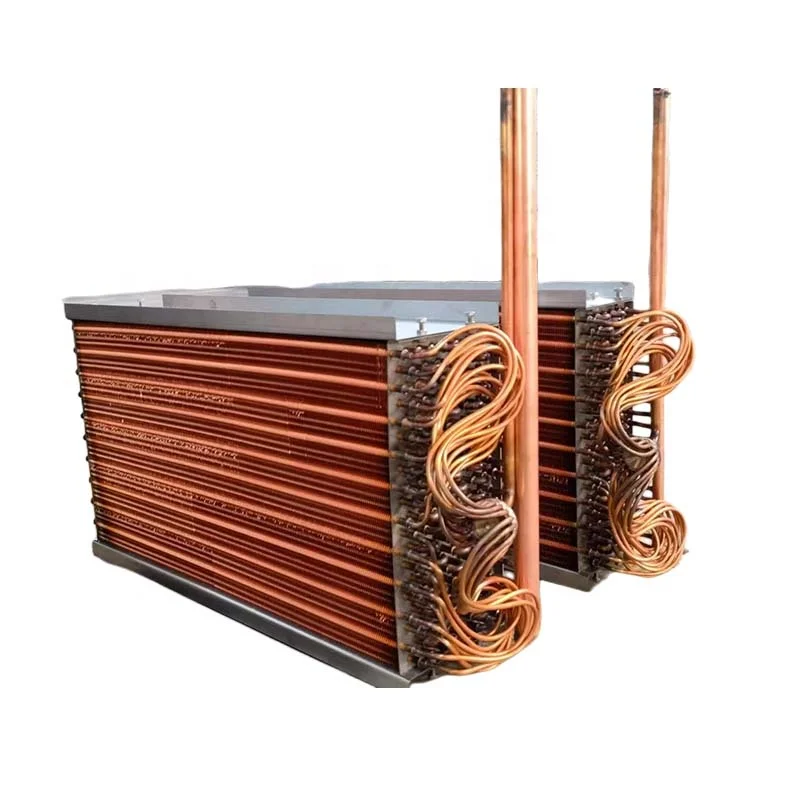

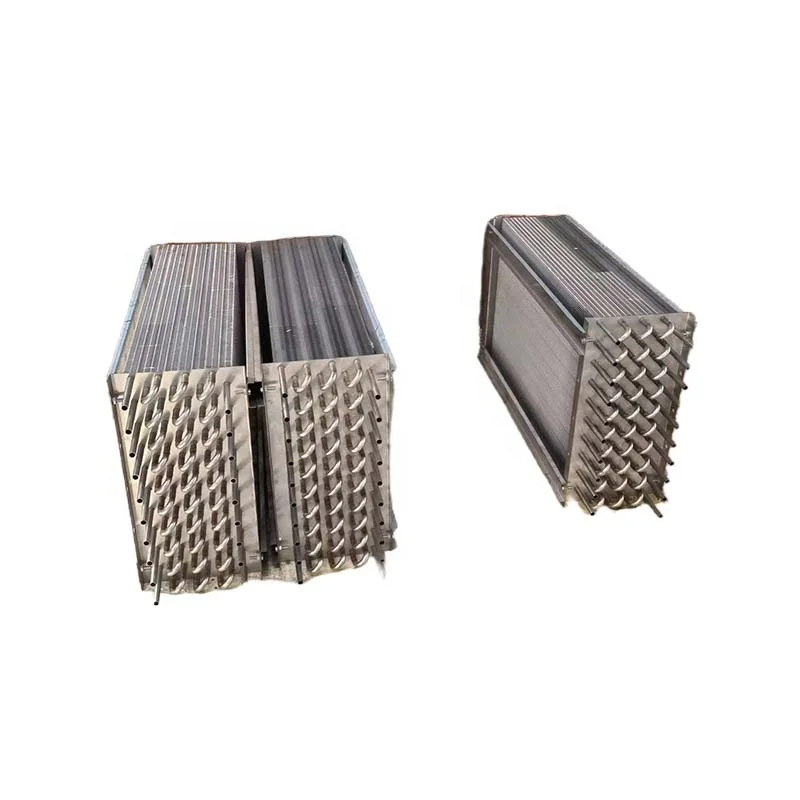

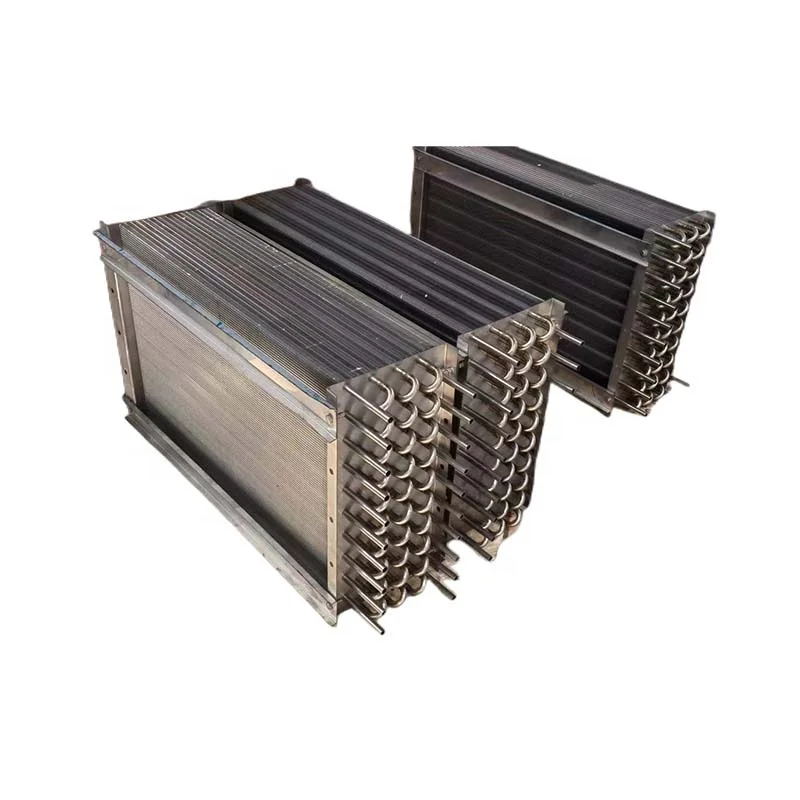

OEM coil tube fin heat exchanger for industrial refrigeration commercial heat pump energy recovery system
- Category: >>>
- Supplier: Changzhou Hejia Heat-Exchanger Tech Co. Ltd.
Share on (1600765450171):
Product Overview
Description

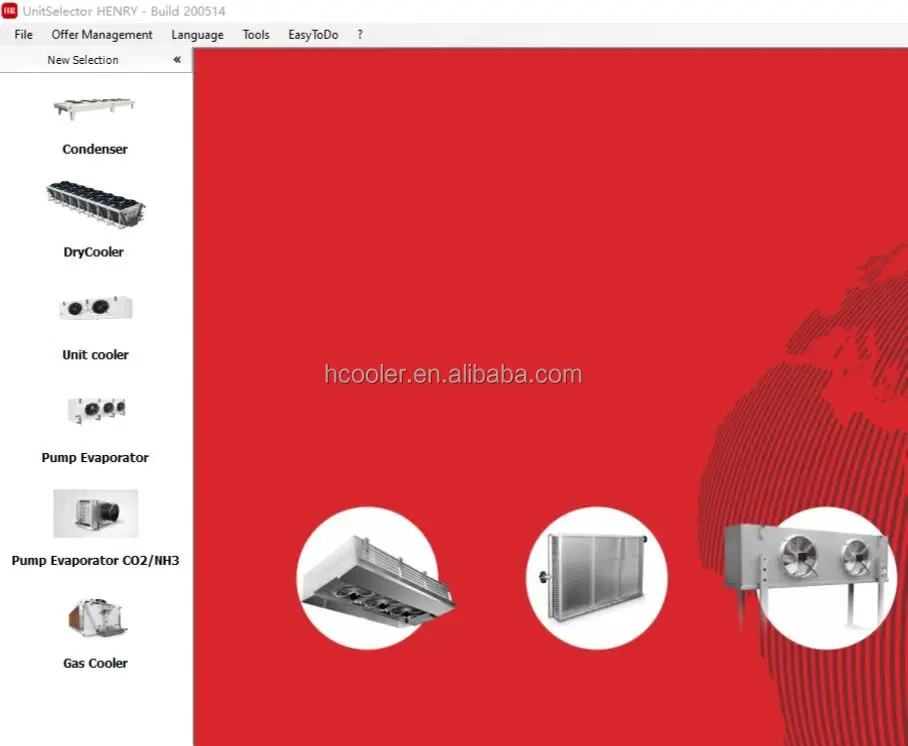

Design software is European software
Supply outline draft and 3D draft .

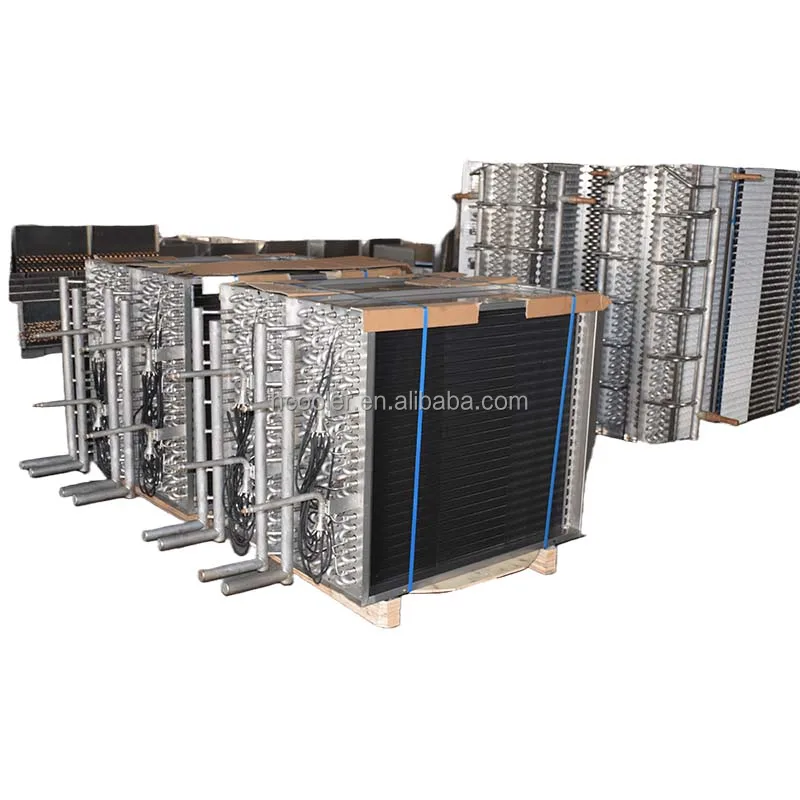

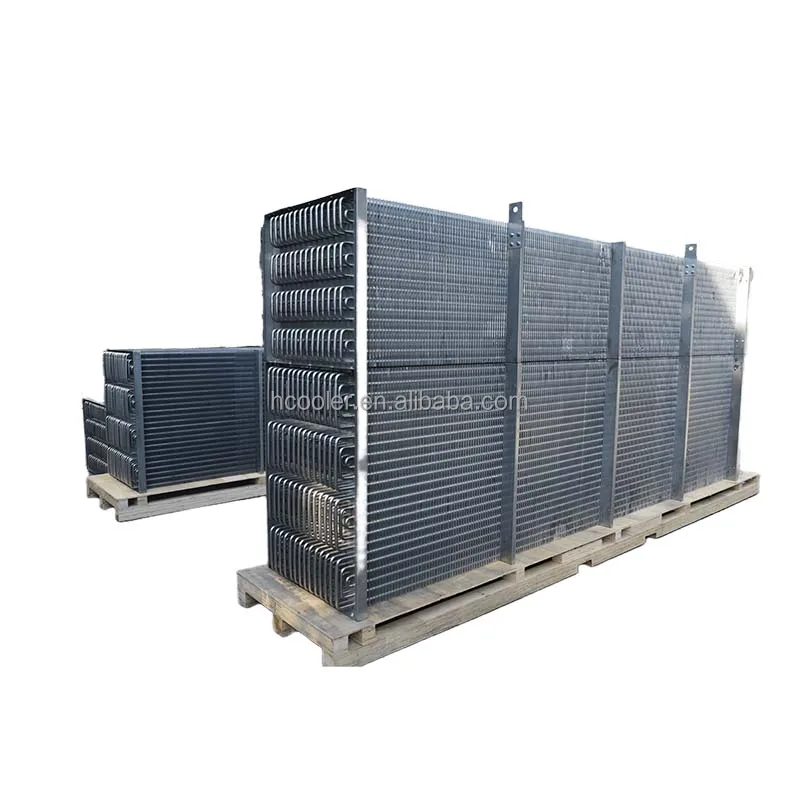

Finned tube heat exchangers
Its generally use air to cool or heat fluids such as air, water, oil or gas, or they can be used to capture or recover waste heat.
These heat exchangers can used in a broad range of industries including oil & gas, power generation, marine and HVAC&R.
These heat exchangers can used in a broad range of industries including oil & gas, power generation, marine and HVAC&R.
Application:
Low Temperature Blast Freezing
Blast Freezing Tunnels and Rooms
Low Temperature Test Chambers
Low Temperature Refrigerated Ships Holds (Marine)
Low temperature blast freezing
Blast chilling
Cold chain
Carcass cooling
Carcass chilling room
Cold Rooms
Walk in Freezer & Walk in Chiller
Air Blast Freezer & Air Blast Chiller
Commercial Refrigeration
Frozen & Chilled Food Display Cases
Low Temperature Blast Freezing
Blast Freezing Tunnels and Rooms
Low Temperature Test Chambers
Low Temperature Refrigerated Ships Holds (Marine)
Low temperature blast freezing
Blast chilling
Cold chain
Carcass cooling
Carcass chilling room
Cold Rooms
Walk in Freezer & Walk in Chiller
Air Blast Freezer & Air Blast Chiller
Commercial Refrigeration
Frozen & Chilled Food Display Cases
Products Description
* diesel charge air coolers;
* oil coolers;* hydrogen coolers;
* waste heat recovery;
* driers;
* air conditioning;
* air heaters;
* steam condensers;
* generator coolers

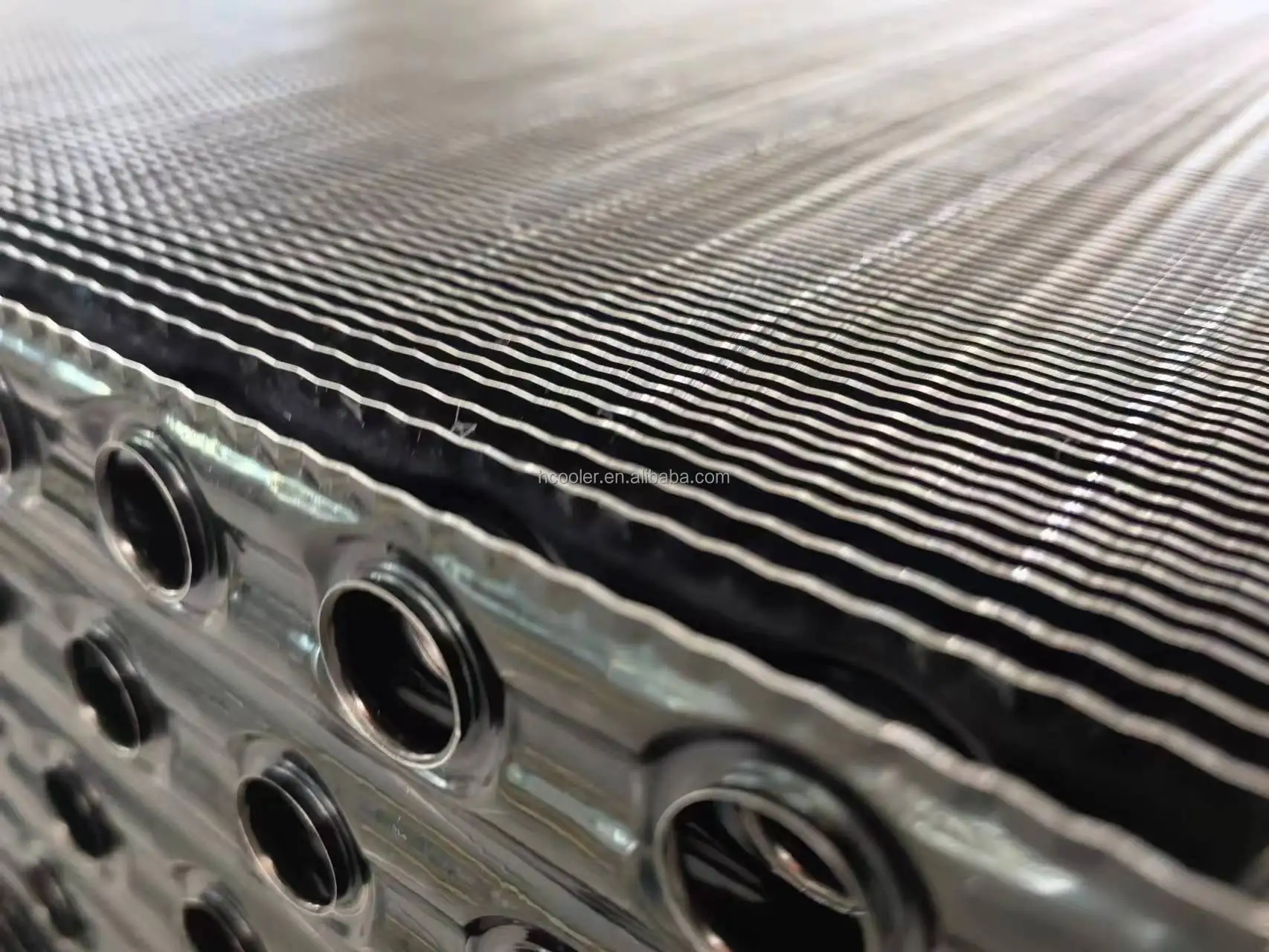

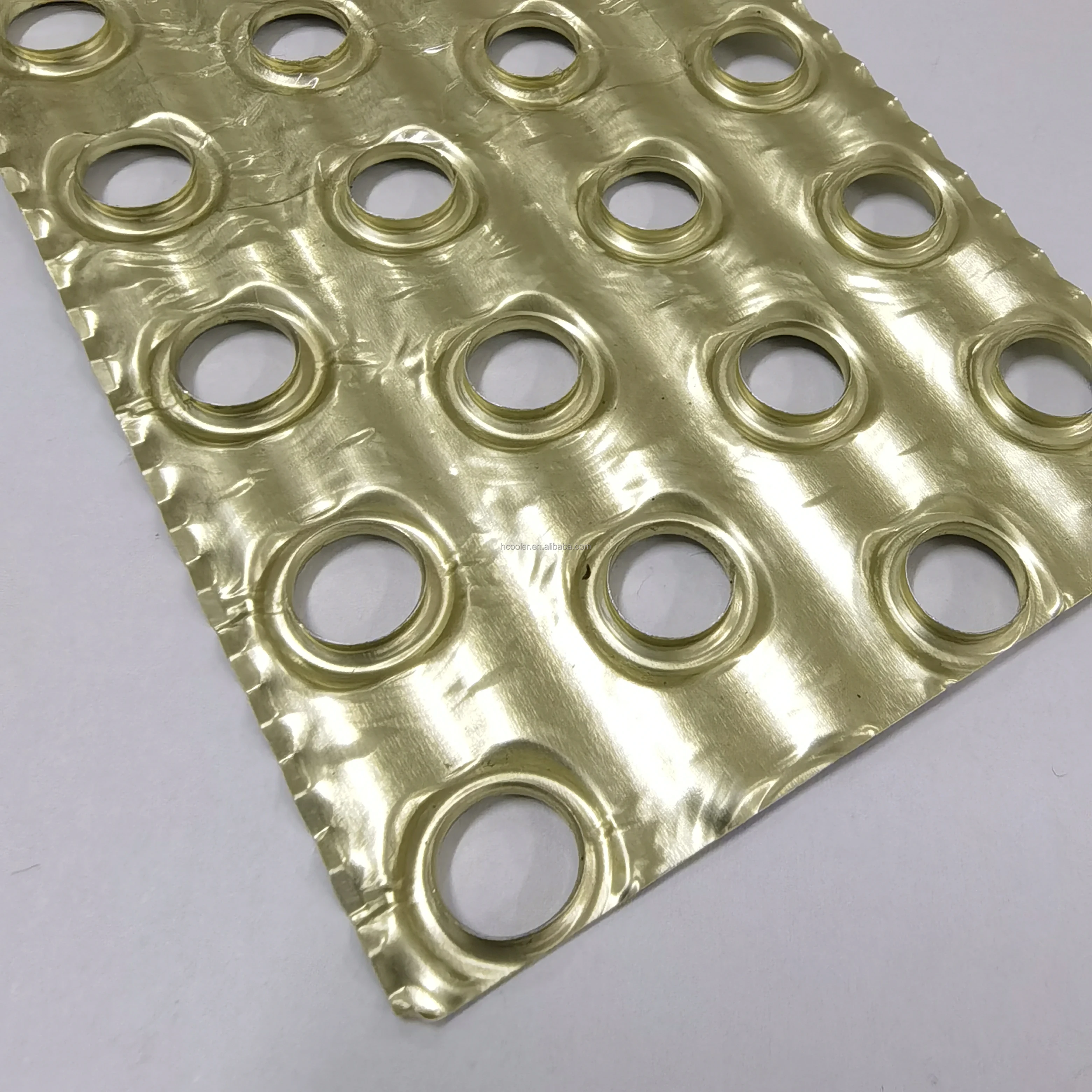

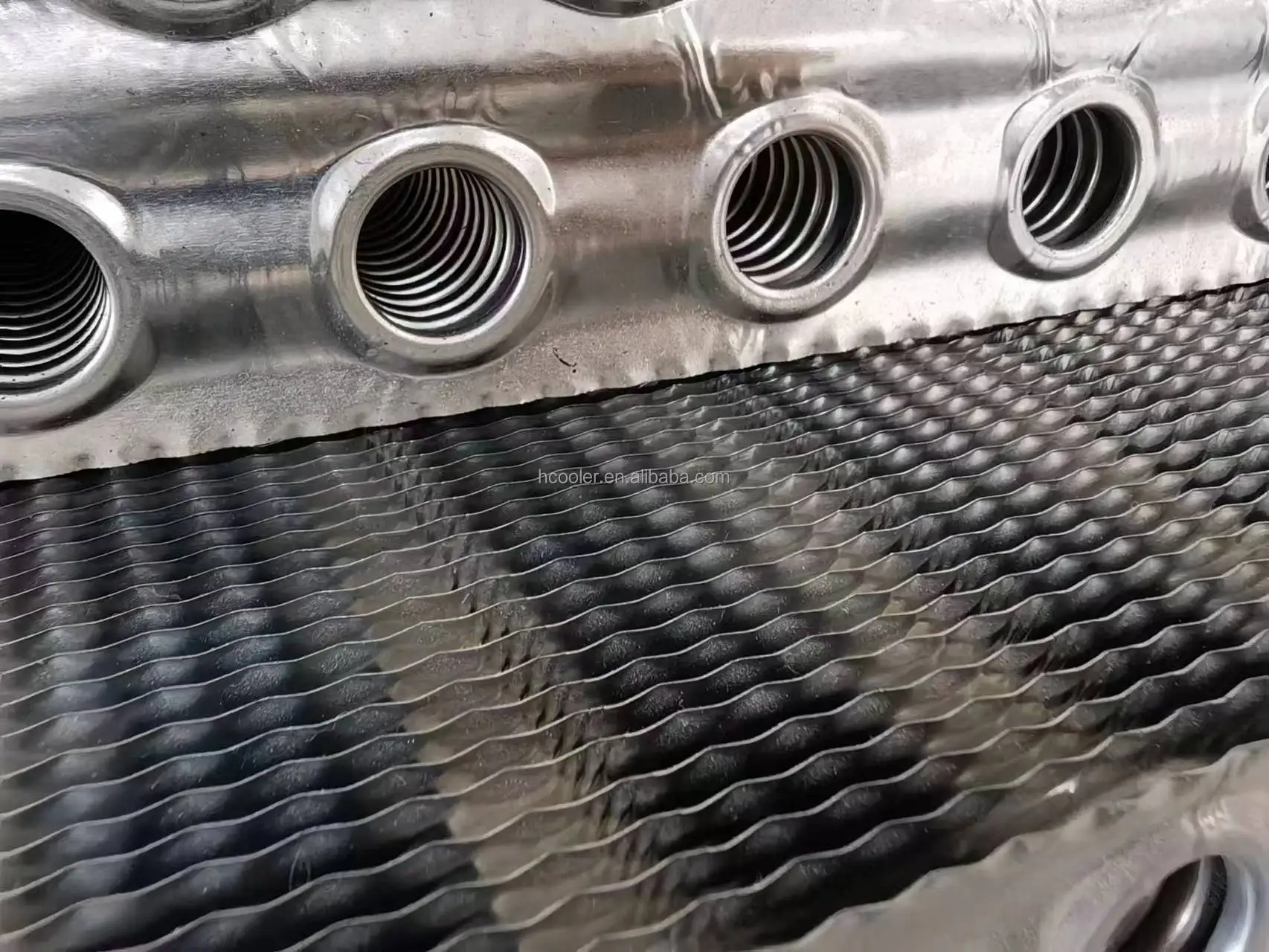

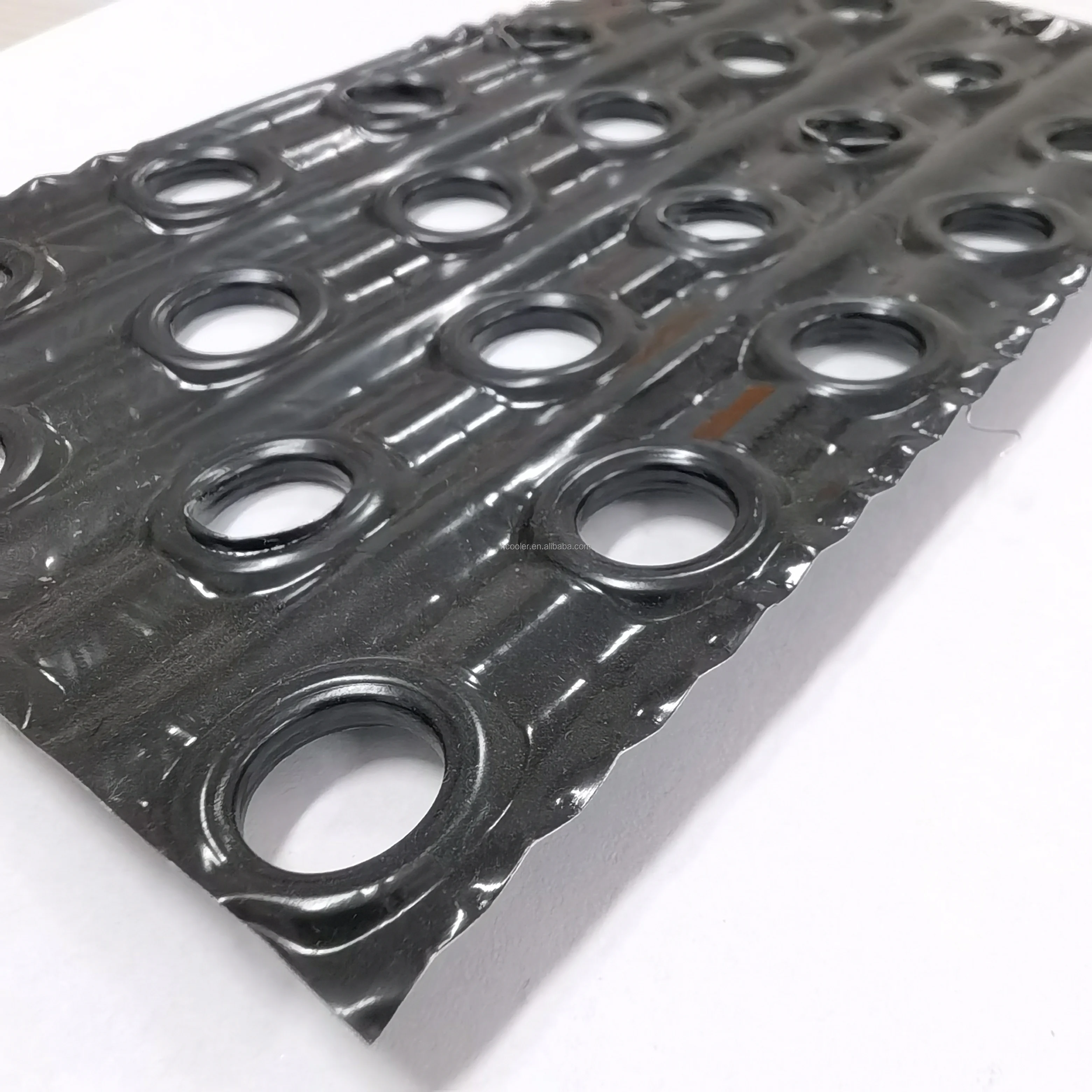

Frame | Fin | Heat-exchanger Tube | Head |
Galvanized sheet | AL | Copper Tube | Copper Tube |
Aluminum | Hydrophilic AL Fin | Stainless Steel 304 | Seamless Steel Pipe |
Stainless Steel 304 | Almg 25 | Stainless Steel 316 | Stainless Steel 304 |

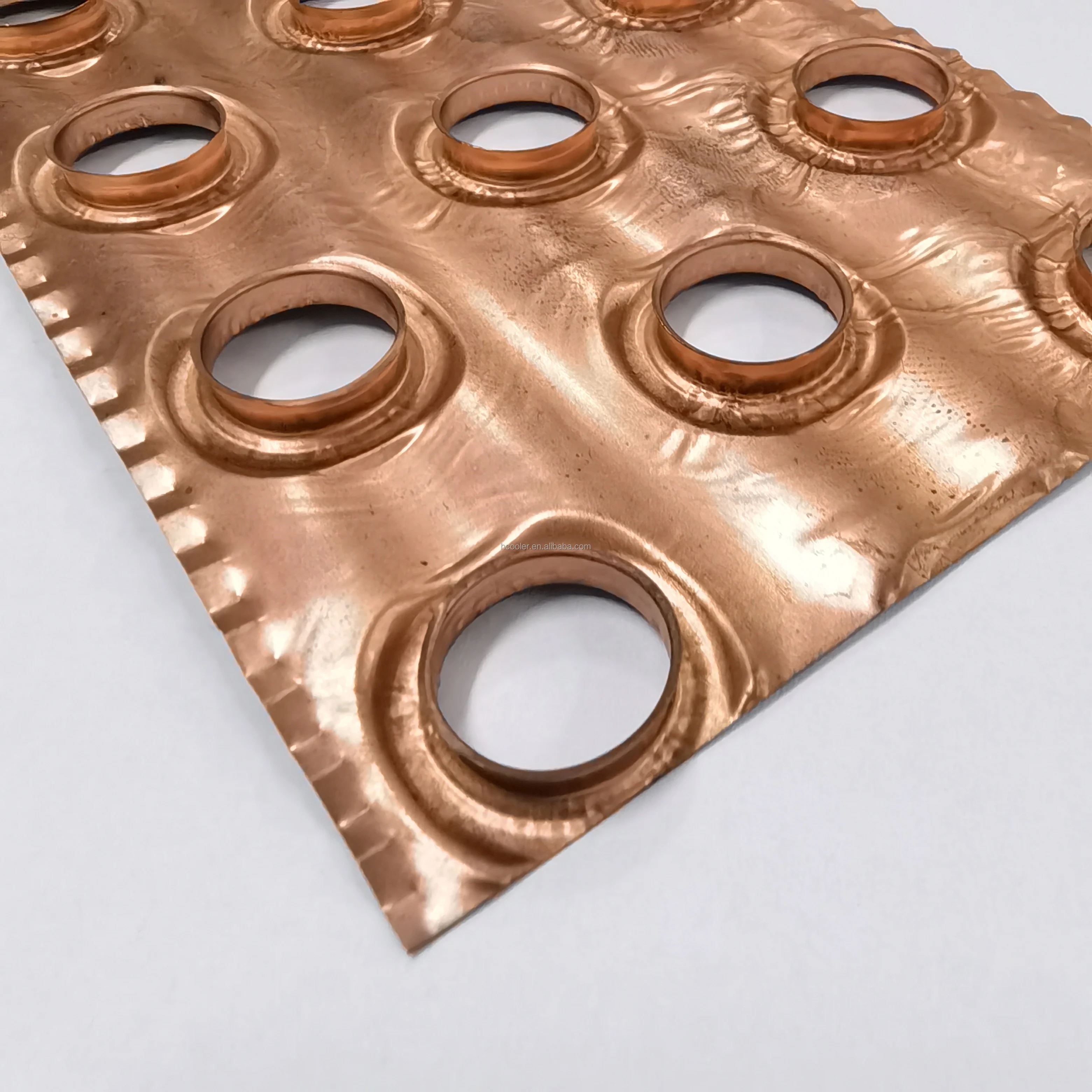

Stainless Steel 316 | Copper Fin | B10 | Stainless Steel 304 |
Cu | Pre-coated Epoxy Fin | B30 | B10 |
Heresite/Blygold/Epoxy coated Fin | Titanium | B30 | |
Titanium |
Item | Condensers Type | Operation medium | Operation pressure ( MPa ) | Application |
1 | Φ 16/Φ 9.52/Φ 12.7 Copper tube with aluminium fin | Cold/hot water | ≤ 1.6 | Used for combined air handling unit, fan coil etc air conditioning devices |
2 | Φ 18/Φ 20 Steel pipe winding with steel sheet | Steam | ≤ 0.2 | Used for combined air handling unit, fan coil etc air conditioning devices |
3 | Φ 16/Φ 9.52/Φ 12.7 Copper tube with aluminium fin | Brine | ≤ 1.6 | Used for heat transfer in cold storage and all kinds of low temperature systems |
4 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | Ethylene glycol | ≤ 1.6 | Used of energy recovery and low temperature system devices |
5 | Φ 16 Copper tube with aluminium fin | Ice mud | ≤ 1.6 | Used for dry operation condition, fresh air dehumidification etc systems |
6 | Φ 9.52/Φ 7.94/Φ 7 Copper tube wif aluminium fin | R22 | ≤ 1.9 | Used for industry and commerce air conditioning system |
7 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | R407C | ≤ 1.9 | Used for industry and commerce air conditioning system |
8 | Φ 9.52/Φ 7.94/Φ 7 Copper tube with aluminium fin | R134a | ≤ 3.1 | Used for vehicle and vessel etc transportation devices |
We have customized products for many customers, following are some projects we did before.We can provide designing data and production drawings.
Russia Data center
Product NO.:HDVD480-0593AC-LN SS-AL
Medium:Water
Design conditions:70-55-35
USA Immersion cooling
Product NO.:HDFS491-0320EC
Medium:BC888
Design conditions:60-50-35
Design conditions:60-50-35
African power generation
Product NO.:HDFS3180-1036LT+1036HT
power generation:4340KW
Tibet, China Solar thermal System cooling
Product NO.:HDFD1291-2184
Medium:MEG40%
Design conditions:90-53.8-23
Design conditions:90-53.8-23
Altitude: 4750 meters
Australian C5 anti-corrosion dry cooler
Product NO.:HDVD-1091
SUS316L shell with high anti-corrosion fins
For places with high anti-corrosion requirements
Singapore explosion-proof dry cooler
Product NO.:HDFS380-0170
Medium:MEG50%
Design conditions:50-44-39
Design conditions:50-44-39
wooden package
Accessories or small fans will be packed in wooden boxes
Plastic wrap and wooden pallet
Packaging according to product size
Sea Freight Rail Transport Packing
we will discuss package plan with our customer to protect goods.
Contact us
7/24 hours online .Please feel free to contact us,we will reply you within 2 hours .
FAQ:
Q. Are you manufacturer?
A. Yes we are a air cooled heat exchanger manufacturer located in Jiangsu Province China.
Q. What products are you manufacturing?
A. air cooler/ dry cooler/condenser /Radiator ./OEM Coil / freezer
Q. What's your quality warranty?
A. One year guarantee.
Q.What's your shipping type?
A.The use of 20"GP or 40"HQ containers allows the installation to be done in the workshop to the maximum, thus saving installation time and costs.
Please feel free to contact us to make a plan for you! You can browse our website to download our design software.
