Manufacture price 8 12 15 inches cat dog animal pet vet veterinary portable multiparameter monitor for pet hospital clinic

Vet multi-para monitor

Features &Benefits:

1. Professional design for vet: Cats( Small)Dogs(Middle)/Horses(Large).

2. 12” color TFT display, high resolution: 800×600dpi;

3. Special NIBP board for vet, alarm range, and software.

4. Special accessories for vet:

3/5 lead ECG cable with vet limbs clip,

SpO2 sensor with tongue and ear clip,

NIBP cuff(original Suntech cuff 1#,2#,3#,4#,5#)

Rectum TEMP sensor

5. Separated parameter board: ECG module, NIBP module, SpO2 module;

6. Full touch-screen enables intuitive operation by clicking on the specific parameters or the waveform in real time, standard configuration includes the navigation knob.

7. SpO2 Pitch Tone Variation and Drug Dose Calculation;

8. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic

9. Standby mode for Energy saving and suspend monitoring;

10. 7-lead ECG waveforms display in phase;

11. Capture dynamic waveforms;

12. External storage: SD card slot enables memory extension(Optional);

13. Built-in rechargeable lithium battery, and battery volume checking,

14. AC power checking

15. Efficient resistance to interference of defibrillator and HF knife;

16. Networking capacity and TCP/IP networking platform enable abundant future upgrade

17. Time delay switch-off function keep the monitor data restart monitor;

18. Complete and flexible mounting solution for transportation and in-patient monitoring

Standard parameters: 3/5-lead ECG, SpO2,NIBP, TEMP,RESP.

Optional parameter: Touch Screen, Thermal Recorder, Masimo SpO2, Suntech NIBP,

                  2-IBP, EtCO2,

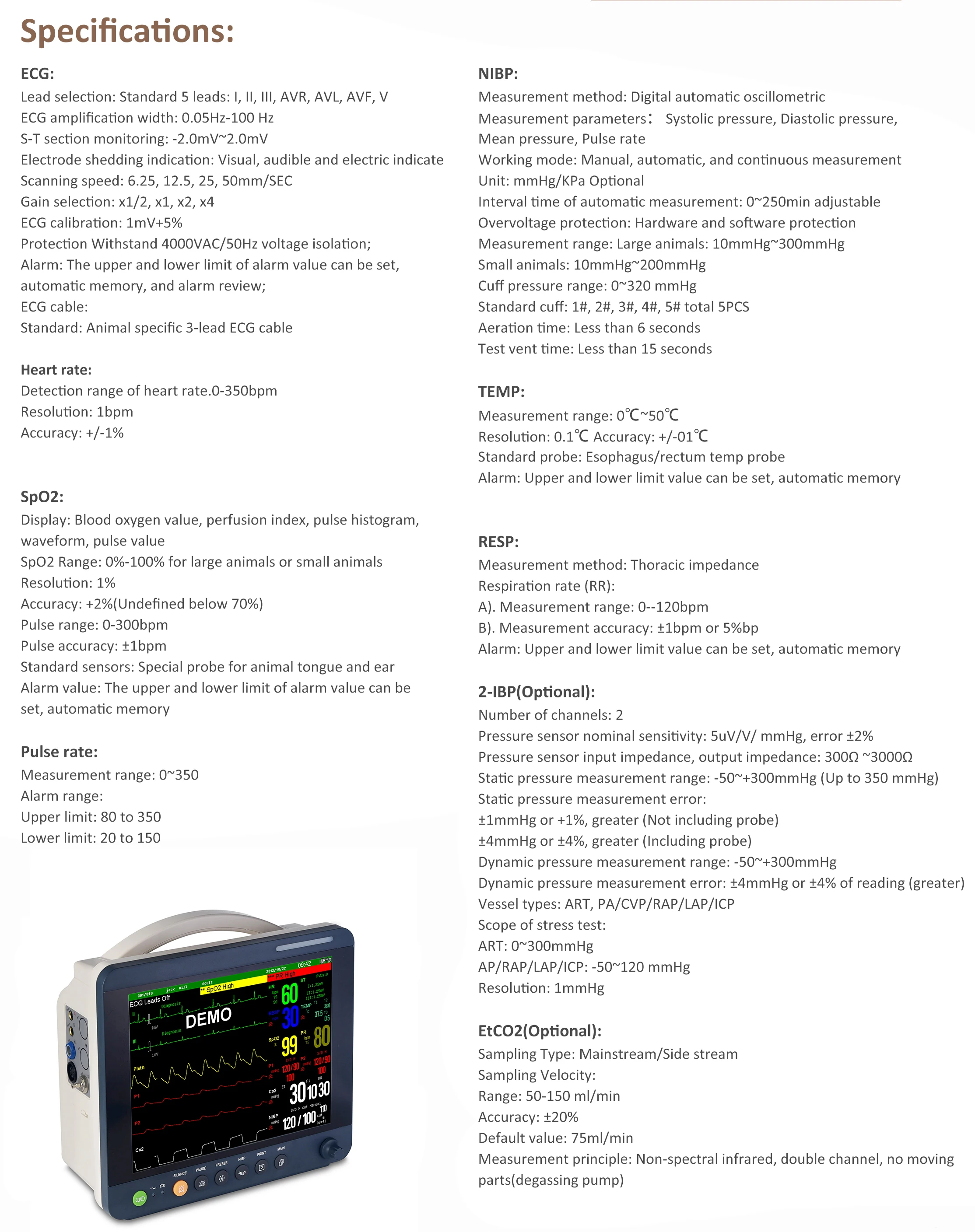

Performance Specifications

Display:       12”, color TFT

Resolution: 800×600dpi

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trace:             7 waveforms

Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s

Indicator:          Power/battery indicator light

QRS beep and alarm sound

Battery:           Rechargeable lead acid cell, 14.8V/2200A

Max.24 hour for charging, 4 hours for continue working

Trend:             Parameter graphic and tabular trends:

5s/piece,8 hours;

1min/piece,168 hours(24h×7days)

5min/piece,1000 hours.

Storage:             NIBP: 1000 groups

Alarm: 200 groups

Alarm:         User-adjustable High, Medium and Low limits 3-level Audible and visual alarm

Networking:         Connected to central monitoring system

TCP/IP netting platform

Recorder:          Build-in, thermal array

Plethysmogram caveform: 3 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 12.5, 25, 50mm/s(adjustable)

Recording type:     Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Standard parameter:

ECG:

SPO2

NIBP

RESPIRATION

TEMPERATURE

IBP

EtCO2( Sidertream CO2)

EtCO2 (mainstreaam CO2)

please click here to get latest price!

Saturn medical is a professional global provider of medical devices,and we have been focusing on medical field for more than 10 years.

We are committed to offering medical devices with competitive price,high quality and good after-sale service.

Our business covers more than 90 countries.

Our products, including ultrasound machine,patient monitor,centrifuge,sterilizer,hematology analyzer, chemistry analyzer,veterinary products,comply with ISO or CE certification.

We can also provide OEM and ODM service.

Our mission is “providing the whole world with the best medical devices”.

Packing

Packed in carton box.

Delivery

Goods could be shipped by express,by air or by sea,depends on customers‘ requirements.

Lead time

Our normal lead time is within 7-14 days after payment.

Every year,we will attend the exhibitions all over the world,

Sincerely invite you to visit our booth.

 1.What's your advantages ?
1) We only focus on medical field,more than 10 years in medical experience.

2) Our business covers more than 90 countries.

3) We offer you competitive price,our aim is to achieve win-win.

4) 24 hours online service for you.

5) On time delivery

2.What certifications your products have.

CE ,ISO,FSC

3. Do you accept OEM service.

Yes.

4.What is your lead time?

Order quantity <5 sets: about 7-14 days after receipt of 100% T/T payment.
Mass order:about 15 days after receipt of 50% T/T deposit payment.

5. How is your warranty?

1-2 years depends on different machines. Lifetime maintain.

6.What about your after-sale service?

1) All products will be strictly Quality Checked and be well packed before shipping.

2)We have professional after sales service team,experienced engineers to help you solve any problem you meet

7. Can you offer the technical support, online or site training ?
We will offer technical support like operating manual, operating videos For some machines, we can offer you oversea training.

please click here to get latest price!
