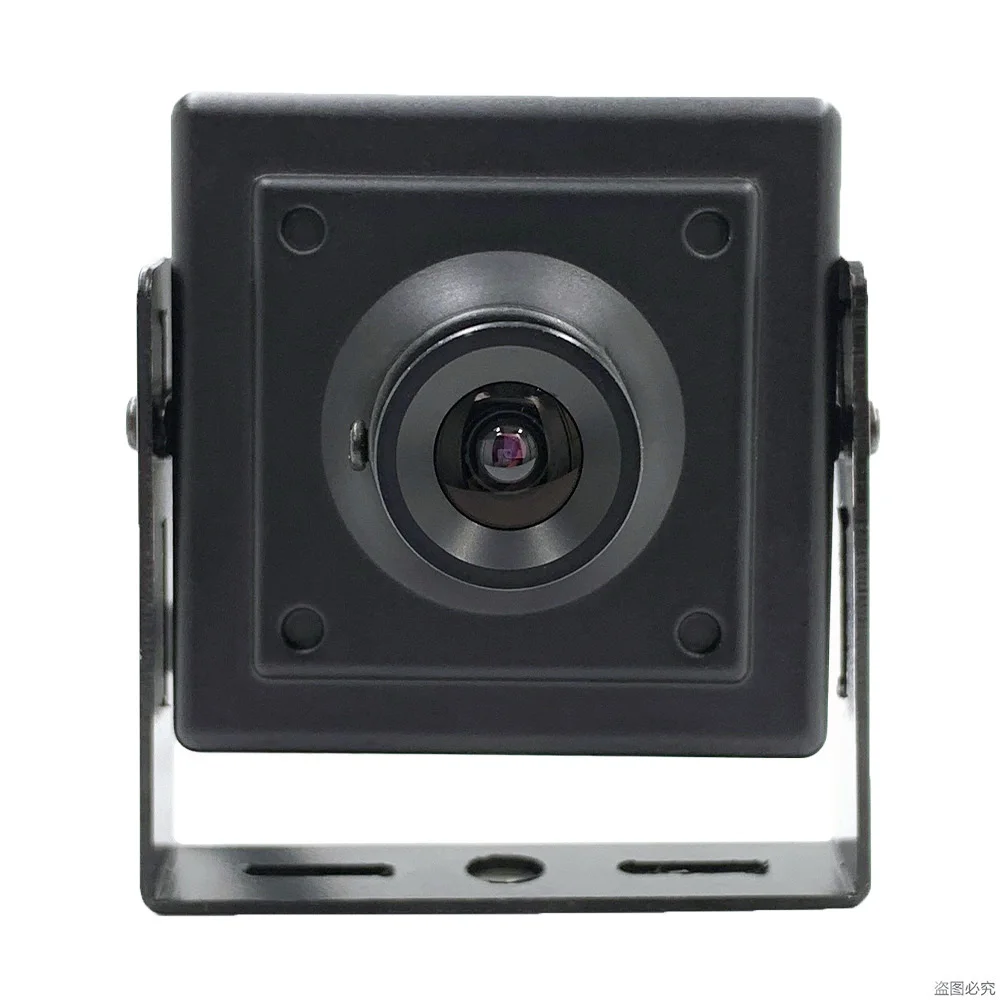

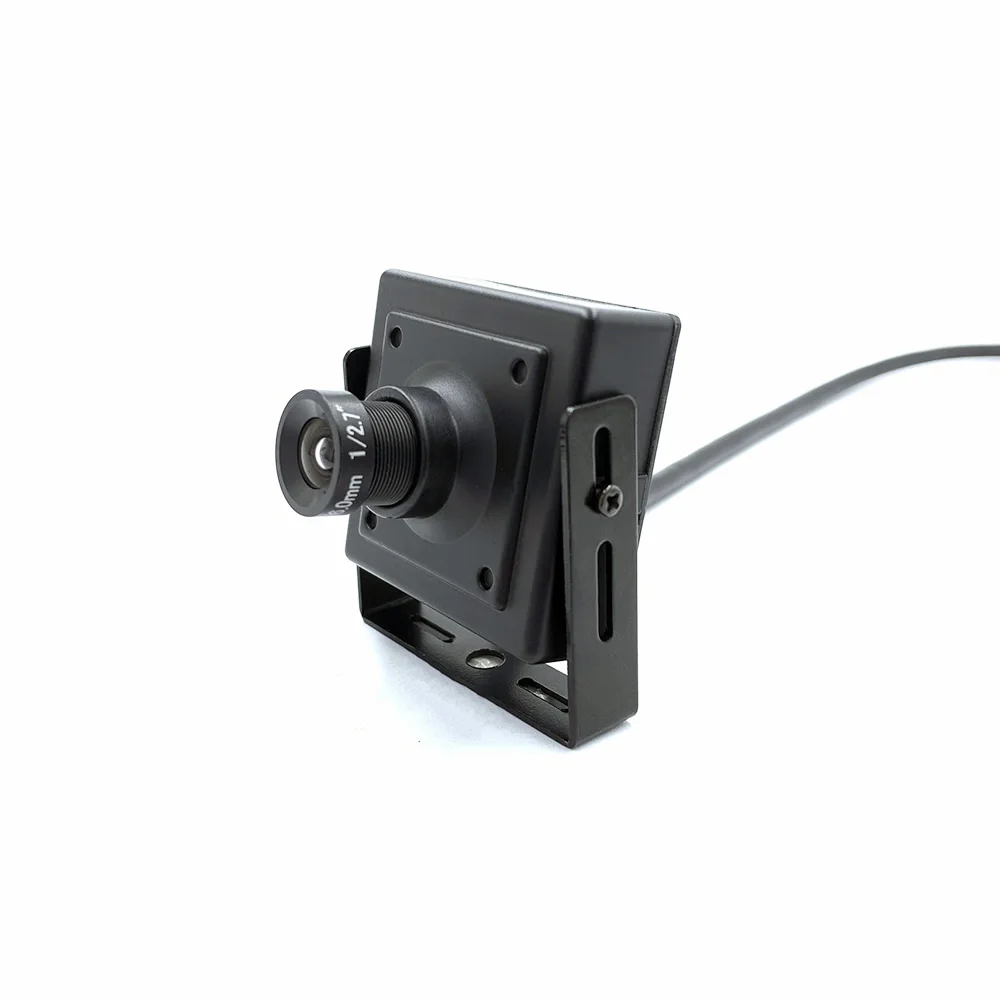

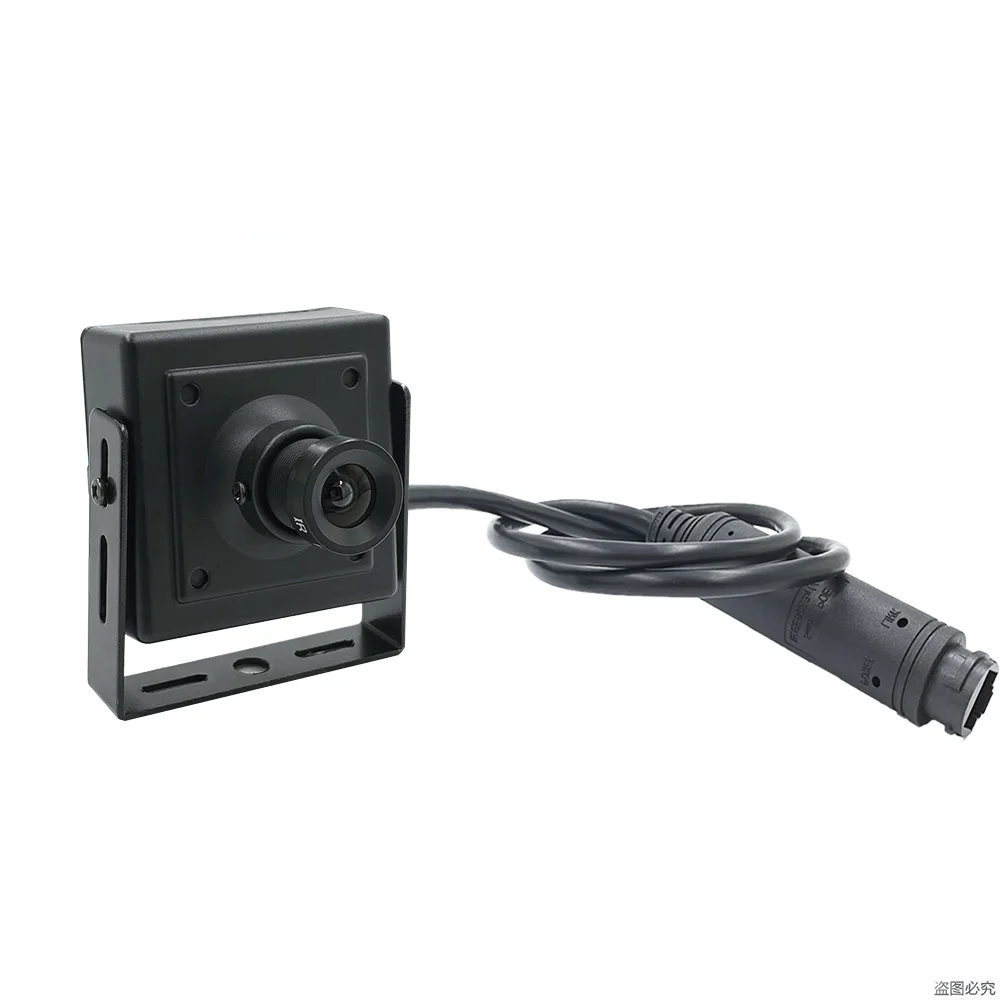

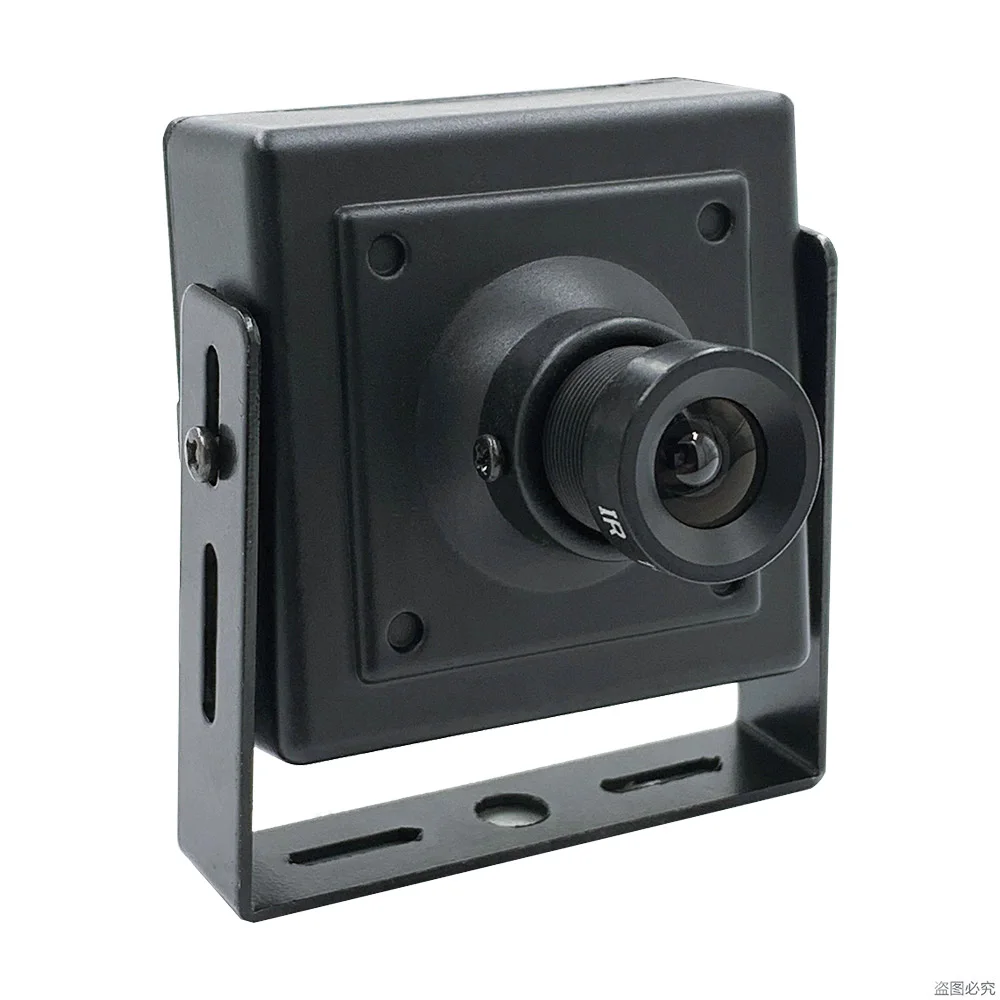

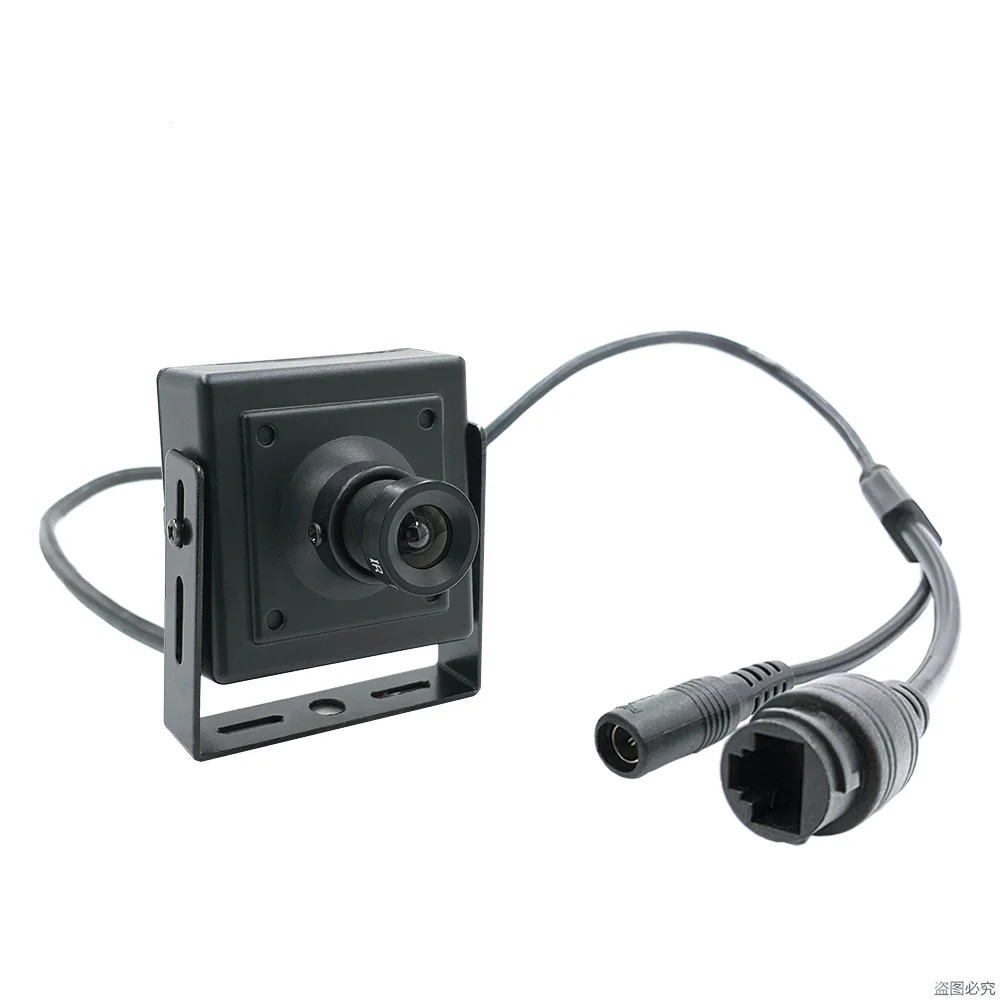

8MP Miniature IP square camera Ex View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree
8MP Miniature IP square camera Ex-View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree
8MP Miniature IP square camera Ex-View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree
8MP Miniature IP square camera Ex-View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree
8MP Miniature IP square camera Ex-View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree
8MP Miniature IP square camera Ex-View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree
8MP Miniature IP square camera Ex-View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree

8MP Miniature IP square camera Ex View 0.001lux low illumination H.265 3840*2160 Pixel 15fps 2.8/3.6/6/8mm board Lens 60 Degree

Share on (1600765490444):


Price:$39.98 - $45.98

Quantity:


Product Overview

Description



Products Description


Order Symbol
HDV-HIP8E1-S40-F1.55 8.0MP IP Camera with 1.55mm fisheye Lens
HDV-HIP8E1-S40-F1.7 8.0MP IP Camera with 1.7mm Fisheye Lens
HDV-HIP8E1-S40-F1.8 8.0MP IP Camera with 1.8mm Fisheye Lens
HDV-HIP8E1-S40-P3.7 8.0MP IP Camera with 3.7mm Lens
HDV-HIP8E1-S40-L2.1 8.0MP IP Camera with 2.1mm Wide Angle Lens
HDV-HIP8E1-S40-L2.5 8.0MP IP Camera with 2.5mm Wide Angle Lens
HDV-HIP8E1-S40-L2.8 8.0MP IP Camera with 2.8mm Lens
HDV-HIP8E1-S40-L3.6 8.0MP IP Camera with 3.6mm Lens
HDV-HIP8E1-S40-L4.2 8.0MP IP Camera with 4.2mm Lens
HDV-HIP8E1-S40-L6 8.0MP IP Camera with 6mm Lens
HDV-HIP8E1-S40-L8 8.0MP IP Camera with 8mm Lens
HDV-HIP8E1-S40-L12/16/30 8.0MP IP Camera with 12/16/30mm Lens

Also welcome to discuss with us about your request details. we can supply as per your needs like Size, Lens, Cable, Resolution, Functions etc.

Feature
◆8MP HD resolution, HD images,38mm*38mm; 1/3" CMOS
◆Support 2D/3D noise reduction,digital wide dynamic;
◆Advanced H.265 video compression,Super low rate,high definition quality of image;
◆Support ONVIF; Access third party;
◆Support various mobile monitoring(iPhone,Android);
◆3.7mm Fixed Lens; All kinds of Optinal Lens as per your needs.

Application
Camera design for Car and ship control, Electronic equipment, Oil field equipment, Industrial equipment, Remote site monitoring, Environmental monitoring. Mini shell, Easy for installing, USB Cable length optional.

Used for all kinds of machine as below:
Espencially for Kiosk, VTM, CRS, ATM or other Intelligent machine.
Machinery equipment, All-in-one machine, POS Equipment, STB, Smart box TV BOX, Advisement player, LED display, Automatic Vending Machine, Safety Box, Notebook, Video Door Phone, MID, Tablet External, Evaluator, Medical Equipment, On-the-spot Law Enforcement, Door bell and Button system, Cat-eye system, Simple security system, Teaching system, Interactive system, Automobile data
recorder. Project video capture, Credit card machine, Attendance machine, Voting system, High speed video shooting Device, Exam system, Driving learning system, Industrial camera, Biological microscope, Box inside surveillance, Micro HD surveillance, Endoscope, Medical auxiliary equipment etc.






Technical Parameter


Model
HDV-HIP8E1-S40-L6
Sensor
8.0M 1/3" CMOS sensor ,color 0.01Lux@F1.2, black/white 0.001Lux@F1.2
Video compression
H.265/H.264, Support dual stream
Image output
Main stream: 3840* 2160,1-15FPS/S ,  2888*1616，1-25FPS/S, 2560*1440、2304*1296、1920*1080、1280*720，1-30 FPS/S
Sub stream: 704*576、640*480、640*360、352*288，1-30FPS/S
S/N
>50dB(AGC Off)
Lens
6mm Board Lens; All kinds of Optinal Lens as per your needs.
Noise reduction
2D/3D Noise Reduction.
Wide dynamic
Digital Wide dynamic >80dB
Audio
Optional
Audio interface: 1ch input,support sound pick-up input;1ch output,support Speaker)
Network interface
1*RJ45 10/100M adaptive Ethernet port;support TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS. DHCP、FTP. NTP、PPPOE、SMTP、UPNP etc
Video Coding Compression
128Kbps-8192bps continuous adjustable
Subtitle Overlay
Support channel name、Date、 Code stream information overlay,Overlay place adjustable
PTZ
N/A
Motor interface
N/A
Alarm I/O
N/A
WIFI interface
N/A
IO Port
ICH Reset
SD Card
N/A
Reliability
Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysis
No
Storage Method
Manual、Auto ( cycle、fixed time、alam switch、motion detection )
ONVIF
Support ONVIF 2.6
Alarm Transfer
Browse, management software
Browser
Support IE6.0 and above browser( inset Web Server),support 10 visitors in the same time(MAX)
Data Record
Video ,  Picture
Mobile monitoring
Support multiple mobile monitoring（iOS，Android）
Power
DC12V/2A input, power consumption:≤3W,
Dimension
40*40*26mm
Other
Support POE power supply (optional)
