18650 Lithium Ion Battery Pack 6S2P 22.2V 4000mAh 4400mAh 5000mAh 5200mAh 5800mAh 6400mAh 6700mAh 7000mAh Li Ion Batteries
- Category: >>>
- Supplier: Guangdong Sunbang Technology Co. Ltd.
Share on (1600765638349):
Product Overview
Description
18650 Lithium Ion Battery Pack 6S2P 22.2V 4000mAh 4400mAh 5000mAh 5200mAh 5800mAh 6400mAh 6700mAh 7000mAh Li Ion Batteries
Chinese lithium battery pack manufacturer.
ISO9001:2015 certified factory, passed UL, TUV audit.
Products Description
Electrical Properties | ||
Nominal Voltage | 22.2V | |
Nominal Capacity | 6700mAh | |
Energy | 148.74Wh | |
Internal Resistance | 20≤mΩ | |
Cycle Life | 1000 Times | |
Self-discharge | 3% per month | |
Charging | ||
Charging Voltage | 25.2V | |
Charging Mode | AC-DC | |
Charging Current | 1.3A | |
Maximum Charging | 6.7A | |
Discharging | ||
Discharging Current | 1.3A | |
Maximum Continuous Discharging Current | 6.7A | |
Peak Current | 20A(ms) | |
Discharging Cut-off Voltage | 15V | |
Environment | ||
Charging Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Discharging Temperature | -20℃ to 60℃(-4℉ to 140℉) | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) | |
Dustproof and Waterproof rating | ||
Physical | ||
Configuration | 6S2P | |
Battery Cell | 18650 3.7V 3350mAh | |
Case | PVC | |

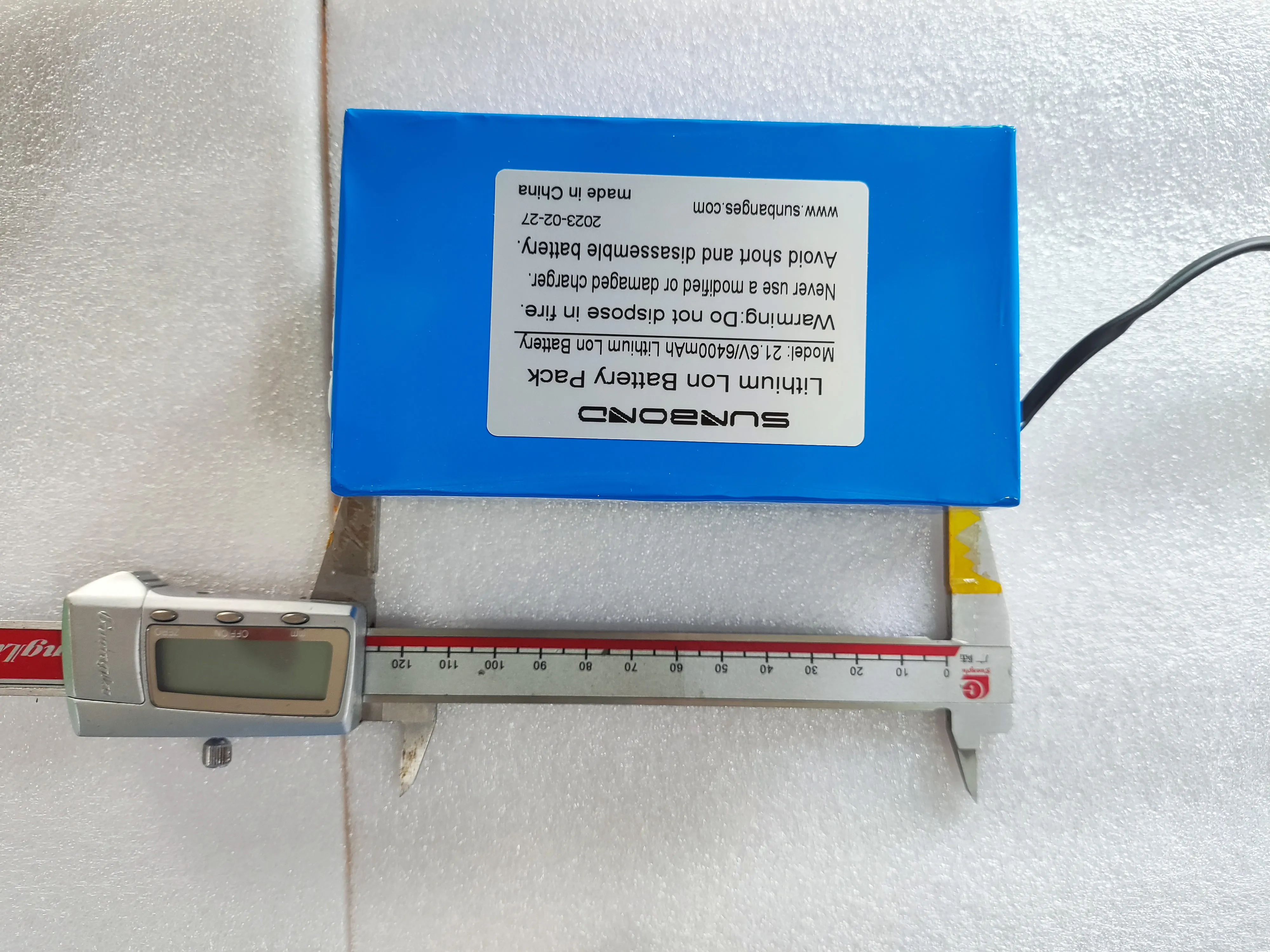

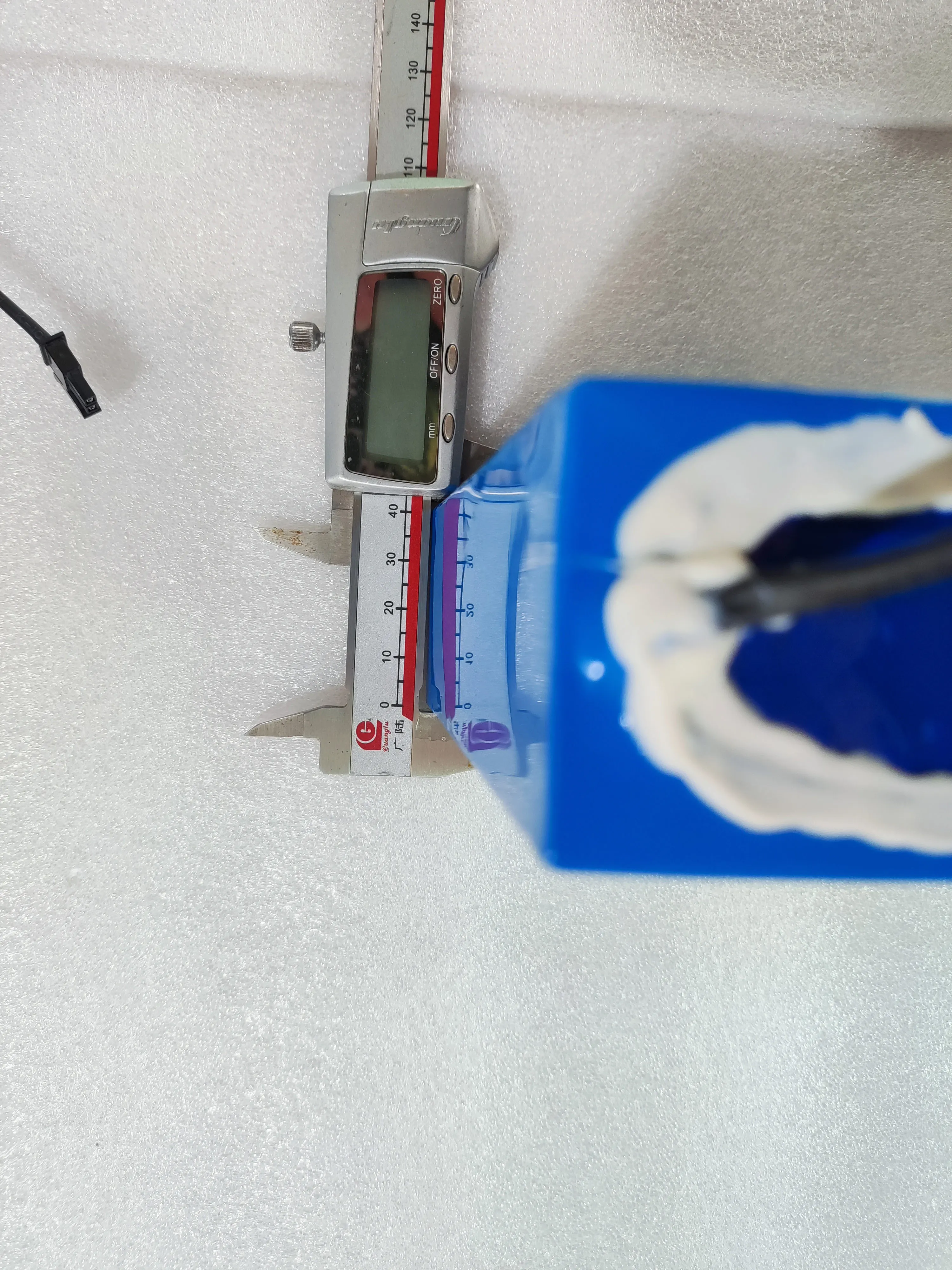

Dimension | 120*68*40mm | |
Weight | 0.8KG | |
Terminal | Custom | |
BMS | ||
Overcharge Protection | Yes | |
Overdischarge Protection | Yes | |
Overcurrent Protection | Yes | |
Short circuit Protection | Yes | |
Balanced cell | Yes | |

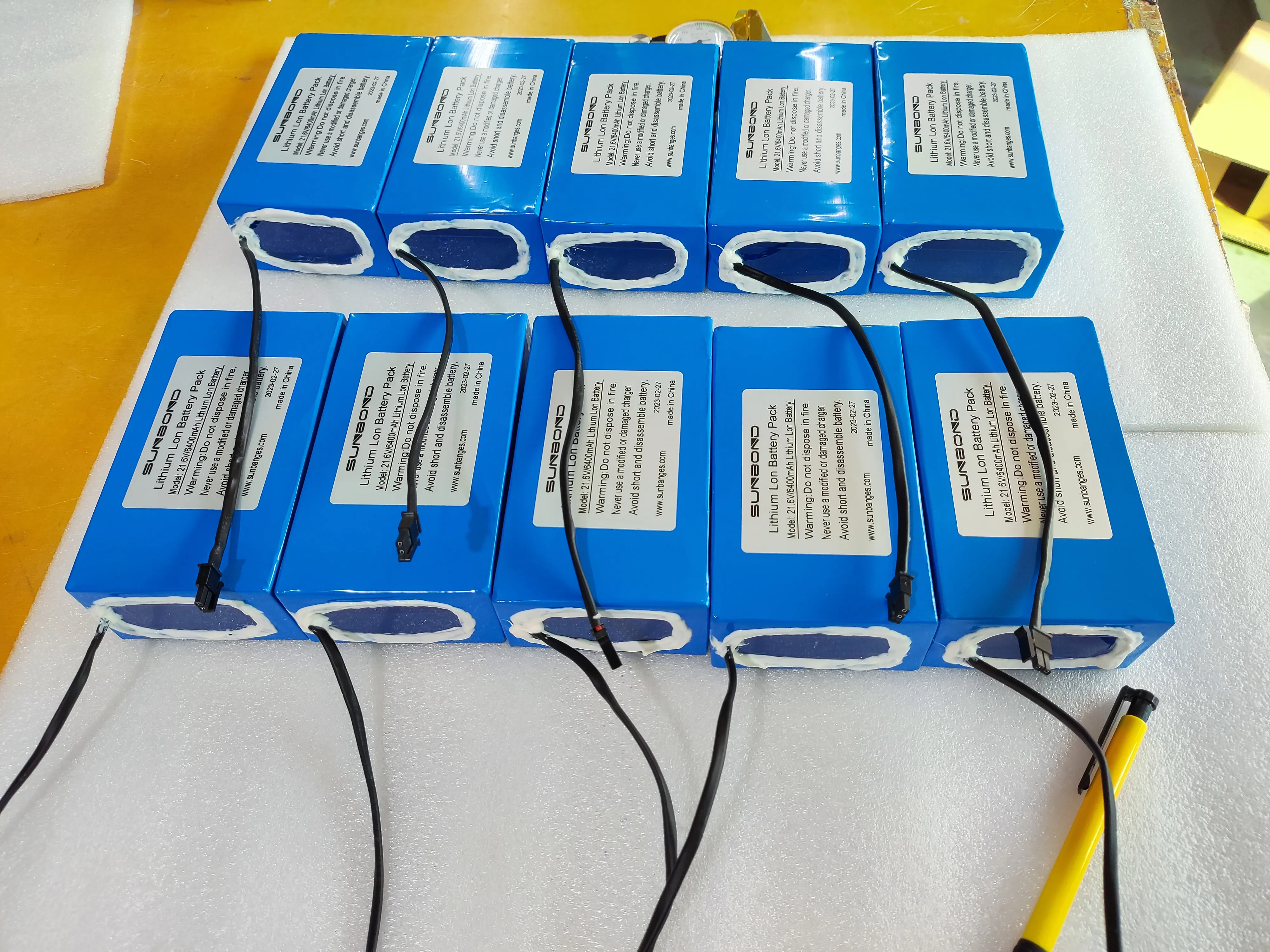

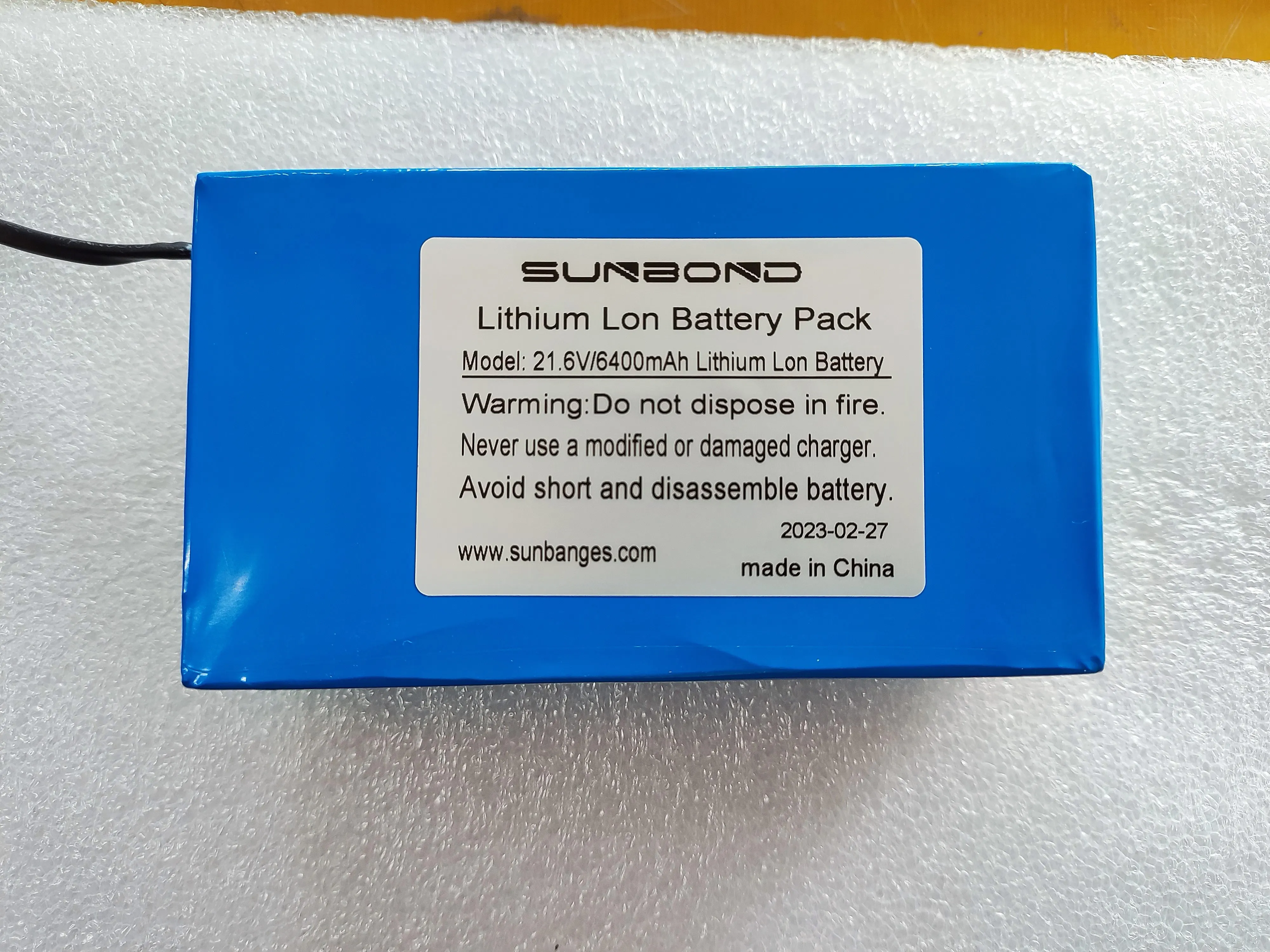

The 22.2V 6700mAh battery pack is assembled by 12 pcs 18650 3.7V 3350mAh cells, with built-in BMS, which has functions such as overcharge protection, over discharge protection, overcurrent protection, short circuit protection, and balanced cells.
Under the existing size, batteries with different capacities can be customized, 4000mAh, 4400mAh, 5000mAh, 5200mAh, 5800mAh, 6000mAh, 6400mAh, and 7000mAh are optional.
Under the existing size, batteries with different capacities can be customized, 4000mAh, 4400mAh, 5000mAh, 5200mAh, 5800mAh, 6000mAh, 6400mAh, and 7000mAh are optional.
Lithium battery packs can be customized according to your project, with different voltages, capacities, sizes, connectors, cable lengths, discharge currents, BMS...
