DESCRIPTION

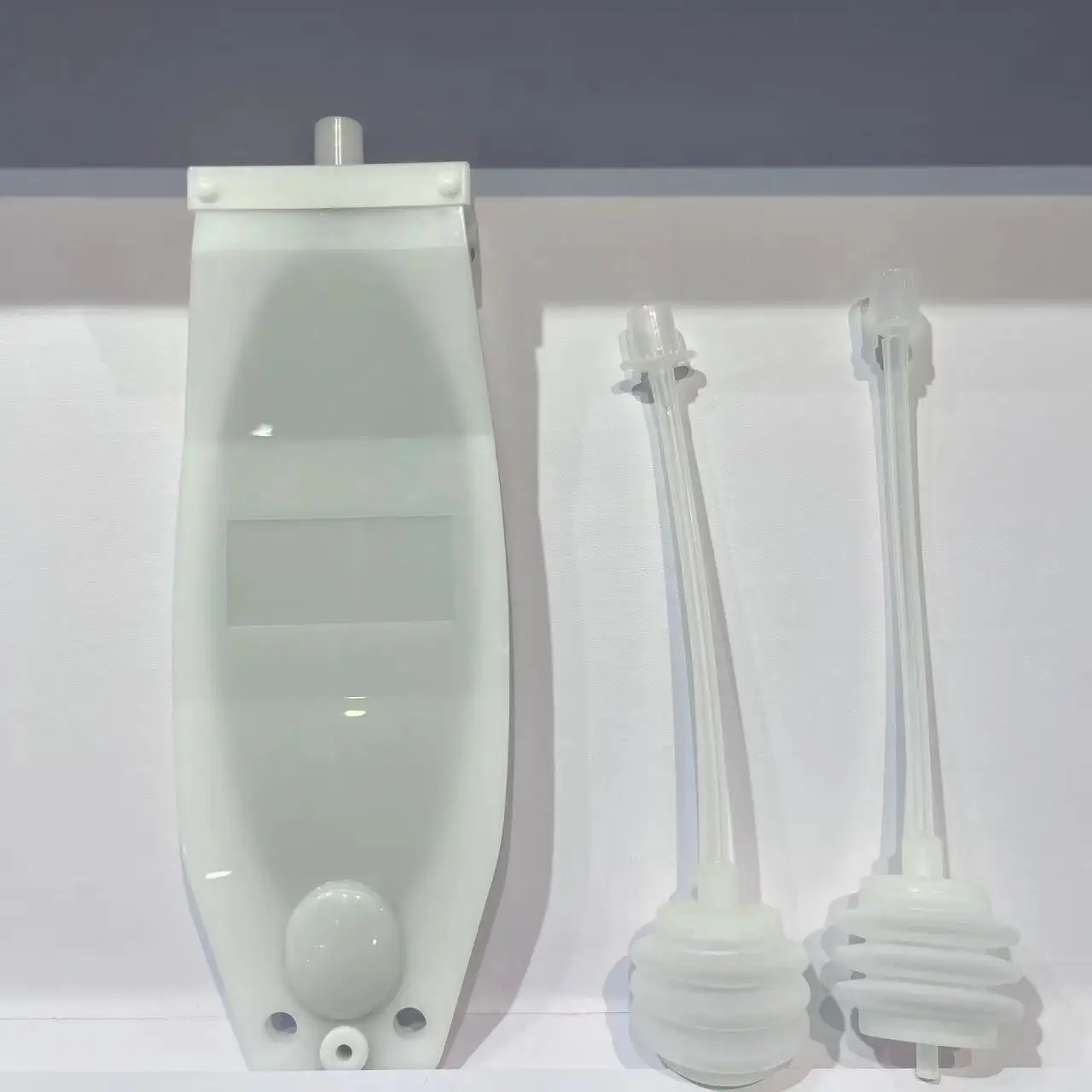

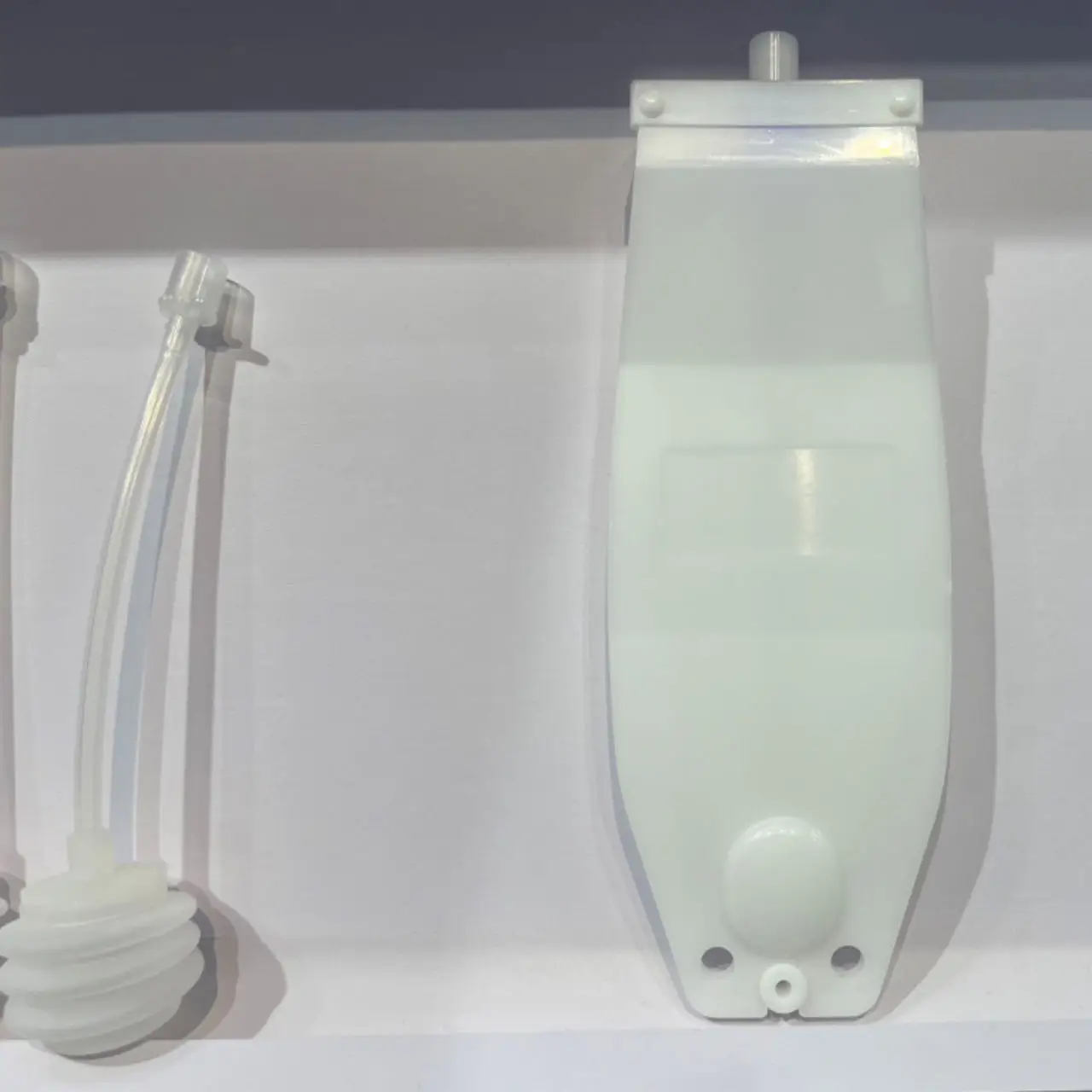

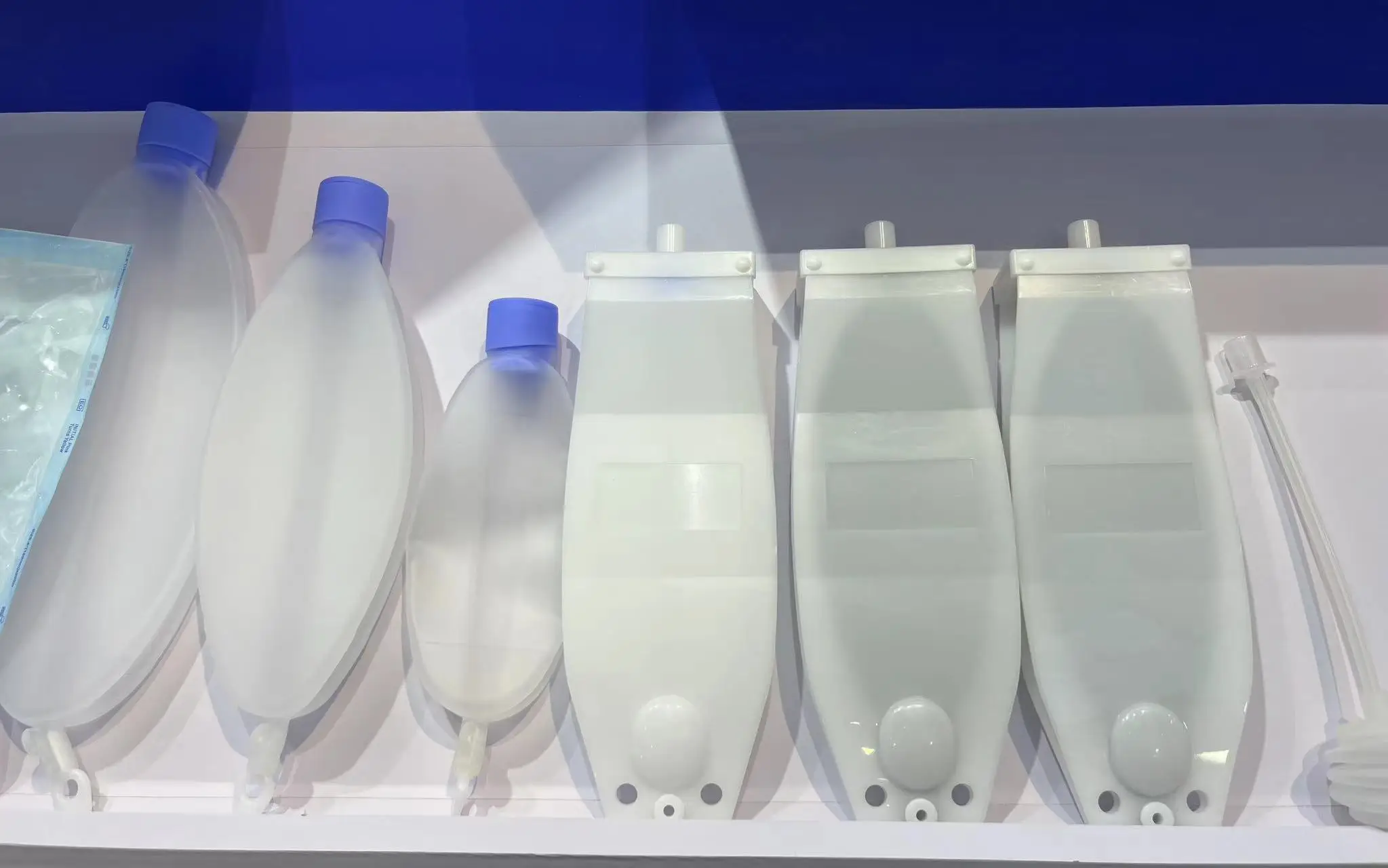

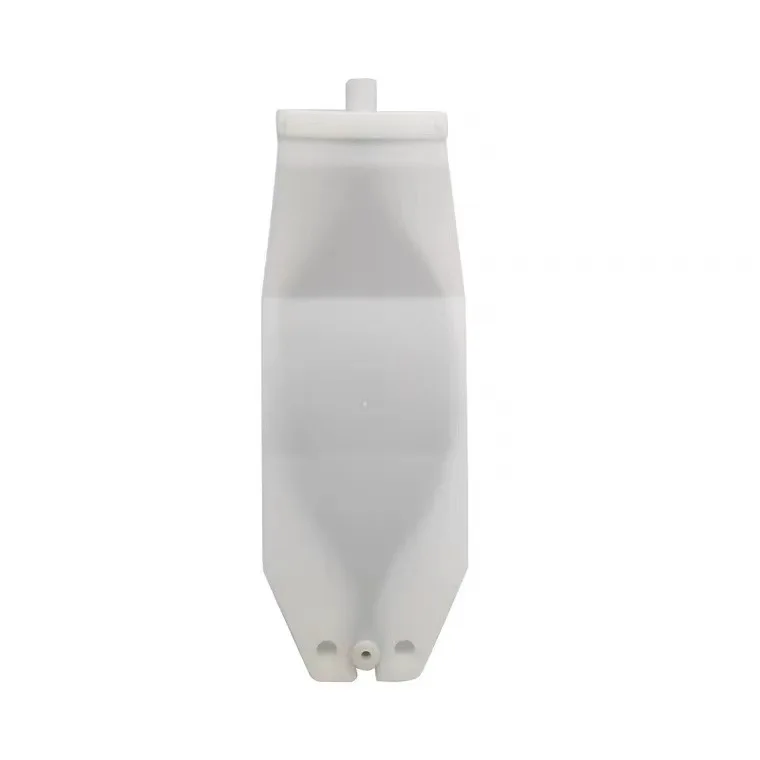

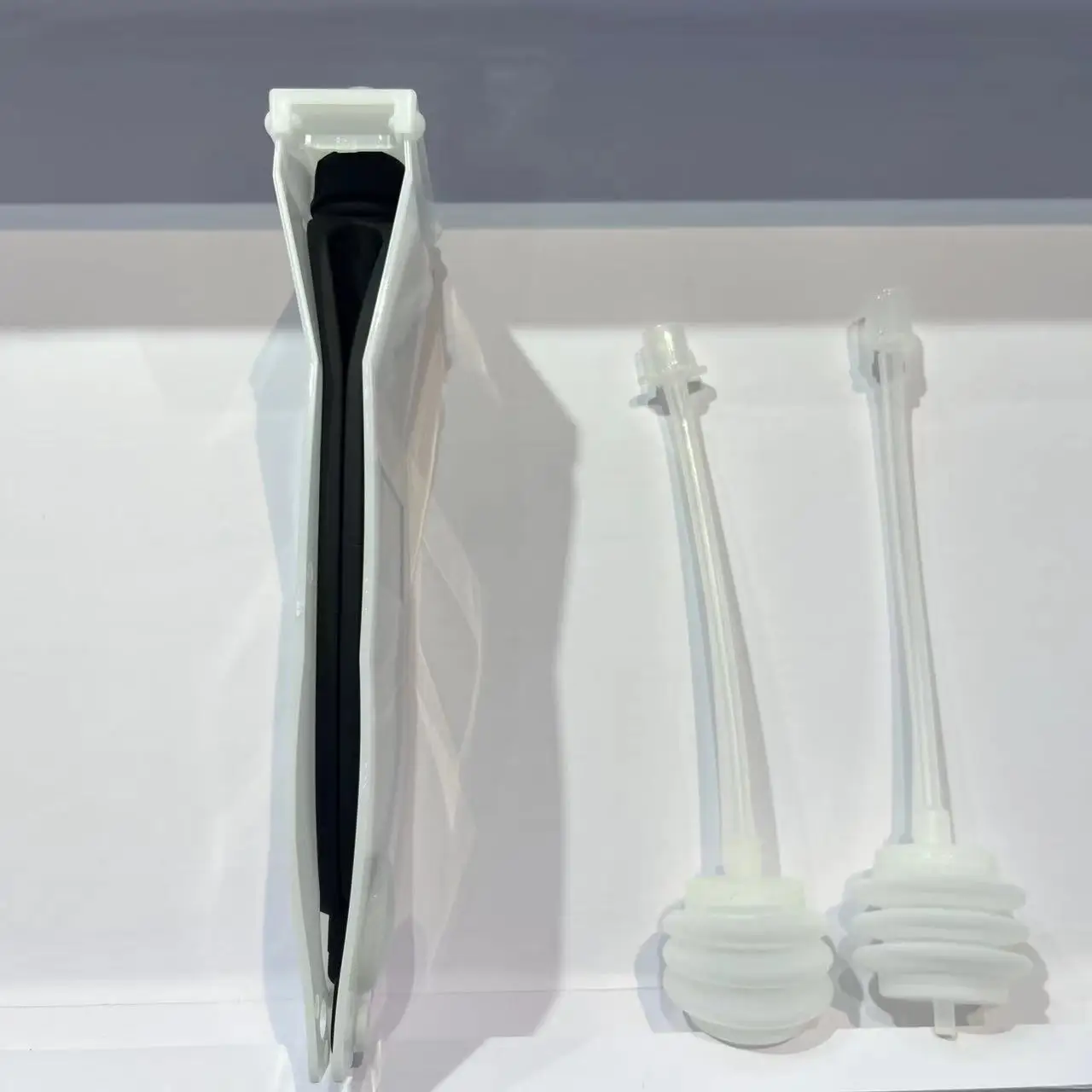

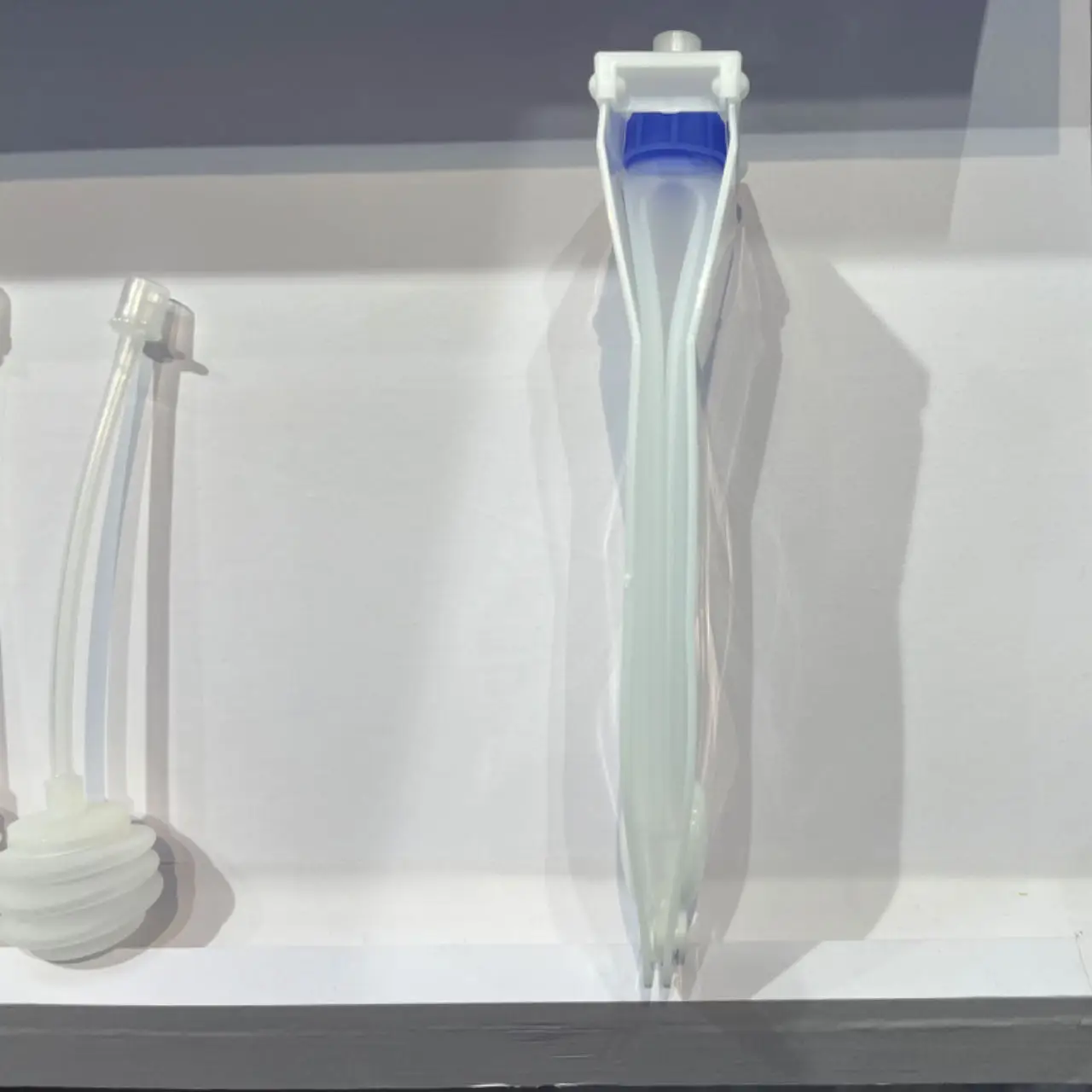

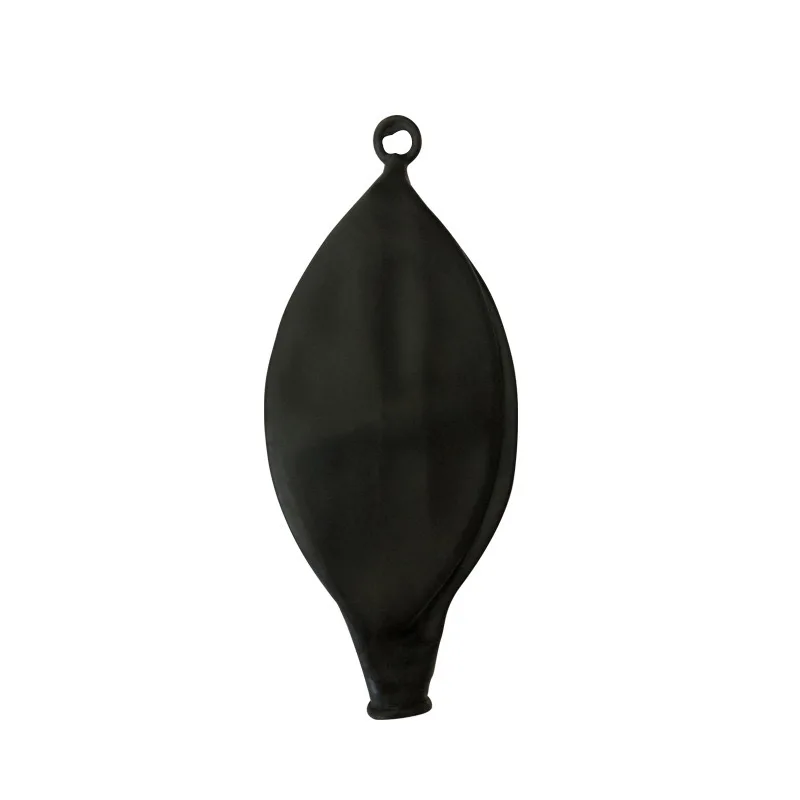

Adult Splint Test Lung / Simulated Tung / Model Lung for Anesthesia Machine and Ventilator
Volume: 1 L
Material: Latex/Latex-free (Silicone)

◆The Volkswagen economical breathing bag is used to provide artificial respiration equipment.
◆Equipped with: standard 15.5F quick connector (non blocking and no air leakage design is lower than inflation impedance and easy to operate) .
◆ Reuse can reduce the test cost.






TEST ITEMS
◆ APPEARANCE
The simulated lung used for anesthesia machine should have the same color and no processing defects such as eye leakage, thin, spots, stains, burrs, etc.

◆ CAPACITY
The actual capacity of the simulated lung used for anesthesia machine shall be within ± 15% of the nominal value.

◆ LEAKAGE
The leakage under the pressure of (3 ± 0.3) kPa applied internally shall not exceed 10mL/min.

◆ CONNECTOR
The splint connector for simulating lung used in anesthesia machine shall meet the requirements of 15mm outer cone connector in YY/T1040.1-2015.

◆ TAIL RING
Length shall not be less than 20mm.

◆ CONNECTION FIRMNESS
Each connection part of the simulated lung used for anesthesia machine shall be able to withstand 15N static tension for 15s without falling off or breaking.

◆ RESISTANCE
20mbar/L/s ± 15%. (100L/min)

◆ COMPLIANCE
25mL/mbar ± 15%. (Vt=500mL，PEEP=0mbar)

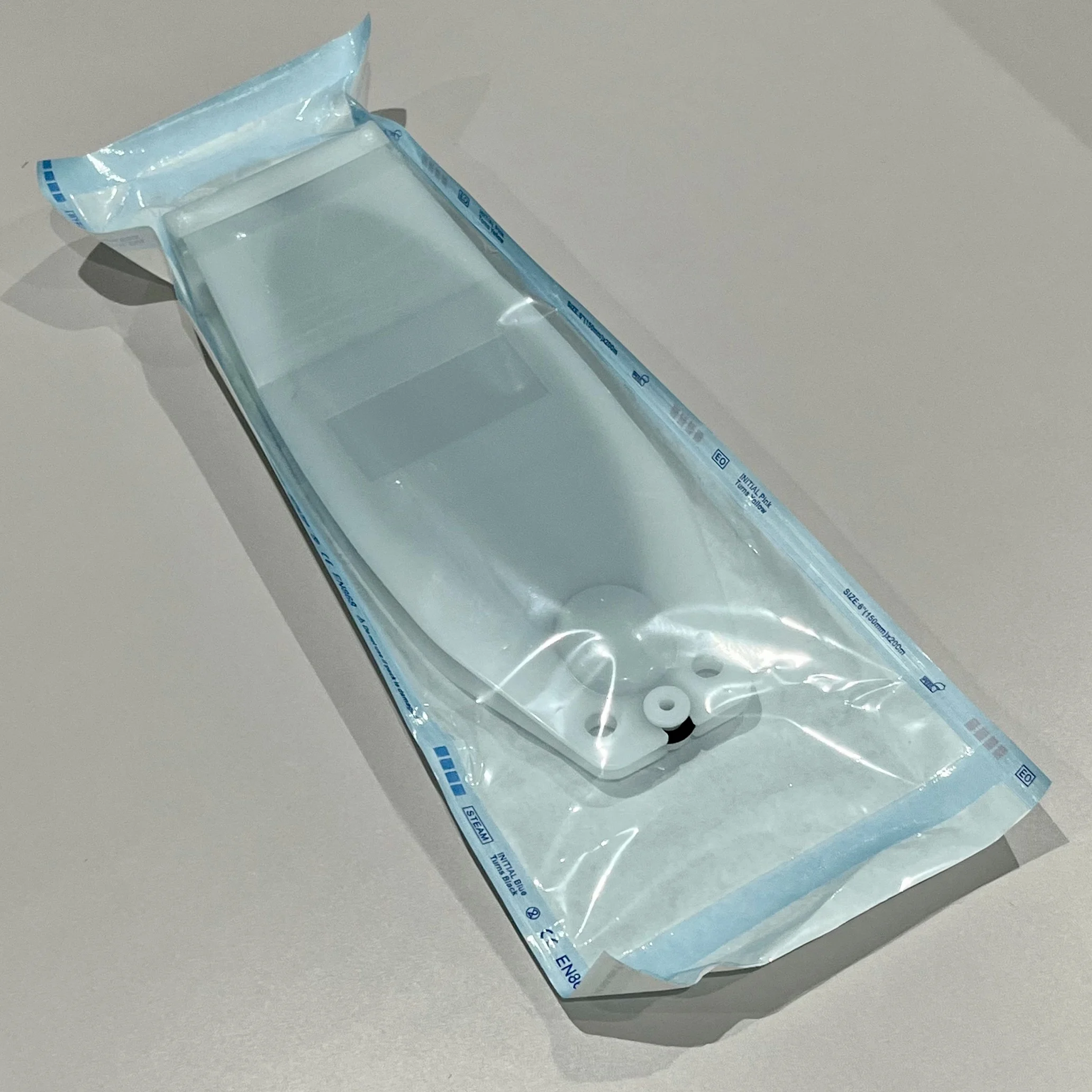

PACKAGE






Company Profile




Application




Certificate

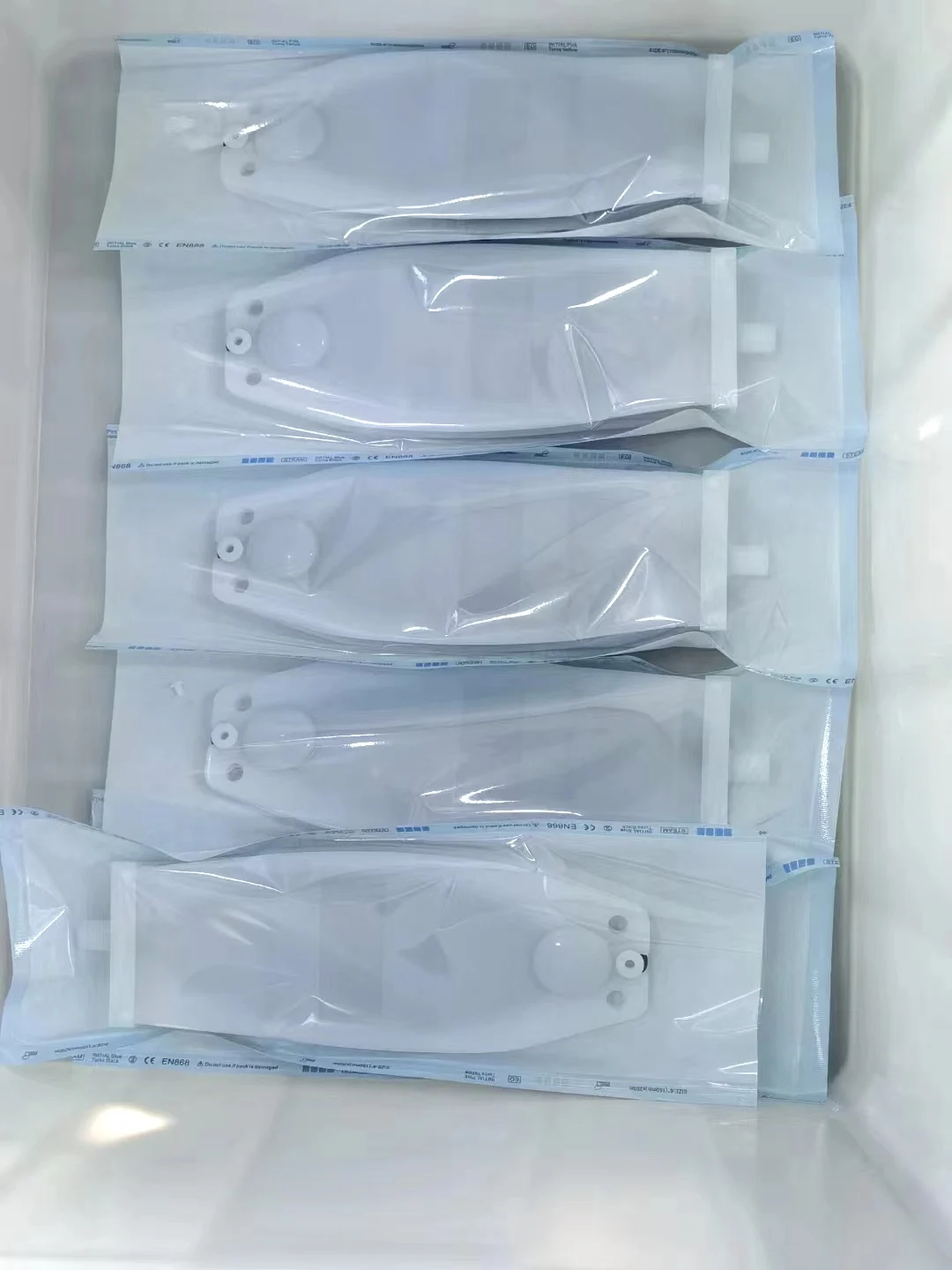

Sample Display




Logistics Mode




FAQ




Q1.Can I get some samples before placing a formal order?
A: We are honored to send you our samples, please contact us for more details.

Q2.Can you do custom-made?
A: OEM, ODM are all available. Welcome to contact us for your customized requirements such as color, printed logo, packaging and etc,

Q3.How about the delivery time?
A: (1)Normally, sample orders will be shipped within 3 days.
(2)Normally, bulk orders will take 10-25 days to ship. Based on the quantity you need and our factory's scheduling.

Q4.How about the shipping?
A: (1)If you have a shipping forwarder in China, it usually takes 2-3 days for the goods to be delivered.
(2)If we arrange for the shipment to your address:
◆For sample order, it will be shipped by express, such as FedEx, UPS, DHL and etc or other designated express companies. It always take 5-9 working days to arrive;
◆ For bulk order, it can be shipped by sea and always take 1-2 months to arrive.

Q5.How about your service?
A: (1)Any Inquiries will be replied within 12 hours.
(2)Professional in handling requirements & Customer-centered service.
(3)All products will be strictly quality checked and well-packed before shipping.
Any other questions, please feel free to contact us!
