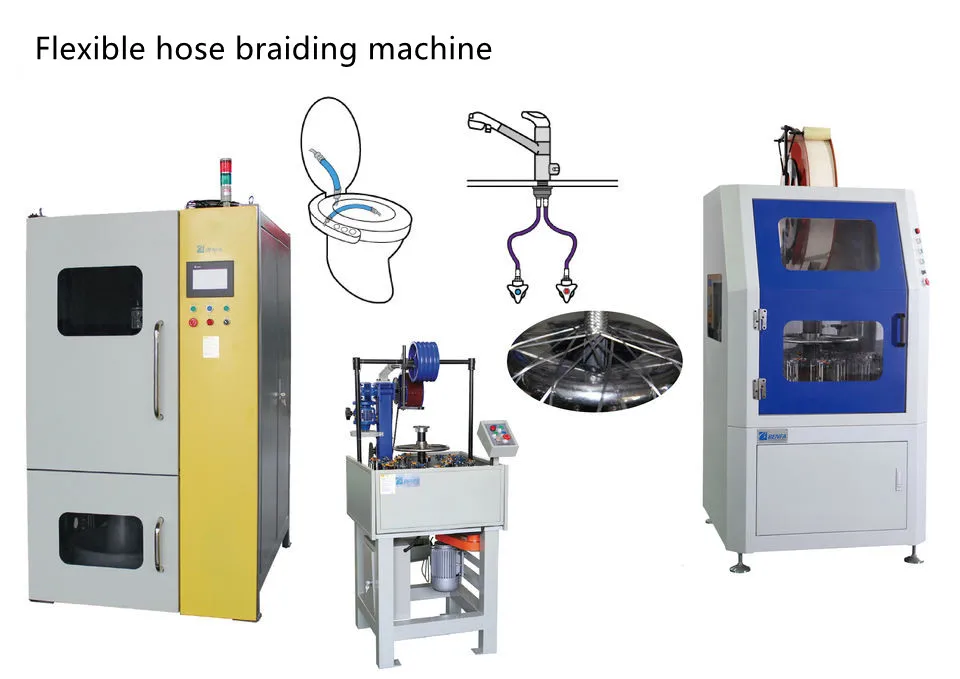

CE high speed 16 24 36 48 spindles vertical type flexible hose braiding machine for steel wire Polyester yarn
- Category: >>>
- Supplier: Greenland(Xiamen) Technology Co. Ltd.
Share on (1600766536261):
Product Overview
Description
Product Description

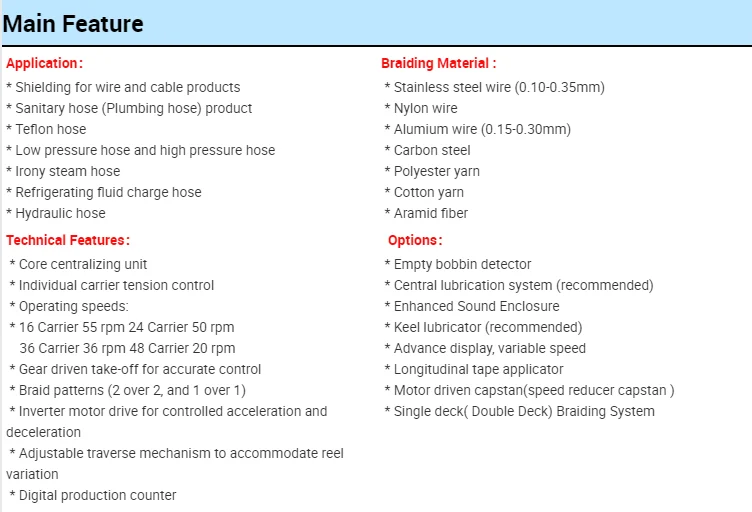

Main Feature
Application：
* Shielding for wire and cable products

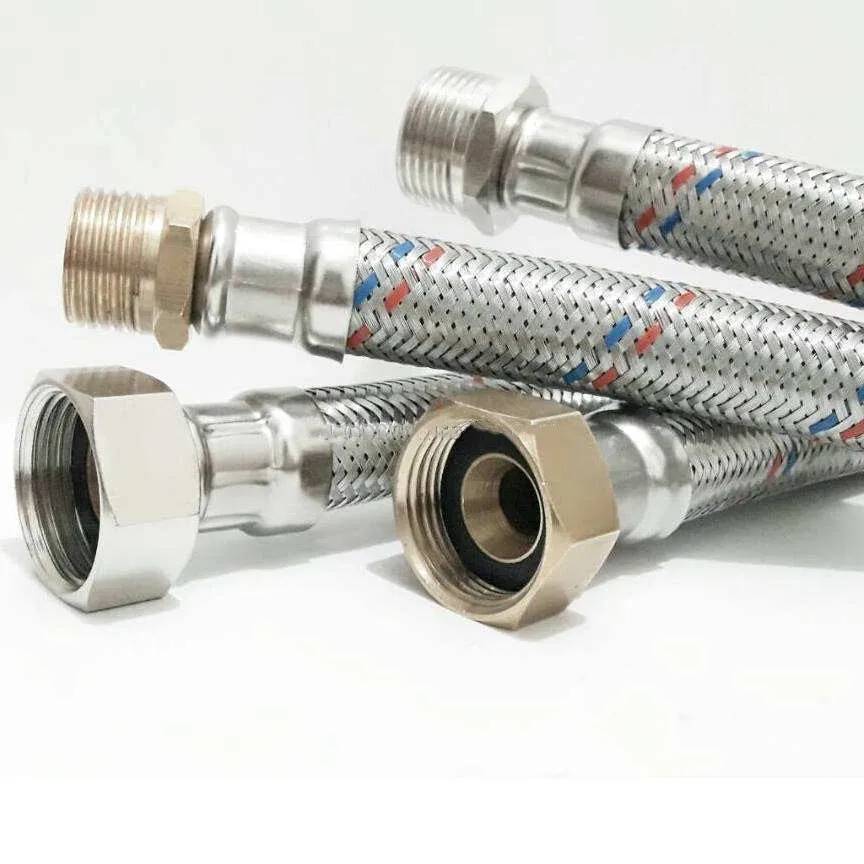

* Sanitary hose (Plumbing hose) product
* Teflon hose
* Low pressure hose and high pressure hose
* Irony steam hose
* Refrigerating fluid charge hose
* Hydraulic hose
* Sanitary hose (Plumbing hose) product
* Teflon hose
* Low pressure hose and high pressure hose
* Irony steam hose
* Refrigerating fluid charge hose
* Hydraulic hose
Braiding Material :
* Stainless steel wire (0.10-0.35mm)
* Nylon wire
* Alumium wire (0.15-0.30mm)
* Carbon steel
* Polyester yarn
* Cotton yarn
* Aramid fiber
* Nylon wire
* Alumium wire (0.15-0.30mm)
* Carbon steel
* Polyester yarn
* Cotton yarn
* Aramid fiber
Technical Features：

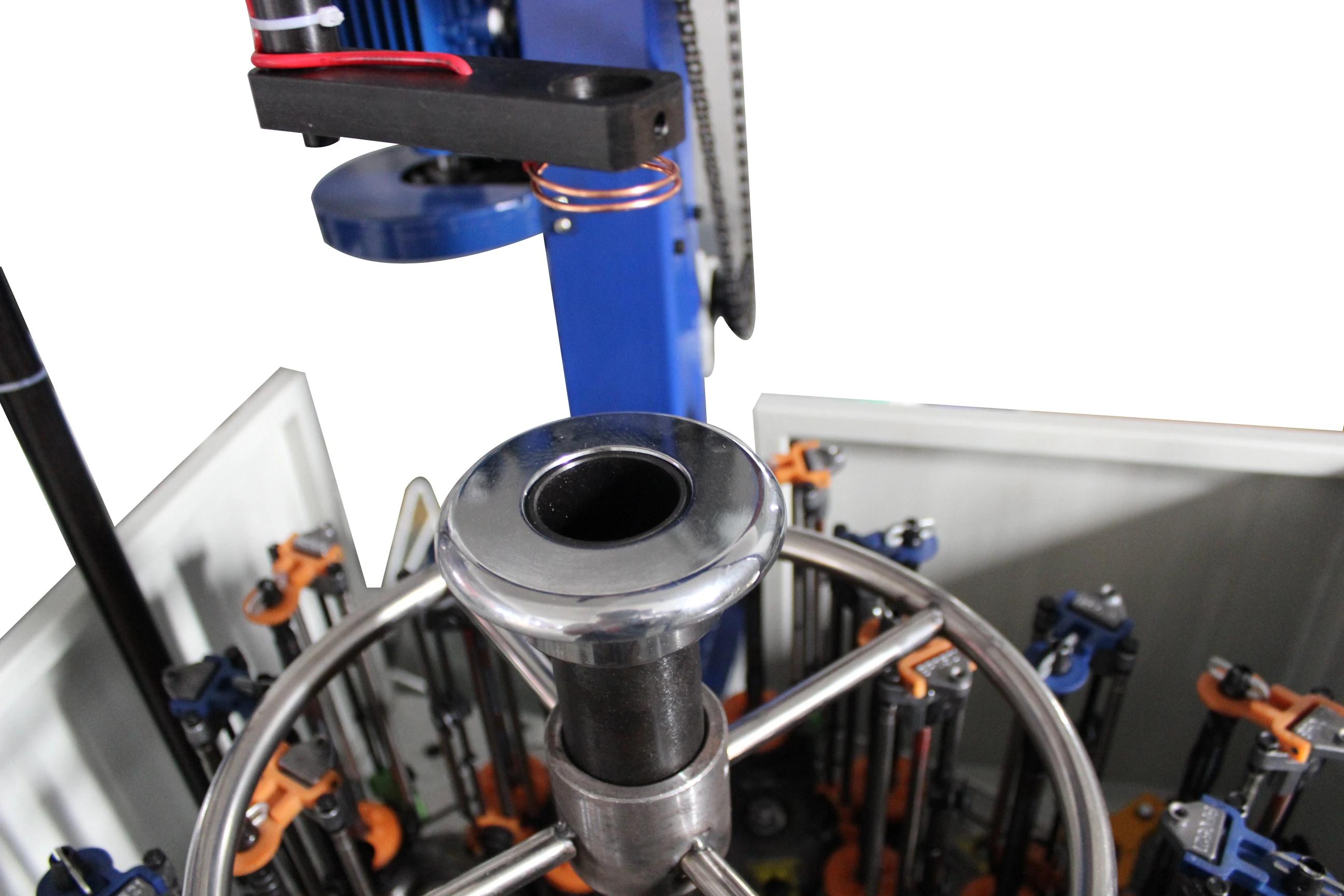

* Core centralizing unit
* Individual carrier tension control
* Operating speeds:
* 16 Carrier 55 rpm 24 Carrier 50 rpm
* Individual carrier tension control
* Operating speeds:
* 16 Carrier 55 rpm 24 Carrier 50 rpm
36 Carrier 36 rpm 48 Carrier 20 rpm
* Gear driven take-off for accurate control
* Braid patterns (2 over 2, and 1 over 1)
* Inverter motor drive for controlled acceleration and deceleration
* Adjustable traverse mechanism to accommodate reel variation
* Digital production counter
* Braid patterns (2 over 2, and 1 over 1)
* Inverter motor drive for controlled acceleration and deceleration
* Adjustable traverse mechanism to accommodate reel variation
* Digital production counter
Options：
* Empty bobbin detector
* Central lubrication system (recommended)
* Enhanced Sound Enclosure
* Keel lubricator (recommended)
* Advance display, variable speed
* Longitudinal tape applicator
* Motor driven capstan(speed reducer capstan )
* Single deck( Double Deck) Braiding System
* Central lubrication system (recommended)
* Enhanced Sound Enclosure
* Keel lubricator (recommended)
* Advance display, variable speed
* Longitudinal tape applicator
* Motor driven capstan(speed reducer capstan )
* Single deck( Double Deck) Braiding System

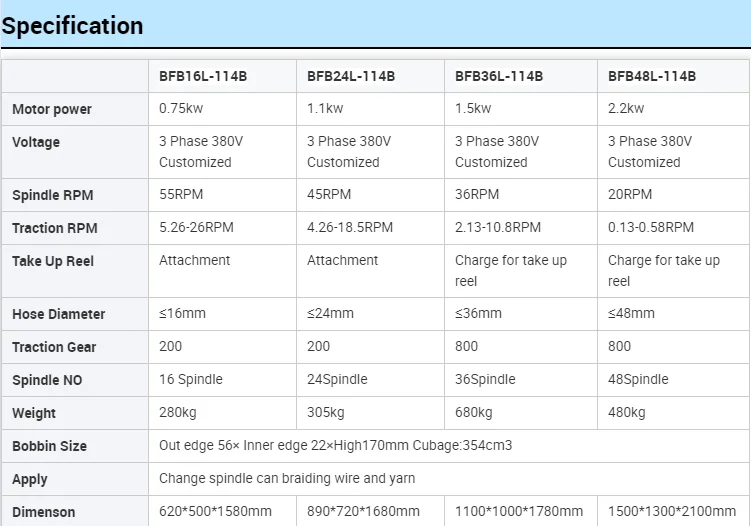

Specification
BFB16L-114B | BFB24L-114B | BFB36L-114B | BFB48L-114B | ||||
Motor power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | |||
Voltage | 3 Phase 380V Customized | 3 Phase 380V Customized | 3 Phase 380V Customized | 3 Phase 380V Customized | |||
Spindle RPM | 55RPM | 45RPM | 36RPM | 20RPM | |||
Traction RPM | 5.26-26RPM | 4.26-18.5RPM | 2.13-10.8RPM | 0.13-0.58RPM | |||
Take Up Reel | Attachment | Attachment | Charge for take up reel | Charge for take up reel | |||
Hose Diameter | ≤16mm | ≤24mm | ≤36mm | ≤48mm | |||
Traction Gear | 200 | 200 | 800 | 800 | |||
Spindle NO | 16 Spindle | 24Spindle | 36Spindle | 48Spindle | |||
Weight | 280kg | 305kg | 680kg | 480kg | |||
Bobbin Size | Out edge 56× Inner edge 22×High170mm Cubage:354cm3 | ||||||
Apply | Change spindle can braiding wire and yarn | ||||||
Dimenson | 620*500*1580mm | 890*720*1680mm | 1100*1000*1780mm | 1500*1300*2100mm | |||

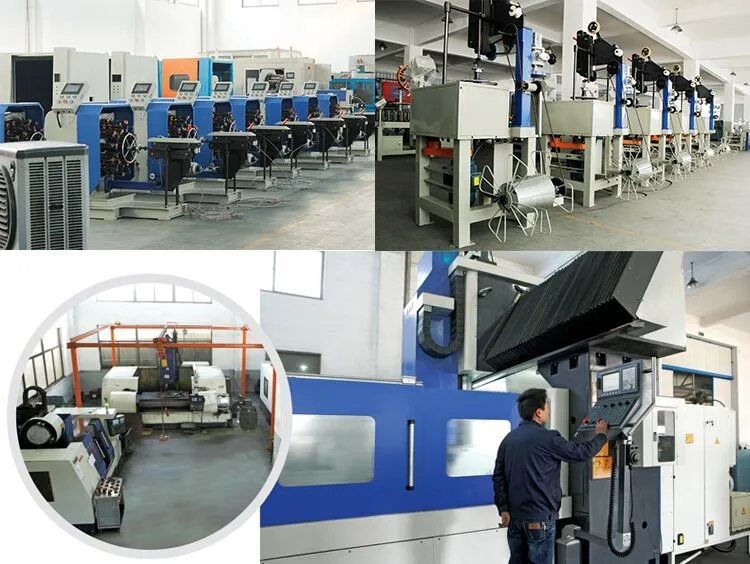

production line
Hot sale products
Click for more information：
Company Profile

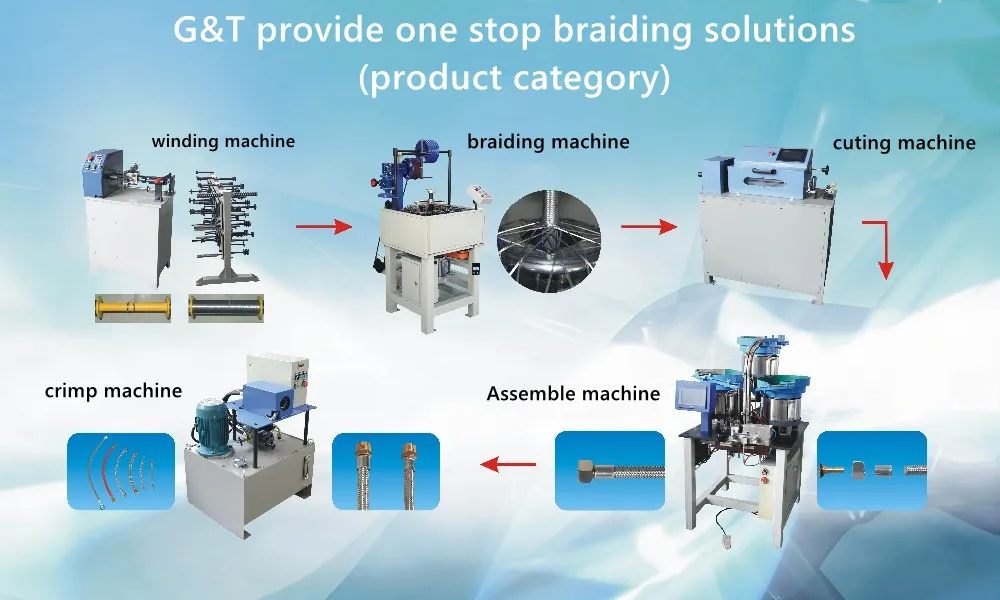

Greenland Technology provide one stop braiding solutions to our customer from Development, production, inspection and sales service.Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimp machine and flexible hose assemble machine.
