Дополнительный блок дистанционного измерения MT50 с ЖК дисплеем для солнечных контроллеров
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.
Share on (1600766773831):
Product Overview
Description
Products Description

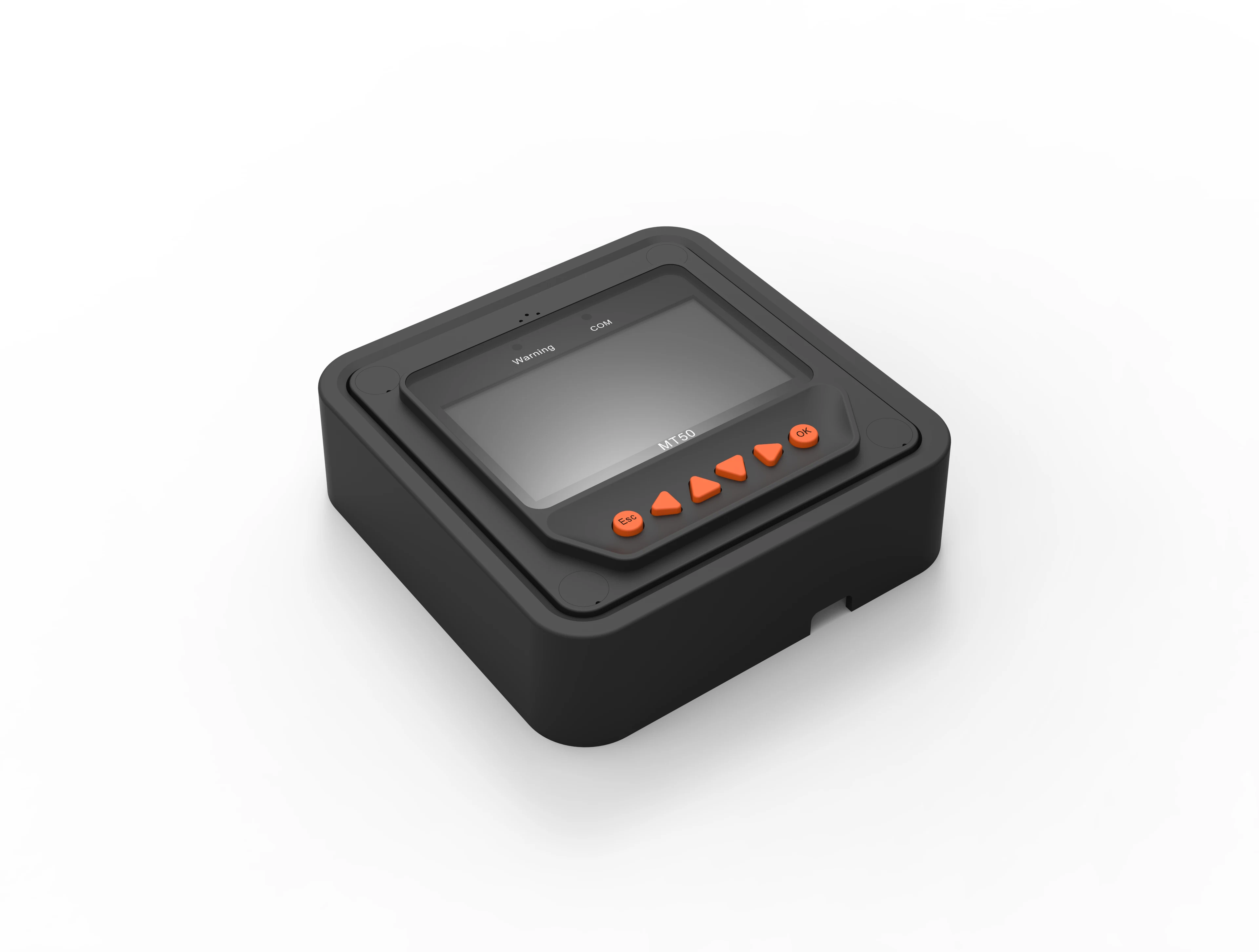

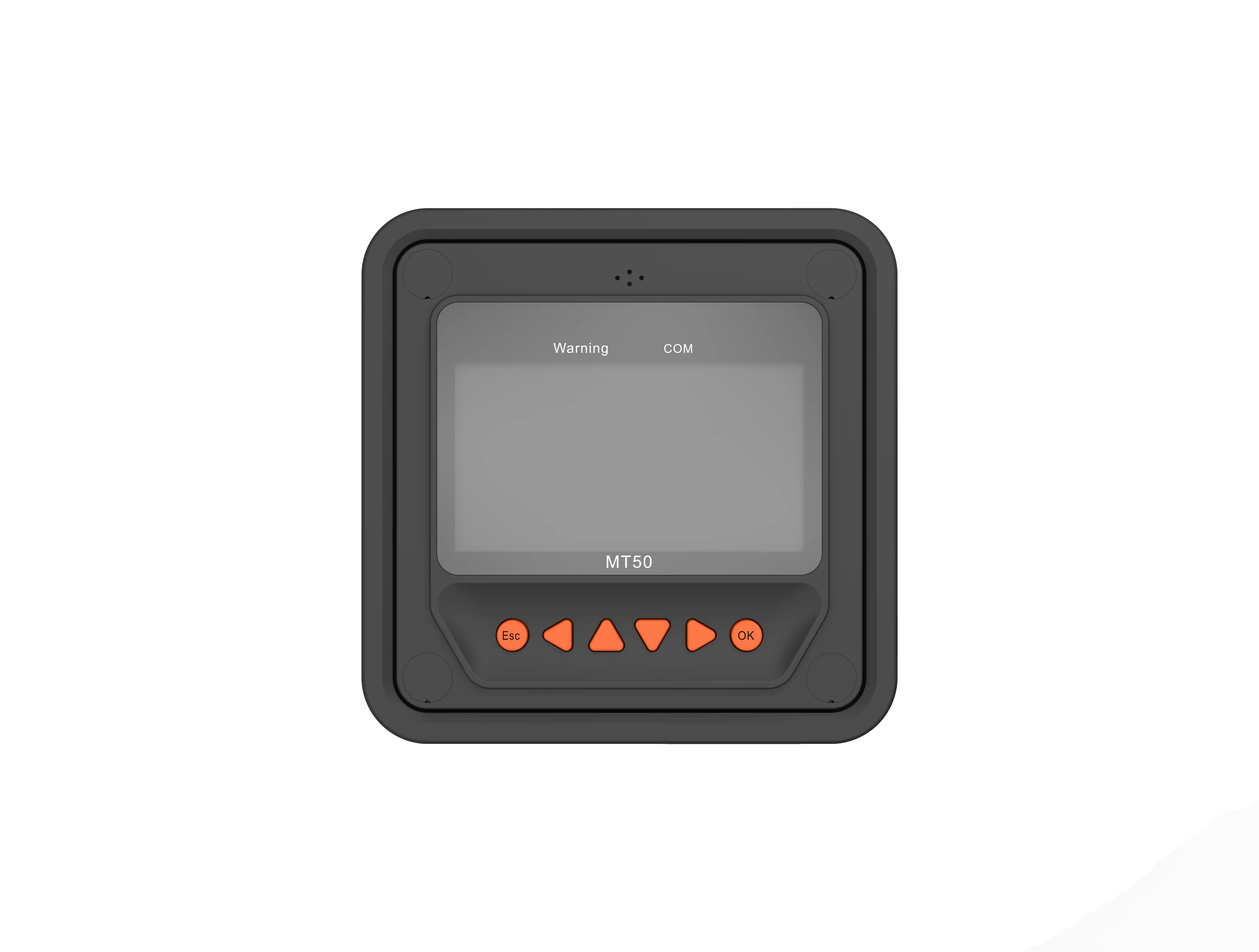

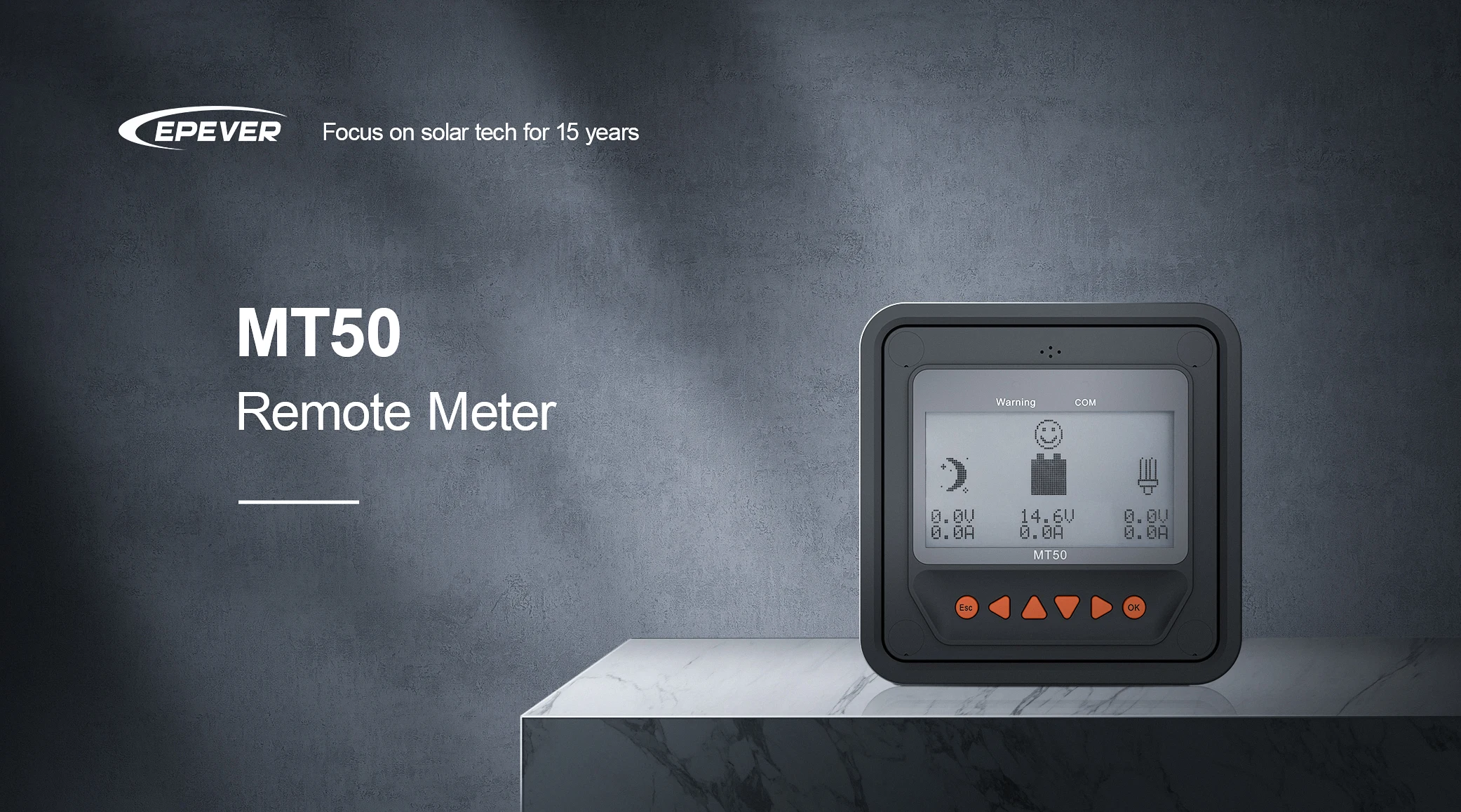

The new-generation remote display unit MT50 for LSxxxxB(P),VSxxxxBN and TracerxxxxBN(P) controllers is an associated display device which supports both the latest communication protocol and the voltage technology standard of solar controllers.
Features
* Automatic identify and display the type, model and relevant parameter data of controllers
* Real-time display the operational data and working status of the connection devices in digital,graphic and
textual forms by a large-screen multifunction LCD
* Direct, convenient and rapid operation of six navigation function keys
* Both data and power flowing on the same lead, no need for external power
* Real-time data monitoring and remote load switchover of the controllers, and data browse and
modification of device parameters, charge control parameters and load control parameters
* Real-time display and acoustic alarm of failure information of the connection devices
* Longer communication distance based on RS485
Technical Specifications
Electrical Parameter | ||||||||
Self-consumption | Backlight and acoustic alarm ON＜65mA | |||||||
Backlight ON ＜23mA | ||||||||
Backlight OFF ＜15mA | ||||||||
Mechanical Parameter | ||||||||
Faceplate dimensions | 98×98 mm | |||||||
Frame dimensions | 114×114 mm | |||||||
Connector type | RJ45 | |||||||
Meter cable | Standard 2m,Max 50 m | |||||||
Meter weight | Simple package: 0.23 Kg/Standard package:0.32 Kg | |||||||
Environmental Parameter | ||||||||
Ambient temperature | -20℃～+70℃ | |||||||
