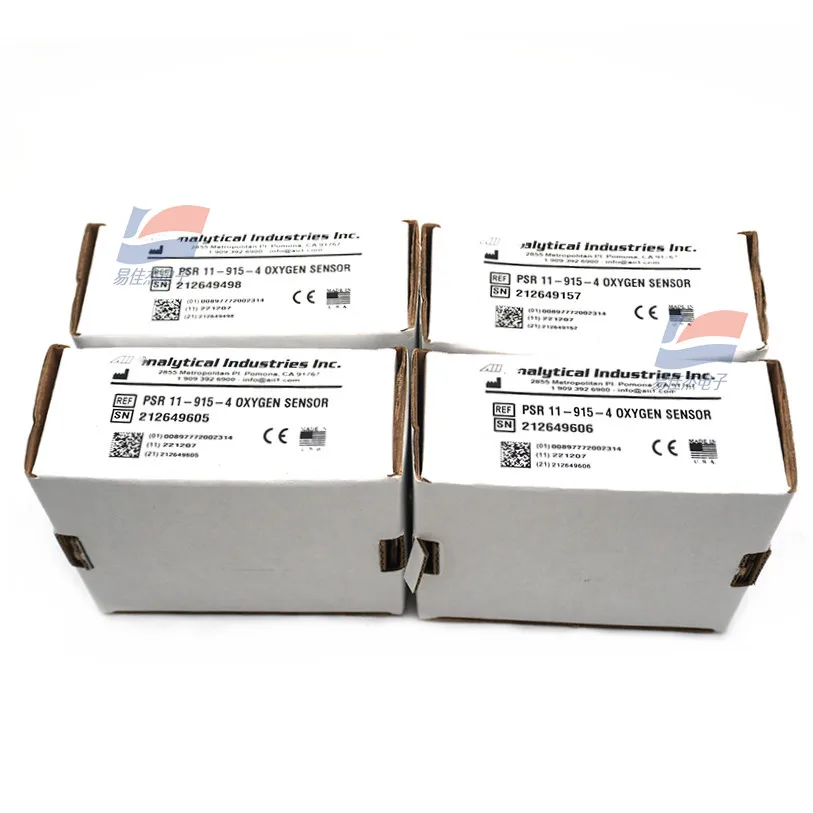

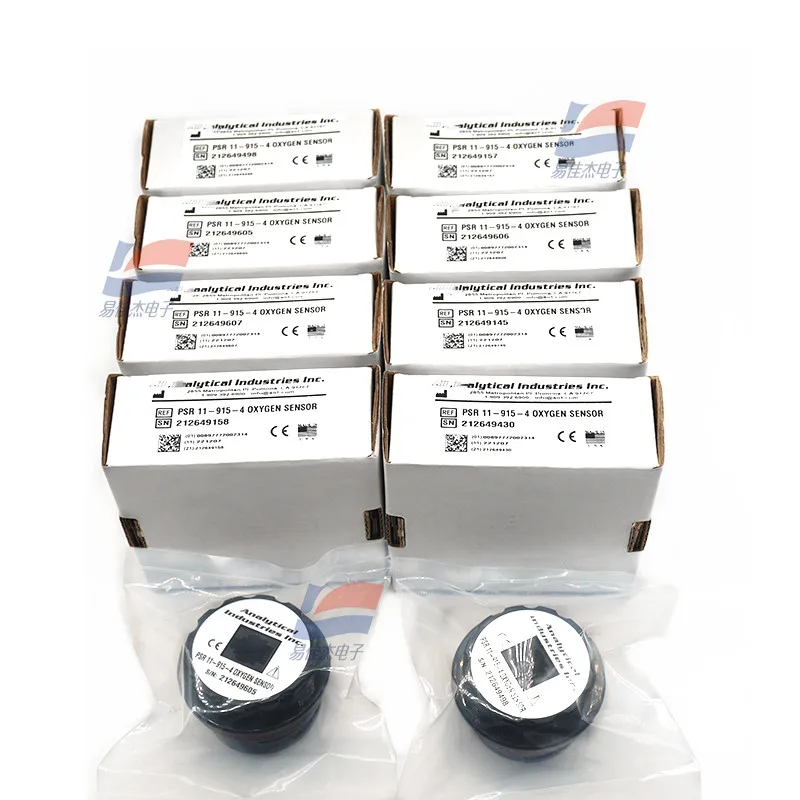

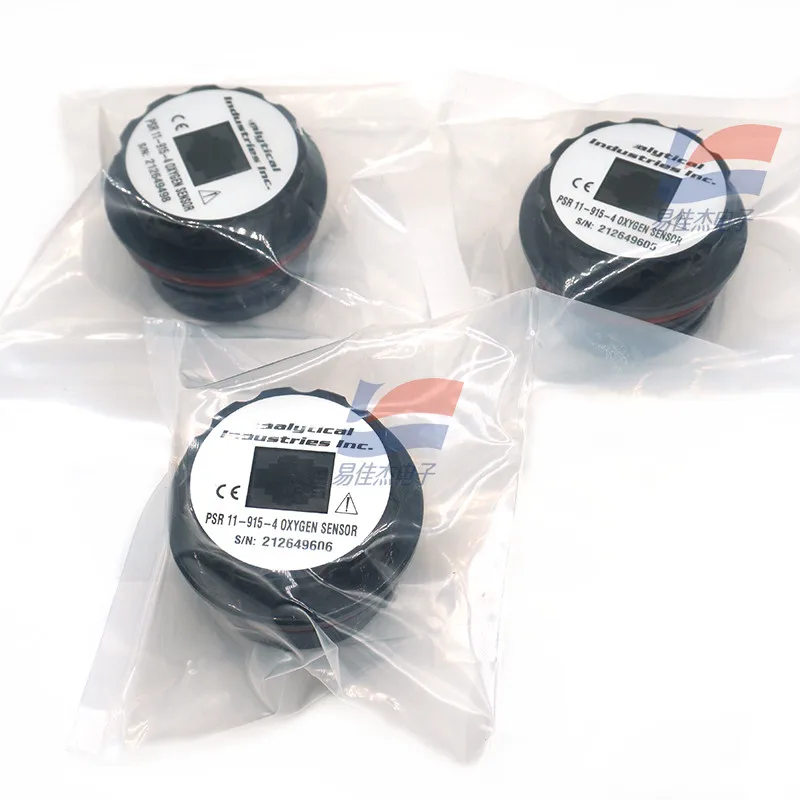

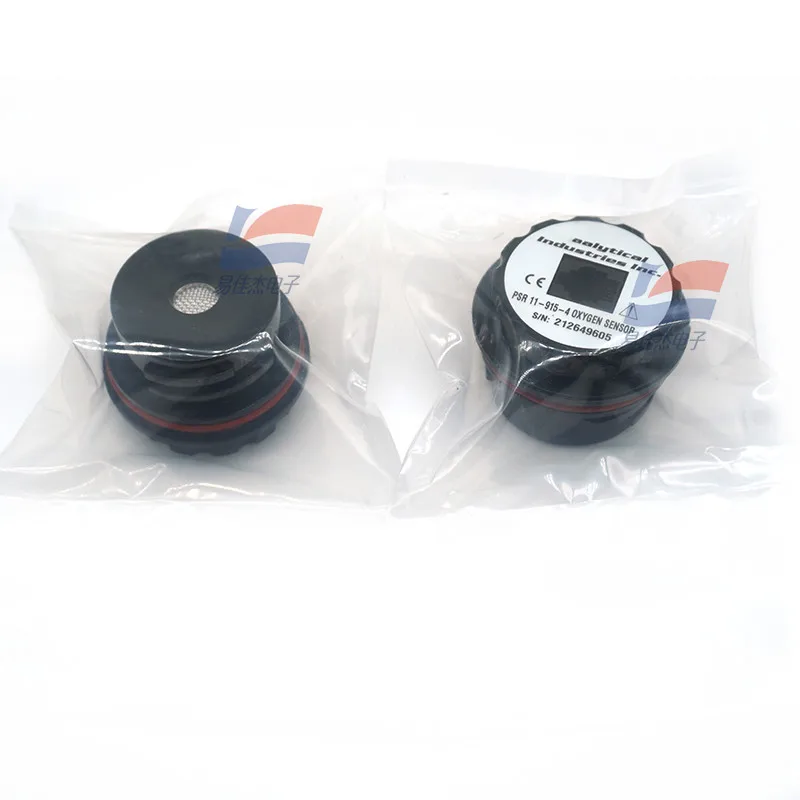

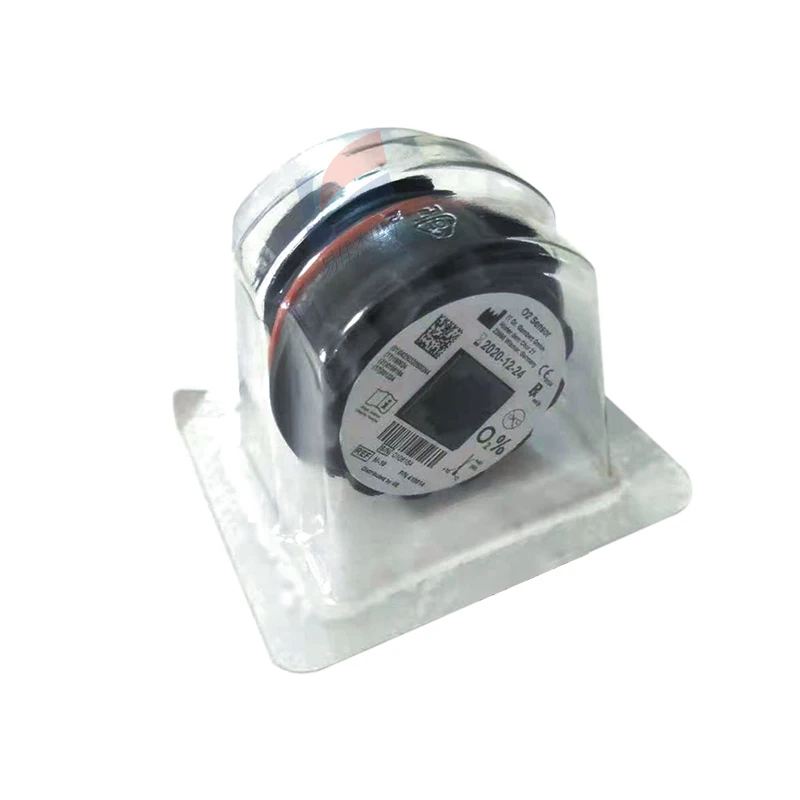

YJJ Anesthesia machine Oxygen cell oxygen concentration sensor PSR 11 915 4 It can replace M 10
- Category: >>>
- Supplier: Shenzhen Yijiajie Electronic Technology Co. Ltd.
Share on (1600766776544):
Product Overview
Description
Product Description
| range | 0-1500mBar O2 |
| response time | <15s |
| Pressure range | 0.5-2Bar |
| The output | 9-13mV |
| Measuring principle | Bias, electrochemistry |
Generelle spesifikasjoner (-e O2-sensorer):
| Measurement range | 0-100% oxygen |
| Accuracy and repeatability | <1% vol.O2 when calibrated at 100% O2 |
| Zero offset | 0,5% vol.O2 in 100% N2, applied 5 minutes |
| Linearity error () | <3% realtive |
| Cross interference | <0,5% vol.O2 response to: 10% CO2 balance N2 80% N2O balance N2 7,5% Halothane balance N2 7,5% Isoflurane balance N2 7,5% Enflurane balance N2 9% Sevoflurane balance N2 20% Desflurane balance N2 |
| Influence of humidity | -0.03% rel. per % RH at 25°C |
| Influence of pressure | proportional to change in oxygen partial pressure |
| Influence of mechanical shock | <1% relative after f- from 1m |
| Operating temperature | 0 to 50°C |
| Temperature compensation | built-in NTC compensation (depends on type) |
| Effect of temperature compensation (steady state) | between +20°C and +40°C: 3% relative error between 0°C and +50°C: 5% relative error |
| Operating humidity | 0-99% RH non condensing |
| Long term output drift | <1% vol oxygen per month, typic-y -<15% relative over lifetime |
| Storage temperature | -20°C to +50°C |
| Recommended storage | +5°C to +15°C |
| Recommended load | > 10 kOhms |
| Warm-up time | <30 minutes, after replacement of sensor |
| Weight | aprrox 28 grams, approx 43 grams OOM107 series |
Relative Product
Company Information
Packaging & Shipping
Certifications
Exhibition
Our Services
FAQ
1. Is it your product new and original?
Of course, our products could accept any testing, If there any quality questions, we will take responsible.
2. What is your Warranty?
Within 90days after package have been received.
3. Quality Problems
If got any questions, we can offer technical support or return service.
4. What is your leadtime?
There is not leadtimes for instock product, Most of the part could be ship out within 3days after comfirmation of the payment.
