Product Overview
Description
Technical Parameter
Model | STC-TMH300 | ||||||
Working voltage | AC110V/220V optional upon request | ||||||
Max coating stroke length | 300mm adjustable, customized size is available | ||||||

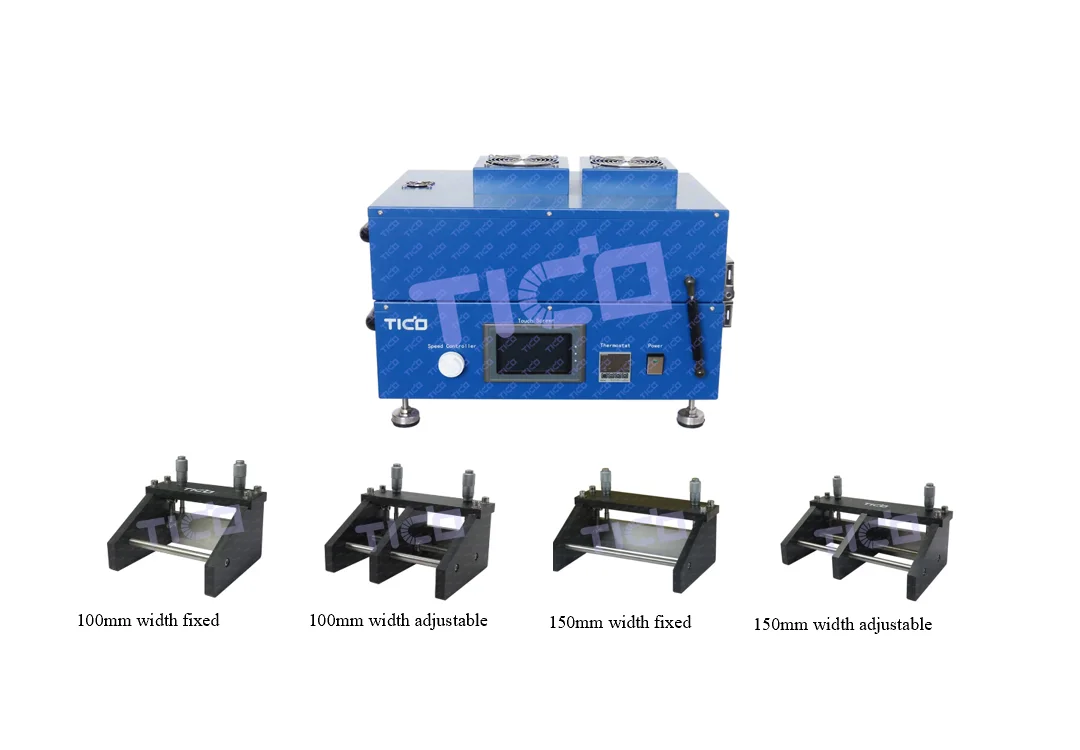

Doctor blade | 100mm/ 150mm fixed width &adjustable width optional | ||||||
Coating thickness range | 0.01~3.5mm adjustable | ||||||
Vacuum chuck | L360 * W200 * H30mm | ||||||
Vacuum pump | Built-in type | ||||||
Coating speed | 0~200mm/s adjustable | ||||||
Heating method | Top cover heater | ||||||
Heating temperature | Up to 150 ℃, digital display, accuracy±1℃ | ||||||
Dimension | L500 * W310 * H330mm | ||||||
Weight | 55kg | ||||||
Products Description
STC-TMH300 is a compact film tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature is up to 150℃ adjustable and digital displayed. The coating speed, coating stroke length, coating thickness are adjustable.
Features:
● Touch screen operation, high automation.
● Vacuum aluminum chuck is designed for quick suction of substrate.
● Built-in vacuum pump is designed.
● Built-in vacuum pump is designed.
● Coating stroke length can be set.
● Heating temperature is up to 150℃ and adjustable, and it’s digital display.
Application:
● Battery lab
● Battery research
● Lithium ion battery lab
● Material research
● Trial-production
