Product Overview
Description

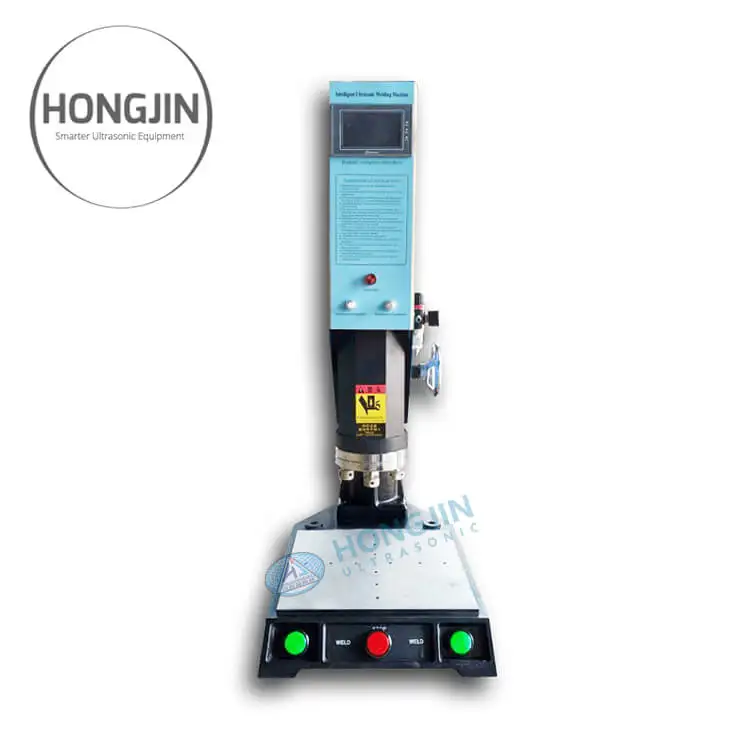

Ultrasonic Plastic Fabric Welding Machine
Product Description
Ultrasound Welding Machine is an ultrasonic plastic welder with high power designed for welding various plastics ( ABS, PP, PS, PC, PE, PVC, PMMA(acrylic), Polyester, Nylon, etc.) and fabrics. It is widely used in welding plastic/fabric products, including cup mask, mobile phone, mobile charger, water box, filter bag, led lampshade, chargers, pipes and other products in large size.
Example Project Display
e.g. welding filter bag.

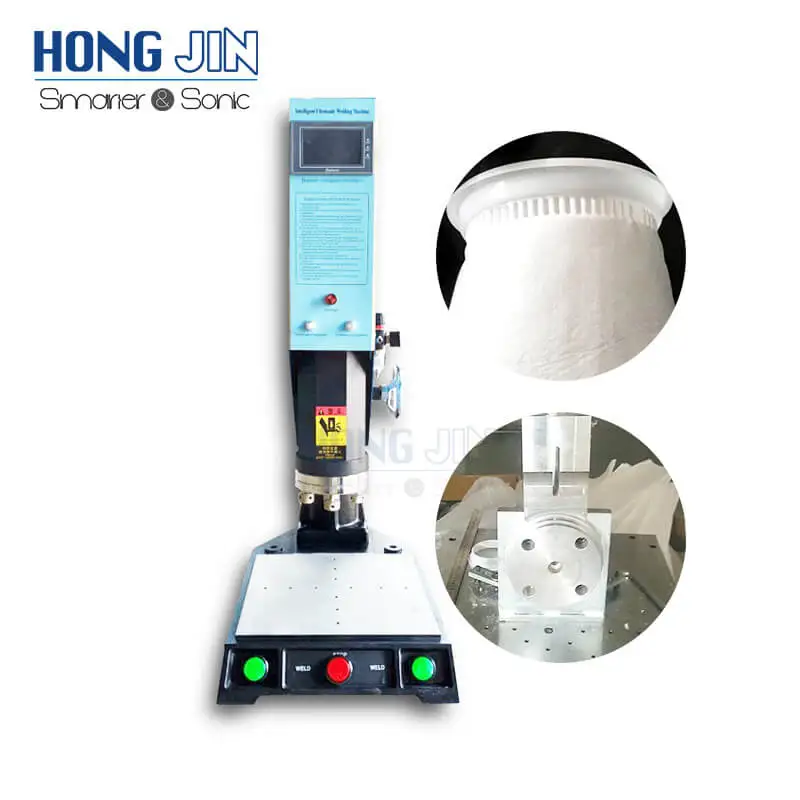

Filter Bag Top Weld (plastic neck)
HJ-1532G 15KHZ 3200W Ultrasonic welding machine
The filter bag top area (plastic neck) is usually welded by the 15KHZ 3200W Ultrasonic welding machine.
Ultrasonic welding device

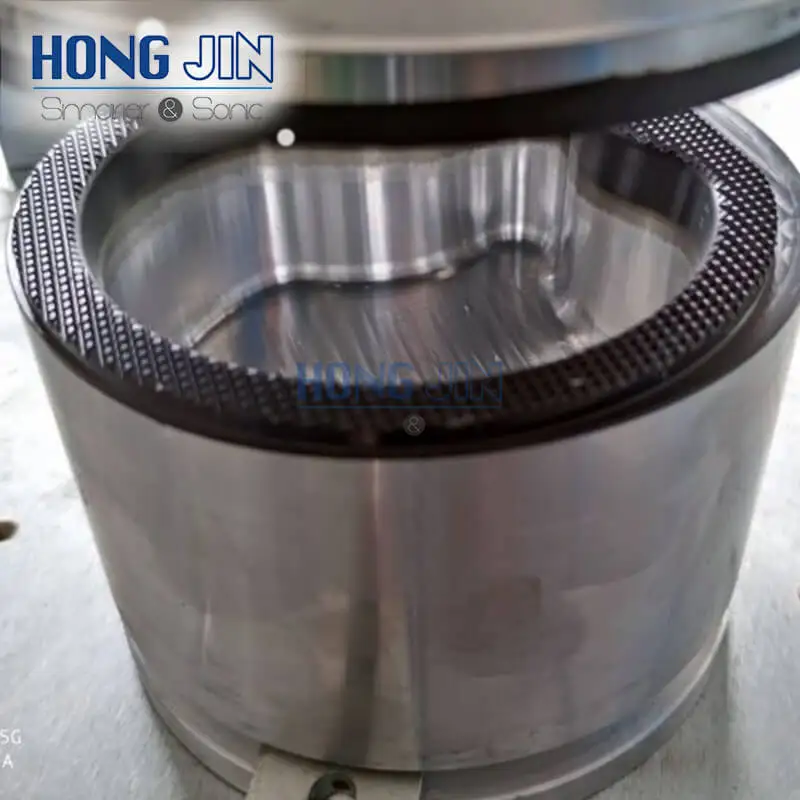

Ultrasonic horn

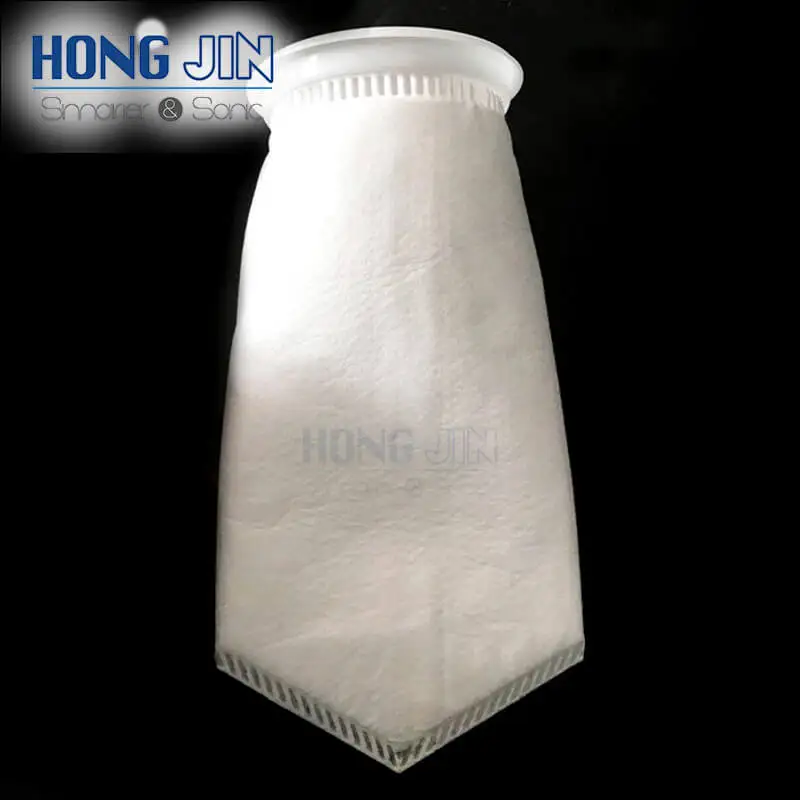

Sample after welded
Specification
Frequency | 20KHZ/15KHZ |
Power | 2000W/2600W/3200W/4200W |
Power Range | 10%~100% |
Type | Intelligent Digital |
HMI | Touch screen |
Main Features | Automatic frequency tracking and tuning, Intelligent protection systems Fault alarm prompts |
Application | Welding various plastic or fabric products in large size, such as cup mask, led lampshade, pillowcase, electric mosquito swatter, electric meter. |
Model | Frequency | Power | Gross Weight | Line Source |
HJ-2010G | 20KHZ | 2000W | 100-160KG | AC 110/120/220V |
HJ-1526G | 15KHZ | 2600W | 100-170KG | AC 110/120/220V |
HJ-1532G | 15KHZ | 3200W | 100-170KG | AC 110/120/220V |
HJ-1542G | 15KHZ | 4200W | 350-370KG | AC 110/120/220V |
Face Mask 20KHZ 2000W Ultrasonic Welding Machine
HJ-2010G
Application: small product / small welding area
Welding Size:0-50mm diameter;
0-200mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
mobile charger, small battery case, face mask ear loop, etc.
HJ-1526G/HJ-1532G
Application: small or middle product / small or middle welding area
Welding Size:
Welding Size:
0-120mm diameter;
0-300mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
filter, filter bottle, ice case, bra sponge punching, kitchen sponge pad, electric meter, etc.
0-300mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
filter, filter bottle, ice case, bra sponge punching, kitchen sponge pad, electric meter, etc.
HJ-1542G
Application: middle or big product / middle or big welding area
Welding Size:
Welding Size:
0-250mm diameter;
0-400mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
cup mask, pillowcase, electric mosquito swatter, large electric meter., etc.
0-400mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
cup mask, pillowcase, electric mosquito swatter, large electric meter., etc.

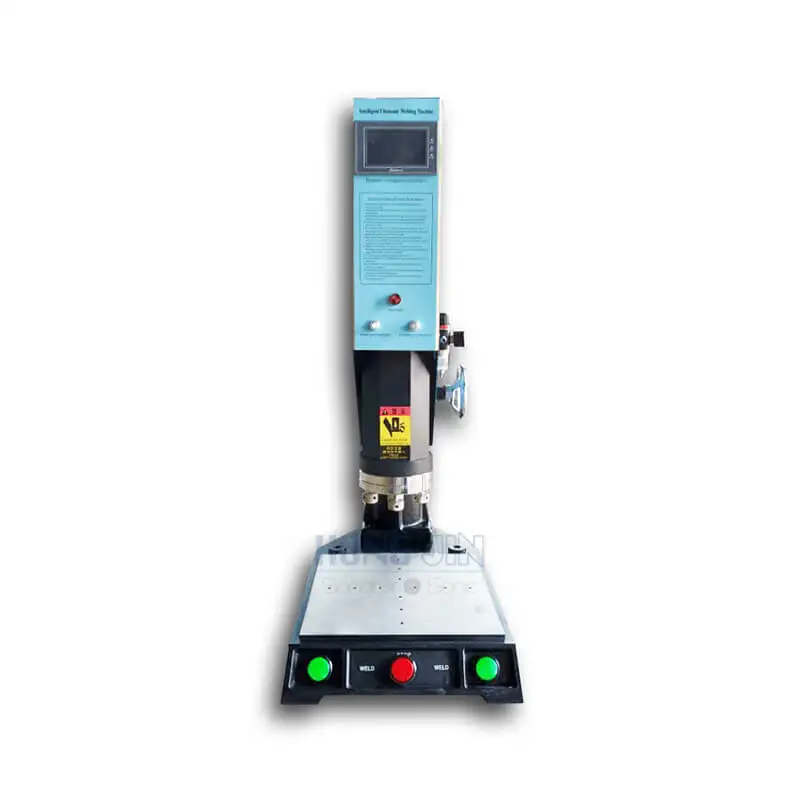

Machine Shapes
Two shapes for your choice.

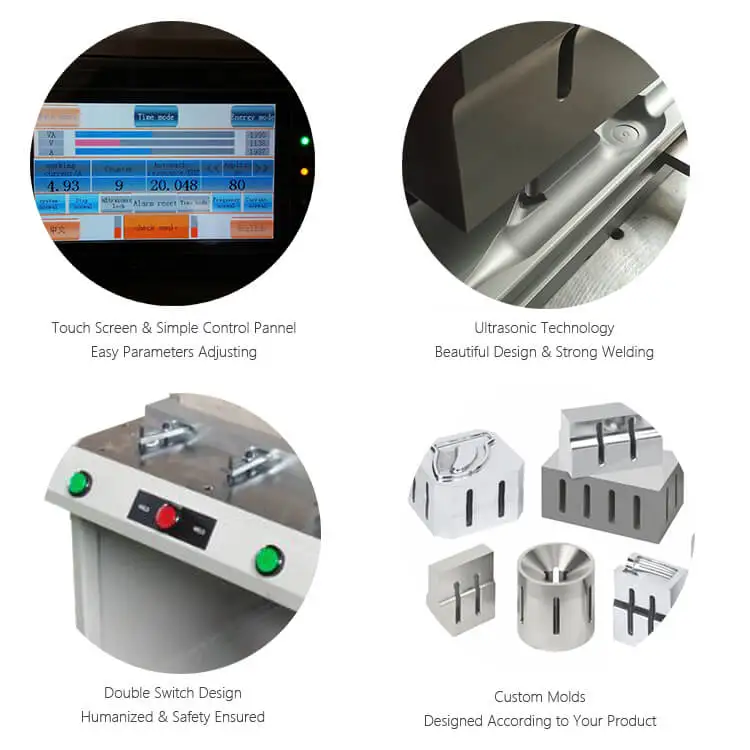

Details Images
Main Spares of Ultrasonic Welder:
Intelligent & Digital
Ultrasonic Welding System
Auto frequency tracking;
USA DSP chip control circuit;Japan's Panasonic capacitor;
Japan's Toshiba IGBT high power amplifier output.
Real High Power
More stable performance
The application of the IGBT power module coupled with the structure of the other-excited oscillatory circuit makes the output power more than three times that of the traditional self-excited circuit.
Quality Ultrasonic Horn
Longer using life
Horn Material: Steel / titanium alloy / Imported Arconic brand Aluminum Alloy.
Our Advantages
Ultrasonic Welder Characteristics
1. Frequency automatic tracking tuning, real-time display the current frequency, no need manual tuning, automatic tracking the best working state.
2. Overheating, overloading double protection function.3. Automatically adjust the output power according to load.
6. Frequency automatic scanning, automatic tracking.
4. Adaptive various parameters of the transducer.5. Working mode is digital parameters setting.
7. Equipped with Shanghai Hongjin professional control system;
9.Touch screen: easy to operate and easy to learn.
8. Smart fault alarming system;Packing & Delivery
