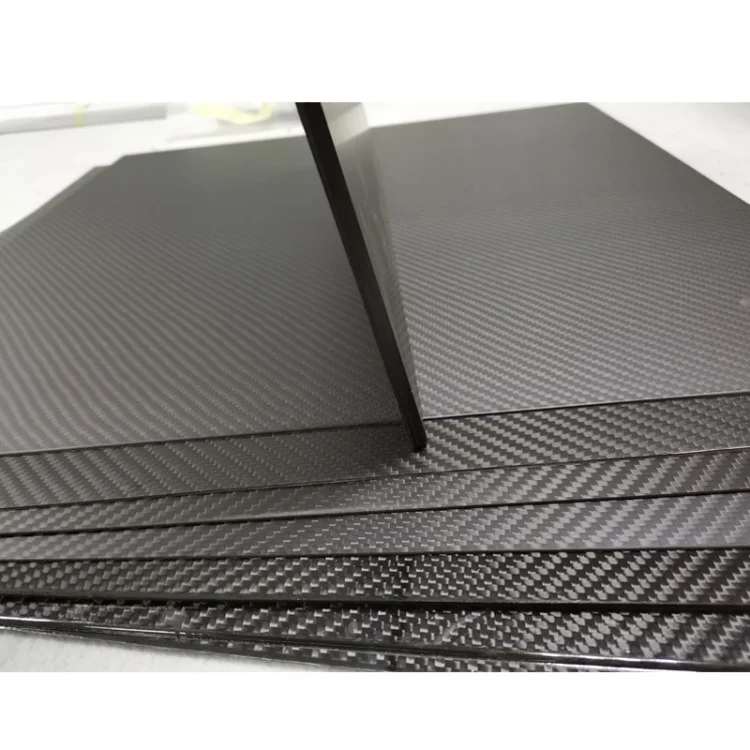

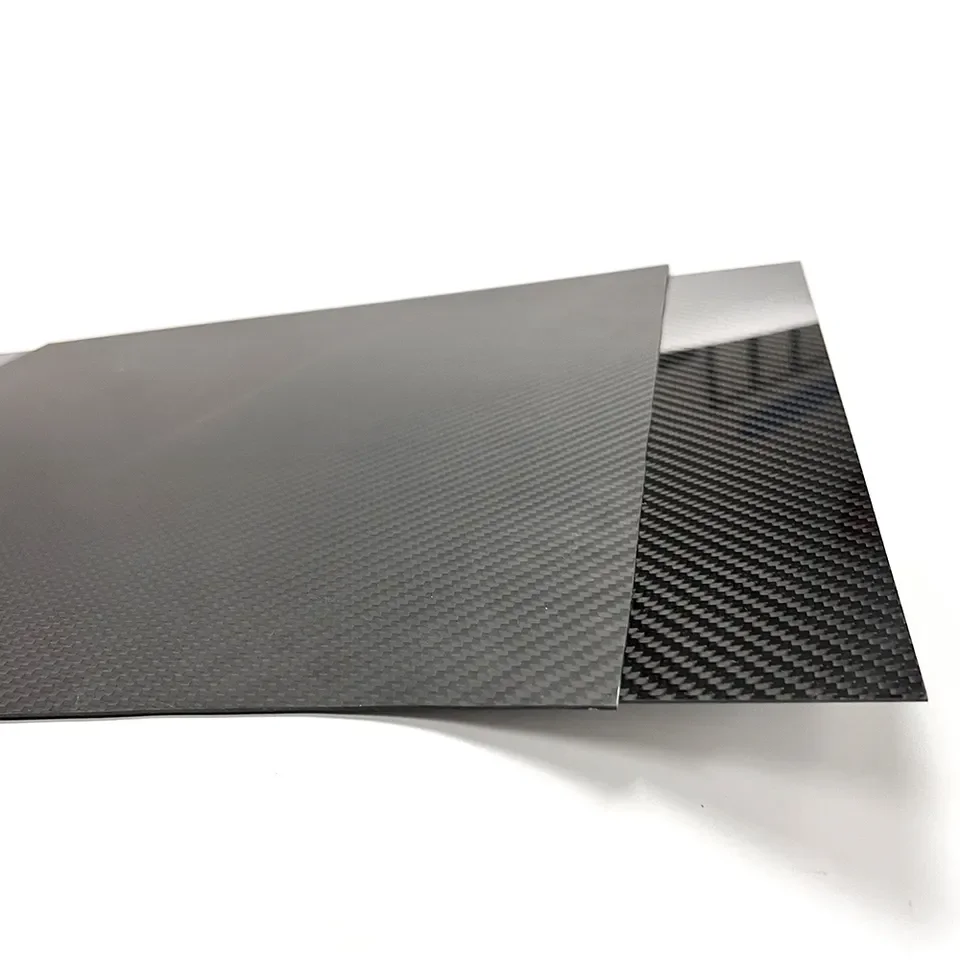

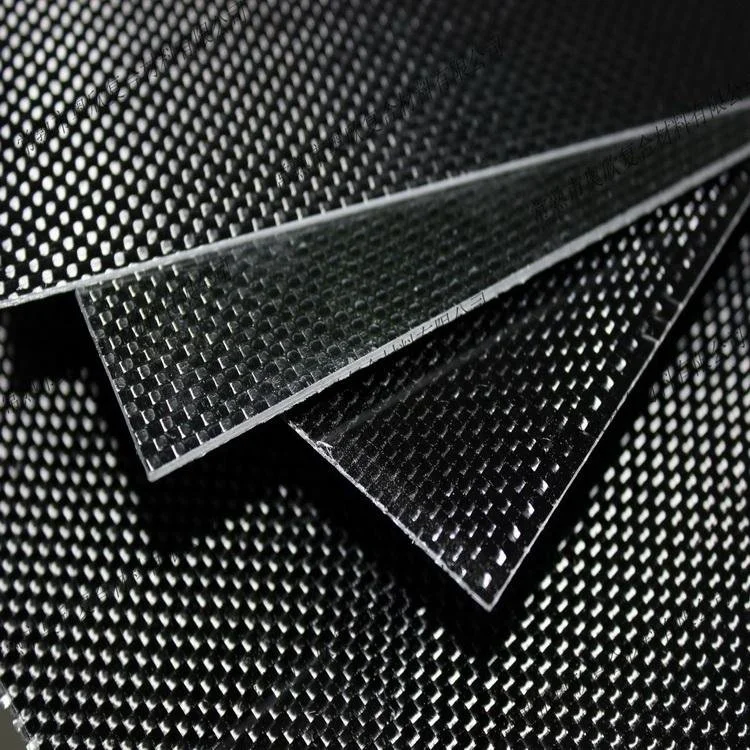

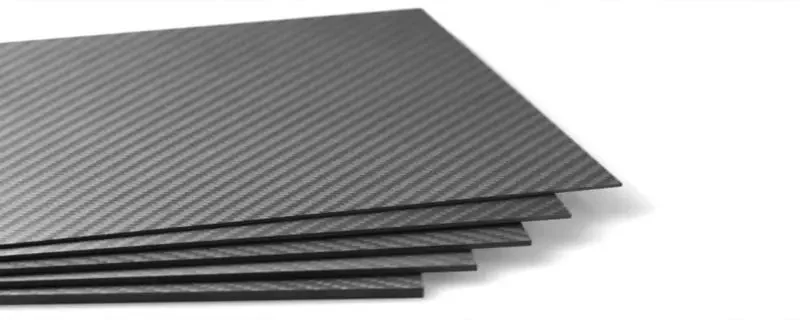

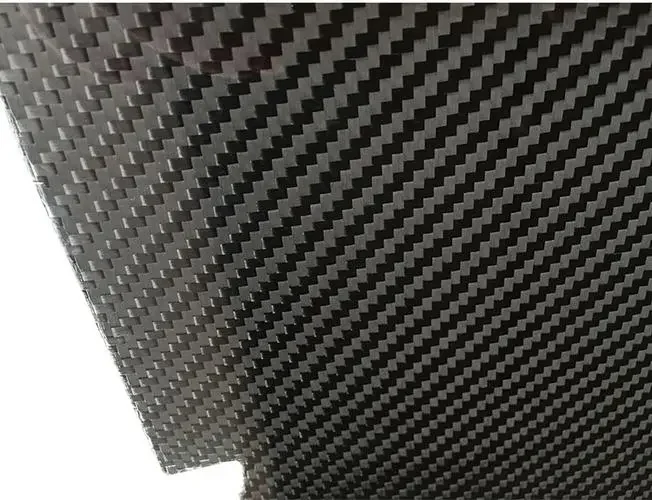

OEM High Strength 100% 3K carbon fiber plain weave glossy or matte carbon sheet
- Category: >>>
- Supplier: Zhongbao Ruiheng Technology Co. Ltd.
Share on (1600766869257):
Product Overview
Description
Product name | Carbon Fiber Fabric 6k 3k Custom | |||||
MOQ | ≥1000 square meters | |||||
Feature | • Small thickness, easy to cross and overlap, can be bent and wound forming, suitable for reinforcement of various curved surfaces and special-shaped components. •Carbon fiber has high tensile strength, acid and alkali resistance, and corrosion resistance. • Non-toxic and non-irritating smell, construction can still be done in residence. •Light weight, the specific gravity is 23% of the steel, basically does not increase the weight of the component, and does not change the section size of the component. | |||||
Introduction | Carbon fiber fabric:Carbon fiber cloth is used for the tensile, shear and seismic reinforcement of structural members. This material is used together with the supporting impregnating glue to become a carbon fiber composite material. | |||||
Application | •Aircraft main, tail and body; automobile engines, synchronizers, hoods, bumpers, decorative parts, etc.; bicycle frames, wheels, faucets; rackets, silver basins; kayaks, snowboards; various models, helmets, and building reinforcements Reinforcement, watches, pens, luggage.Transportation: cars, buses, tankers, tanks, liquefied gas cylinders. | |||||
Type | Reinforcement Yarn | Weave | Fiber Count(Wmm) | Weight(g/m2) | Thickness (mm) | Width(cm) | ||||
Warp Yarn | Weft Yam | Warp Ends | Weft Picks | |||||||
SAD-1K-P | 1K | 1K | (Plain) | 9 | 9 | 120 | 0.16 | 100 | ||
SAD-1K-X | 1K | 1K | (Twill) | 9 | 9 | 120 | 0.16 | 100 | ||
SAD-1K-P | 1K | 1K | (Plain) | 10.5 | 10.5 | 140 | 0.17 | 100 | ||
SAD-1K-X | 1K | 1K | (Twill) | 10.5 | 10.5 | 140 | 0.17 | 100 | ||
SAD-3K-P | 3K | 3K | (Plain) | 5 | 5 | 200 | 0.3 | 100 | ||
SAD-3K-X | 3K | 3K | (Twill) | 5 | 5 | 200 | 0.3 | 100 | ||
SAD-3K-P | 3K | 3K | (Plain) | 6 | 6 | 240 | 0.32 | 100 | ||
SAD-3K-X | 3K | 3K | (Twill) | 6 | 6 | 240 | 0.32 | 100 | ||
SAD-3K-P | 3K | 3K | (Plain) | 7 | 7 | 280 | 0.34 | 100 | ||
SAD-3K-X | 3K | 3K | (Twill) | 7 | 7 | 280 | 0.34 | 100 | ||
SAD-6K-P | 6K | 6K | (Plain) | 4 | 4 | 320 | 0.38 | 100 | ||
SAD-6K-X | 6K | 6K | (Twill) | 4 | 4 | 320 | 0.38 | 100 | ||
SAD-6K-P | 6K | 6K | (Plain) | 5 | 5 | 400 | 0.42 | 100 | ||
SAD-6K-X | 6K | 6K | (Twill) | 5 | 5 | 400 | 0.42 | 100 | ||
SAD-12K-P | 12K | 12K | (Plain) | 2.5 | 2.5 | 400 | 0.46 | 100 | ||
SAD-12K-X | 12K | 12K | （Plain） | 3 | 3 | 480 | 0.52 | 100 | ||
SAD-12K-P | 12K | 12K | (Twill) | 3 | 3 | 480 | 0.52 | 100 | ||
SAD-12K-X | 12K | 12K | (TwiH) | 4 | 4 | 640 | 0.64 | 100 | ||
FAQ
Q1: What is the minimum order quantity?
A: Usually 1000 pieces, depending on the product you need.
Q2: Packaging and transportation.
A: Ordinary packaging: We adopt cowhide bags or woven bags, and we accept OEM packaging.
Q3: When can I make an offer?
A: We usually quote within 24 hours after receiving your inquiry. If you are very eager to know the price, please call us or email
us so that we can reply to you first.
Q4: How to charge the sample fee?
A: If you need our stock samples, we can provide them to you, but the cost should be borne by you. If you need special size, we
will charge for sample making.
Q5: What is your production and delivery time?
A: If we have inventory, we can deliver within 15 days; If there is no stock, it will take 5-30 days, depending on the quantity.
A: Usually 1000 pieces, depending on the product you need.
Q2: Packaging and transportation.
A: Ordinary packaging: We adopt cowhide bags or woven bags, and we accept OEM packaging.
Q3: When can I make an offer?
A: We usually quote within 24 hours after receiving your inquiry. If you are very eager to know the price, please call us or email
us so that we can reply to you first.
Q4: How to charge the sample fee?
A: If you need our stock samples, we can provide them to you, but the cost should be borne by you. If you need special size, we
will charge for sample making.
Q5: What is your production and delivery time?
A: If we have inventory, we can deliver within 15 days; If there is no stock, it will take 5-30 days, depending on the quantity.
