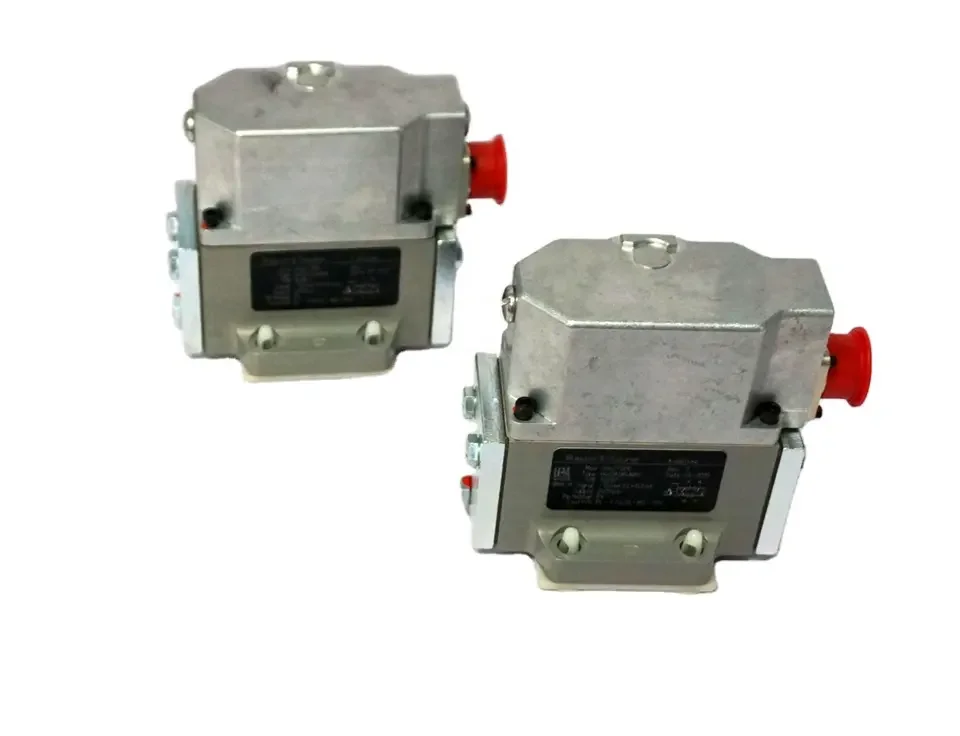

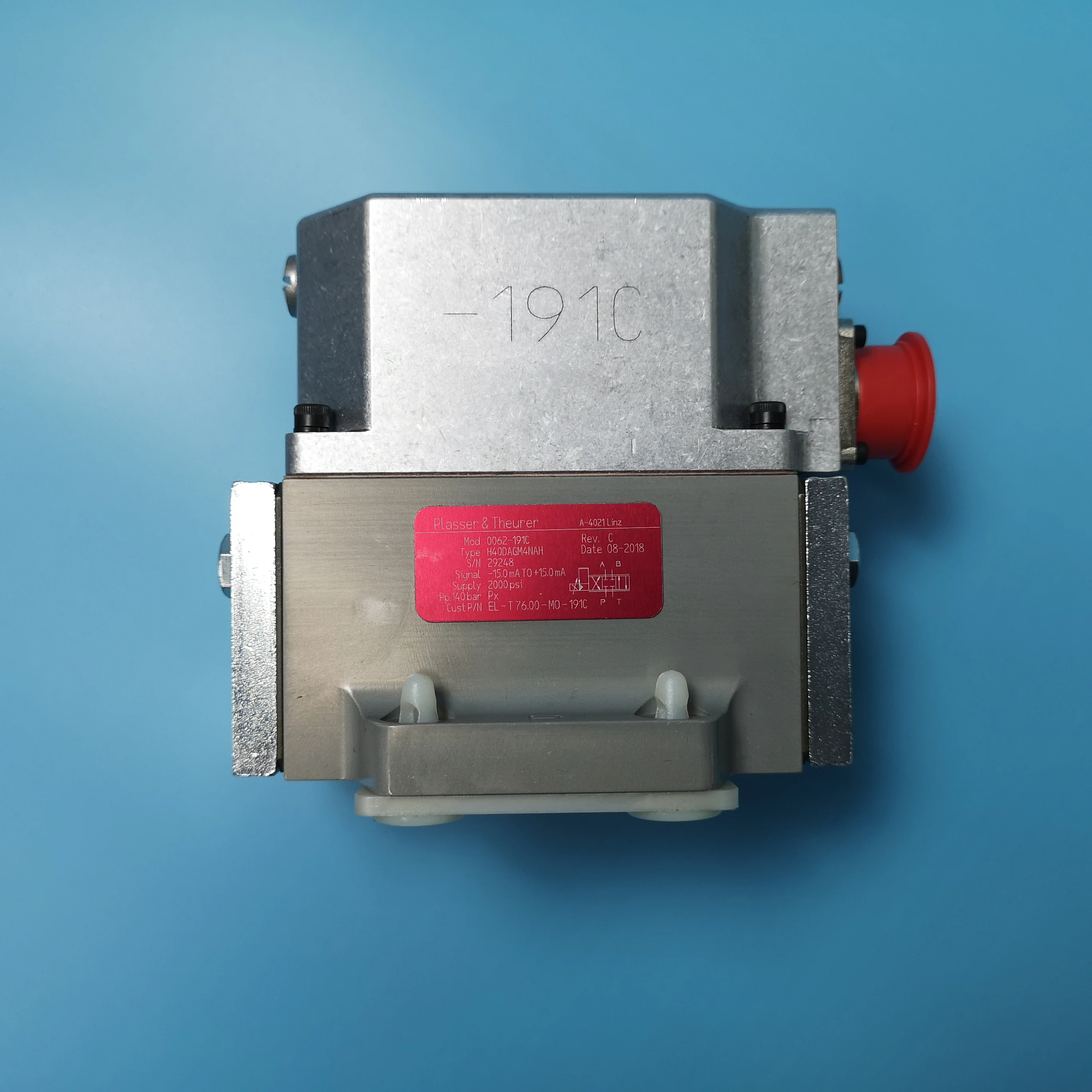

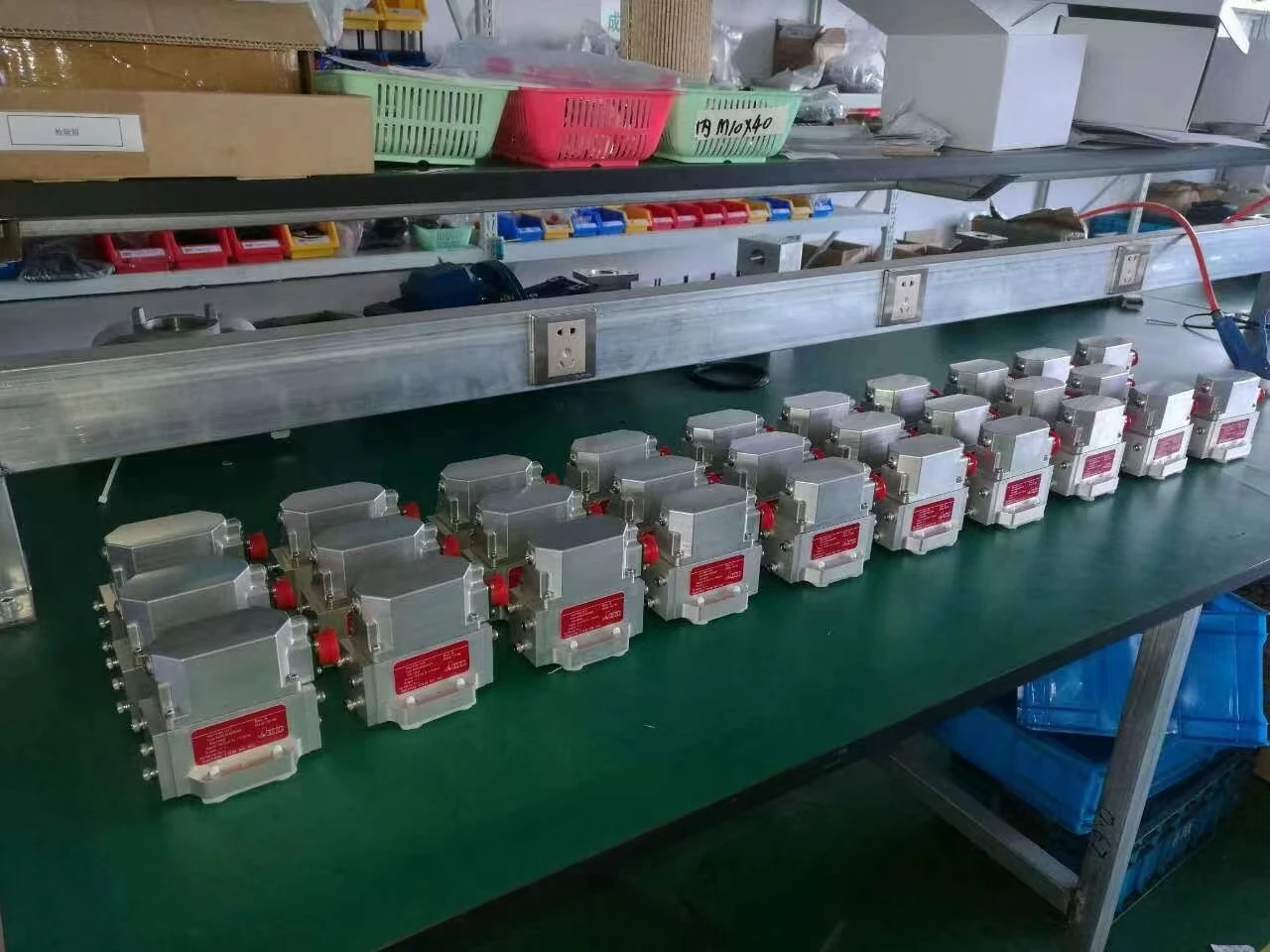

Hydraulic Servo Valve for Railway Tamping Maintenance Equipment Of Plasser Type El T76 00mo 191c H40dagm4nah
- Category: >>>
- Supplier: Hunan Qianmo Track Equipment Co. Ltd.
Share on (1600766893291):
Product Overview
Description
Product Overview
Railway Parts Track Parts Hydraulic Valve For Plasser And Harsco Tamper
This Series fills the gap between crude on/off controls and conventional high performance servovalves. This servovalve design offers true proportional servocontrol for a cost significantly below previous alternatives. The 62 Series has the same internal mechanical feedback used in higher performance servovalves. This feedback arrangement, together with the flexure tube dry motor, provides inherent reliability proven by years of successful experience. Motorcap can be turned by 180 degree. Our Products are widely used in Plasser major series of models.
FEATURES AT A GLANCE
Design features
1. Dry Electric Torque Motor – eliminates pick-up of magnetic particles from the fluid.
2. Frictionless double nozzle pilot stage with flexure tube
3. Reliable mechanical feedback – eliminates levers, springs, pivots, and other complex mechanisms.
4. Mechanical null adjustment – permits convenient set-up of system
5.Integral filter screens - protect valve from inadvertent system contamination.
PRODUCT SPECIFICATIONS
Mounting pattern | ISO 10372-04-04-0-92 without port X | Operating fluid | mineral oil based hydraulic |

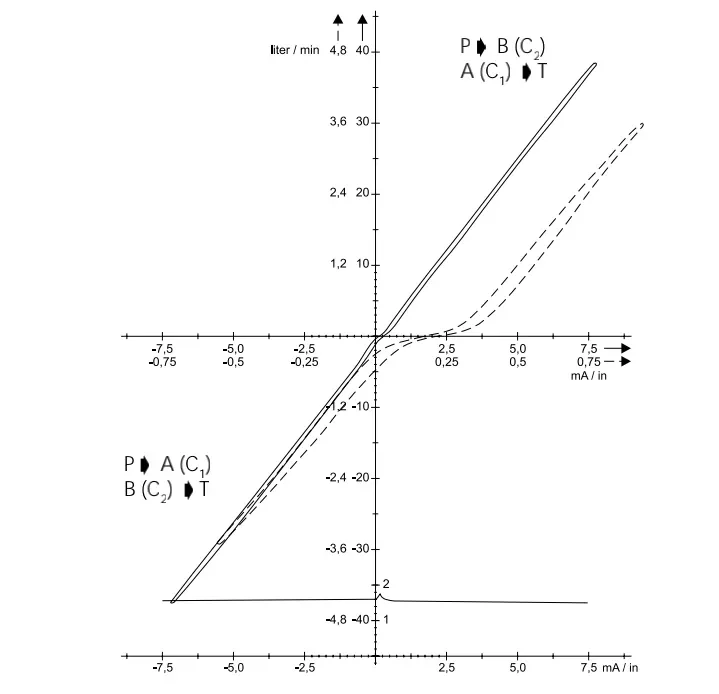

Rated flow (± 10 %) at△p = 70 bar drop | 40 l/min | Viscosity | 10 to 100 mm2/s |
Bushing spool type | 3 % overlap P A and P B 0 % overlap A T and B T | Filter rating recommended | For normal operation: ß15 ≥75 (15 µm abs.) For longer life: ß10≥75 (10 µm abs.) |
Spool stroke | ± 1,25 mm | Threshold | < 1,0 % (at 140 bar) |
Rated command signal | ± 7,5 mA Series | Hysteresis | < 3,0 % (at 140 bar) |
Operating pressure ports P, A, B, | 210 bar | Frequency response, phase lag 90° (at 210 bar) | > 50 Hz |
Return pressure, port T | up to 100 bar | with 55K temperature change | < 4% |
Temperature range | -20 to + 100 °C | with supply pressure change from 80 to 110 % | < 3% |
Seal material | NBR | Null leakage flow | < 3 l/min |
