no clogging mobile sludge dewatering machine dewatering screw press for sewage water treatment
- Category: >>>
- Supplier: Yangzhou Maoyuan Environmental Protection Technology Co. Ltd.
Share on (1600766896047):
Product Overview
Description
Product Description
Sludge Dewatering Machine which uses the screw extrusion dewatering principle,is a new type of solid-liquid separation device.
It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance,and the tiny spacing between moveable rings and fixed rings.
1、Model Selection
Model | DS Capacity | Capacity to Flow with different Solids Content | ||||||||
10000mg/L | 20000mg/L | 30000mg/L | 40000mg/L | 50000mg/L | ||||||
MYEP131 | 10~14KG/h | 1m³/h | 0.5m³/h | 0.4m³/h | 0.3m³/h | 0.26m³/h | ||||
MYEP201 | 15~20KG/h | 1.5m³/h | 0.75m³/h | 0.6m³/h | 0.5m³/h | 0.4m³/h | ||||
MYEP202 | 30~40KG/h | 3m³/h | 1.5m³/h | 1.2m³/h | 1m³/h | 0.8m³/h | ||||
MYEP301 | 50~70KG/h | 5m³/h | 2.5m³/h | 2m³/h | 1.5m³/h | 1.4m³/h | ||||
MYEP302 | 100~140KG/h | 10m³/h | 5m³/h | 4m³/h | 3m³/h | 2.8m³/h | ||||
MYEP303 | 150~210KG/h | 15m³/h | 7.5m³/h | 6m³/h | 4.5m³/h | 4.2m³/h | ||||
MYEP351 | 100~120KG/h | 10m³/h | 5m³/h | 4m³/h | 3m³/h | 2.4m³/h | ||||
MYEP352 | 200~240KG/h | 20m³/h | 10m³/h | 8m³/h | 6m³/h | 4.8m³/h | ||||
MYEP353 | 300~360KG/h | 30m³/h | 15m³/h | 12m³/h | 9m³/h | 7.2m³/h | ||||
MYEP401 | 130~160KG/h | 13m³/h | 6.5m³/h | 5m³/h | 4m³/h | 3.2m³/h | ||||
MYEP402 | 260~320KG/h | 26m³/h | 13m³/h | 10m³/h | 8m³/h | 6.4m³/h | ||||
MYEP403 | 390~480KG/h | 39m³/h | 19.5m³/h | 15m³/h | 12m³/h | 9.6m³/h | ||||
MYEP404 | 520~640KG/h | 52m³/h | 26m³/h | 20m³/h | 16m³/h | 12.8m³/h | ||||
2、Main Features
1) 24hours automatic and continuous running.
2) Good at dealing with Oily sludge.
3) Easy installation and maintenance.
4) Water and power saving.
3、Dewatering Principle
Sludge will be transported to the dewatering zone after being thickened in the thickening zone.
During the process, great pressure has been produced due to the decreasing spacing and screw, and the back plate clogging.Then the water decreases continuously, and achieve fully dewatering.

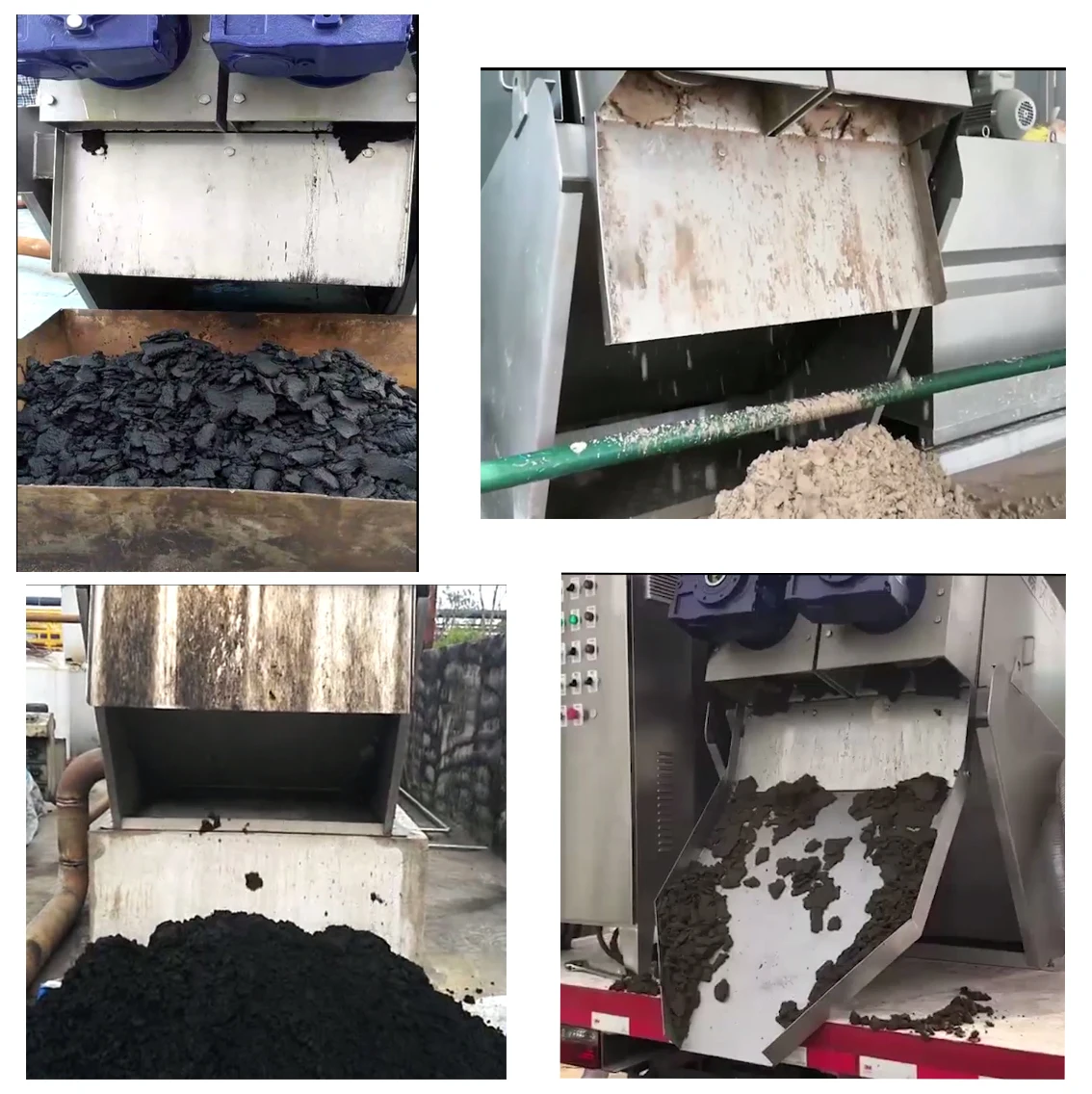

Before & After Treat
A、Before Treatment
*Moisture Content Range: 99.8~92%
*Directly Treat Sludge in the tank
*No need for sludge thickening tank
B、After Treatment
*Oultet Moisture Content:75~85%
*Compacy design, simple structure
*Saving cost of civil engineering
Detailed Images

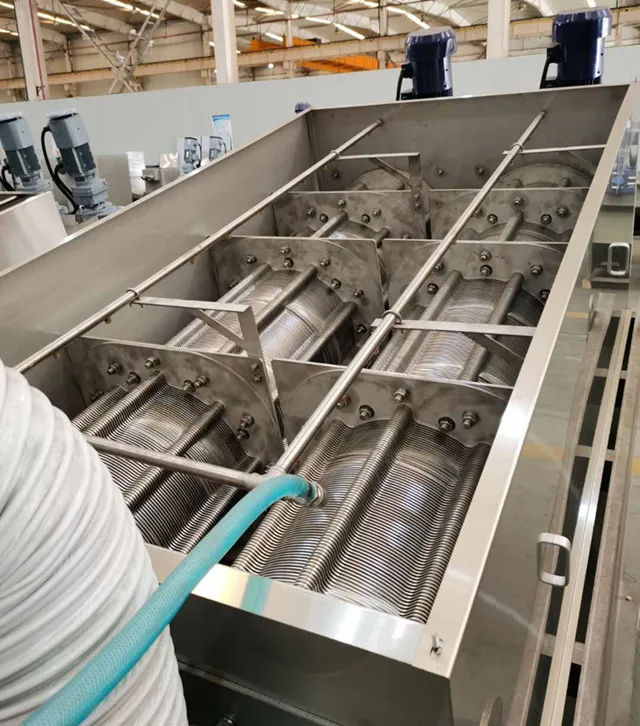

1、Screw Bodys
Mainly composed of fixed and moving
rings.Thickening and dewatering can be finished in one part.
2、Reducer & Motor
First class brand, SEW, NORD or other brands are optional due to your actual needs.
Excellent performance to ensure a long services lifespan.

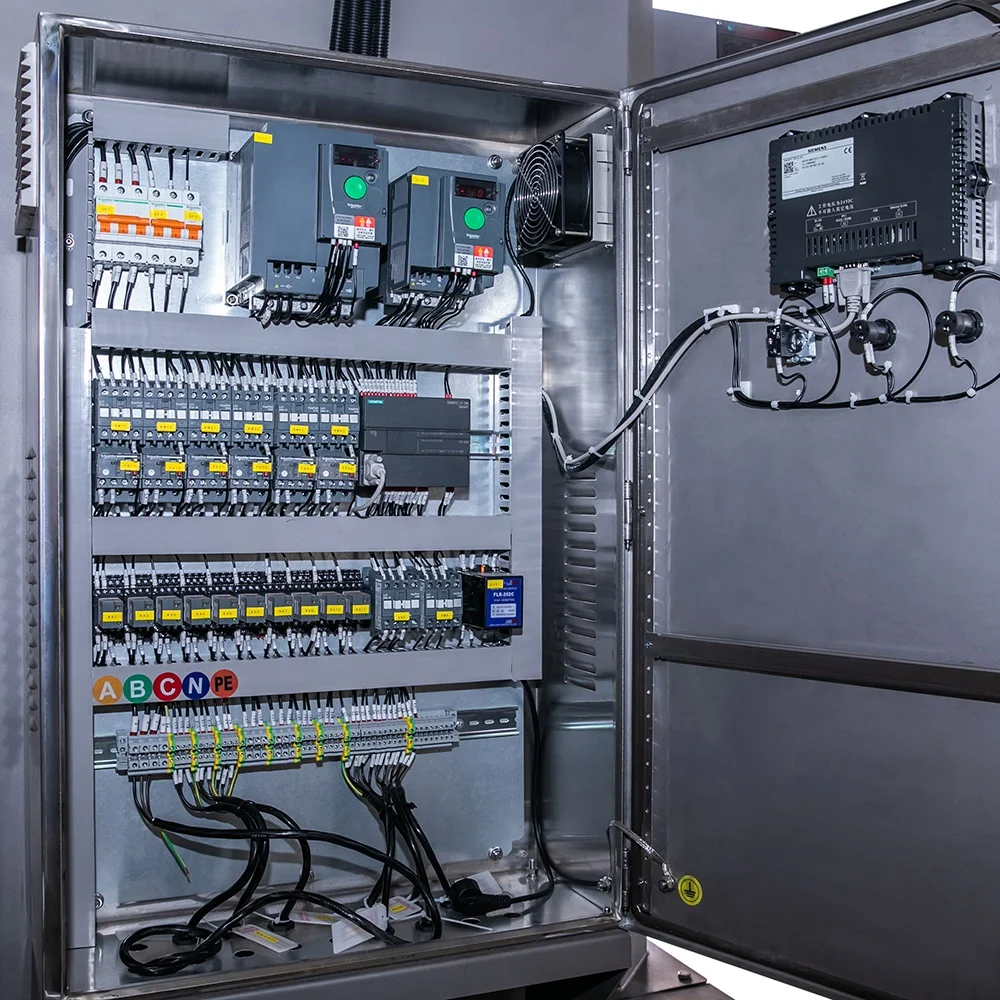

3、Electric Control Panel
High quality components.
Realize the switch of full automatic operation and manual operation.
Certifications
Packing & Delivery
(a)、Packing | ||
Size | Different due to models | |
Weight | Different due to models | |
Packaging Details | The normal package is wooden box (Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
(b)、Delivery | ||
Loading port | Shanghai port | |
Delivery time | One set usually 30~45 days | |
