CF740/920 automatic bopp film laminating machine
- Category: >>>
- Supplier: Weifang Huatian Precision Machinery Co. Ltd.
Share on (1600766916616):
Product Overview
Description

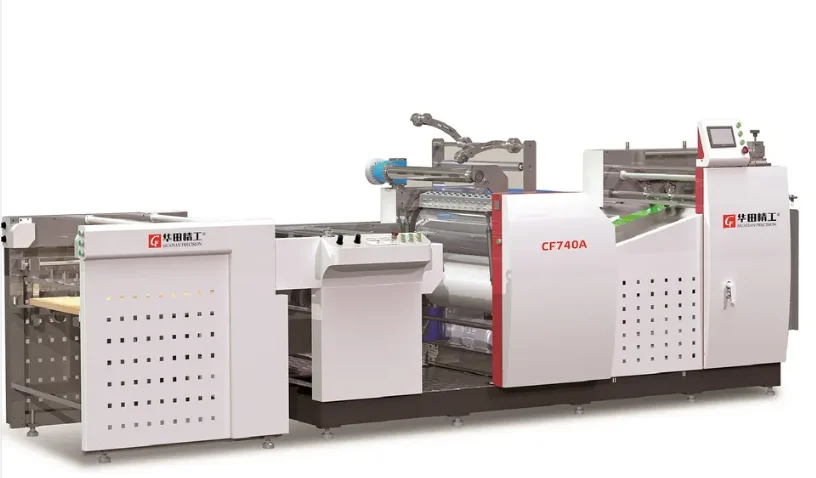

CF740A Bopp Film Lamination machine
Parameter :

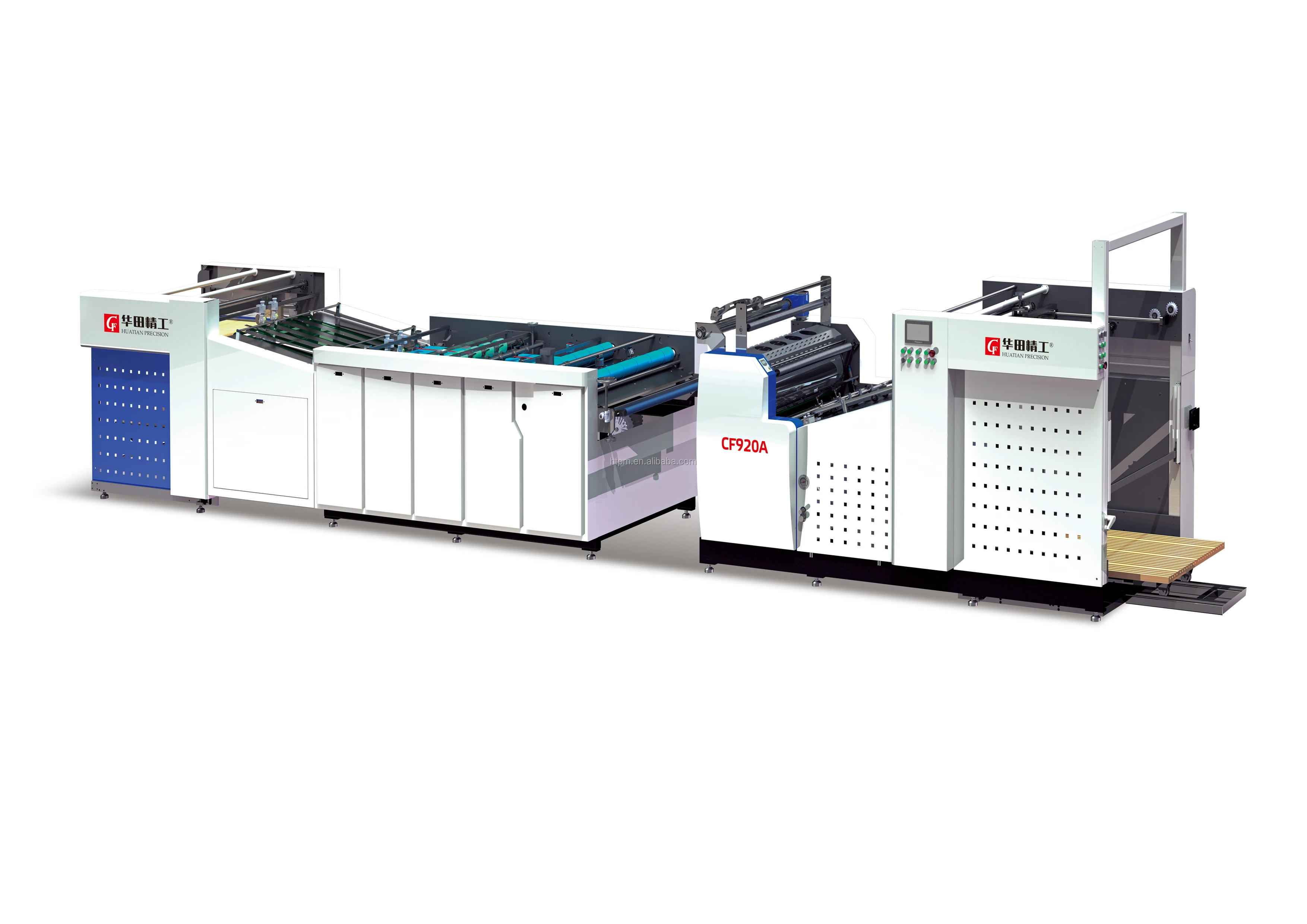

Model | CF740A | CF920A | CF1100A |
Max paper size | 740X1100mm | 920x1100mm | 1100X1450mm |
Min paper size | 300X320mm | 260X320mm | 300X320mm |
Paper thickness | 105-500g/M2 | 100-500g/M2 | 100-500g/M2 |
Laminating speed | 0-120m/min | 0-1200m/min | 0-120m/min |
Laminating temperature | 80-120℃ | 80-120℃ | 80-120℃ |
power | 380/20kw | 380/20kw | 380/20kw |
Weight | 2700kg | 5600kg | 6200kg |
Machine size | 5500×1300×1550mm | 8000X1600X1850mm | 9000X1800X1850mm |
Front guide positioning device | √ | √ | √ |
Side guide positioning device | √ | √ | √ |
Heating method | Electromagnetic Heater | Electromagnetic Heater | Electromagnetic Heater |
Chain cutter device | optional | optional | optional |
Anti-curvature device | √ | √ | √ |
Advantage :

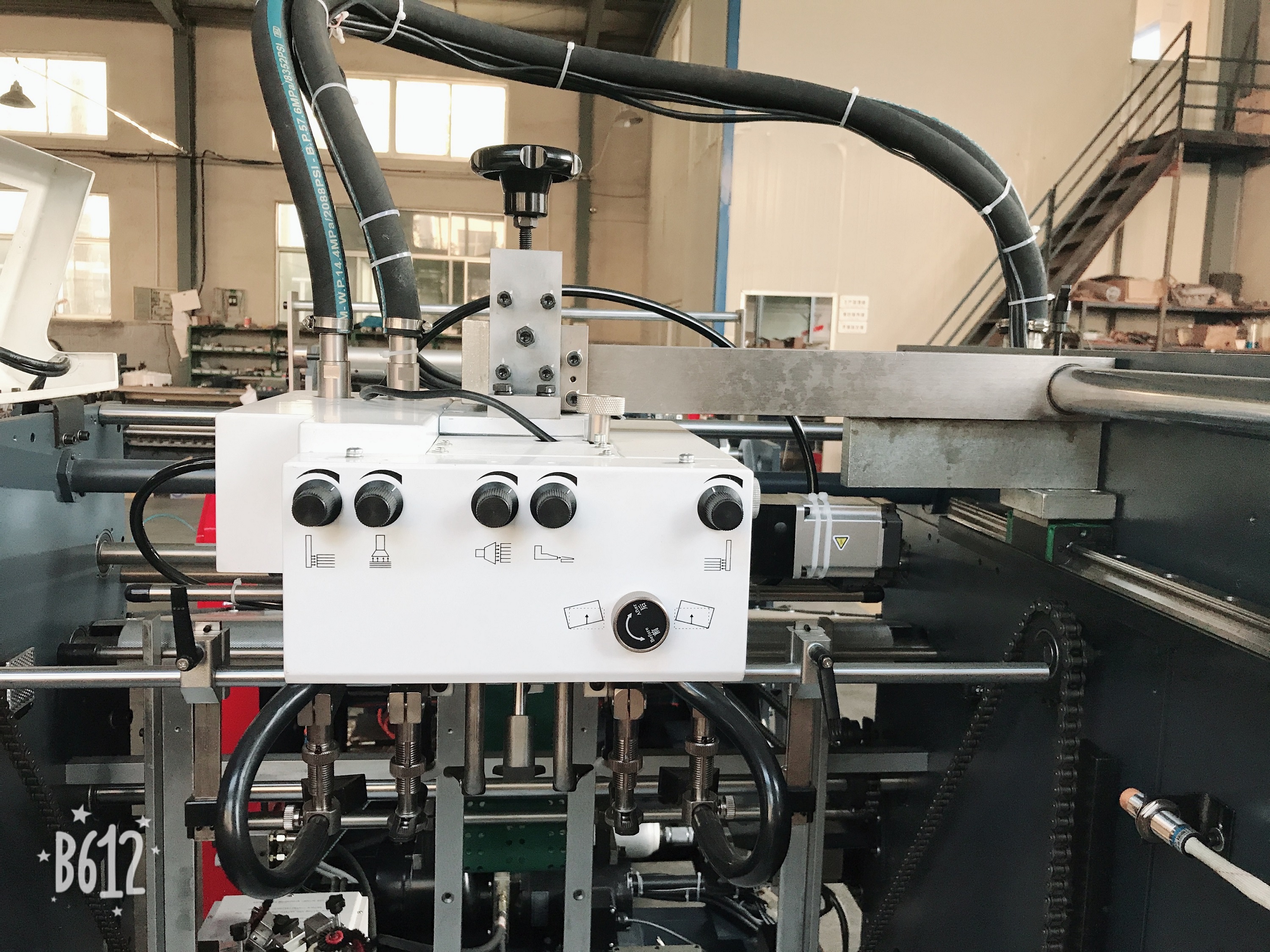

Automatic feeder : This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor ,the feeder without shaft,can use long time without any change in the precision. |
|

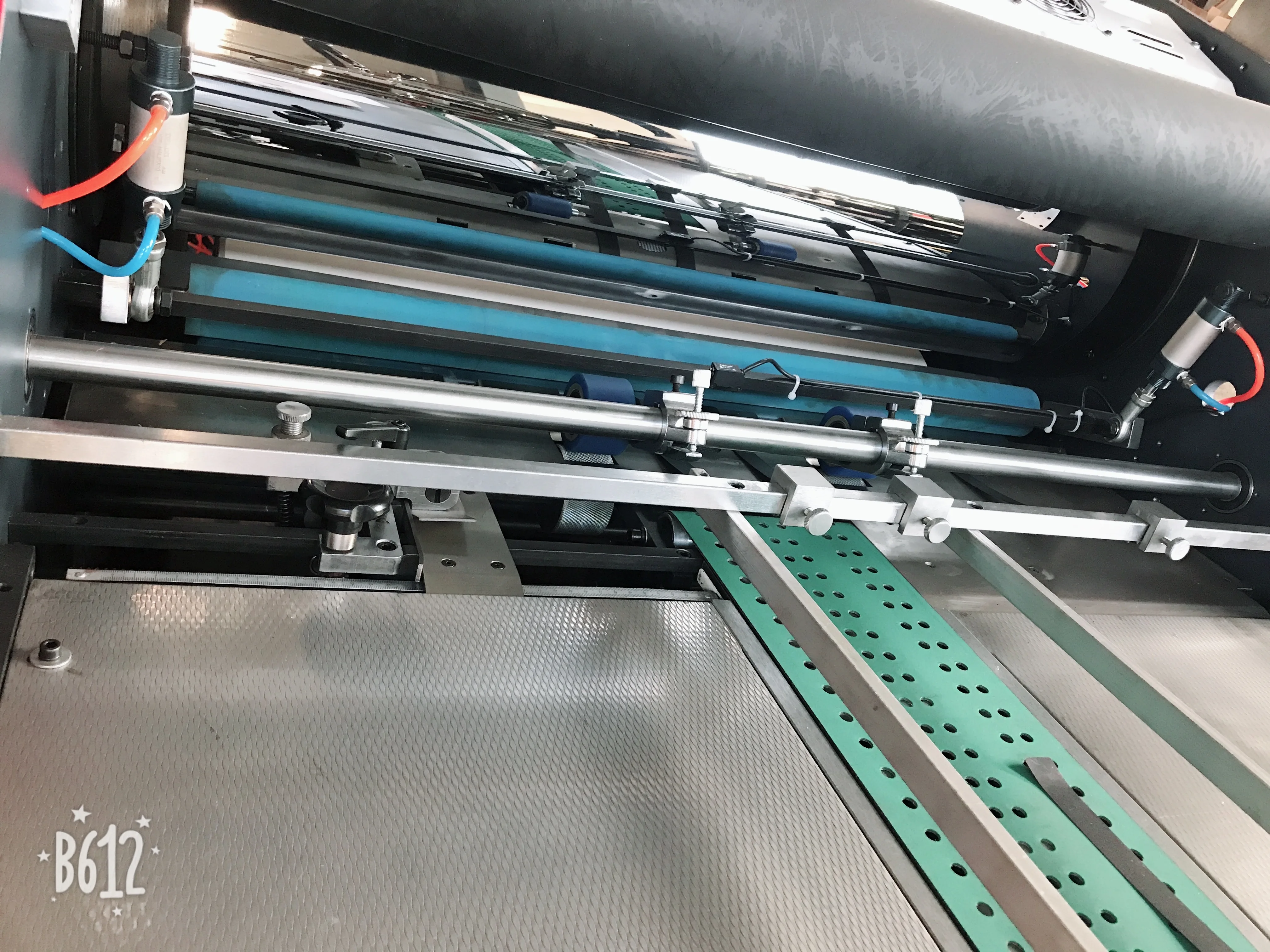

Front guide and side guide The paper feeder adopts vacuum suction device and 3 servo motor control system,which is easy to adjust and use, the paper transfer bridge adopts rice granular stainless steel, greatly reduce the resistance of paper transmission. | |
This machine is equipped with perforate cutter or chain cutter device, it is optional |
|

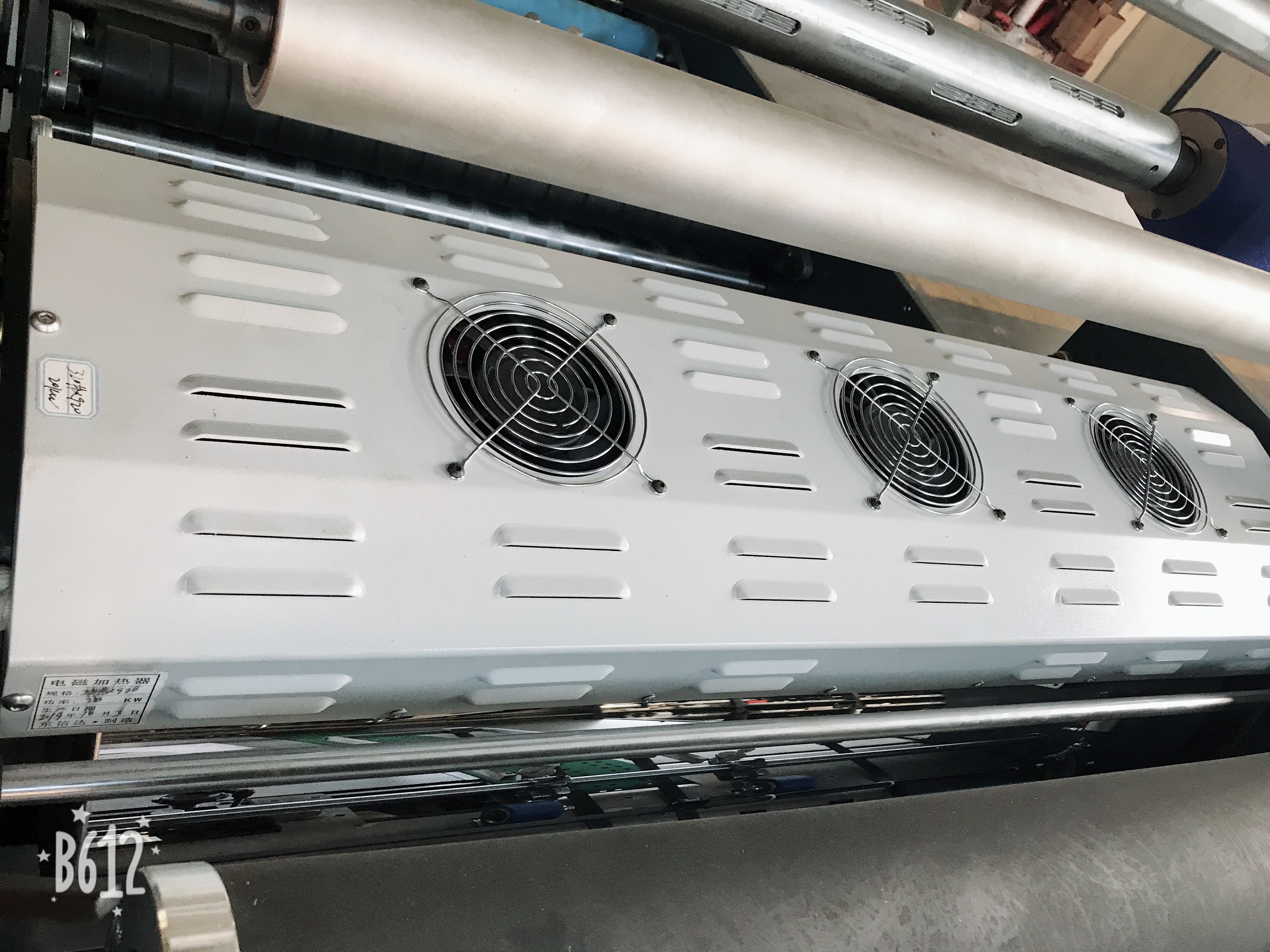

This machine is equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection. Instant Electromagnetic Heater heat up time shorten to 90 seconds accurate temperature control:±1℃ | |

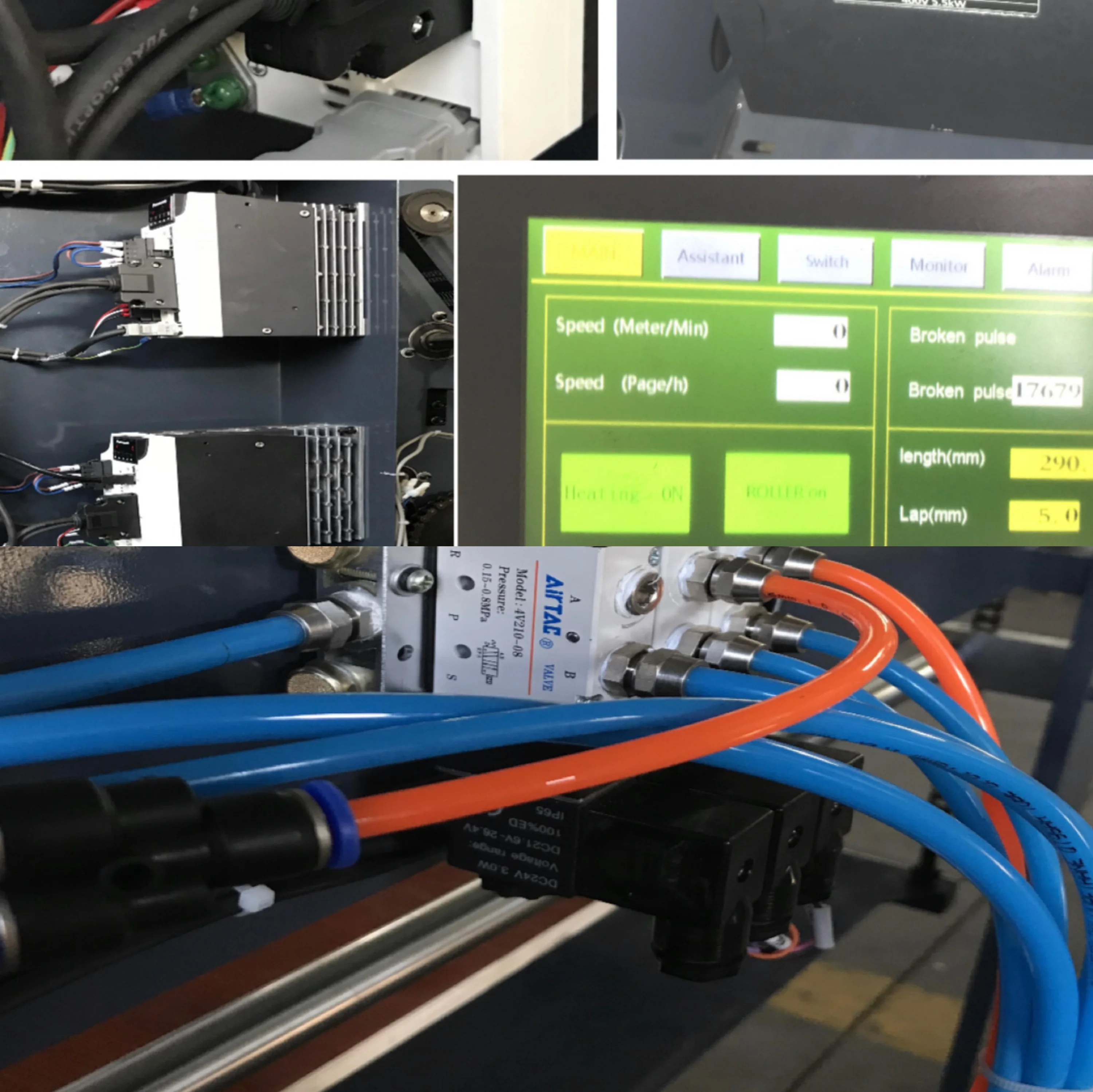

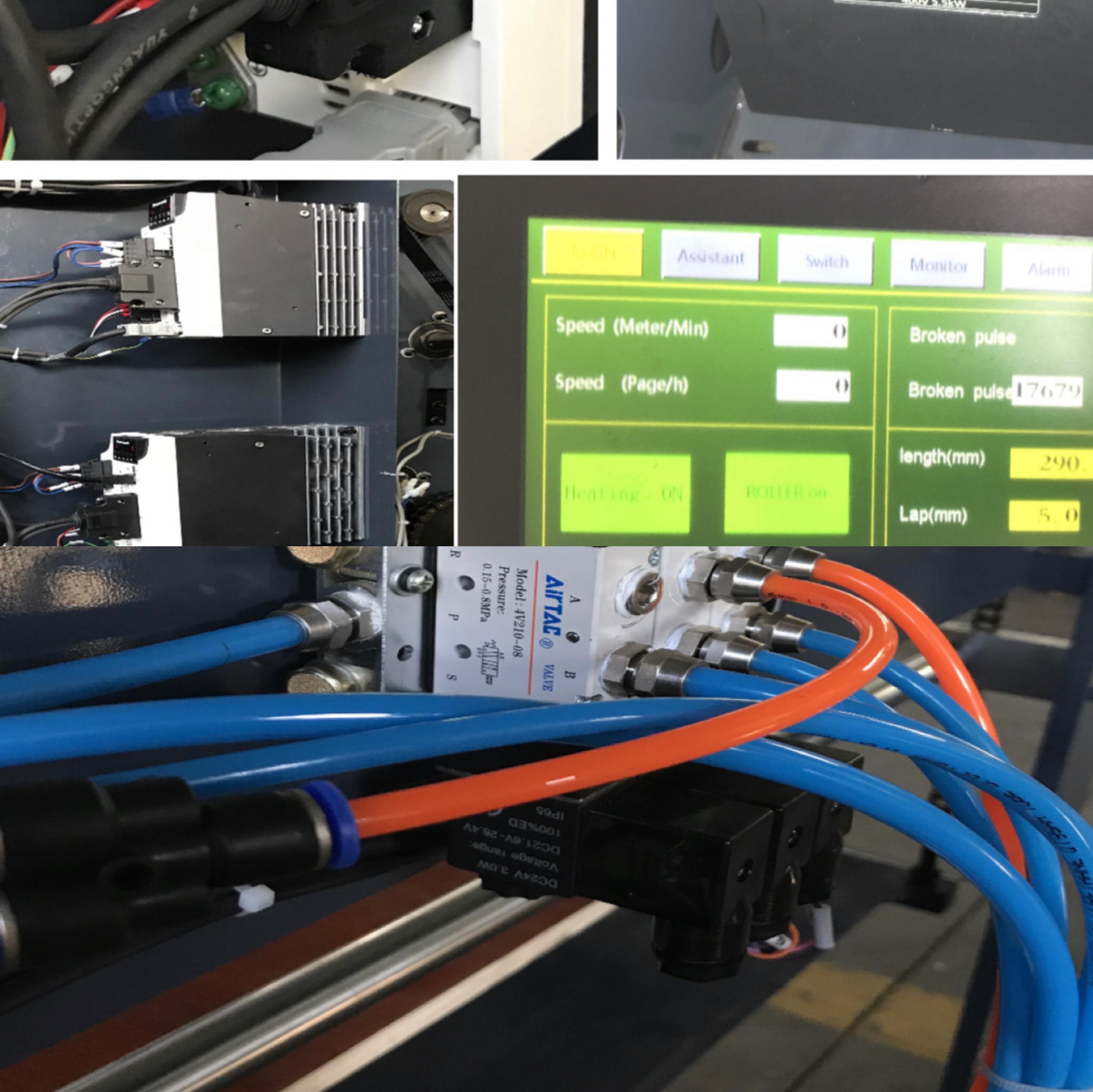

The PLC /touch screen /servo/and sensor for this machine is panasonic .the quality is stable.and the program is made by our company, it is easy to adjust and maintain |
|

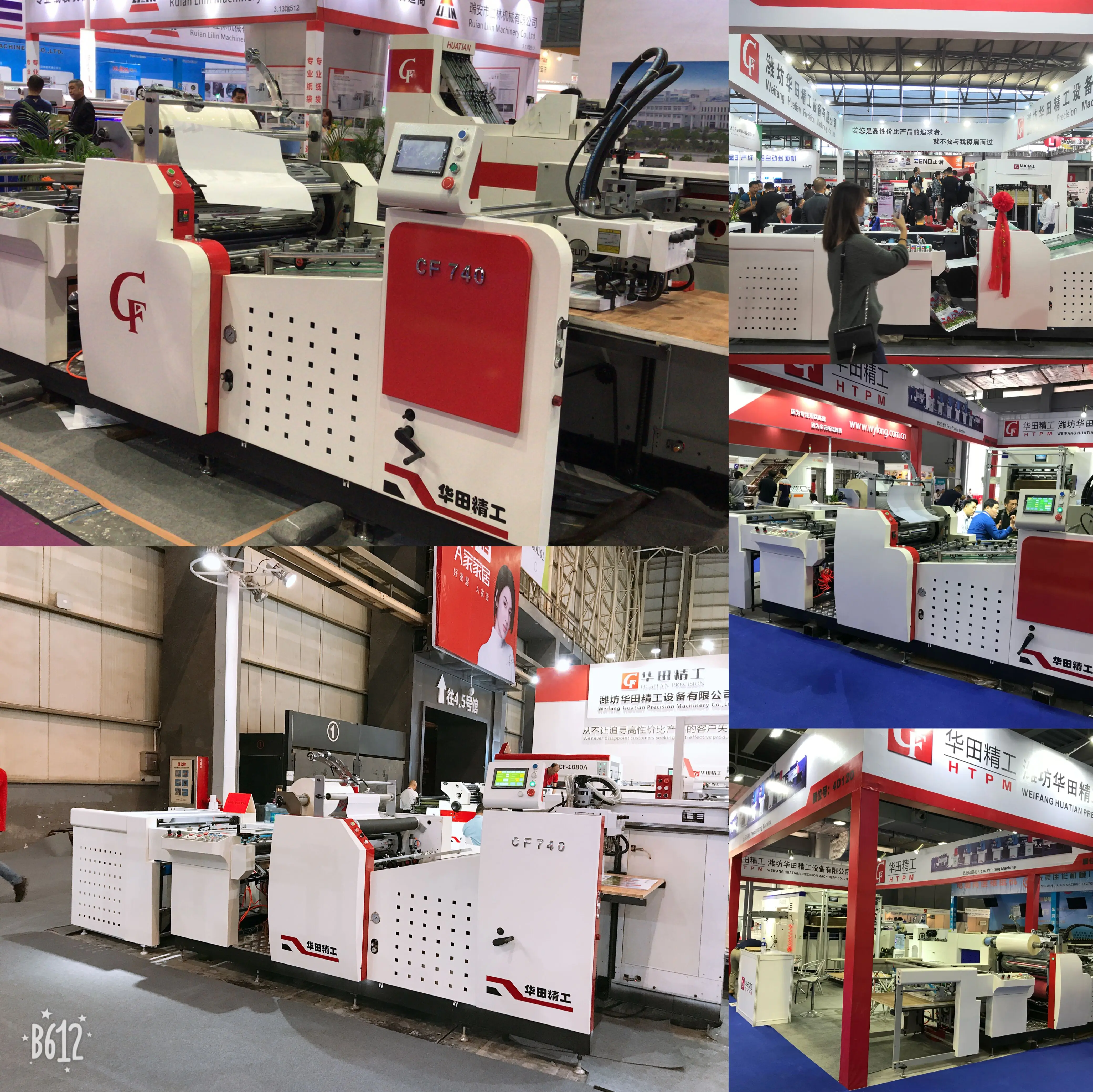

Exhibition:
