Vlift 12ton Electric Towing Tractor VDD80120 Forklift Towing Good Price
- Category: >>>
- Supplier: Shanghai Unico Industry & Trade Co. Ltd.
Share on (1600766928792):
Product Overview
Description
Product Description

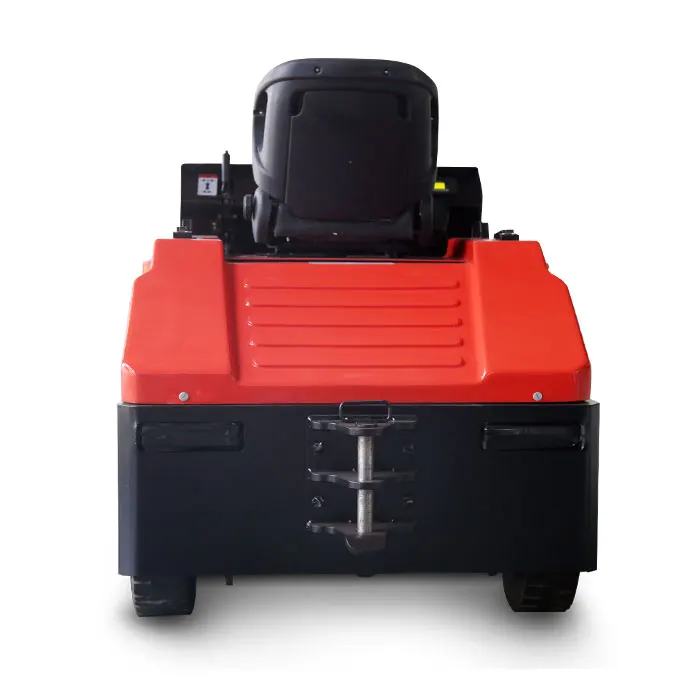

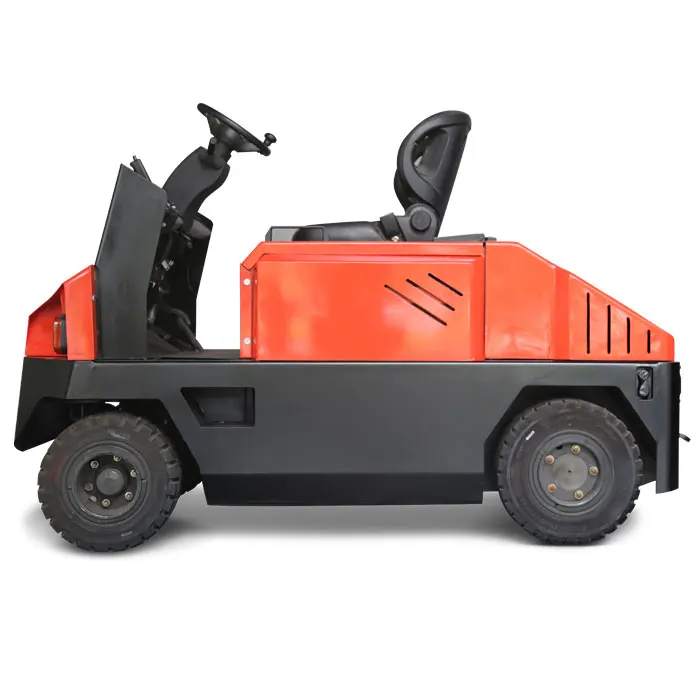

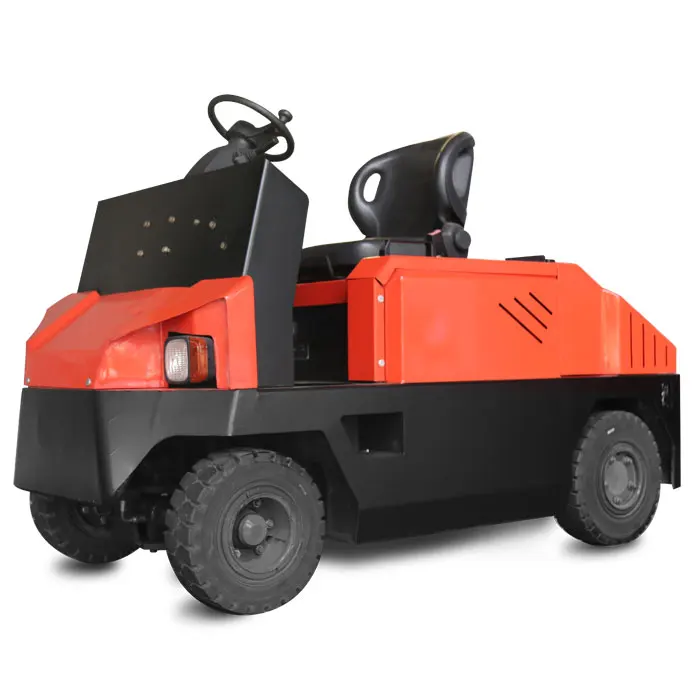

Vlift 12ton Electric Towing Tractor VDD80120 Forklift Towing Good Price
Specification
| 1.1 | Model designation | VDD80120 | |
| 1.2 | Drive unit | Battery | |
| 1.3 | Operator type | Rider seated | |
| 1.4 | Load capacity | Q (kg) | 12000 |
| 1.5 | Rated drawbar pull | F (N) | 2400 |
| 1.6 | Wheelbase | y (mm) | 1400 |
| Weights | |||
| 2.1 | Service weight | kg | 2180 |
| 2.2 | Axle loading, unladen front/ rear | kg | 950/ 1230 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | Solid | |
| 3.2 | Tyre size, front | 18x7-8 (457) | |
| 3.3 | Tyre size, rear | 16x6-8 (409) | |
| 3.4 | Wheels, number front/ rear (x=drive wheels) | 2/ 2x | |
| 3.5 | Tread, front | b10 (mm) | 890 |
| 3.6 | Tread, rear | b11 (mm) | 925 |

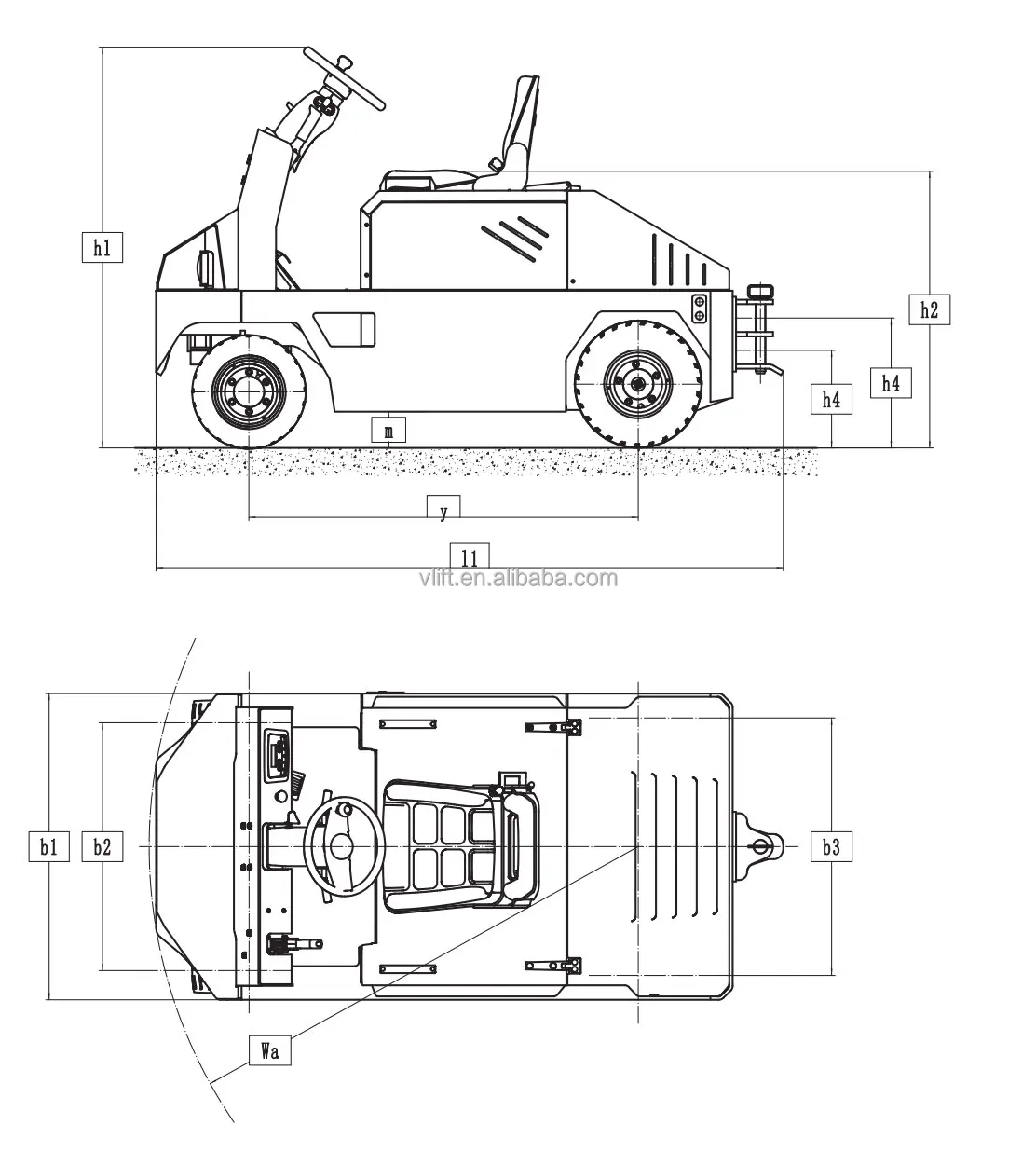

| Dimensions | |||
| 4.1 | Seat height | h7 (mm) | 990 |
| 4.2 | Tow coupling height | h10a/b (mm) | 350/460 |
| 4.3 | Overall length | l1 (mm) | 2255 |
| 4.4 | Overall width | b1/ b2 (mm) | 1100 |
| 4.5 | Ground clearance, center of wheelbase | m2 (mm) | 130 |
| 4.6 | Outer turning radius | Wa (mm) | 1865 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 10/14 |
| 5.2 | Load drawbar pull, laden/ unladen S2 5 min. | N | 2400 |
| 5.3 | Maximum drawbar pull, laden/ unladen S2 5 min. | N | 121000 |
| 5.4 | Service brake | Hydraulic/ Mechanical | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 4.5x2 |
| 6.2 | Battery voltage/ rated capacity (5h) | V/ Ah | 48/ 500( Max 900Ah) |
| Others | |||
| 7.1 | Type of drive control | AC | |
| 7.2 | Manufacturer | ZAPI | |
| 7.3 | Sound level at operator's ear | dB (A) | 60 |

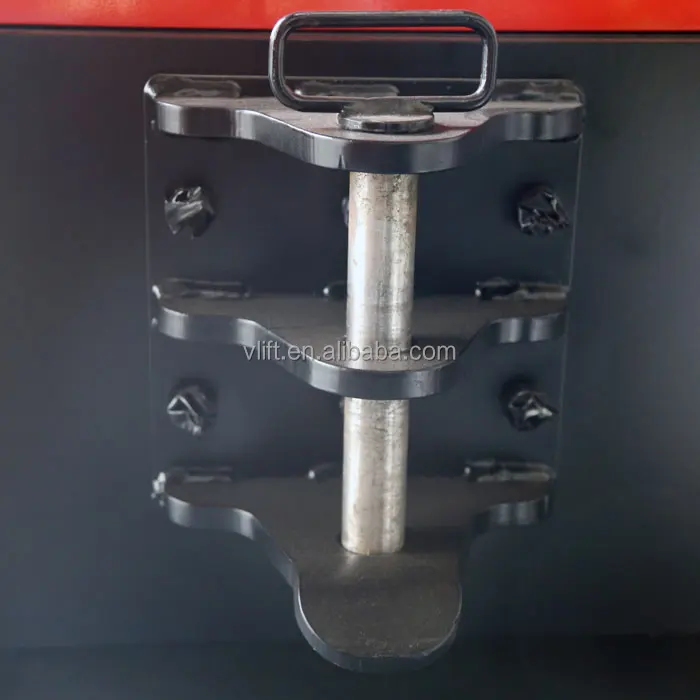

| 7.4 | Tow coupling | DIN15170 | |
Company informations
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
Our Factory Show
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
Certiications
FAQ
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
