Product Description

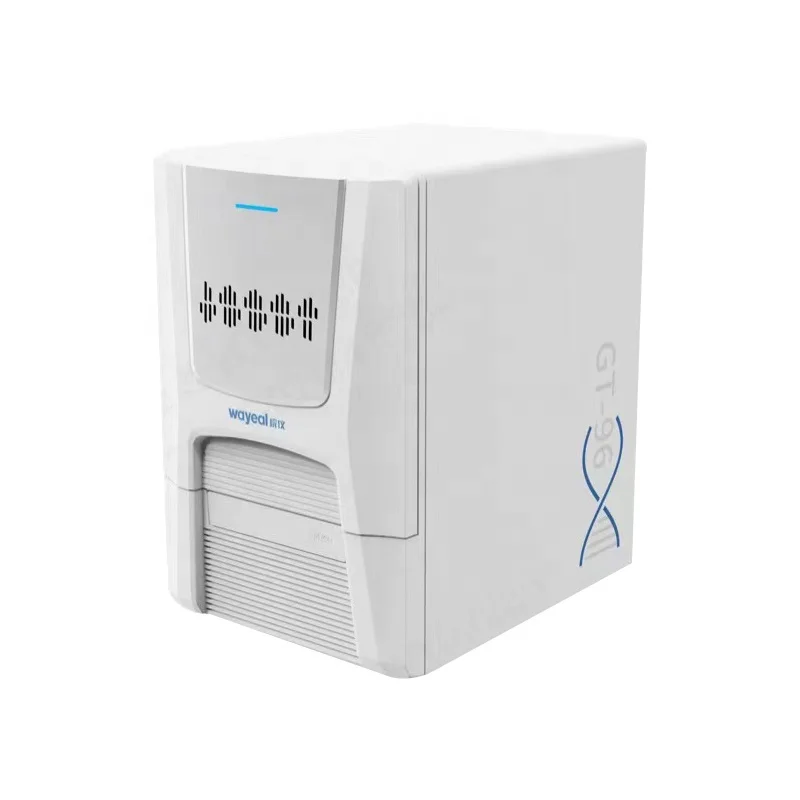

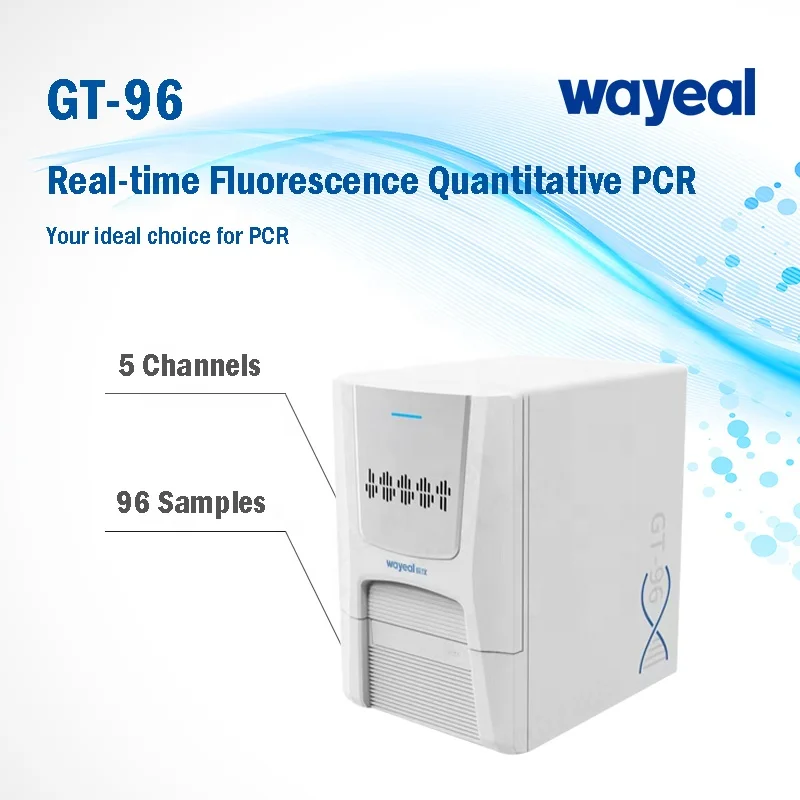

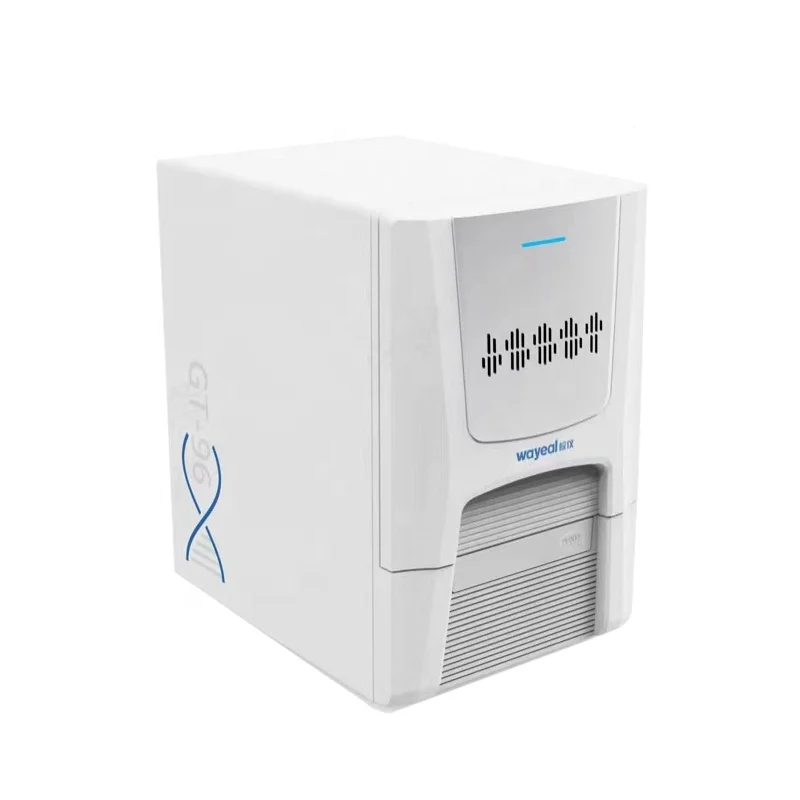

Wayeal GT96 96 Wells 5 Channels Real Time PCR Machine Fluorescence PCR Detector
Production Introduction
The GT-96 Real-Time Fluorescence PCR instrument is a multiplexed fluorescence PCR analysis technology platform. The maximum throughput of the product is up to 96 samples, enabling five-channel fluorescence detection. The combination of sophisticated optical systems and clever algorithms greatly eliminates fluorescence interferences. It is also equipped with a strong thermal module, which makes the temperature control accuracy, precision, and fluctuation level reach the industry leading level. Professional software design gives you more options.
Product Paramenters
Product Name | GT-96 PCR Analyzer |
Size | 470*350*530mm |
Power | 100-220VAC, 50/60Hz, 1000VA |
Average Heating Rate | ≥3.0℃/s |
Average Cooling Rate | ≥2.0℃/s |
Temperature Control Accuracy | ±0.1℃ |
Temperature Accuracy | ±0.1℃ |
Temperature Uniformity | ±0.1℃ |
Temperature Range | 4℃-100℃ |
Light Source | LED Light |
Repeatability of Fluorescence Intensity | CV≤2% |
Uniformity of Fluorescence Intensity | CV≤5% |
Linearity of Fluorescence Intensity | |r|≥0.990 |
Detection Channels | 5 Channels |
F1:FAM,SYBR Green F2:HEX,VIC F3:TAMRA,CY3 F4:ROX,TEXAS Red F5:CY5 | |
Reaction System | 10-100μL |
Kinetics Scope | 1-1010 copies |
Sample Linearity | |r|≥0.990 |
Quantitative Repeatability | CV≤2% |
Quantification Error | ±2% |
Stability | CV≤5% |

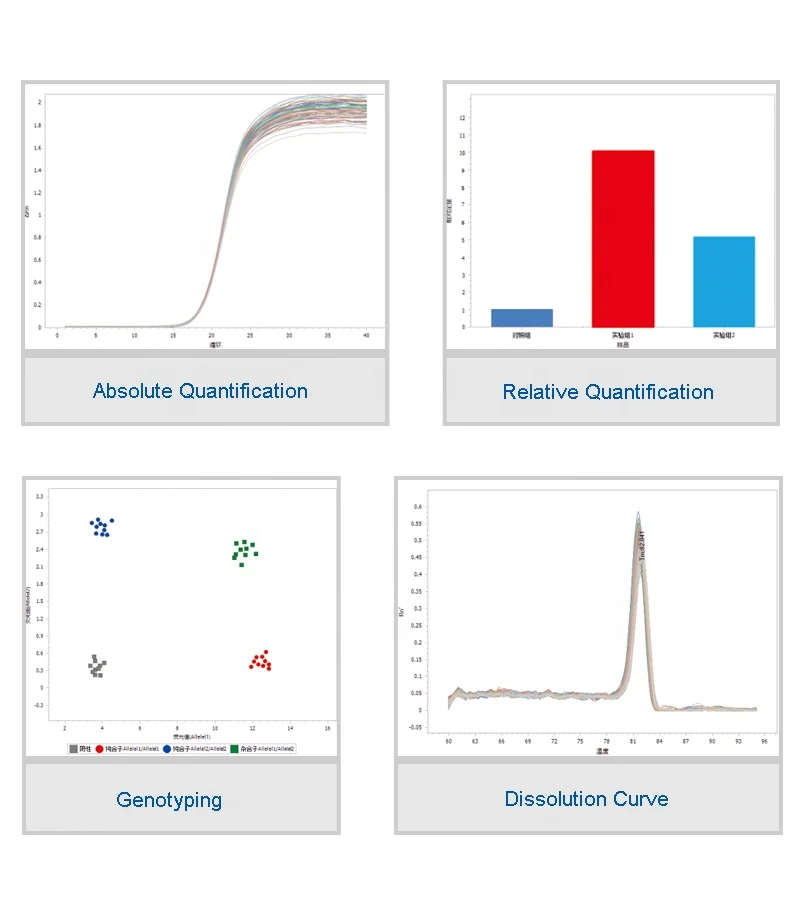

Experiments | Absolute quantification, Relative quantification, Genotyping, Dissolution curve |
Product Performance

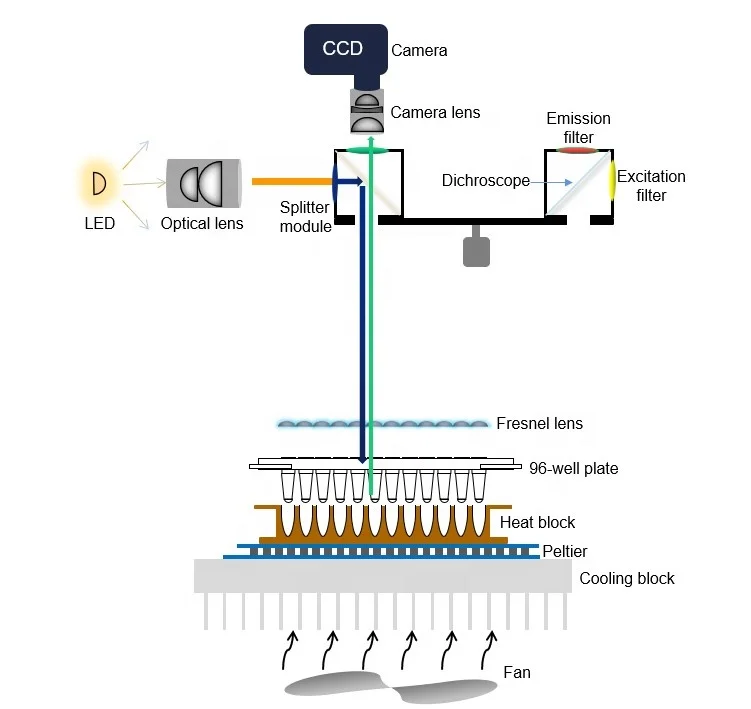

Optical System
1. Maintenance-free and long service life LED excitation light source
2. Large field of view and low distortion lens for reduced edge effect, no scanning and fast reading
3. High-speed, low-noise camera for improved signal sensitivity
4. 5-channel fluorescence detection
Temperature Control System
1. Fast reaction：Semiconductor cooling technology for rapid temperature rise and fall, saving the user's experimental time
2. Good temperature uniformity: multi-temperature zone regulation to ensure the stability of experimental results
3. High accuracy of temperature control: multiple temperature sensors feedback, intelligent algorithm assistance, infinitely close to the target value, improve the accuracy of experimental data
Software Analysis System
1. Open experimental program settings to enhance the convenience of experiments
2. Comprehensive function of analysis and export, making data results more intuitive
3. Database system makes safety data storage
4. The fully upgraded calibration algorithm makes the calibration process simple and easy
5. Multiple forms of report output
6. Free fluorescence channel selection, free extension time setting
7. One PC controls multiple instruments, making it easy to observe experiments
