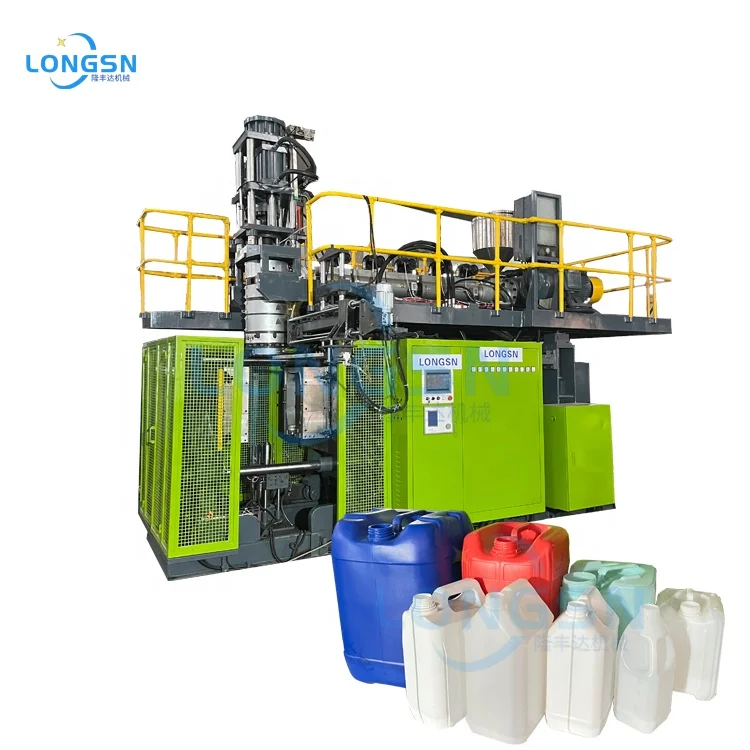

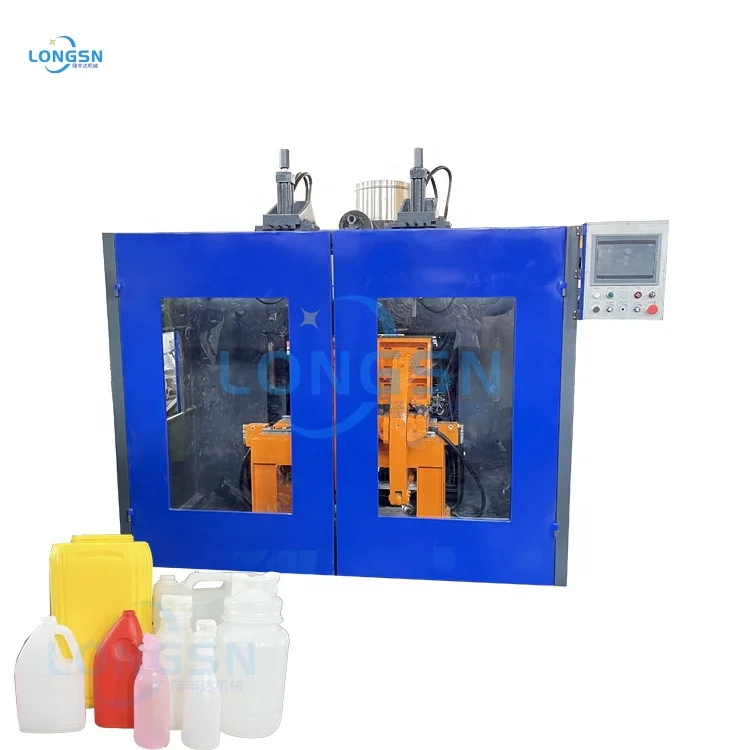

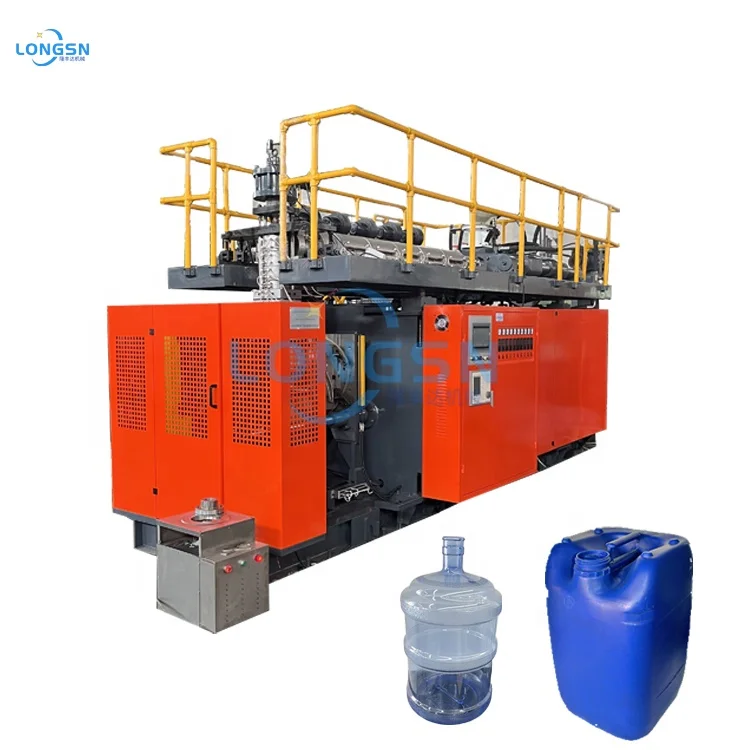

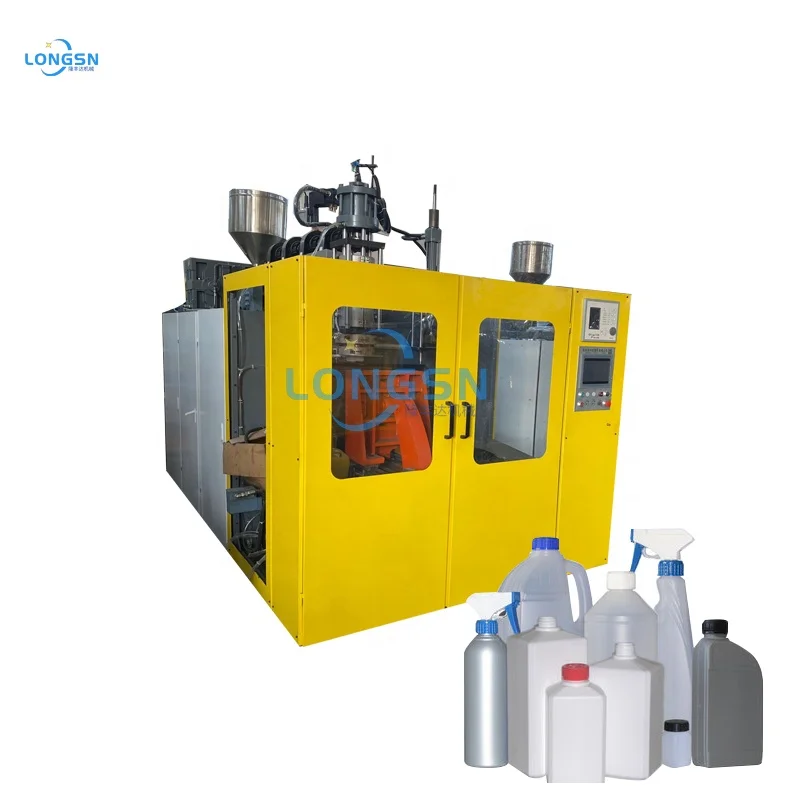

Automatic Plastic PP HDPE Bottle Lubricant Oil Barrel 5Liter Jerry can Making Extrusion Blow Molding Machine Price
- Category: >>>
- Supplier: Zhangjiagang Longsn Machine Co. Ltd.
Share on (1600766971440):
Product Overview
Description
Product Overview
Automatic Plastic PP HDPE Bottle Lubricant Oil Barrel 5Liter Jerry can Making Extrusion Blow Molding Machine Price
This type automatic extrusion blow machine for 5L as maximum, usually used for plastic bottles, jerrycans, containers and jars of packing glue, medicine, cosmetic, cream, juice, milk, yogurt, water, sauce, liquid soap, detergent, shampoo, shower jell, edible oil, engine oil, lubricating oil, antifreeze liquid, addictive agent and other chemical liquid.
We could help you to take care of the design and production key points and achieve your investment successfully also economically. We are the professional ONE-STOP supplier in extrusion blow molding field, supporting you from new project consultation stage to after sales service. We are your professional blow-molding working team and partner.
PRODUCT SPECIFICATIONS
Parameters | Units | LSN65S | LSN70D |
Material | PE,PP,PV,PVC,PA | PE,PP,PV,PVC,PA | |
Number of die head | set | 1,2,3,4 | 1,2,3,4 |
Max Container capacity | 5L | 5L | |
Screw diameter | mm | 65 | 70 |
Screw L/D ratio | - | 24 | 24 |
(50HZ)Screw rpm(50hz) | r/min | 10-70 | 10-70 |
(PE)Extrusion capacity per hour | kg/h | 60 | 70 |
Number of heaters | - | 3 | 3 |
Opening stoke | mm | 420 | 420 |
Platen size | mm | 320*410 | 320*410 |
Clamping force | KN | 68 | 68 |
Dry cycle time | s | 5 | 7 |
Air pressure | Mpa | 0.8 | 0.8 |
Compressed air comsumption | m3/min | 0.4 | 0.4 |
Machine dimension(L*W*H) | mm | 3390*1750*2400 | 3800*2140*2400 |
Machine net weight | T | 5 | 6 |
Extruder heating power | kw | 13.8 | 14.2 |
Hydraulic motor | kw | 7.5 | 7.5 |
Total power | kw | 45.5 | 49.4 |
PRODUCT CONFIGURATION
EXTRUSION SYSTEM
Good screw and teeth design for better plasticizing effect. Reliable performance of gear box, motor and inverter. Belt wheel speed rate is calculated according to target output Pre-heating with intelligent protection for screw and motor. Reasonable head runner design for color change quickly. Die & core individualized according to your product width.
CLAMPING SYSTEM
For continuous extrusion blow molding machines we adopt axail type horizontal translation clamping unit. The mold open close and carriage up down are executed with 2 separated hydraulic cylinders. The latens are made with cast iron and CNC processing for enough strength and high precision and parallelism, under strong clamping force taken by mould in balance, the scraps could removed easily.
HYDRAULIC SYSTEM
Composed of motor, pump, pressure regulating valve block, reversing valve blocks, cylinders and oil chillers. Control platens open and close, carriage up and down, blow pin up and down, special action technics for mould. Optimized hydraulic design to adopt pressure, flow and time 3 factors to control action precision and smoothness. High stationarity and reliability, accurate operation, long longevity and quick response.
ELECTRIC CONTROL
True color man machine control interface. Simple but humanized pages easy for operation. 100 point parison thickness controller & profile edition. Professional engineer setting pages for problem diagnosis. Short-cut key board & emergency stop for safety production. Aluminum cantilever operation box and easy adjustment. Remote technical support & program updating.
Successful Project
Project in Asia
Project in Middle East
Project in South America
SIMILAR PRODUCTS
Product packaging
Company Profile
Zhangjiagang Longsn Machine Co., Ltd.
Zhangjiagang Longsn Machine Co., Ltd. is a professional manufacturer which integrating development, research, design, manufacturing, technical service and marketing to manufacture complete sets of Packaging machines .
Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
