gwinstek AFG 3000 series AFG 3031 &AFG 3032& AFG 3021&AFG 3022 Multi class signal generator
- Category: Signal Generators >>>
- Supplier: Nanjing,Daoce,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

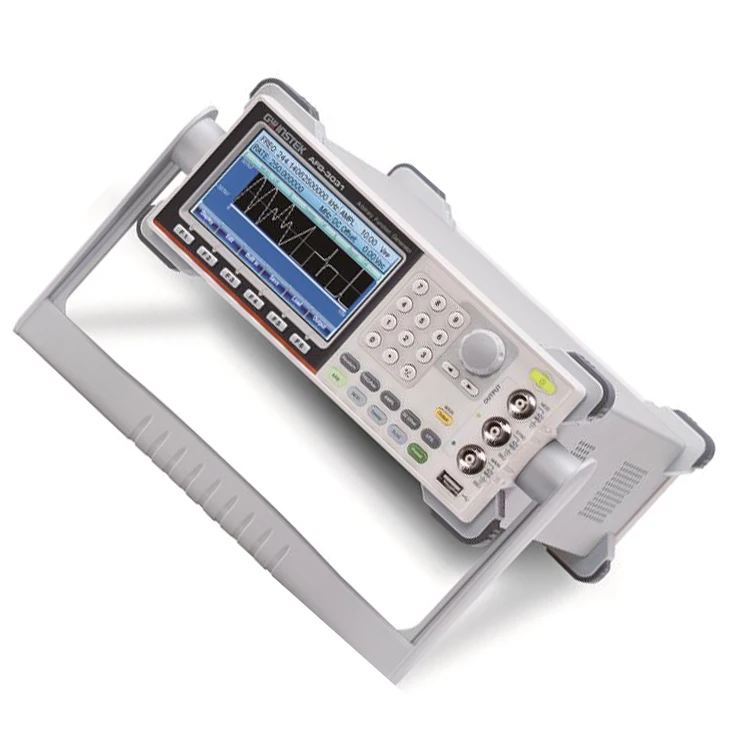

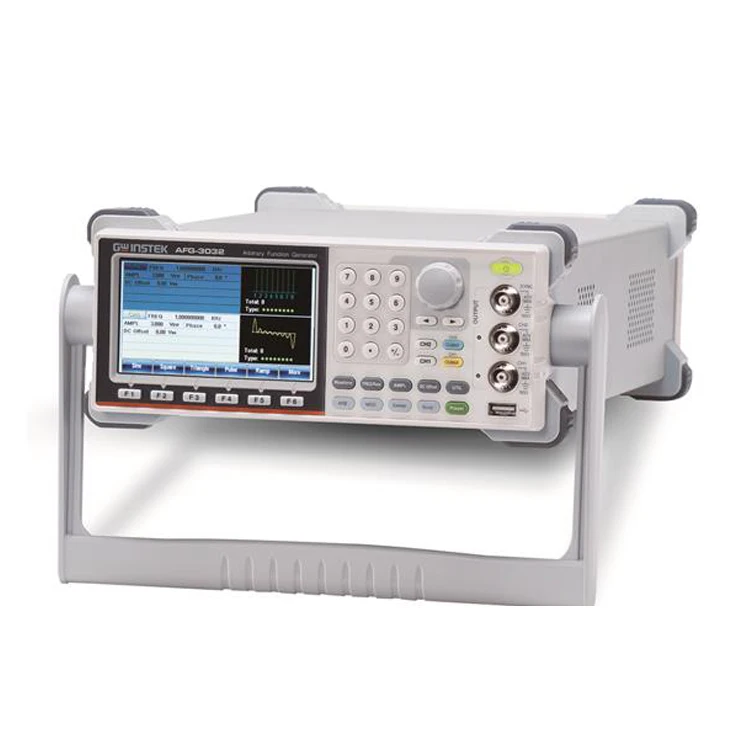

AFG-3031 &AFG-3032& AFG-3021&AFG-3022
Guwei Electronics has launched AFG-3000 series of arbitrary waveform signal generators with 20MHz/30MHz single isolated channel and double isolated channel, which are applicable to industrial, scientific research and educational fields. In the design of isolated output, the grounding of all output channels is isolated from the ground, which is applicable to the test application of floating circuit. For example, after the DC voltage of the power supply is connected in series, the output of DC plus AC can reach+42V or - 42V at most. Moreover, the dual-channel can be used independently or output by multiple instruments simultaneously without considering the problem of grounding reference, such as the engine controller or transmission device of vehicle electronics. They provide arbitrary waveform characteristics of 250 MSA/s sampling rate, 16-bit resolution, and 8 M point memory depth. In addition to downloading the pre-edited waveform file into the memory to generate any waveform, users can also use the built-in DSOLink function of AFG-3000 series to copy and generate the signals measured by the electronic digital oscilloscope.
AFG-3000 series supports multi-channel synchronous phase operation, up to 6 sets and 12 channels of phase synchronization. Users can input 10 MHz atomic clock frequency standard through external signal source to improve the accuracy of frequency output. Support frequency scanning and amplitude scanning, which can be combined with linear/logarithmic, one-way (sawtooth wave)/two-way (triangular wave), continuous/single trigger/threshold trigger functions to meet various application requirements in different scanning methods. Frequency scanning can test the frequency response of electronic components such as filters and low-frequency amplifiers. Amplitude scanning can simulate vibration test (combined with vibration tester), fatigue aging test of various materials, linearity test of low frequency amplifier, etc.
Function introduction of AFG-3032 pulse generator http://v.youku.com/v_show/id_XMTczMDQzMDA4OA==.html?spm=a2hzp.8253869.0.0
AFG-3032 additive modulation function introduction http://v.youku.com/v_show/id_XMTczMDQxNjU0MA==.html?spm=a2hzp.8253869.0.0
AFG-3032 isolation channel function introduction http://v.youku.com/v_show/id_XMTcyMjcyODMyMA==.html?spm=a2hzp.8253869.0.0
AFG-3032 multi-channel synchronous phase operation function introduction http://v.youku.com/v_show/id_XMTcyMjQ5NzAxNg==.html?spm=a2hzp.8253869.0.0
AFG-3032 harmonic signal generator function http://v.youku.com/v_show/id_XMTcyMjM5NDMyMA==.html?spm=a2hzp.8253869.0.0
AFG-3032 amplitude scanning function introduction http://v.youku.com/v_show/id_XMTcwMDM5MTQyOA==.html?spm=a2hzp.8253869.0.0
AFG-3000 series supports multi-channel synchronous phase operation, up to 6 sets and 12 channels of phase synchronization. Users can input 10 MHz atomic clock frequency standard through external signal source to improve the accuracy of frequency output. Support frequency scanning and amplitude scanning, which can be combined with linear/logarithmic, one-way (sawtooth wave)/two-way (triangular wave), continuous/single trigger/threshold trigger functions to meet various application requirements in different scanning methods. Frequency scanning can test the frequency response of electronic components such as filters and low-frequency amplifiers. Amplitude scanning can simulate vibration test (combined with vibration tester), fatigue aging test of various materials, linearity test of low frequency amplifier, etc.
Function introduction of AFG-3032 pulse generator http://v.youku.com/v_show/id_XMTczMDQzMDA4OA==.html?spm=a2hzp.8253869.0.0
AFG-3032 additive modulation function introduction http://v.youku.com/v_show/id_XMTczMDQxNjU0MA==.html?spm=a2hzp.8253869.0.0
AFG-3032 isolation channel function introduction http://v.youku.com/v_show/id_XMTcyMjcyODMyMA==.html?spm=a2hzp.8253869.0.0
AFG-3032 multi-channel synchronous phase operation function introduction http://v.youku.com/v_show/id_XMTcyMjQ5NzAxNg==.html?spm=a2hzp.8253869.0.0
AFG-3032 harmonic signal generator function http://v.youku.com/v_show/id_XMTcyMjM5NDMyMA==.html?spm=a2hzp.8253869.0.0
AFG-3032 amplitude scanning function introduction http://v.youku.com/v_show/id_XMTcwMDM5MTQyOA==.html?spm=a2hzp.8253869.0.0
Specification
Model | AFG-3031 &AFG-3032& AFG-3021&AFG-3022 |
Name | Arbitrary Function Generator |
Brand | gwinstek |
Series | AFG-3000 Series |
1uHz~20/30MHz，20Vpp，1/2 Ch | Arbitrary waveform 250MSA/s, 16bit resolution, 8M record length | Isolated channel circuit design | Support up to 6 12Ch synchronous phase operations |
Harmonic signal generator Provide USB/LAN/GPIB (optional) instrument control interface | Dual channel models support SUM modulation, coupling, tracking and phase functions | Set pulse wave parameters independently | Built-in AM/FM/PM/FSK/PWM/SUM modulation, scanning and Burst functions |
