Horizontal Band Saw mill Machine for woodworking machinery

Product Overview

Description

Introduction of Horizontal Band Saw mill  Machine for woodworking machinery

Horizontal band saw is designed to saw the large diameter hard woods and softwood; it has large saw wheel, both square and round wood is ok .
Can add trailer easy moved horizontal bandsaw sawmills is widely used for Africa rosewoods, birch, spruce, oak, teak woods cutting.

All copper motor: high-speed operation, long life use

Stable and thick machine body: solid materials, smooth feeding, continuous discharge

Alloy saw blade: flat cutting surface, fast sawing, small sawing road, saving material and electricity.

Parameter of Horizontal Band Saw mill  Machine for woodworking machinery

Model	AI-590	AI-690	AI-790
Band saw wheel diameter	405mm	485mm	485mm
Max. Sawing round wood diameter	590mm	690mm	790mm
Max. Sawing square wood diameter	490mm	590mm	590mm
Max. Sawing thickness per time	145mm	190mm	190mm
Min.sawing thickness per time	25.4mm	25.4mm	25.4mm
Standard working length	3400mm (can be extended	3400mm (can be extended	3400mm (can be extended
weight	360kg	410kg	440kg
Min. Working length	1000mm(optional is 500mm)	1000mm(optional is 500mm)	1000mm(optional is 500mm)
Optional power system(Electric or gasoline)	220V 3kw 380V 4kw 7.5HP	220V 3kw 380V 5.5kw 13.5HP	220V 3kw 380V 7.5kw 13.5HP

Feature of Horizontal Band Saw mill  Machine for woodworking machinery

1. Control and operation panel: one-key start, adjustable walking speed, flexible and convenient adjustment

2. National standard pure copper motor: stable operation and full of power

3. Proximity switch: using sensitive light sensor, strong signal, strong driving ability

4. Reducer: vertical reducer, stable operation, good heat dissipation and long life

5. Fine grinding ruler: clear scale, accurate measurement, durable

6. Linear guide rail: track linear guide rail, strong stability, more convenient to use

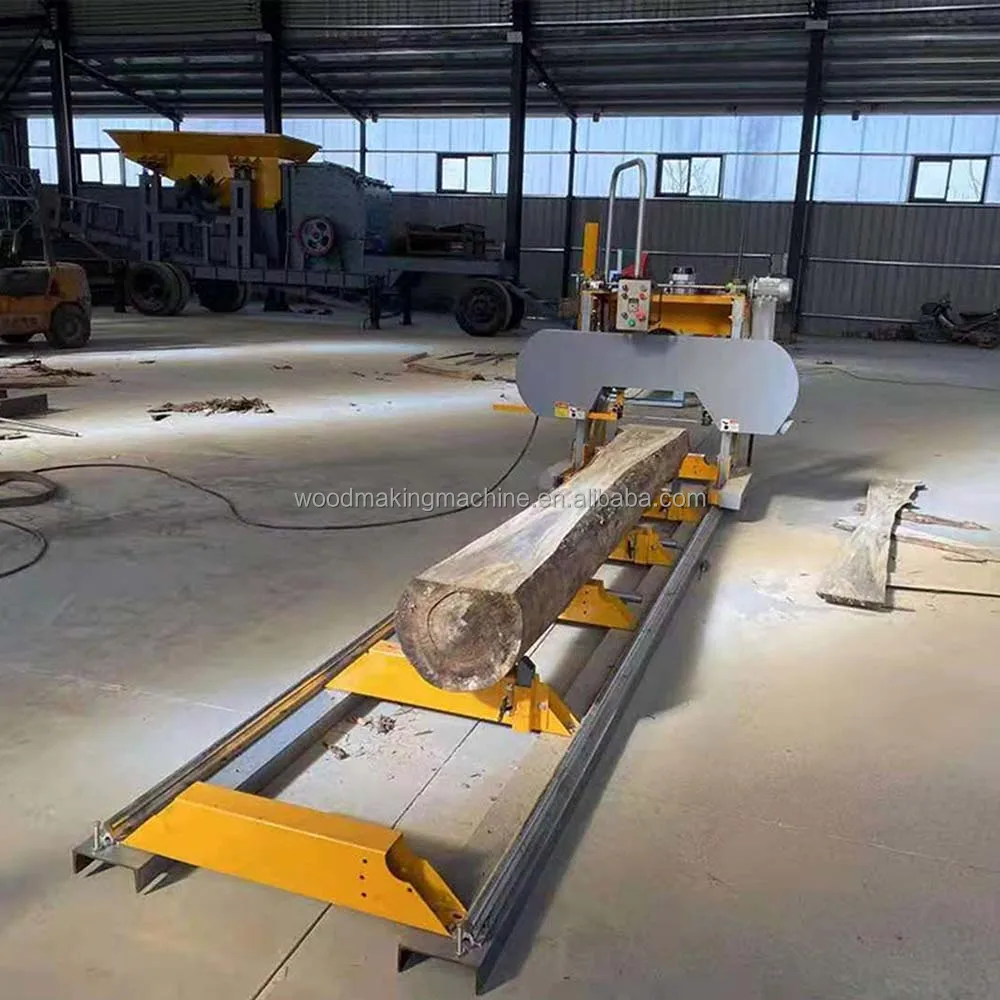

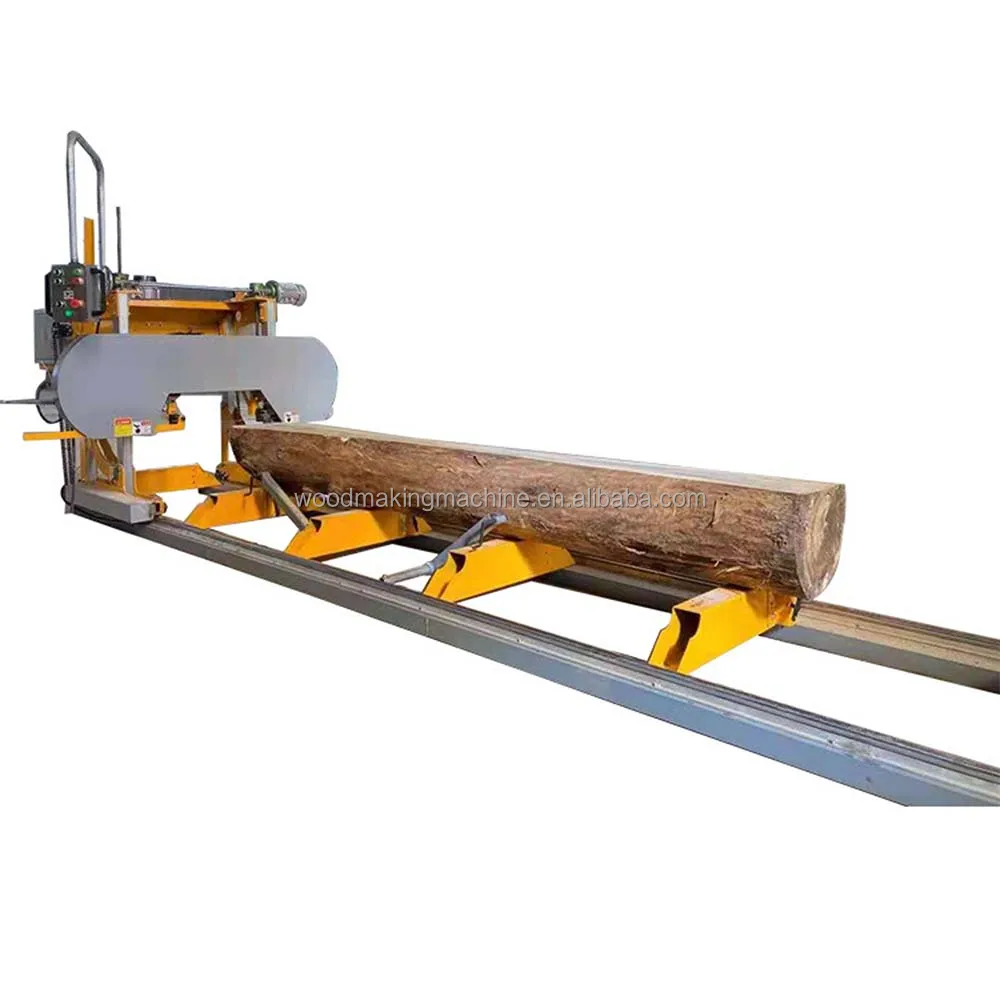

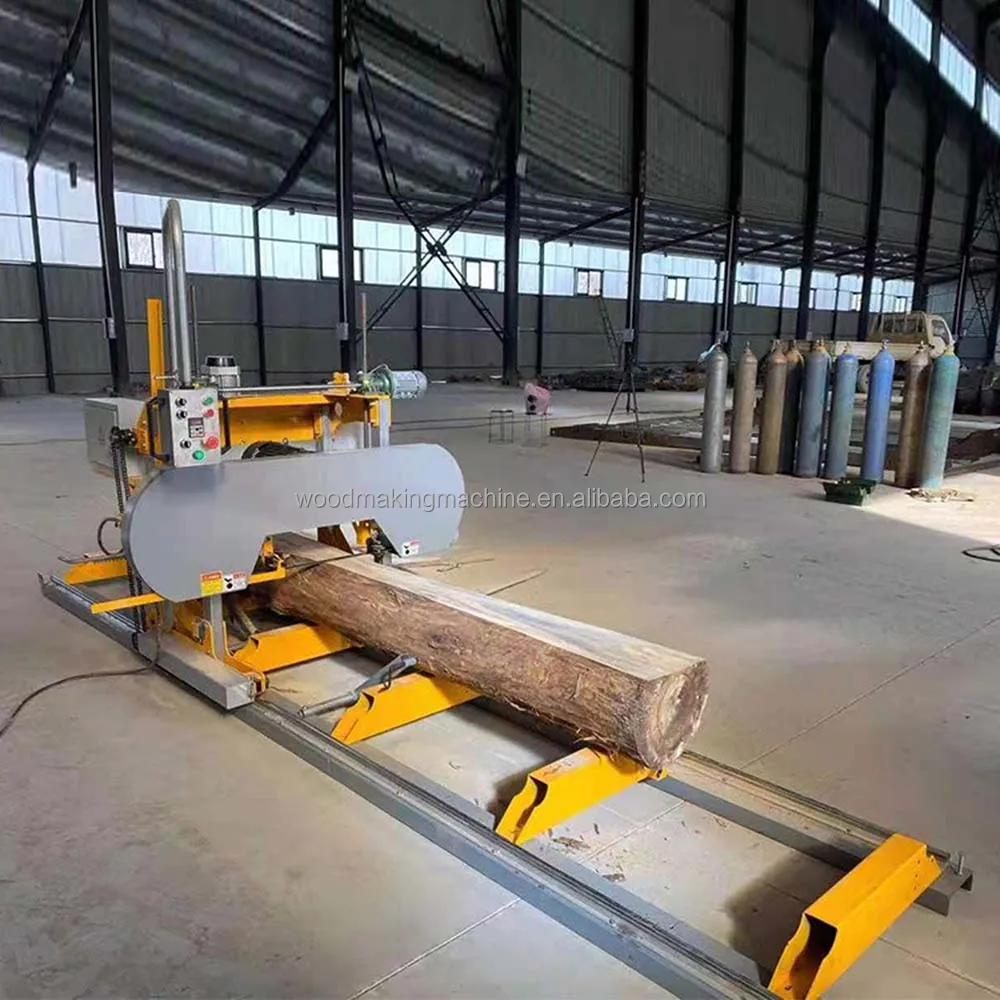

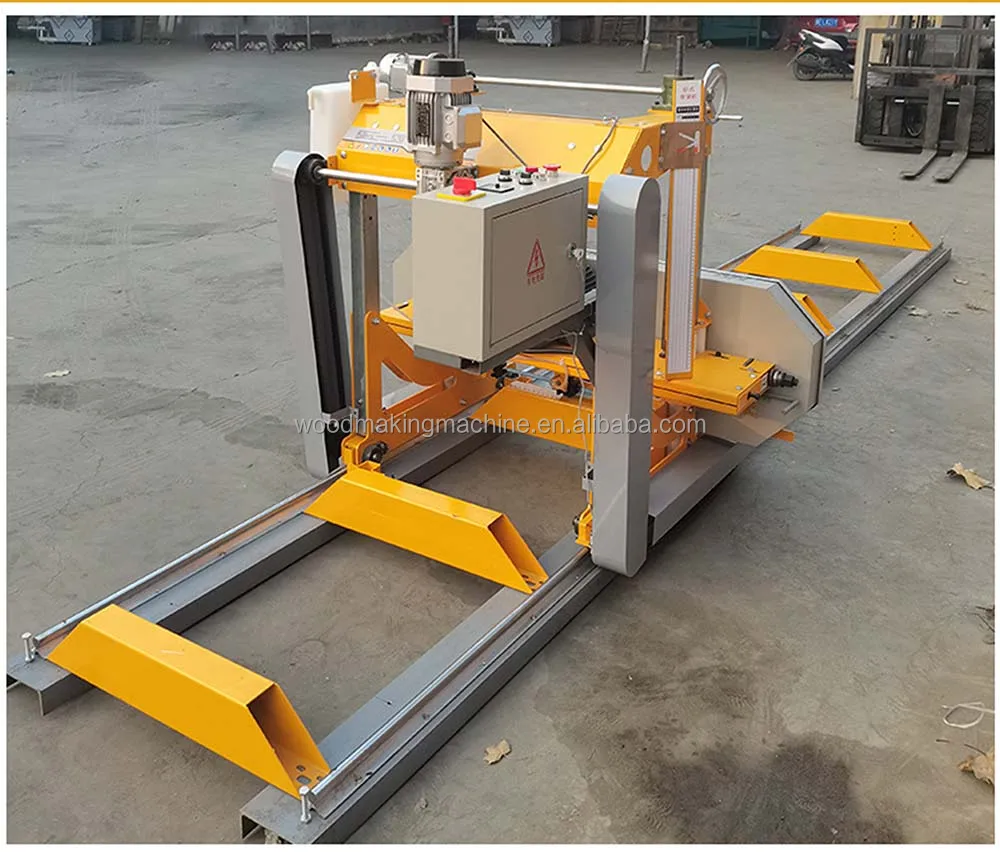

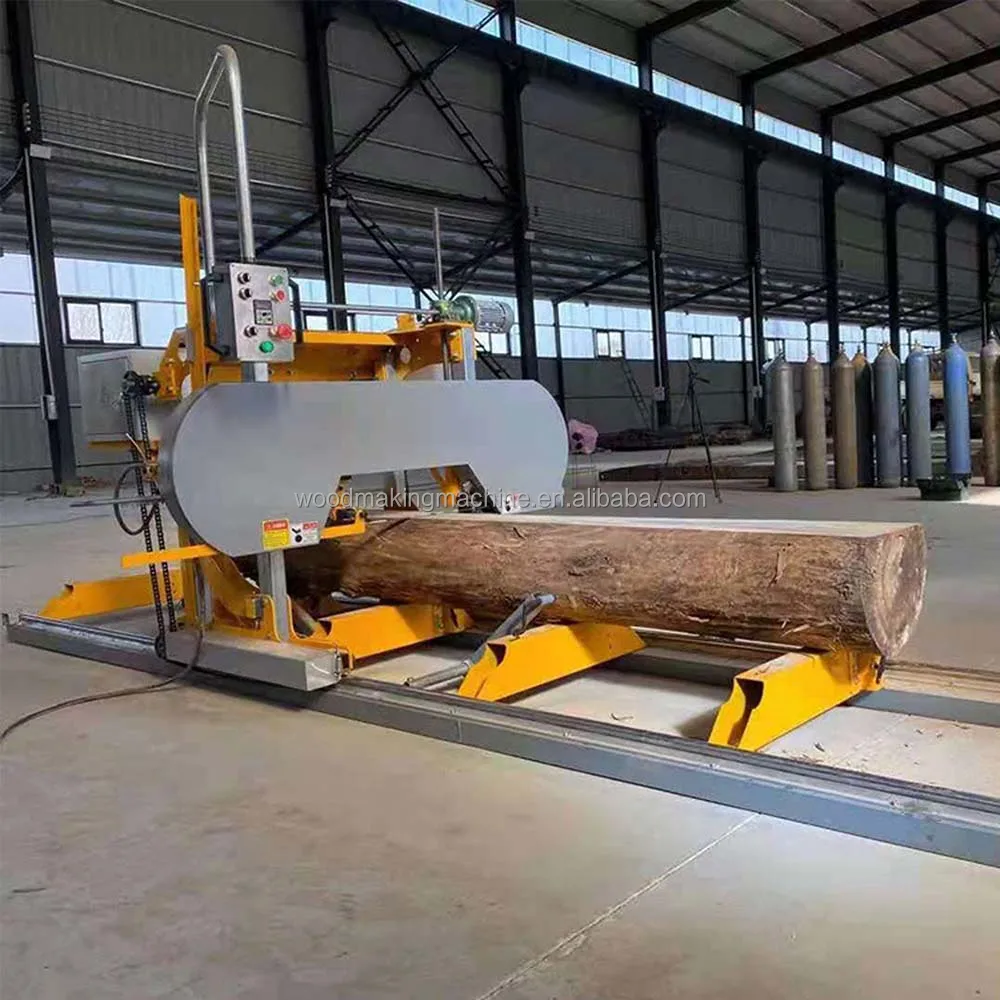

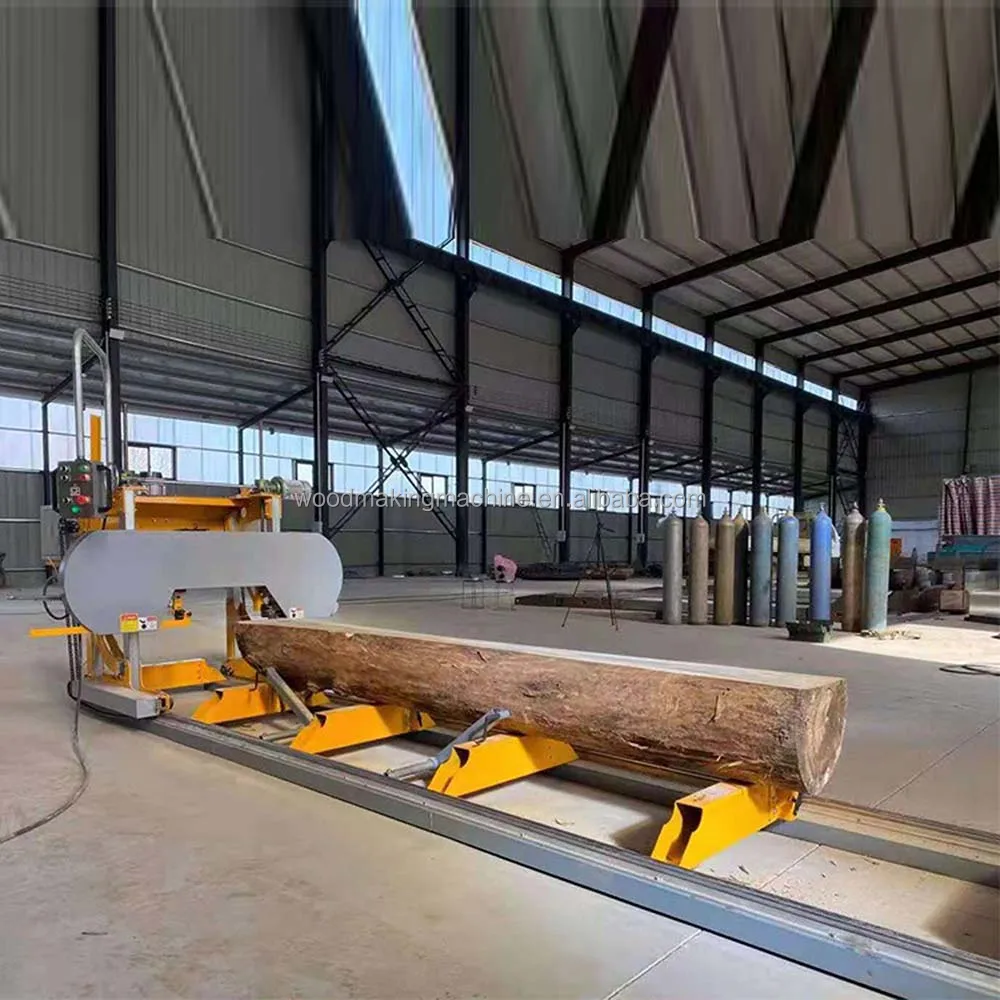

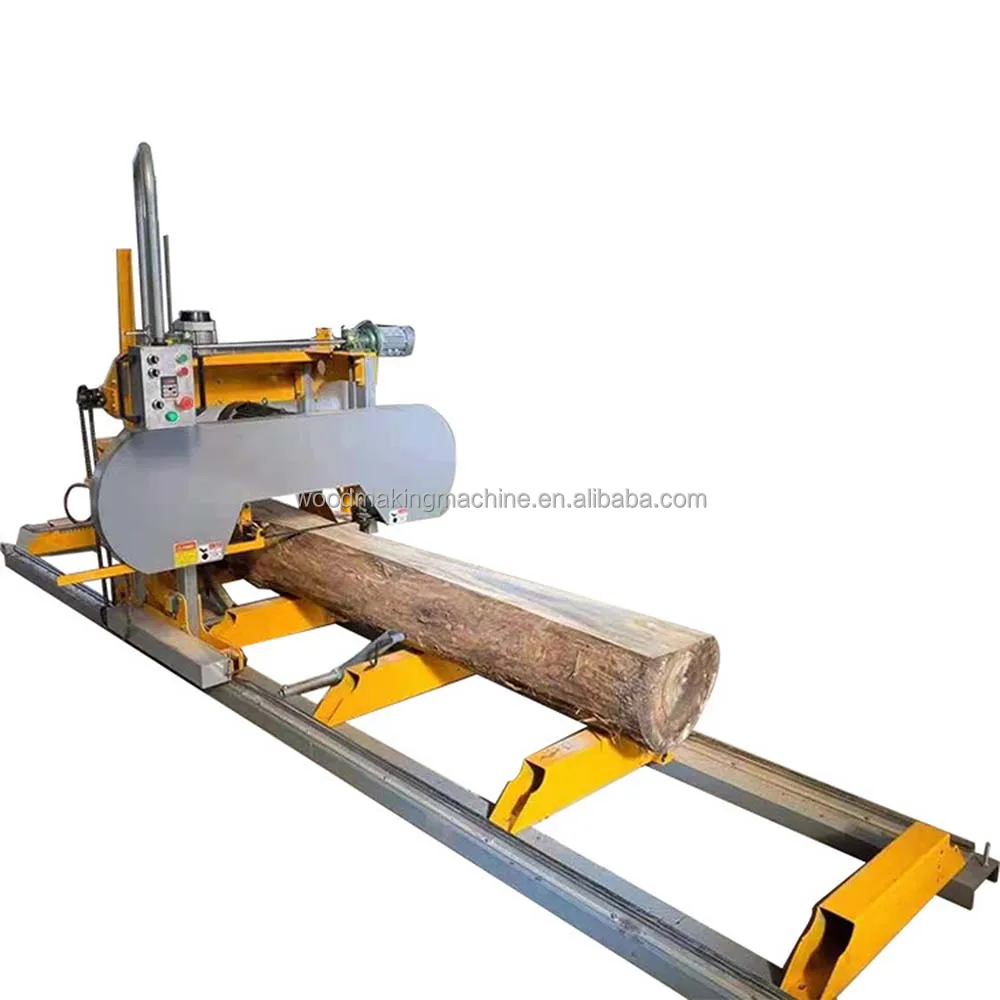

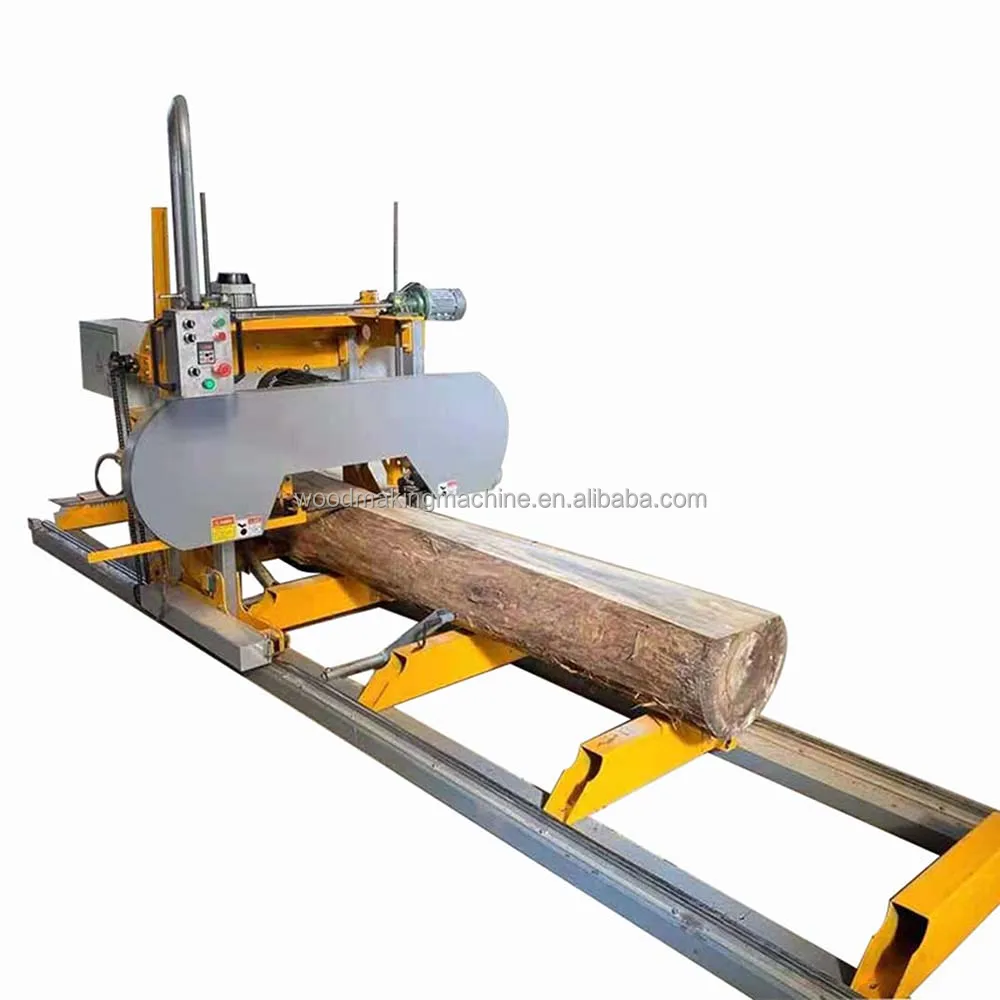

Photo of Horizontal Band Saw mill  Machine for woodworking machinery



Package and delivery

Shandong Aichener Machinery Co., Ltd. mainly supply woodworking thicknesser, flat planer, Multi-functional combination planer,sander machine, polish machine, wood router and miller, band saw, slide table saw, simple or precision panel saw, scroll saw, circular saw ,Woodworking edge banding machine,Rocker saw,Drilling machine, wood engraving machine, splicing machine, finger joint machine, sharpening machine,Log peeling saw,etc , widely used in Logs, solid wood panels, splice panels, plywood and sandwish wood, warm welcomed by Lumber mill and furniture processing plant,highly valued by woodworking enthusiasts.
