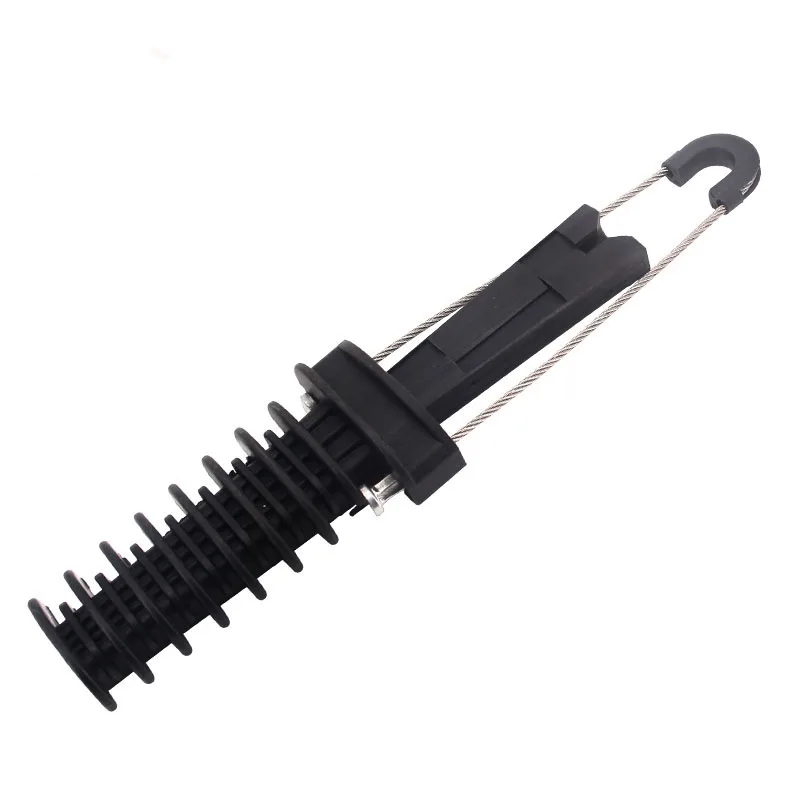

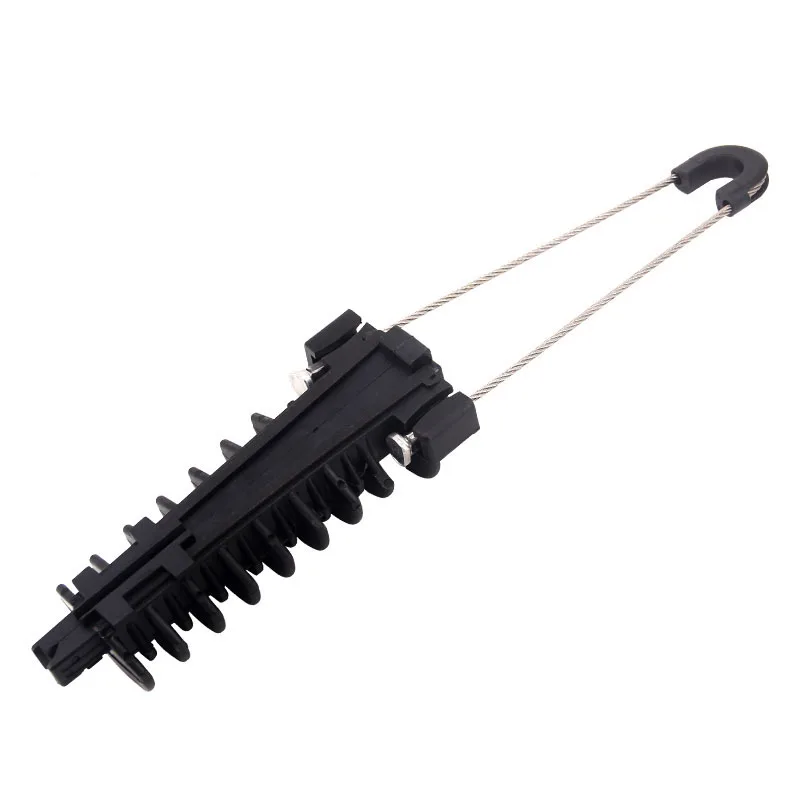

SENTUO PA2000 plastic anchoring clamp plastic clamp for insulated cable
- Category: Clamps >>>
- Supplier: Zhejiang Sentuo Electric Co. Ltd.
Share on (1600767047871):
Product Overview
Description
GENERAL:
Anchoring clamps(Anchor dead-end clamp) for ADSS cables ACADSS round fibre optic cables installed on short spans (100 m max) are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail, fire-resistant plastic and fire-resistant spray coating used to support and secure thinner liners. The ACADSS series is composed of different models of clamps offering a wide range of gripping capacities and mechanical resistance. This flexibility enables us to propose optimized and tailor made clamp designs depending on the ADSS cable constructions.
Anchoring clamps(Anchor dead-end clamp) for ADSS cables ACADSS round fibre optic cables installed on short spans (100 m max) are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail, fire-resistant plastic and fire-resistant spray coating used to support and secure thinner liners. The ACADSS series is composed of different models of clamps offering a wide range of gripping capacities and mechanical resistance. This flexibility enables us to propose optimized and tailor made clamp designs depending on the ADSS cable constructions.
PRODUCT OVERVIEW:
FEATURES AND BENEFITS:
Body: Made of UV resistant glass fiber reinforced synthetic material
Thermoplastic Body: High mechanical and climatic resistance
Reduced dimensions: For easier hanging
High strength: Grip not below 95% CUTS
Service life: Does not damage the strand wire, could improves the vibration resistance
Simple install: Fast installation requiring no tools
Body: Made of UV resistant glass fiber reinforced synthetic material
Thermoplastic Body: High mechanical and climatic resistance
Reduced dimensions: For easier hanging
High strength: Grip not below 95% CUTS
Service life: Does not damage the strand wire, could improves the vibration resistance
Simple install: Fast installation requiring no tools
TECHNICAL DATA:
Model | Cable Cross-section(mm²) | Min.Breaking Load(KN) |
PA2000 | 70-120 | 5 |
