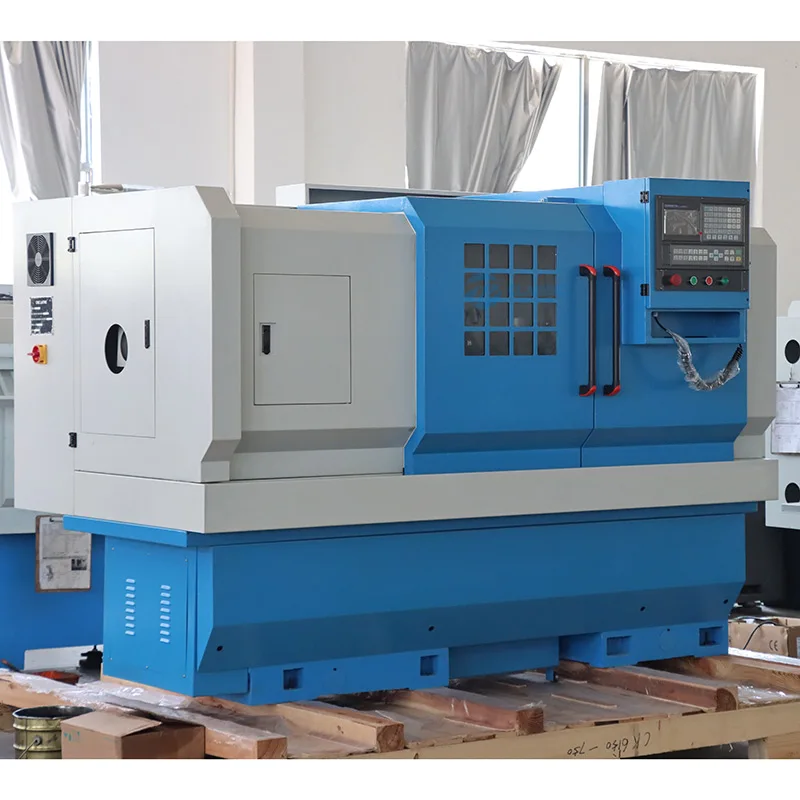

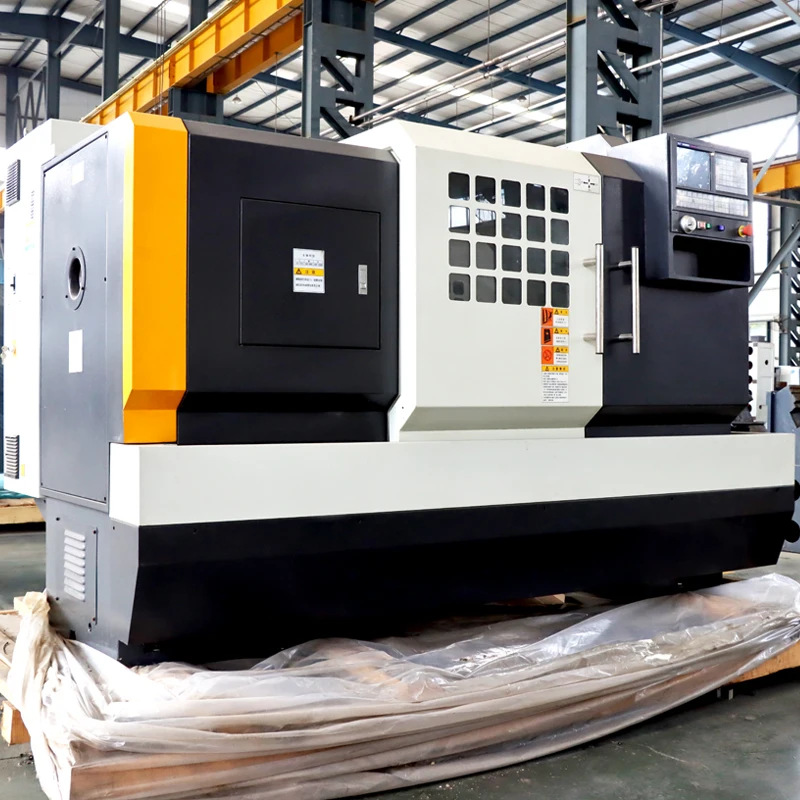

Small automatic CNC lathe machine CK6136 metal lathe machine for sale
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600767144597):
Product Overview
Description
Products Description
Product Application
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw trans mission, good dynamic performance, precision positioning.

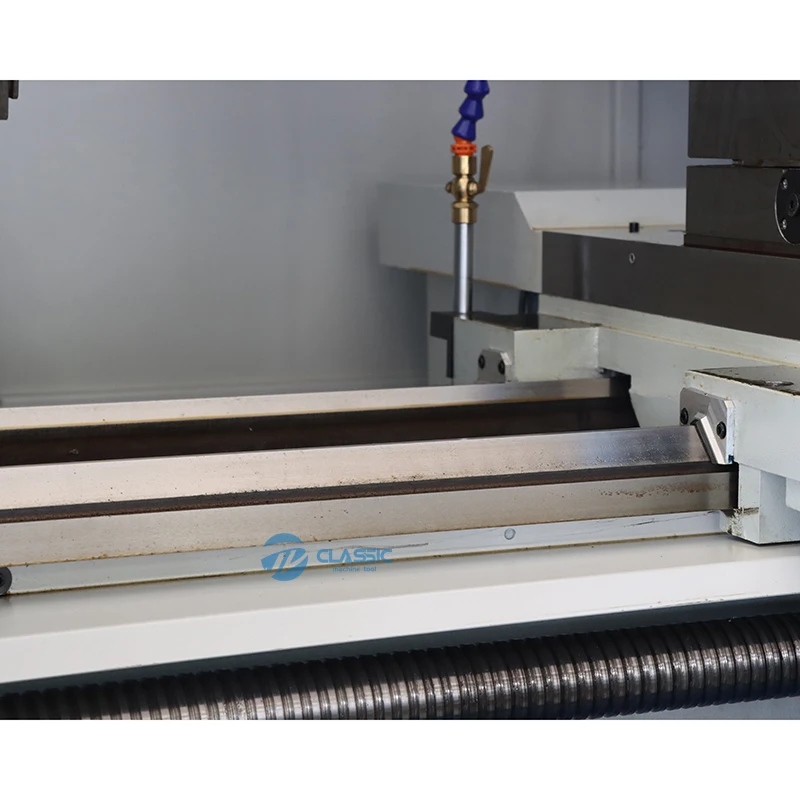

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw trans mission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Specifications | unit | CK6136 | CK6136B |
Max. swing over bed | mm | Φ360 | Φ360 |
Max. swing over cross slide | mm | Φ180 | Φ180 |
X/Z axis travel | mm | 280/550 | 280/750 |
Spindle nose | A2-6 | A2-6 | |
Spindle bore | mm | Φ48 | Φ48 |
Bar capacity | mm | Φ41 | Φ41 |
Max. spindle speed | rpm | 150-2000 | 150-2000 |
Chuck size | mm | 200 | 200 |
Spindle motor | kW | 5.5 | 5.5 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
X/Z axis feed motor torque | N.m | X:4 Z:6 | X:4 Z:6 |
X/Z Rapid traverse | m/min | X:8 Z:10 | X:8 Z:10 |
Tailstock quill dia. | mm | Φ60 | Φ60 |
Quill traverse | mm | 100 | 100 |
Quill taper | # | MT4 | MT4 |
Tool post type | Four position electric turret | Four position electric turret | |
Cutting tool shape size | mm | 20×20 | 20×20 |
Guide form | Double mountain | Double mountain | |
Total power capacity | KVA | 9 | 9 |
Machine dimension (L×W×H) | mm | 2000×1200×1620 | 2250×1160×1620 |
Net. weight (about) | kg | 1560 | 1700 |
Weight for 1500 | kg | 2000 | 2200 |
Weight for 2000 | kg | 2200 | 2400 |
Dimension for 750 | mm | 2200x1600x1700 | 2200x1650x1750 |
Dimension for 1000 | mm | 2600x1600x1700 | 2500x1650x1750 |
Dimension for 1500 | mm | 3000x1600x1700 | 3000x1650x1750 |
Dimension for 2000 | mm | 3500x1600x1700 | 3500x1650x1750 |
Product standard configuration:
No. | ITEM | Number | Standard configuration |

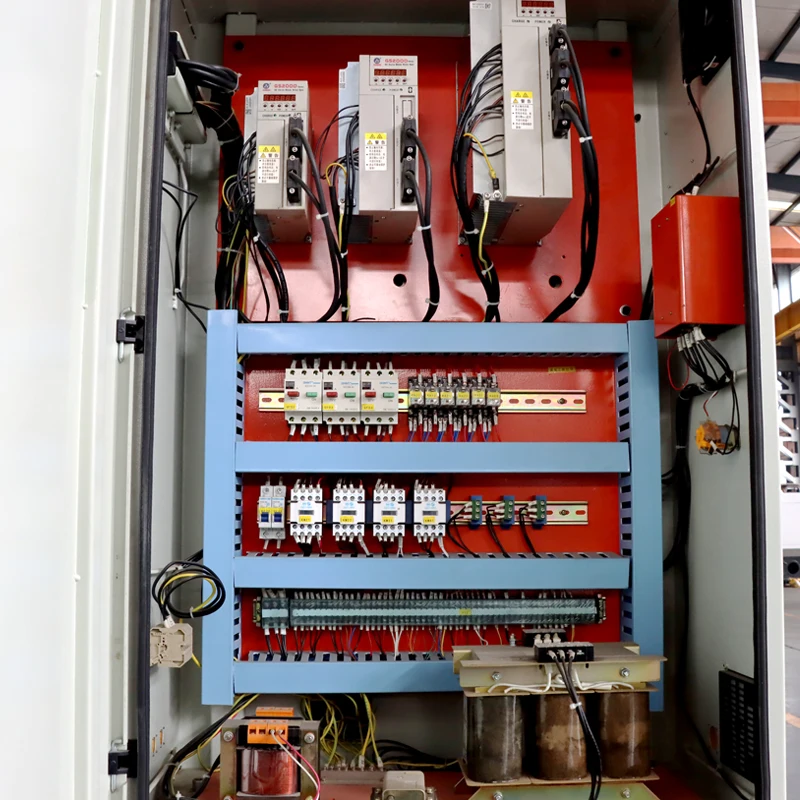

1 | Numerical control system | 1/set | Optional system (gd980, Taiwan, FANUC, Siemens) etc. |

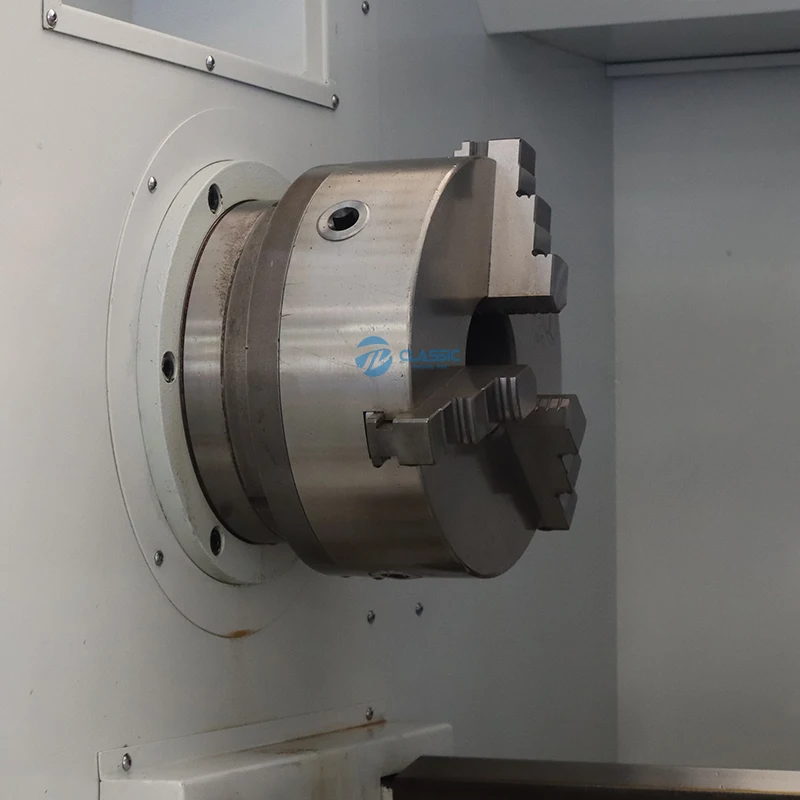

2 | Chuck | 1/set | Three jaw chuck K11 250 (optional K11 320) |
3 | Tailstock | 1/set | Manual tail base |
4 | X -ball screw | 1/set | PRC |
5 | Z -ball screw | 1/set | PRC |

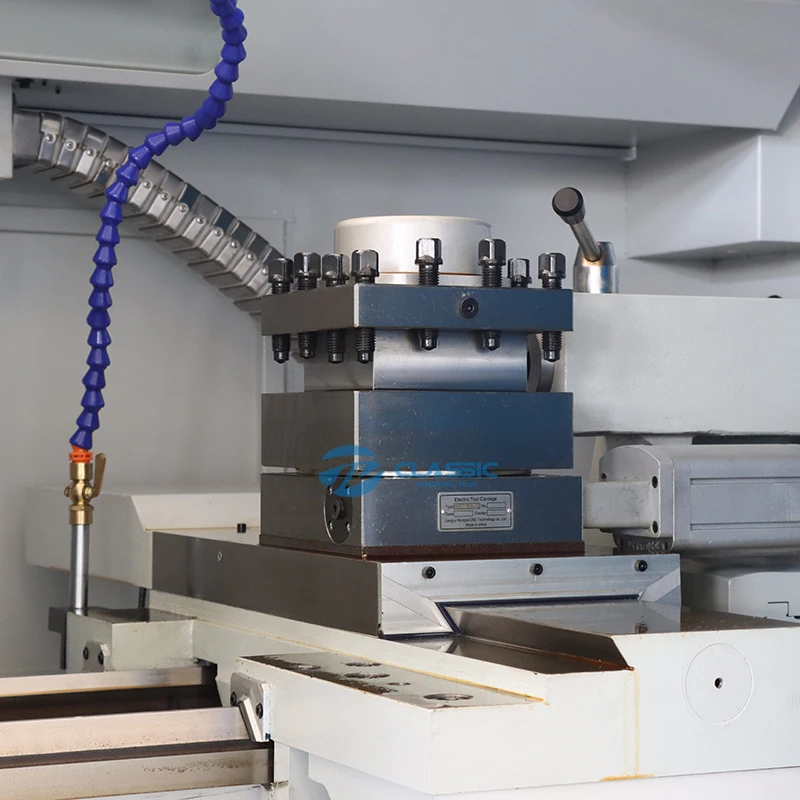

6 | Electric turret | 1/set | LD4B-A(6150) |
7 | X,Z-Lead screw bearing | 1/set | PRC |
8 | X,Z- Coupling | 1/set | PRC |
9 | Spindle bearing | 1/set | PRC |
10 | Fuselage Casting | 1/set | High quality resin sand casting |
11 | Spindle assembly | 1/set | Assembly spindle |
12 | Spindle clamping | Manual chuck | |
13 | Paint | 1/set | Color can be configured according to customer requirements, not special requirements according to our standard color configuration |

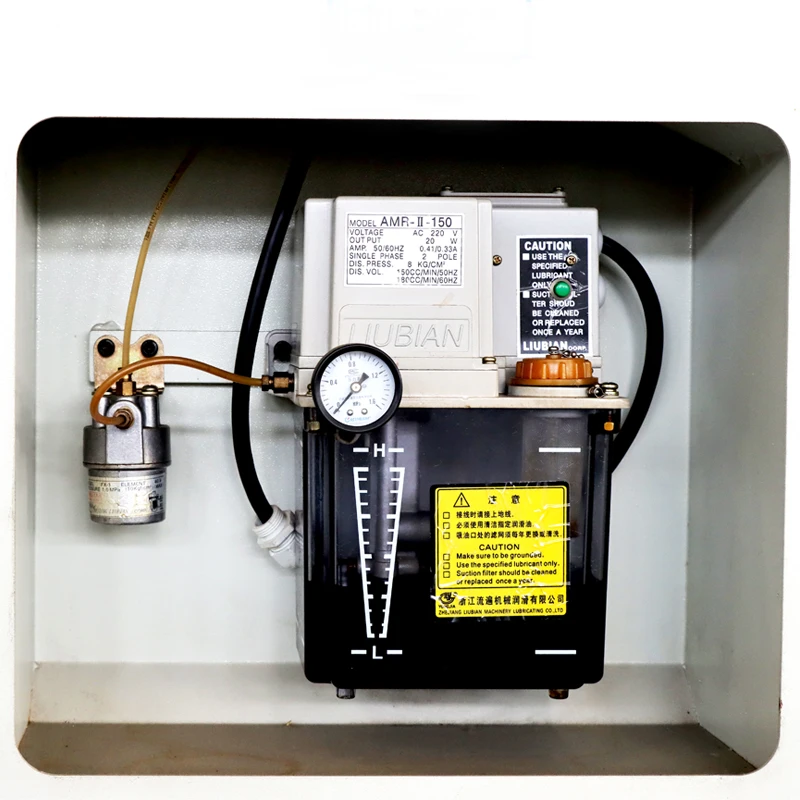

14 | Lubrication | 1/set | Joint venture (electric lubricating oil pump, lubricating oil circuit is installed) |
Detailed Images
Details Display
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
