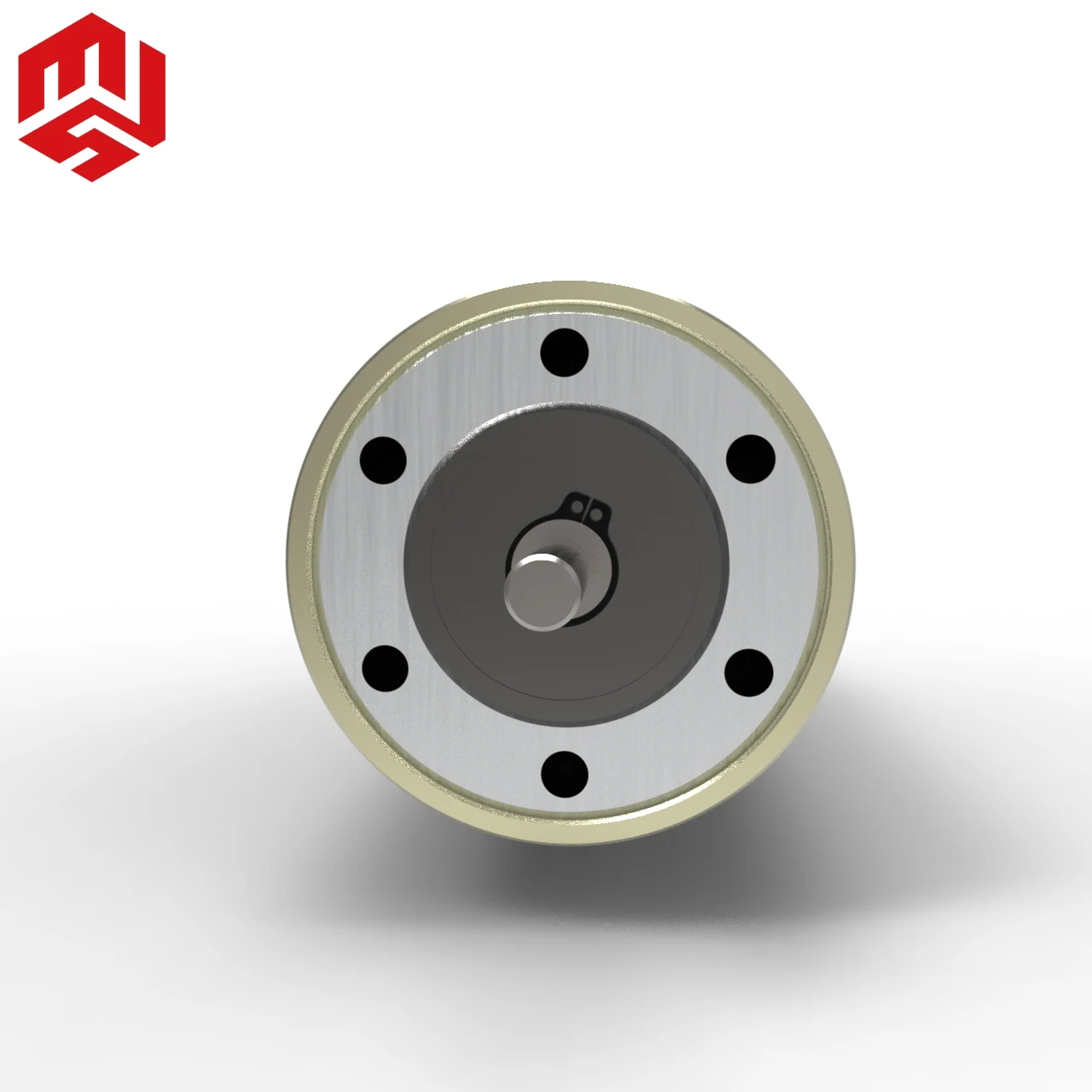

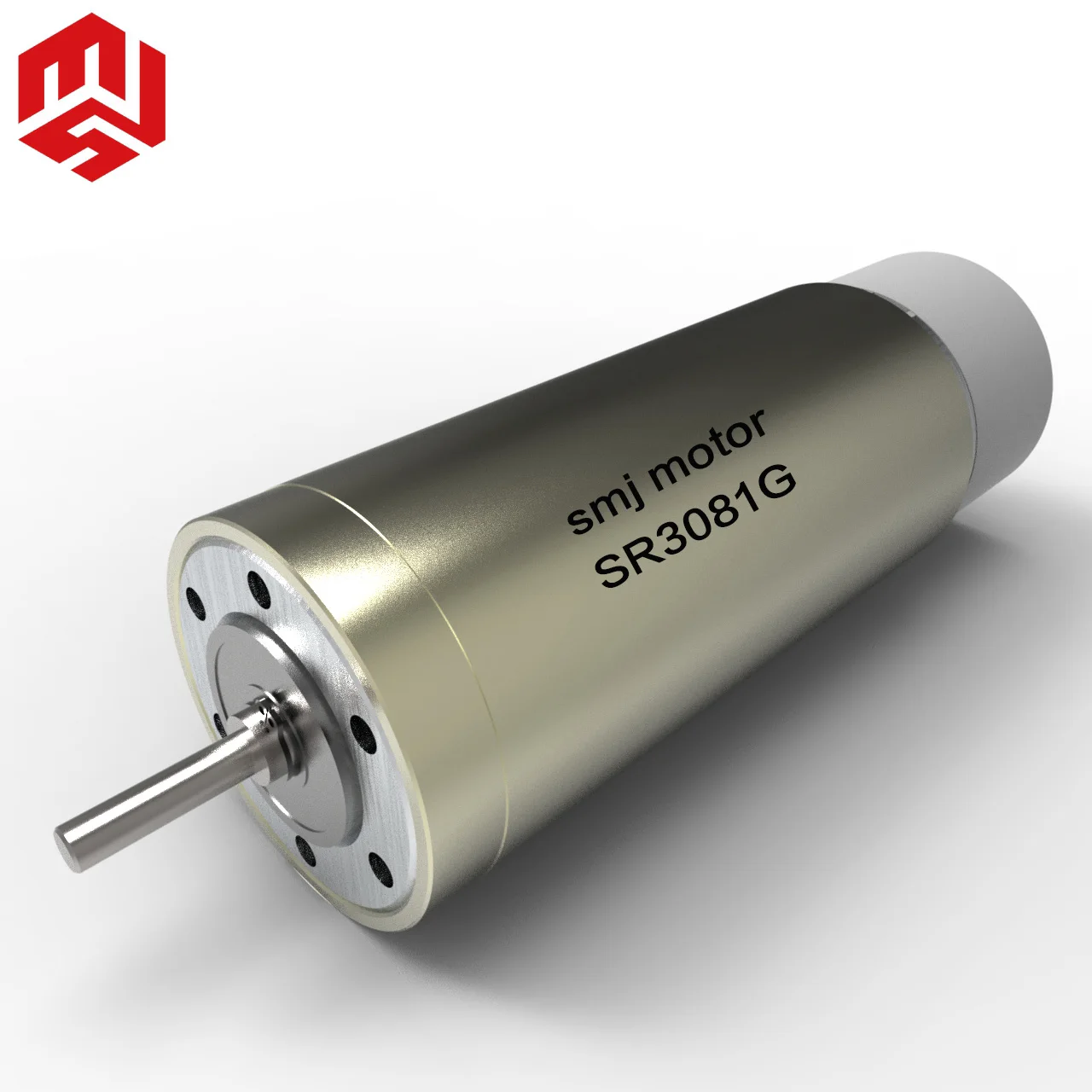

Japanese factory 30mm diameter long life brushed dc motors with encoder
- Category: >>>
- Supplier: Shanghai Mindong Mechanism Electron Co. Ltd.
Share on (1600767151644):
Product Overview
Description
Products Description
Motor model | SR308112G | SR308118G | SR308124G | SR308148G | ||
Nominal voltage | V | V | 12 | 18 | 24 | 48 |
No load speed | rpm | Wnl | 7900 | 8270 | 8380 | 8490 |
No load current | mA | InI | 350 | 260 | 150 | 100 |
Nominal speed | rpm | Wc | 7470 | 7560 | 7600 | 7690 |
Nominal torque | mNm | Tc | 51.6 | 75.5 | 85.6 | 89.7 |
Nominal current | A | Ic | 3.58 | 3.67 | 3.15 | 1.66 |
Output power | W | Pc | 40 | 60 | 68 | 72 |
Stall torque | mNm | Tmax | 865.2 | 805 | 669 | 918.9 |
Stall current | A | Imax | 60 | 39.1 | 24.6 | 17.08 |
Max. efficiency | % | ηmax | 90 | 86 | 90 | 88 |
Terminal resistance | Ω | Rt | 0.2 | 0.46 | 0.71 | 2.81 |
Torque constant | mNm / A | Kt | 14.4 | 20.6 | 27.2 | 53.8 |
Speed constant | rpm / V | Kn | 663 | 463 | 349 | 177.5 |
Speed torque gradient | rpm / mNm | Δn / ΔT | 8.3 | 9.4 | 9.1 | 8.9 |
Terminal inductance | mH | L | 0.036 | 0.039 | 0.138 | 0.588 |
Rotor inertia | gcm2 | J | 34.4 | 36.1 | 34.2 | 35.2 |
More Products
Product Line
Our Company
Certification
Packaging&Shipping
Application
Recommend Products
Our dc brushed servo motors can be alternative of Maxon motors. For more products, pls click this line:
