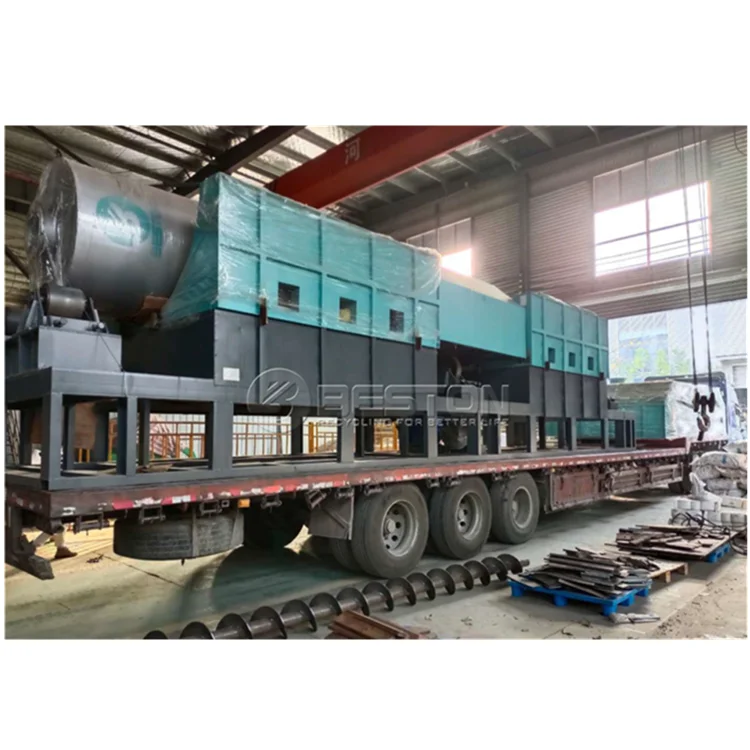

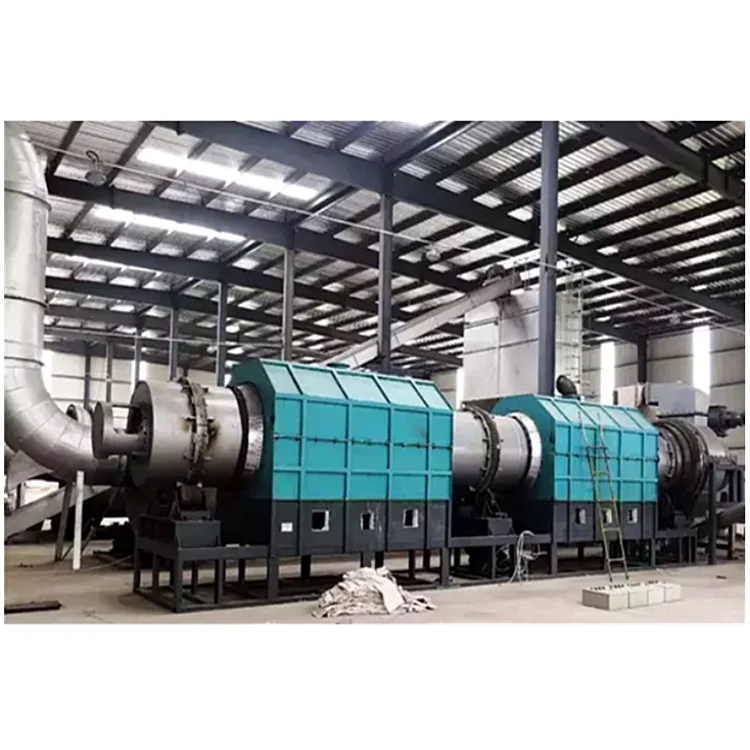

Beston Group Coffee Husk Nut Shells Charcoal Making Machine
- Category: >>>
- Supplier: Beston Group Co. Ltd.
Share on (1600767179963):
Product Overview
Description
Product Description
What is nutshell charcoal making machine
Beston group nutshell charcoal making machine can convert peanut shell, pecan husk, melon seed shell, pistachio shell, walnut shell and other nutshells into charcoal, which has high utilization value in life.
Features of nutshell Charcoal making machine
●. High working efficiency.
●. Energy saving.
●. Environmental Friendly.
●. Very safe to operate.
●. Energy saving.
●. Environmental Friendly.
●. Very safe to operate.
Raw materials:

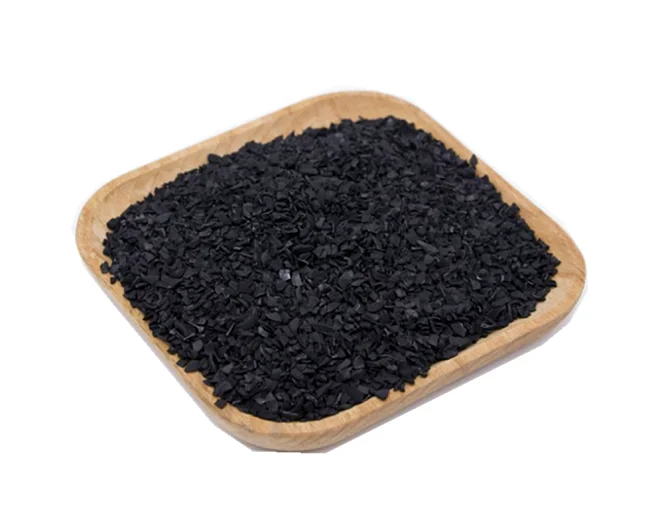

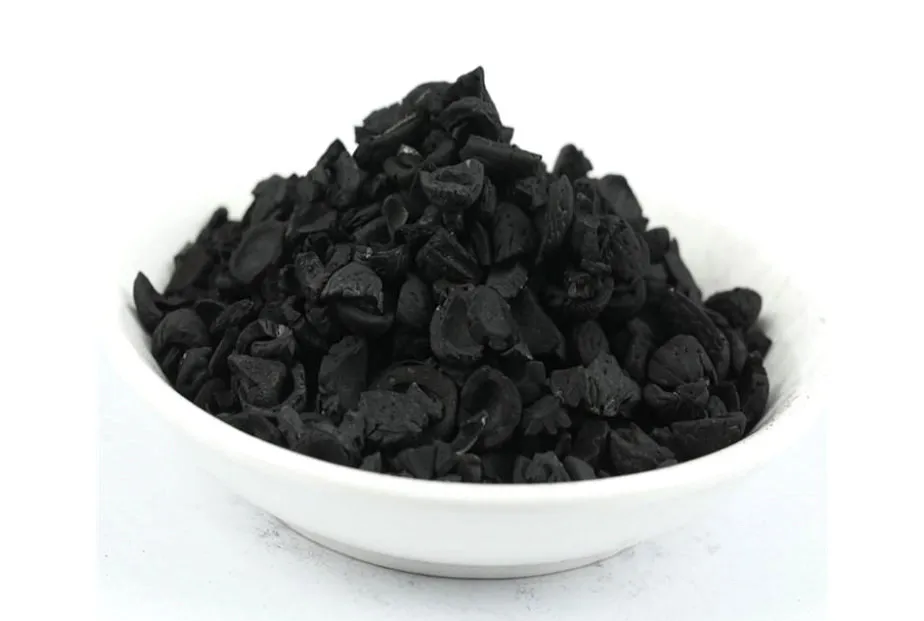

The final product:

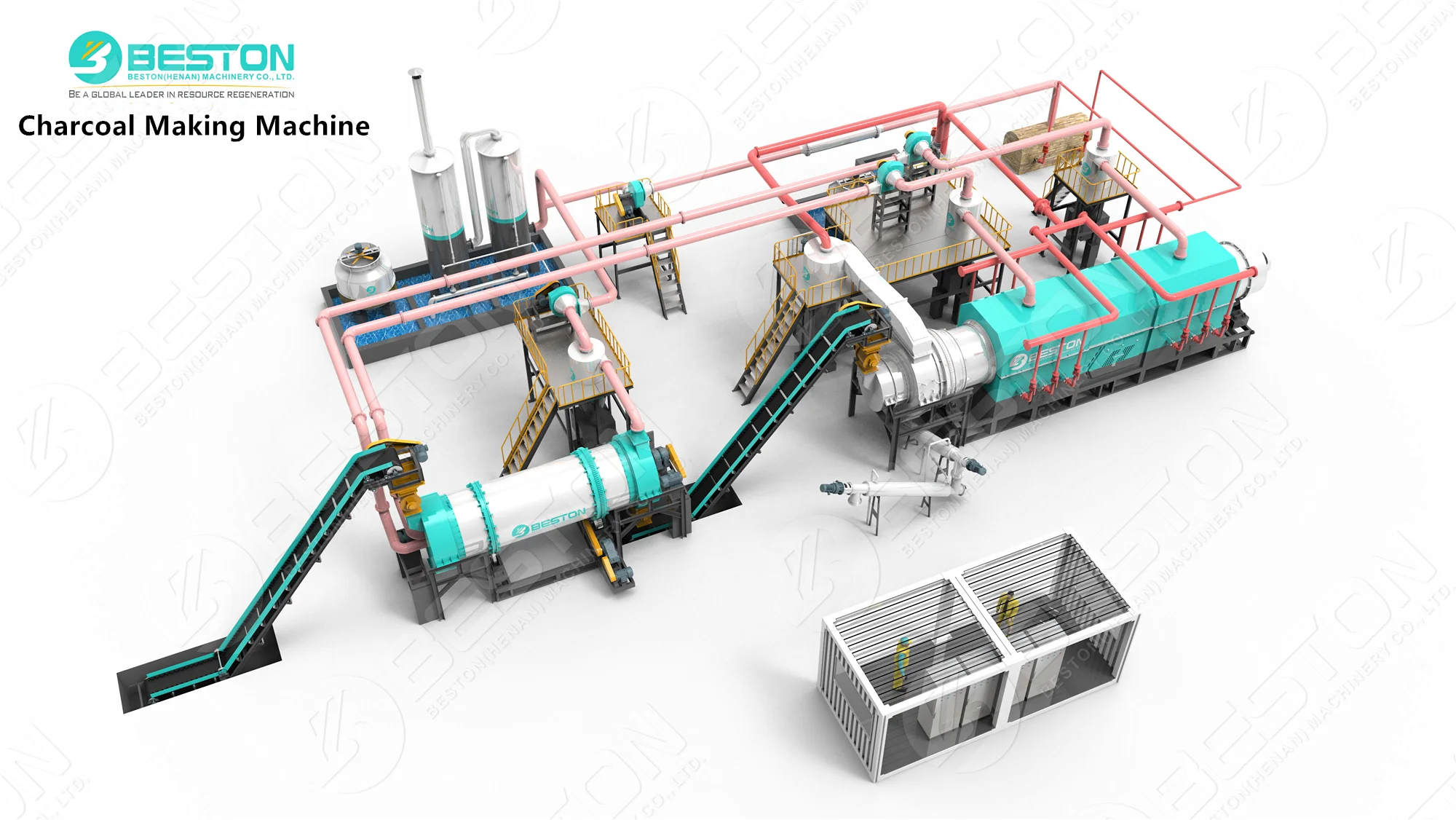

Device operation diagram:

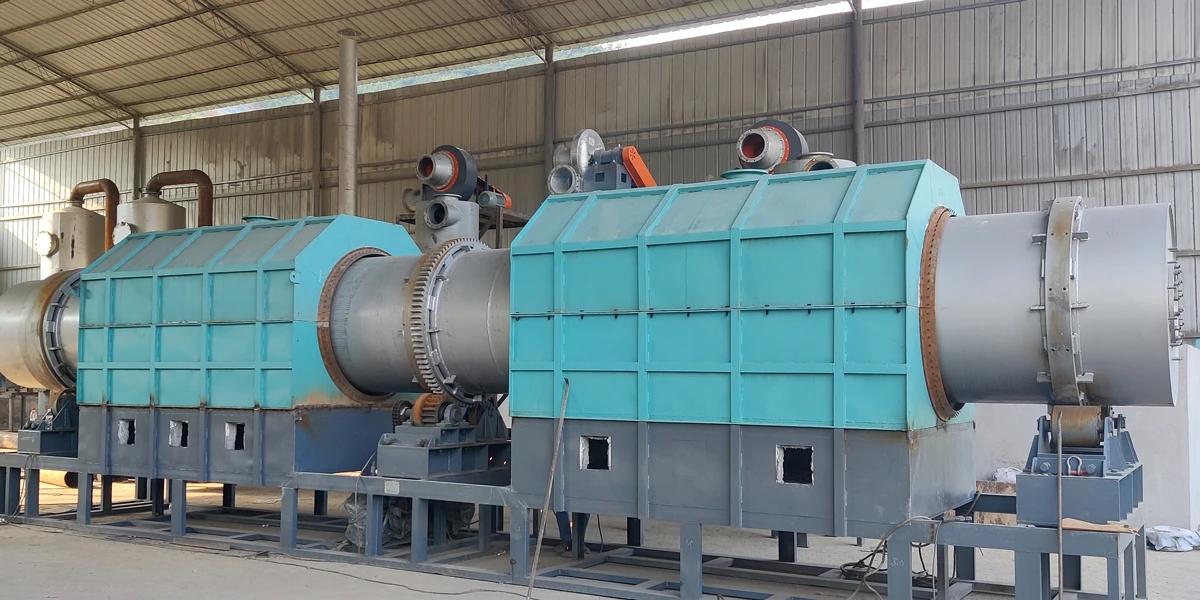

How to Produce Biochar with Beston Carbonization Furnace
The raw materials are carbonized and pyrolyzed into bio charcoal in a high-temperature and anaerobic environment. The detailed biochar production process of our biochar equipment is as follow:
▶ Feed the raw materials by a constant weight feeder into the carbonization host. If the water content of the materials is more than 25%, you must use a drying host to dry them at first. The perfect water content is below 15% in order to make sure a high quality of biochar.
▶ Preheat the carbonization host while feeding for about 30 minutes. During the pre-heating, the combustible gas will be generated and then recycled into fuel to supply heat for the carbonization host.
▶ The process of carbonization and pyrolysis of biomass waste happens as the temperature rises. Through desulfurization and dedusting, the clean biochar will be discharged. The whole process lasts about 15 min to 20 min.
▶ The flue gas/residual hot smoke will go through a strict filtering system in the water spraying tower with the functions of de-dusting, water washing, ceramic ring absorption and activated carbon absorption. Finally, it will be discharged outwards safely, meeting the EU Environmental Protection and Emission Standard.
▶ Feed the raw materials by a constant weight feeder into the carbonization host. If the water content of the materials is more than 25%, you must use a drying host to dry them at first. The perfect water content is below 15% in order to make sure a high quality of biochar.
▶ Preheat the carbonization host while feeding for about 30 minutes. During the pre-heating, the combustible gas will be generated and then recycled into fuel to supply heat for the carbonization host.
▶ The process of carbonization and pyrolysis of biomass waste happens as the temperature rises. Through desulfurization and dedusting, the clean biochar will be discharged. The whole process lasts about 15 min to 20 min.
▶ The flue gas/residual hot smoke will go through a strict filtering system in the water spraying tower with the functions of de-dusting, water washing, ceramic ring absorption and activated carbon absorption. Finally, it will be discharged outwards safely, meeting the EU Environmental Protection and Emission Standard.
Product Model
Model | BST-J12 | BST-J18 | BST-J40 | BST-05 Pro (skid-mounted) | BST-10 | BST-30 | BST-50 | |||||
Input Capacity | 12m³/batch | 18m³/batch | 40m³/batch | 0.3-0.5m³/h | 2-4m³/h | 7-9m³/h | 10-15m³/h | |||||
Reactor Size | φ1900mm*L4500mm | φ1900mm*L6600mm | φ2800mm*L7100mm | φ830mm*L5500mm | φ1300mm*L14051mm | φ1700mm*L14180mm | φ2000mm*L14260mm | |||||
Land for Equipment (L*W*H, Standard Configuration) | 9m*6m*6m | 12m*6m*7m | 15m*18m*7m | 10m*8m*3.9m | 29m*15m*5m | 30m*15m*8m | 35m*18m*9m | |||||
Weight (Standard Configuration) | 18T | 22T | 34T | 15T | 35T | 35T | 49T | |||||
Energy Consumption (Standard Configuration) | 11kw/h | 13.5kw/h | 25kw/h | 31kw/h | 34.7kw/h | 61.5kw/h | 116kw/h | |||||
Working Method | Batch | Fully continuous | ||||||||||
Feeding Requirement | / | Size: ≤20mm; moisture: ≤15%; strong liquidity | ||||||||||
Structure | Horizontal rotation | Double barrel single hearth | Double barrel double hearth | |||||||||
Main Parts
Conveyor-System
Crushing-System
Drying-System
Carbonization-System
Molding-System
Exhaust-Gas-Treatment-System

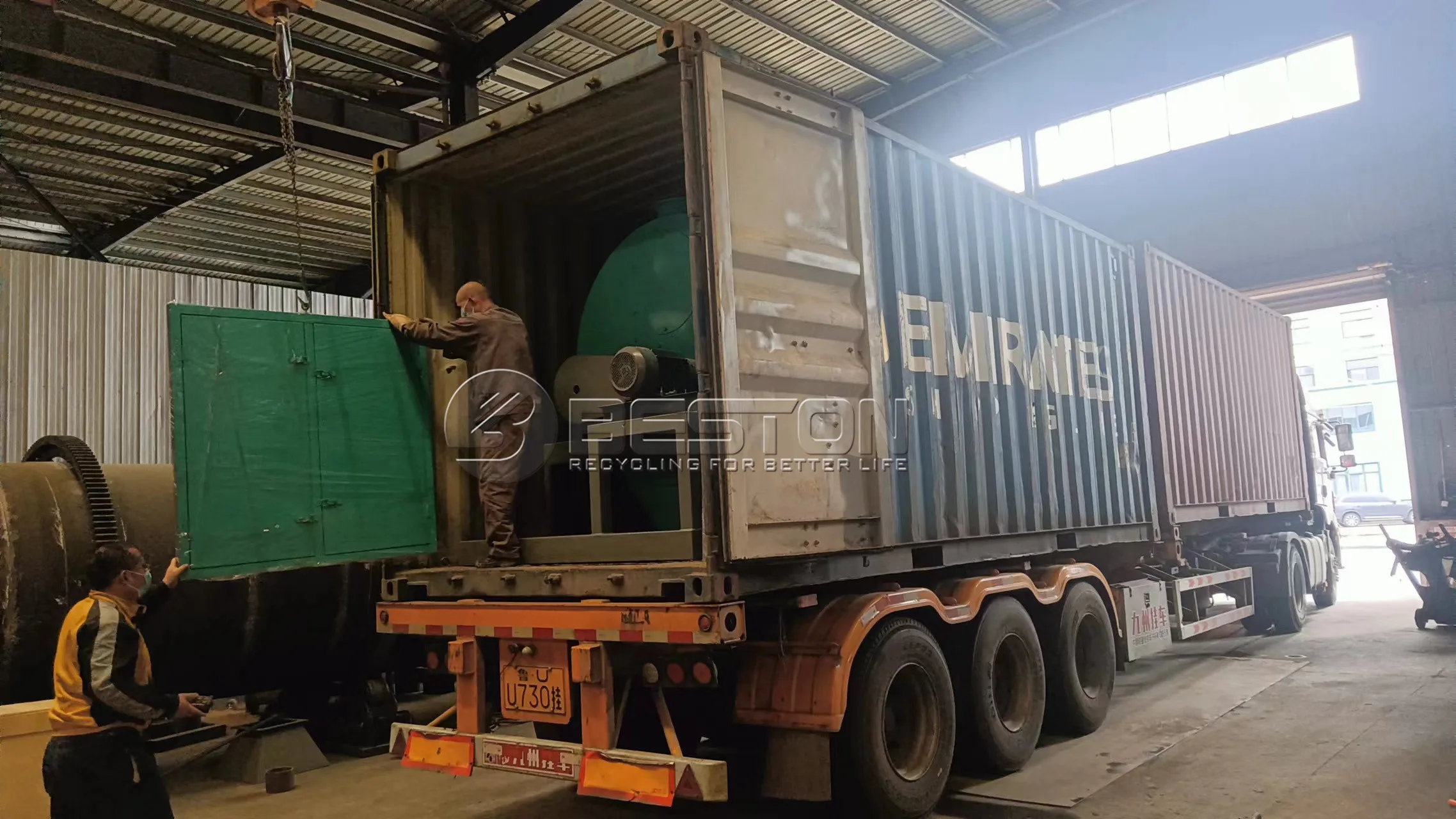

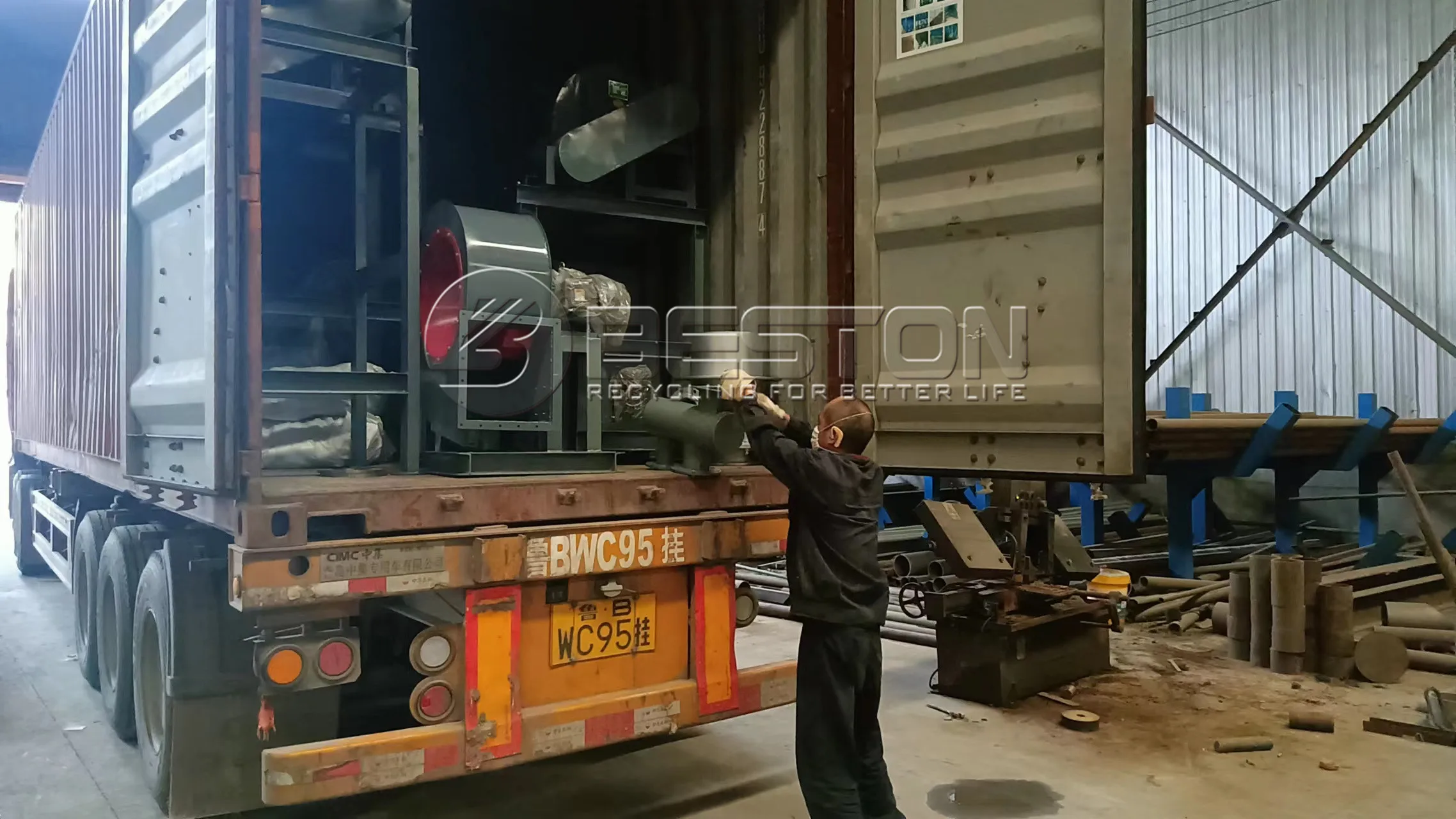

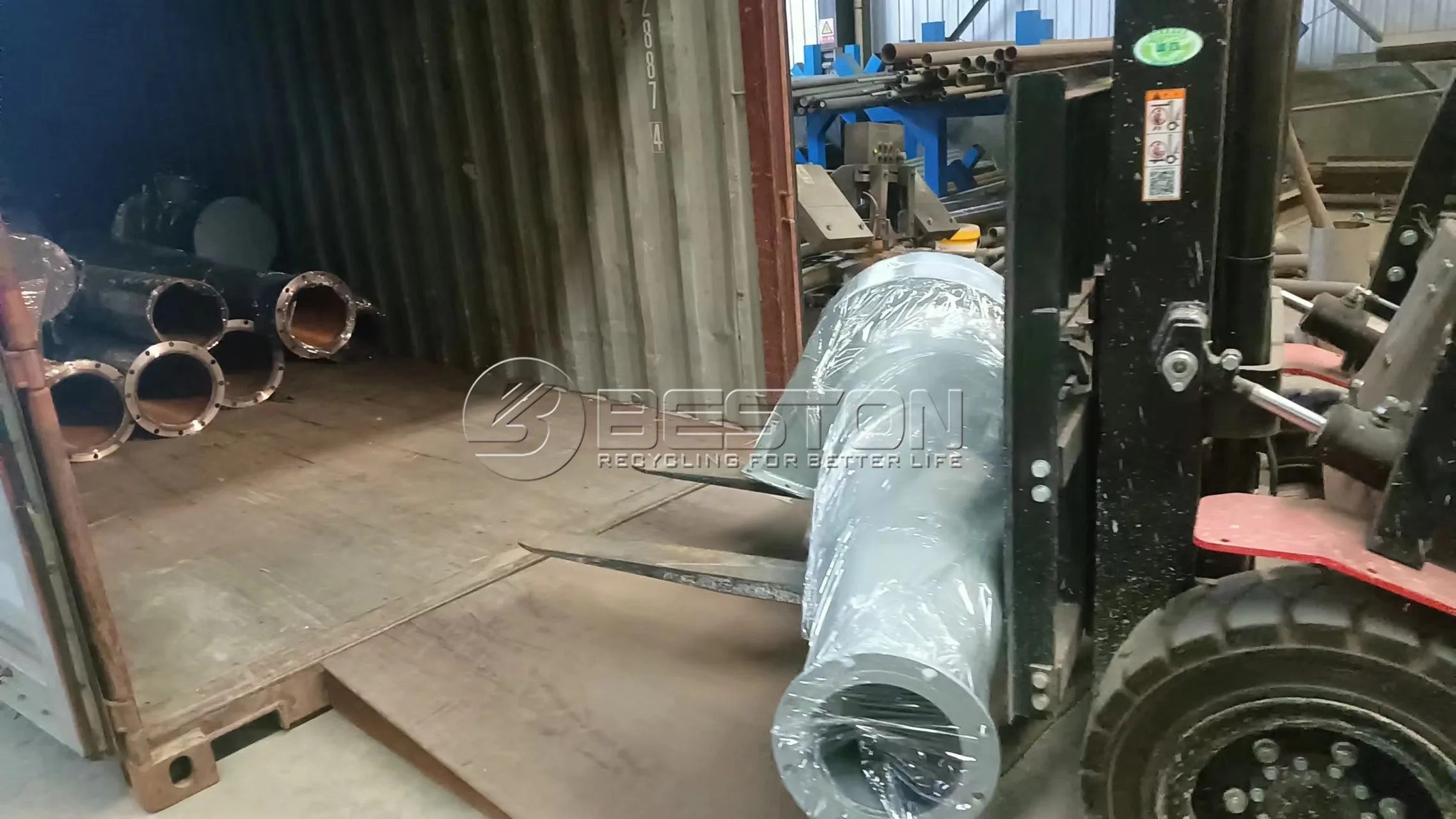

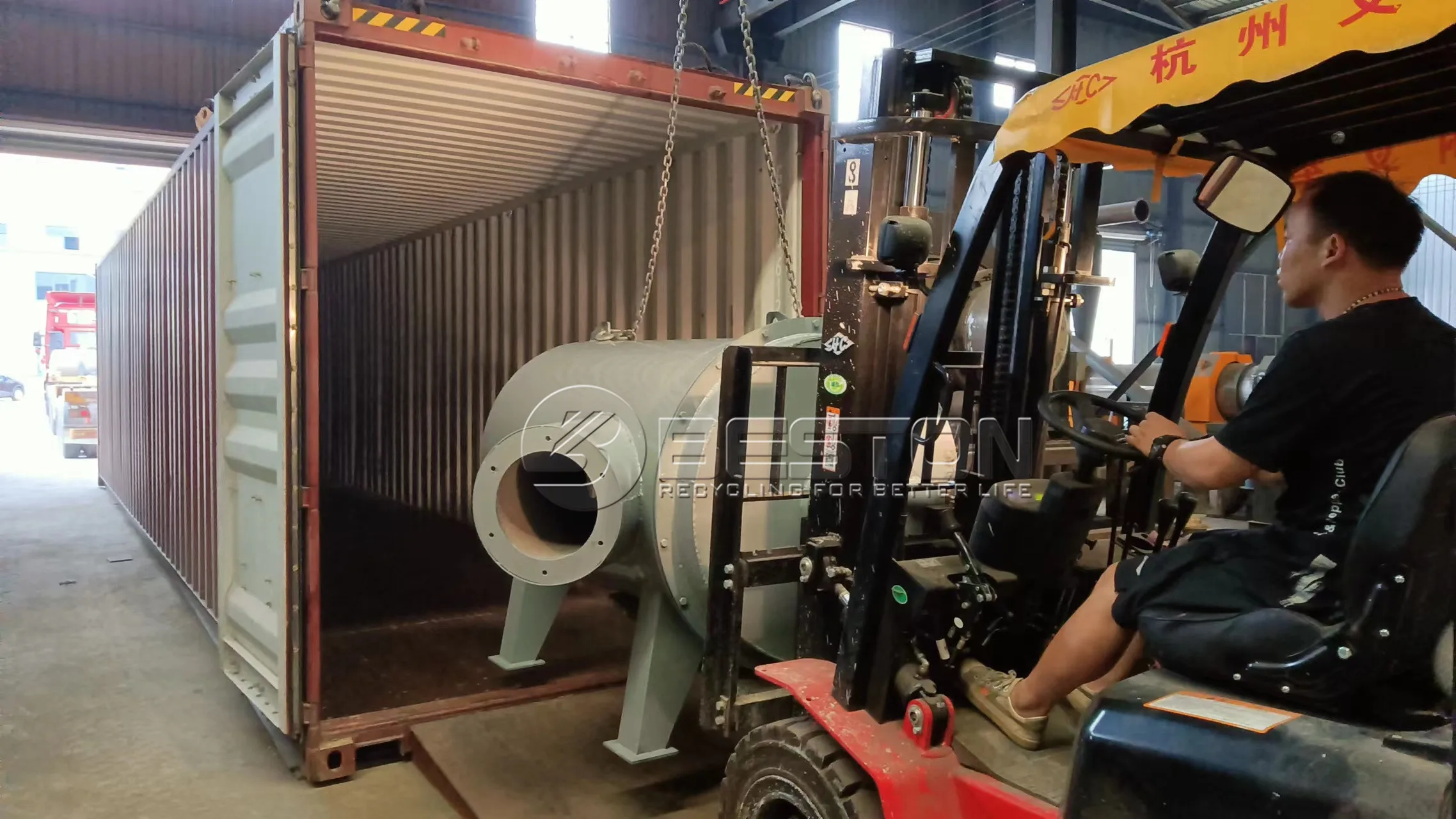

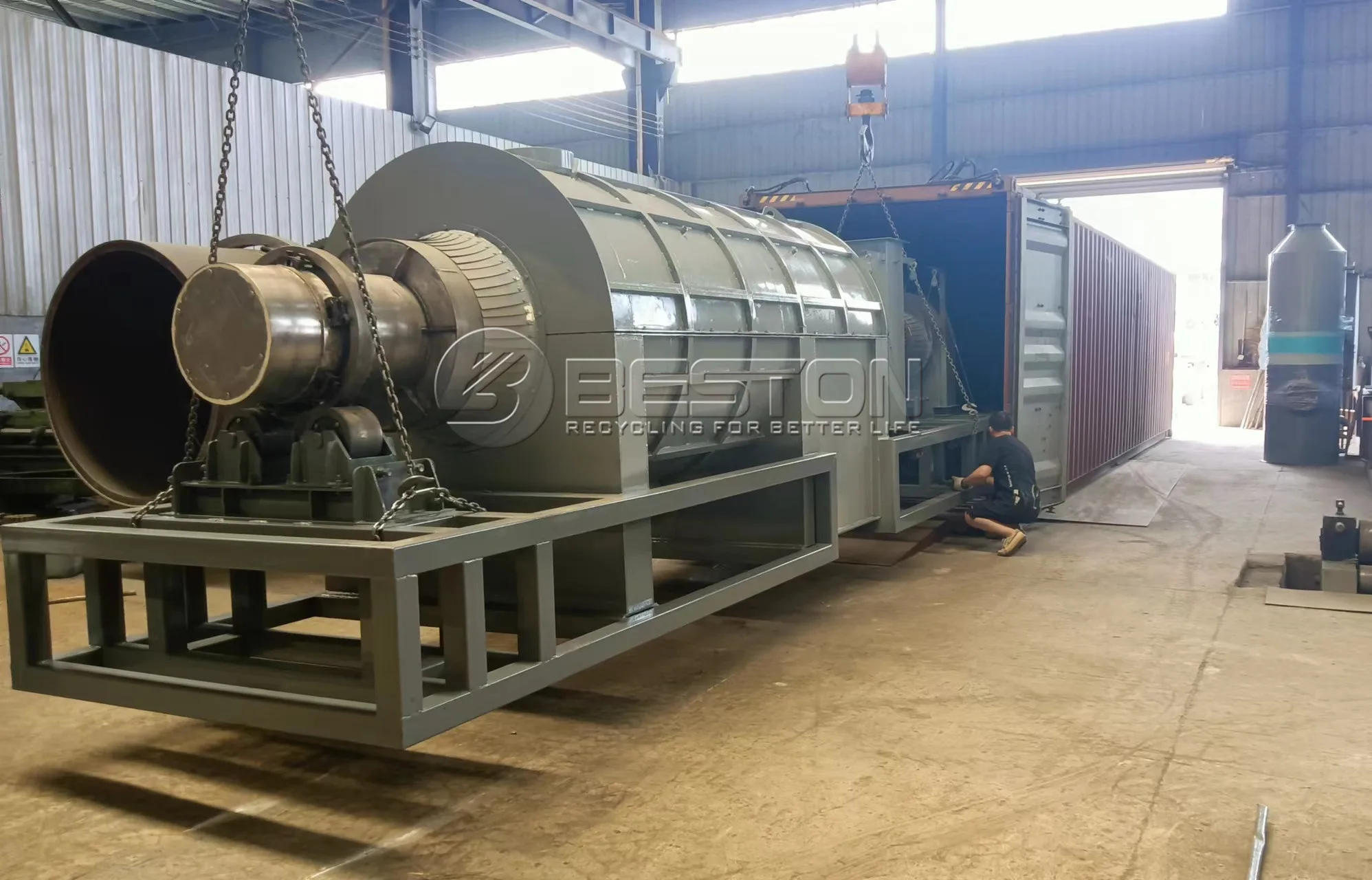

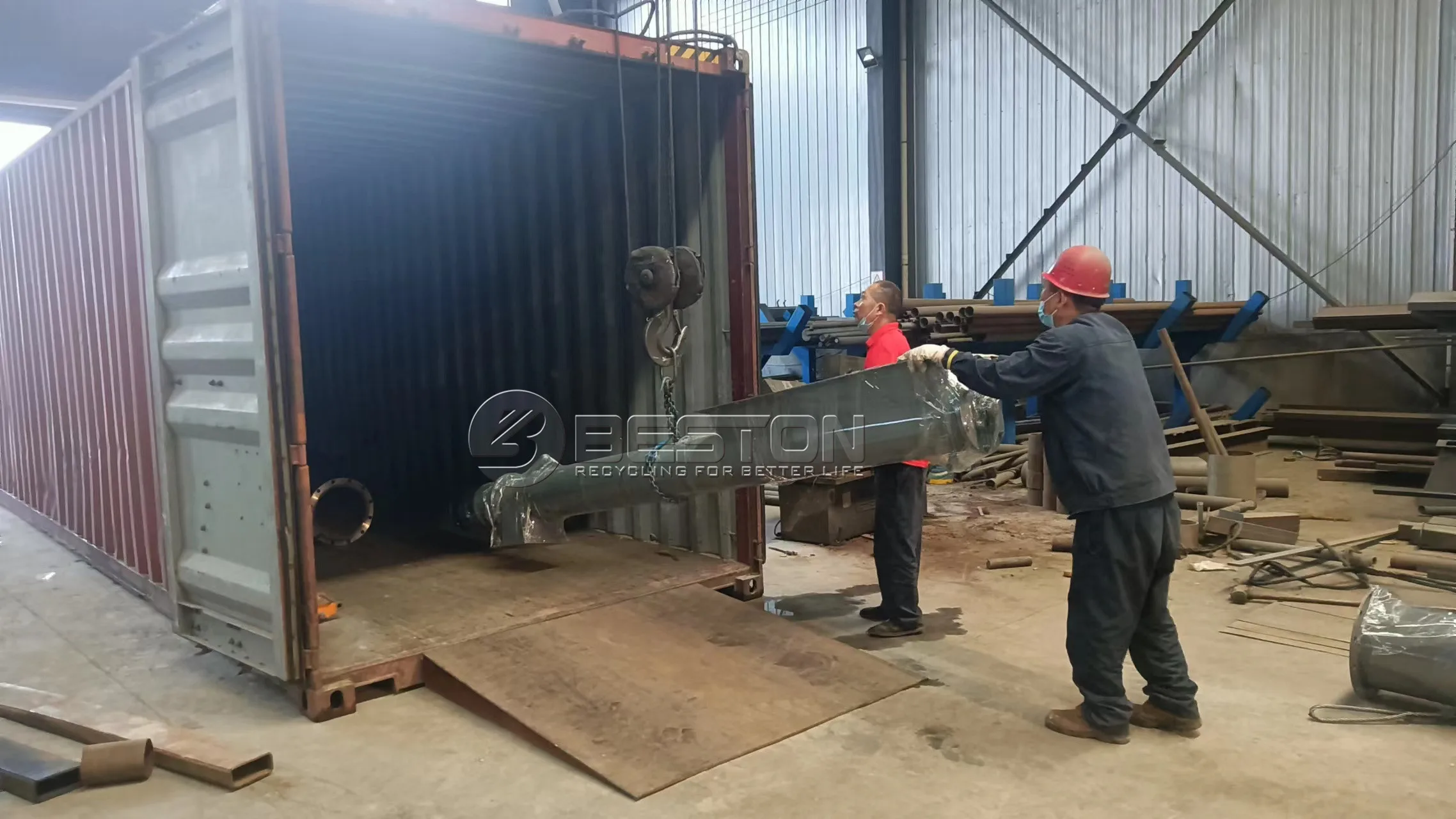

Packing & Delivery

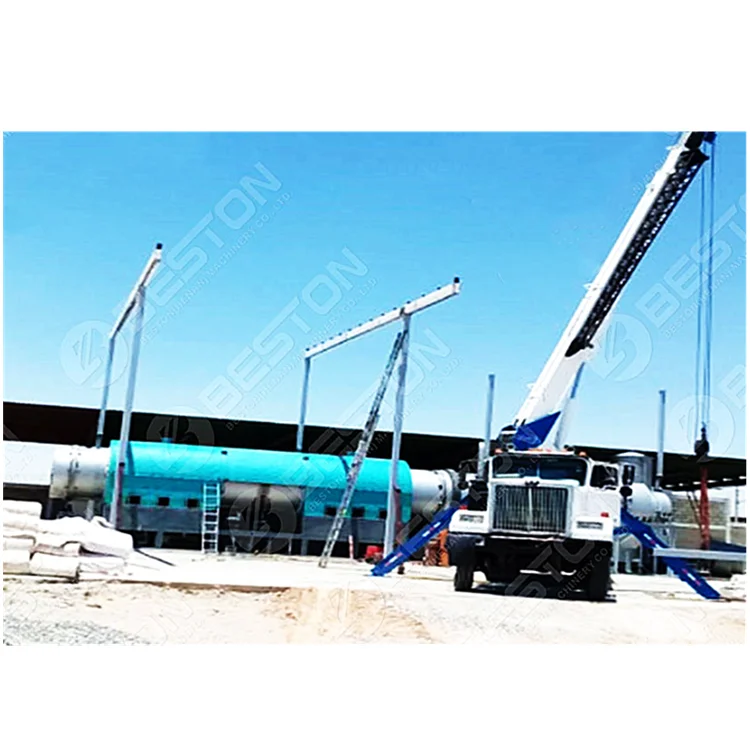

Successful Cases
BST-10 Rice Husk Charcoal Making Machine to Paraguay
Our customer was from Argentina and he planned to set up the machine in Paraguay. He planned to make hexagon charcoal for a barbecue with the raw material of rice husk. Finally, we recommended BST-10 charcoal manufacturing machine for customers according to the situation of their projects.
Coconut Shell Charcoal Machine to Mexico
The Mexican customer bought a BST-30 coconut shell charcoal making machine from Beston. The customer was very satisfied with our service and was also happy to share his experience with other customers.The working mode of BST-30 is continuous, with feeding rate of 2.5~3 tons per hour.
BST-J40 Charcoal Making Machine to Spain
In July 2021, we delivered a BST-J40 charcoal making machine to Spanish customer. He was very satisfied with our service. BST-J40 charcoal making machine to Spain will be used to process pig hair to carbon. Pig hair is a suitable optional raw material for carbonization.
BST-30 Palm Shell Charcoal Making Machine to Malaysia
In November 2021, Malaysian customers purchased a palm kernel shell charcoal making machine from Beston. This machine can process 2.5-3 tons of palm shells. It fully satisfies the capacity demand of the Malaysian customer.So far, it has brought rich profits to Malaysian customer.

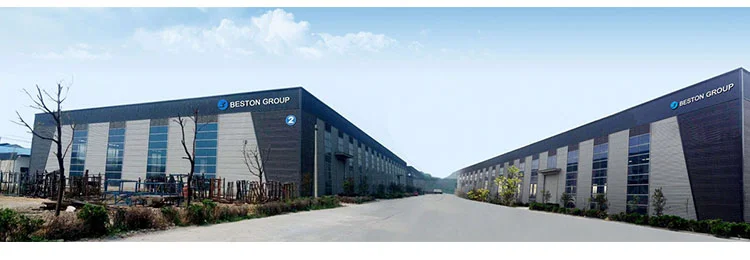

Company Profile
Beston Group Co., Ltd. is an enterprise specializing in Biomass carbonization equipment,Waste pyrolysis plant, MSW sorting plant,Oil distillation plant and Egg tray machine. Beston responsible for the promotion of resource regeneration solutions,equipment manufacturing and project implementation in the global market.
