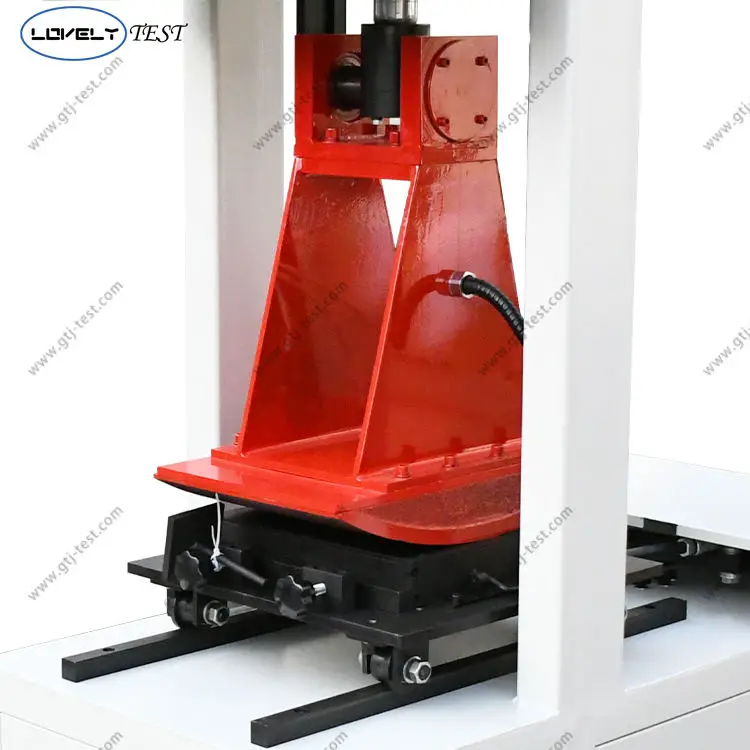

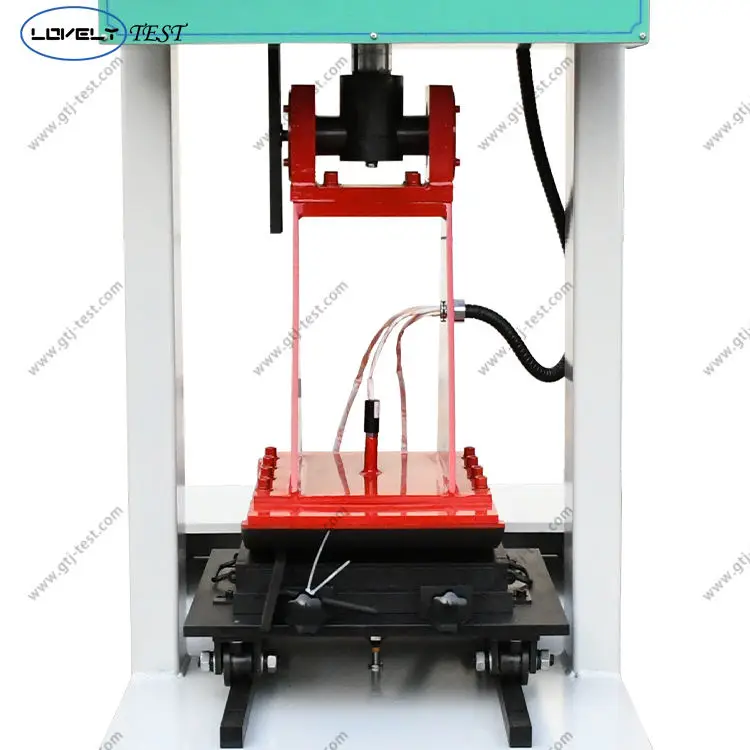

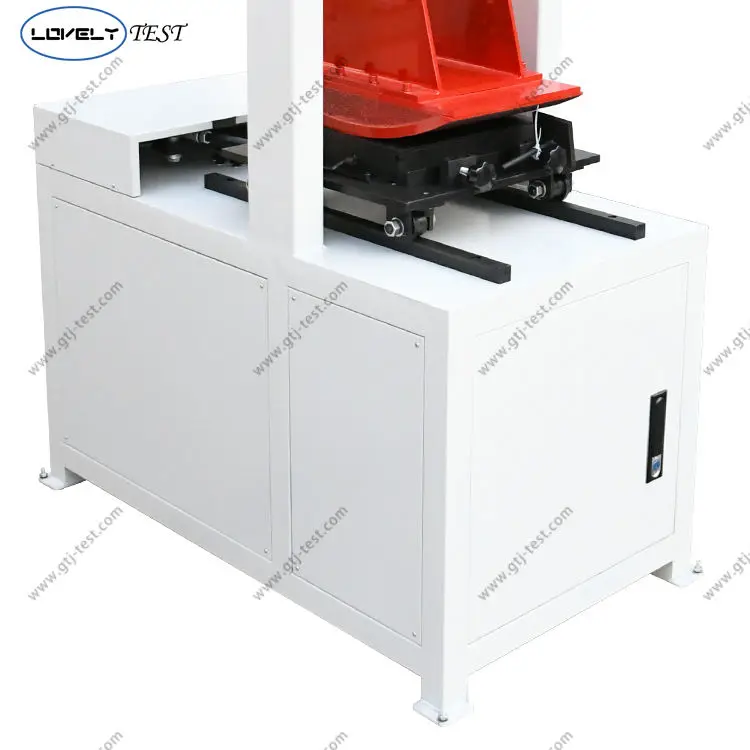

HYCX 2 Pneumatic standard Asphalt Mixture Specimen Forming Machine
- Category: >>>
- Supplier: Cangzhou Lovely Technology Co. Ltd.
Share on (1600767195149):
Product Overview
Description
Asphalt Mixture Rutting Sample Forming Machine
Usage Overview
USAGE OVERVIEW:
The Roller Compactor is considered to be the method of laboratory specimen compaction that results in slabs of asphalt paving materials with properties that most closely simulate those of materials in the highway.
Slabs can be compacted to target mixture densities using loads that are equivalent to those of full-scale compaction equipment.
The Roller Compactor is considered to be the method of laboratory specimen compaction that results in slabs of asphalt paving materials with properties that most closely simulate those of materials in the highway.
Slabs can be compacted to target mixture densities using loads that are equivalent to those of full-scale compaction equipment.
Product Description
Features
1. Intelligent type: Roller temperature, rollingtimes and compaction line load can be set.
2. Electro-hydraulic servo control: Improves operational performance and safety performance.
3. Wide temperature control range, high precision and good stability: PID control is carried out by PWM modulation.
1. Intelligent type: Roller temperature, rollingtimes and compaction line load can be set.
2. Electro-hydraulic servo control: Improves operational performance and safety performance.
3. Wide temperature control range, high precision and good stability: PID control is carried out by PWM modulation.
Specification
Sample size: 300x300x50 (100) mm
Rolling tile radius: 500mm
Rolling tile width: 300mm
The motion speed of the trial car: 6 round trips/min
The rolling pressure: 0-20kN
Rolling tile temperature: 0-200℃
Voltage: 380V/Customize
Power: 3kW
Rolling tile radius: 500mm
Rolling tile width: 300mm
The motion speed of the trial car: 6 round trips/min
The rolling pressure: 0-20kN
Rolling tile temperature: 0-200℃
Voltage: 380V/Customize
Power: 3kW
Our Advantages
our customer
Company Profile
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
