Product Overview

Description



What is Agriculture Navigation
Agriculture navigation system is born for intelligent farming which help farmer enhance the productivity. There are Guidance system,land leveling system and auto steering system for options .
Auto steering system is positively introduced because its creative technology for agriculture.
The system consists of a base station and a vehicle control part.
The vehicle control part includes a control tablet integrated with a high - precision GNSS board , a steering wheel motor with a built-in controller , and an angle sensor. It can be widely used for tractor guidance, land leveling, sowing , cultivating , trenching , ridging ,spraying pesticide , transplanting , land Angle Sensor consolidation , harvesting , and other work sceneries.
If you have a Tractor, you can install this system to make your tractor driveless on farm for precision farming.


Product Description




Specification


JY305
item
value

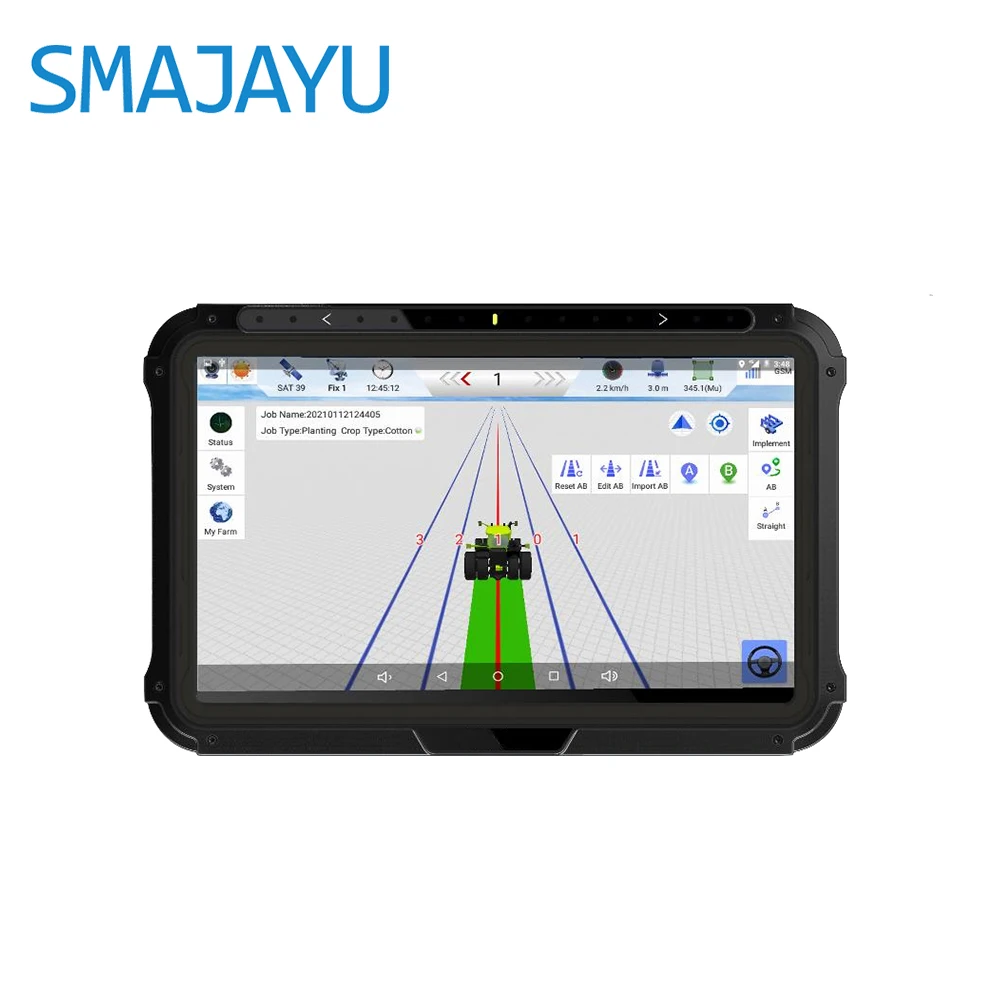

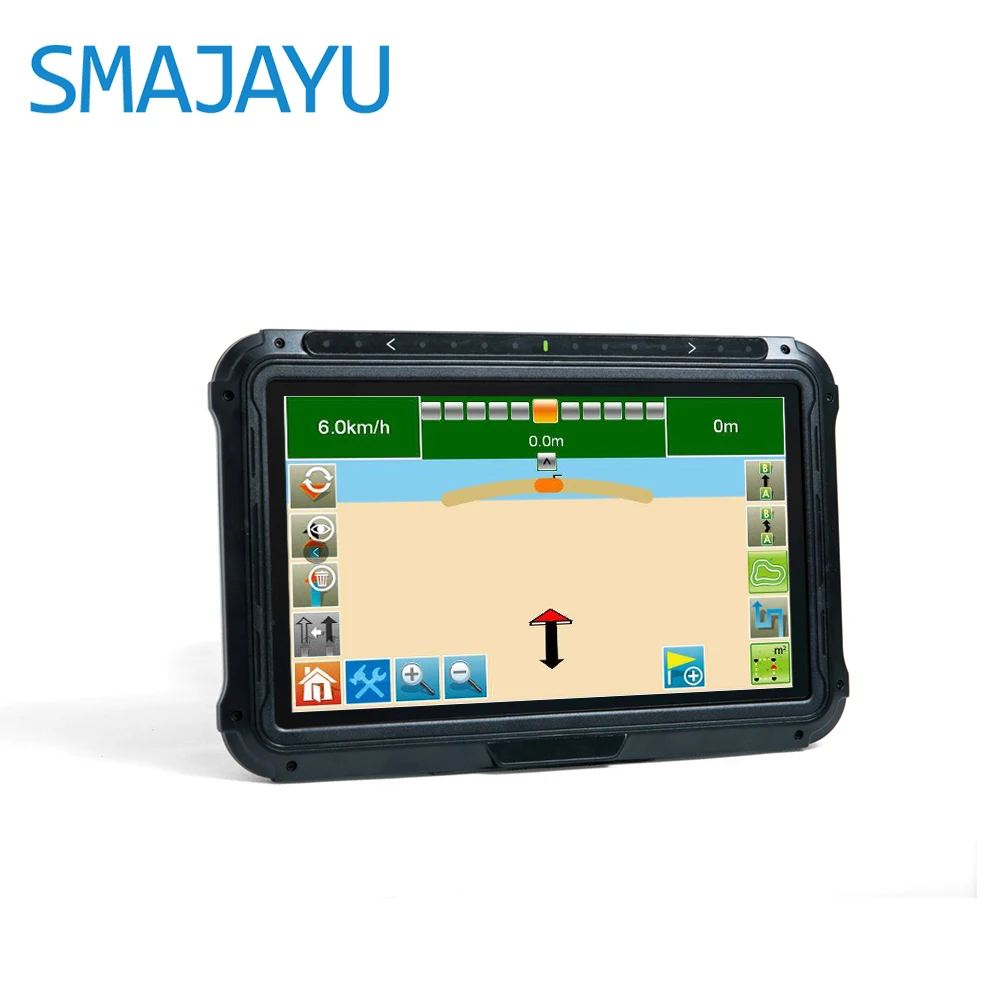

T100 Control Tablet
Operating System
Android
CPU
Quad-Core 1.5GHz
Memory
2GB RAM + 16GB ROM
External Flash
T-Flash, up to 64GB
LCD
10.1’’ Capacitive Touch Screen
Resolution
1024x600 pixels
Dustproof & Waterproof
IP-65
Dimension
281mmx181mmx42mm
Weight
1.5kg

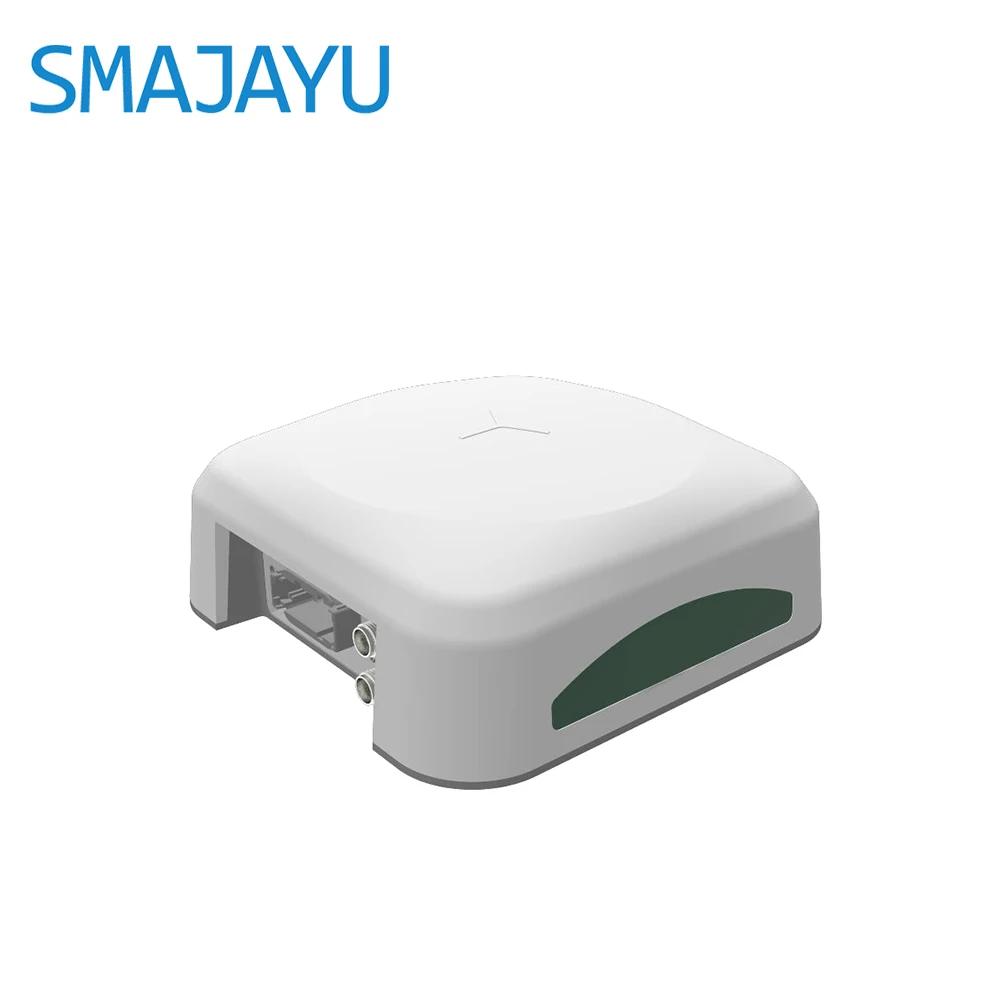

R70 Smart Antenna
Operating Temperature
-30℃~+70℃
Storage Temperature
-40℃~+85℃
Physical Dimension
179×179×69mm
Weight
1.1Kg
Protection Level
IP67
Humidity
95% No Condensation
lmpact and Vibration
Resistance for 2m drop

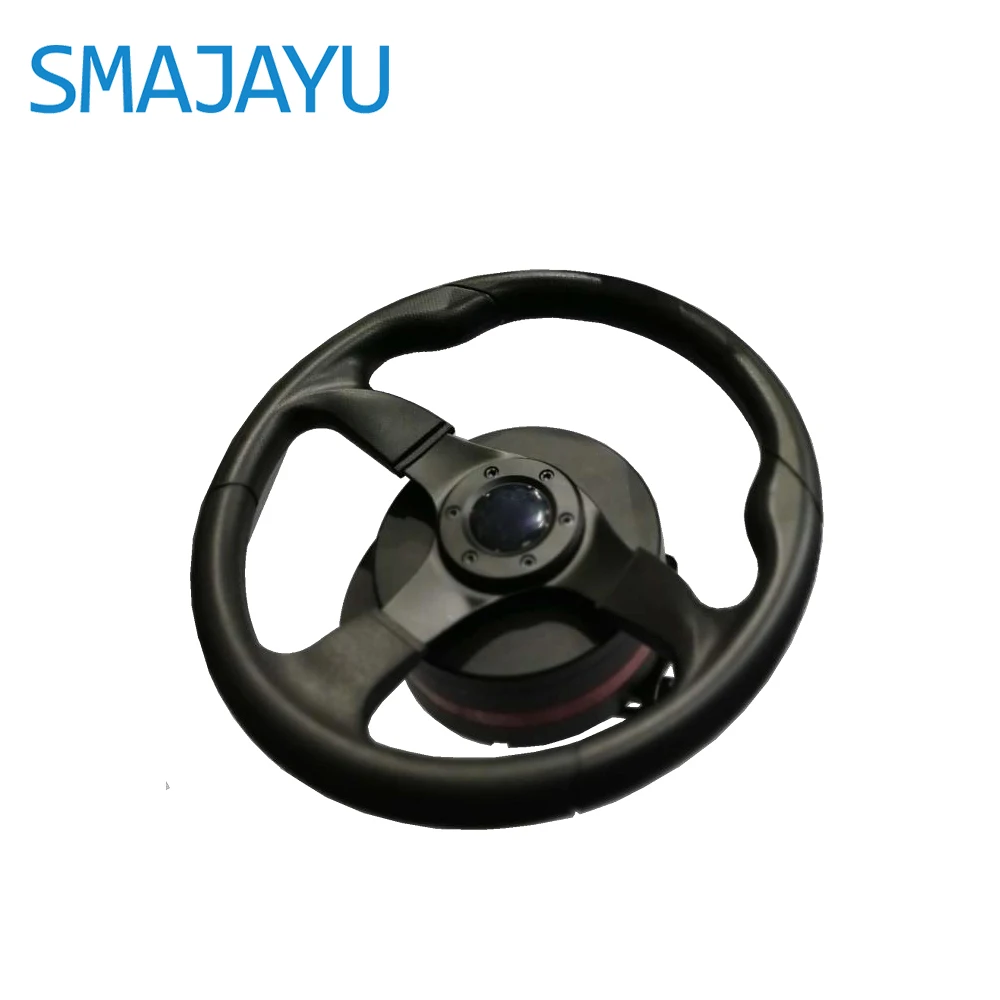

EMS2 Motor Wheel
Rated speed
100 rpm
Rated torque
10 N-m
supply voltage
8V~16V DC
Rated current
10A
Stall current
25A
Rated voltage
12V
Dimension
187x100.2mm (motor),410x32mm (steering wheel)
Weight
6.35kg (motor only)
Material
Aluminum alloy


Company Information




FAQ


1. who are we?
SMAJAYU is A brand of SZFPTECH registered in America and born for Agriculture navigation system. SZFPTECH has12 years expert in pos terminal industry. SMAJAYU Agriculture system is combile hardware and software to serce farmer for precision and intelligent farm.

2. how can we guarantee quality?
IP67 level protection
24hours online support if you need help during using.
2years warranty
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
POS Terminal,Mobile POS,EFT POS,android pos,windows POS, And PDA solution with agriculture system

4. why should you buy from us not from other suppliers?
Smajayu Agriculture Navigation system is the first and the largest one in China agriculture field.
Experienced team in Agriculture navigation system.

5. what services can we provide?
Accepted Delivery Terms: EXW,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
24hours online service for help.
