T MOTOR RI50 factory supply small electric inrunner Brushless DC robot wheel joint frameless motor
- Category: >>>
- Supplier: Nanchang Sanrui Intelligent Technology Limited Liability Company
Share on (1600767220712):
Product Overview
Description
Product Description
Note:
We are factory supplier.
All our motors can be customized in torque voltage rpm output size etc.
Pls feel free to contact us for more details and requirements.
Pls feel free to contact us for more details and requirements.

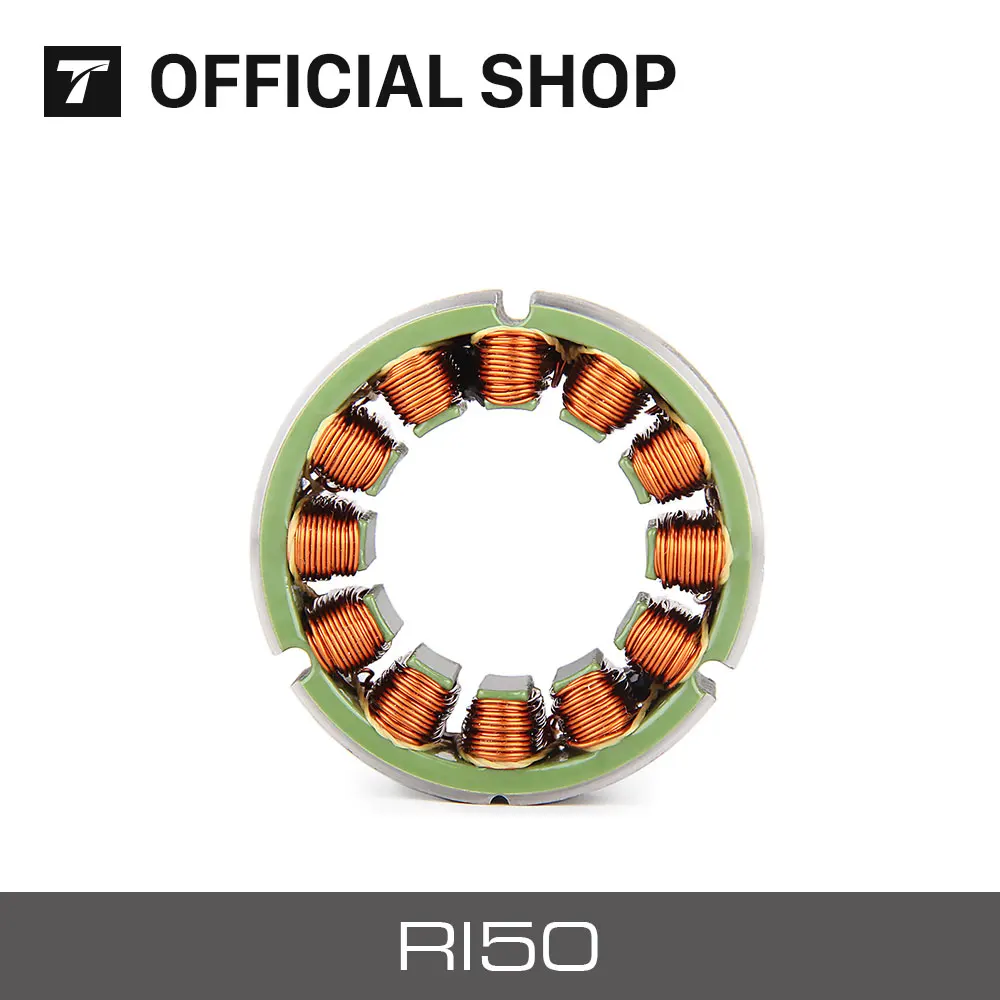

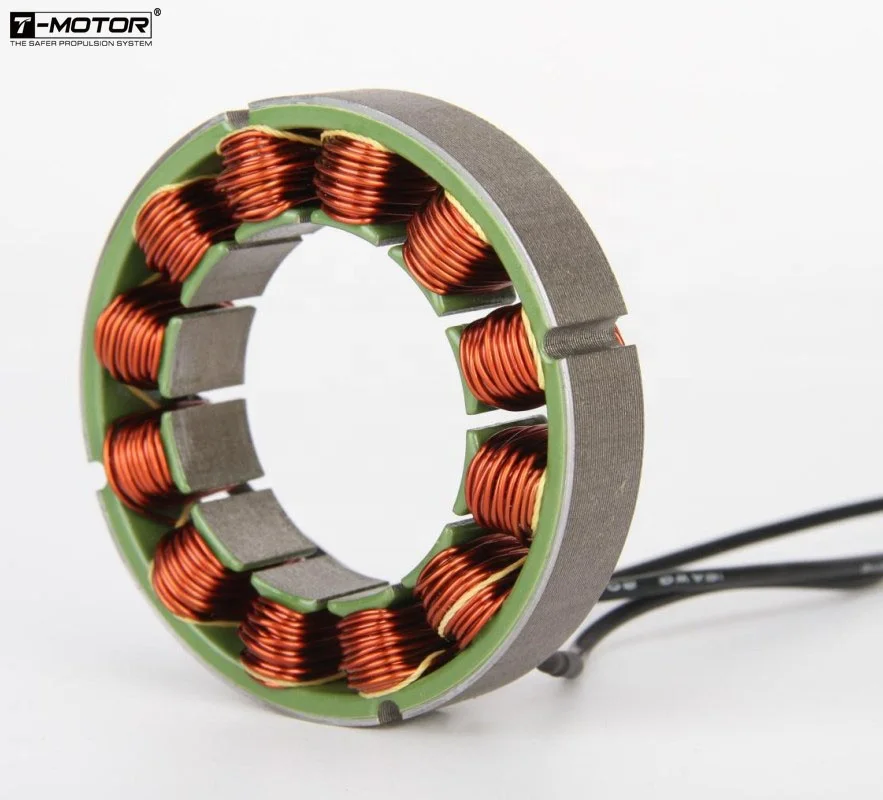

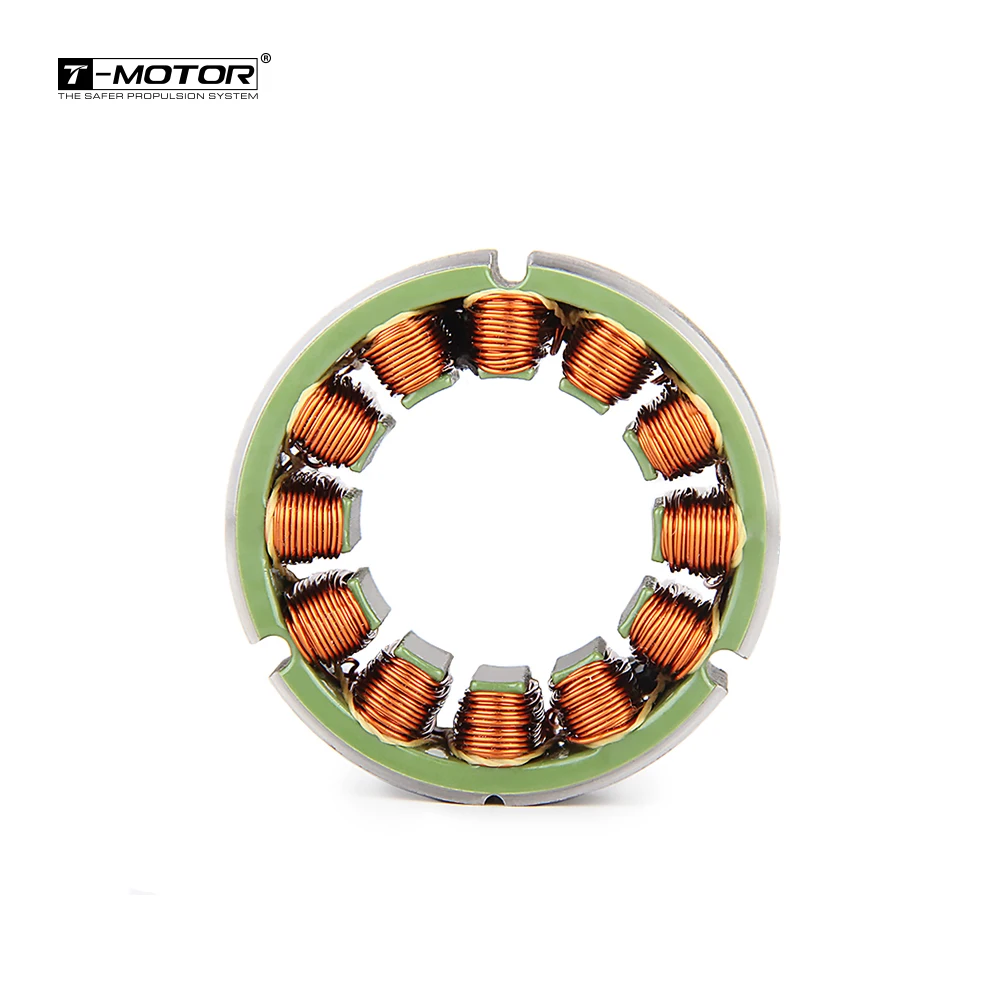

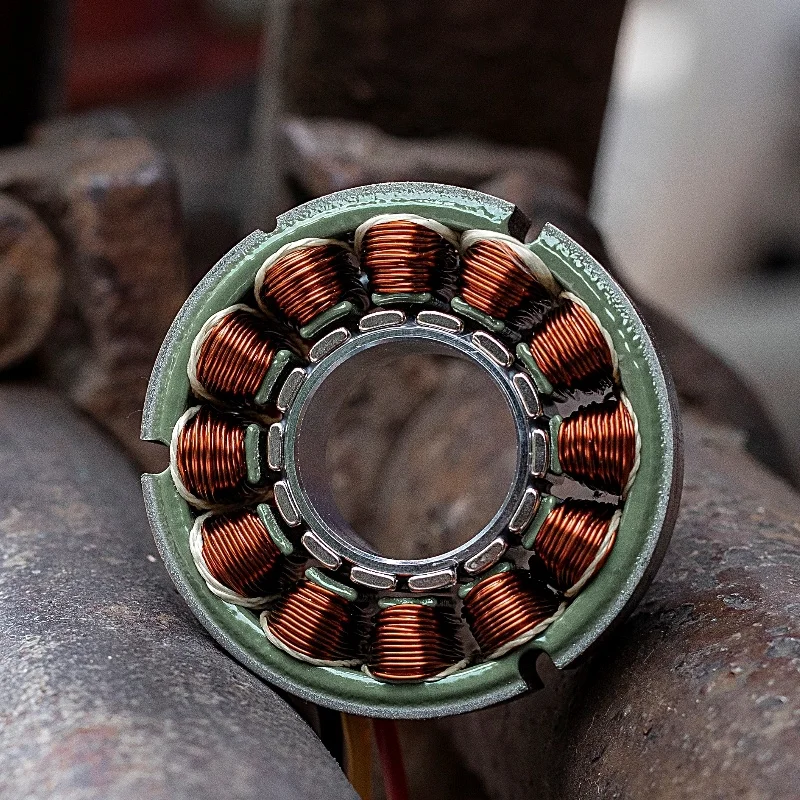

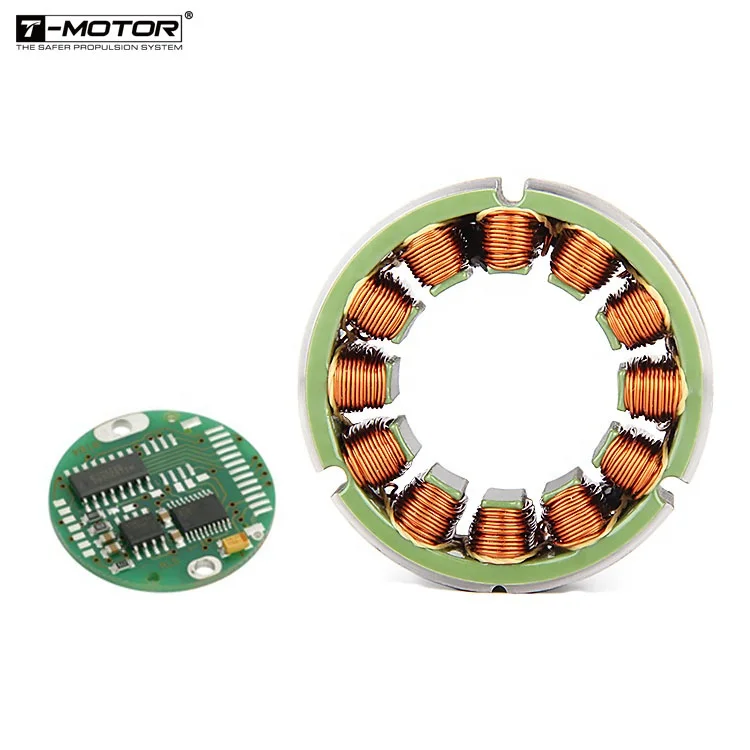

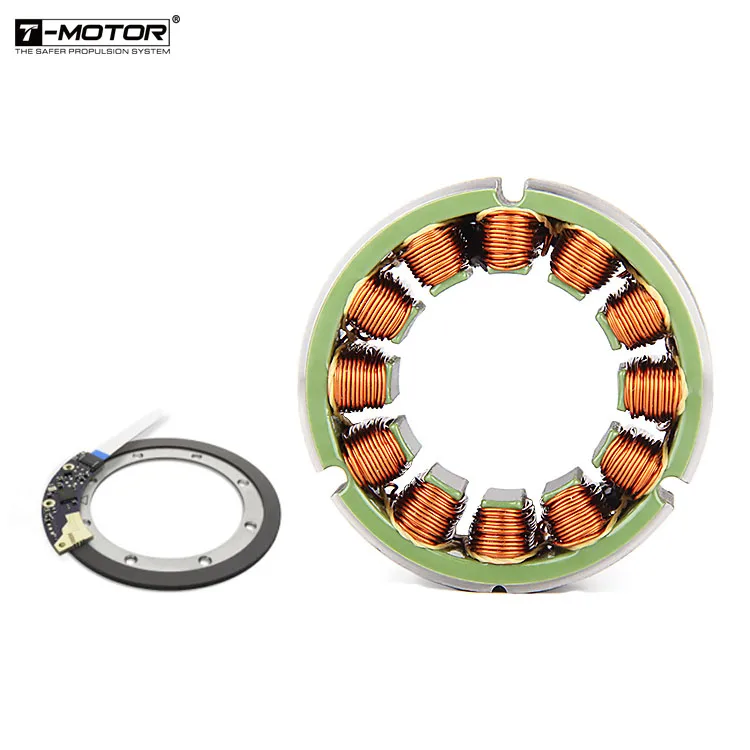

T-MOTOR RI50 factory supply small electric inrunner Brushless DC robot wheel joint frameless motor.
Model No. | RI50 | RI60 | RI70 | RI80 | RI100 | |||||
Weight(g) | 180.8 | 155.9 | 270.4 | 411.2 | 500 | |||||
Voltage(V) | 24/36/48 | 24/36/48 | 24/36/48 | 24/36/48 | 24/36/48 | |||||
Rated Torque(nm) | 0.58 | 0.57 | 0.94 | 1.45 | 1.76 | |||||
Peak Torque(nm) | 1.67 | 1.63 | 2.68 | 4.1 | 4.95 | |||||
Rated Current(A) | 5.3 | 6.7 | 8.4 | 10.4 | 16.9 | |||||
Peak Current(A) | 15.25 | 19.2 | 24 | 29.3 | 47.6 | |||||
Kt(N.m/A) | 0.1095 | 0.085 | 0.1118 | 0.14 | 0.104 | |||||
Ke(v/rpm) | 0.0115 | 0.0089 | 0.0117 | 0.0147 | 0.0109 | |||||
KV(Rpm/v) | 96 | 124 | 94 | 75 | 101 | |||||
Pole-pairs | 7 | 14 | 14 | 7 | 14 | |||||
OD(mm) | 54 | 60 | 76 | 85 | 104 | |||||
ID(mm) | 22 | 30 | 38 | 40.5 | 45 | |||||
Height(mm) | 24 | 22 | 22 | 26 | 26 | |||||
Max Torque Weight Ratio(N.m/kg) | 9.24 | 10.46 | 9.91 | 9.97 | 9.9 | |||||
Max Speed@Rated Torque(RPM) | 1365/2240/3020 | 1610/2560/3495 | 1450/2300/3125 | 1280/1980/2805 | 1460/2220/3230 | |||||
For mass order/project support/custom requirements, pls send inquiry for more details. | ||||||||||
Our Company
T-MOTOR, a world renowned company, providing propulsion system solution for UAV with advanced technology is specializing in Motors, ESCs (Electronic Speed Controller) and Propellers. Widely used for aerial photography, industrial, agricultural, and
commercial applications, our products obtain high reputation for the high quality.
commercial applications, our products obtain high reputation for the high quality.
Our value: The Safer Propulsion System.
Our vision: Be the guiding star in UAV industry .
Our purport: Technological Innovation; Win-Win Cooperation; Integrity &Service.
T-MOTOR is a team of profession, innovation and passion.
R&D Department: We do R&D with pursuit of innovation and quality, but also attach significance to details and user experience.

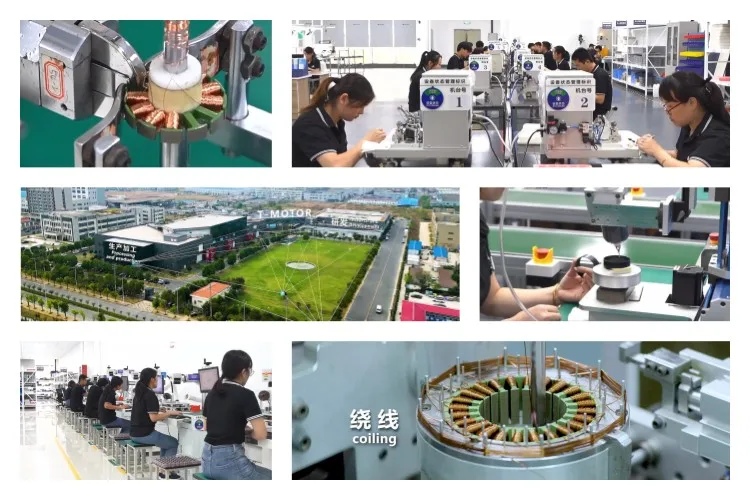

Production Department: We make perfect products with best raw materials and advanced production technology and equipment.
QC Department: We carry out inspection in each process from raw materials to finished products to make sure impeccable products
reach our customers.
Sales Department: We do sale with profession and passion, supplying thoughtful service for customers.
Other Departments: We coordinate with each other from better T-MOTOR.
T-MOTOR also offers OEM/ODM service to meet various demands from customers. We would like to grow up with you--our esteemed
customers, and gain mutual benefits. Your
Our vision: Be the guiding star in UAV industry .
Our purport: Technological Innovation; Win-Win Cooperation; Integrity &Service.
T-MOTOR is a team of profession, innovation and passion.
R&D Department: We do R&D with pursuit of innovation and quality, but also attach significance to details and user experience.
Production Department: We make perfect products with best raw materials and advanced production technology and equipment.
QC Department: We carry out inspection in each process from raw materials to finished products to make sure impeccable products
reach our customers.
Sales Department: We do sale with profession and passion, supplying thoughtful service for customers.
Other Departments: We coordinate with each other from better T-MOTOR.
T-MOTOR also offers OEM/ODM service to meet various demands from customers. We would like to grow up with you--our esteemed
customers, and gain mutual benefits. Your
Our Customer

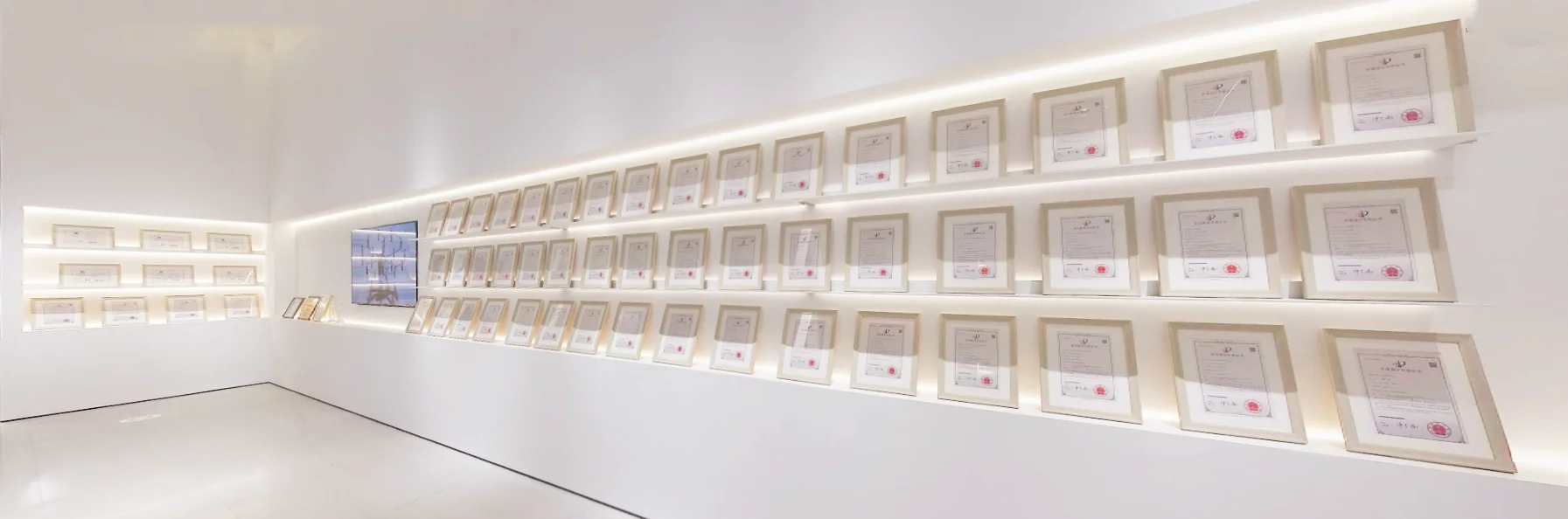

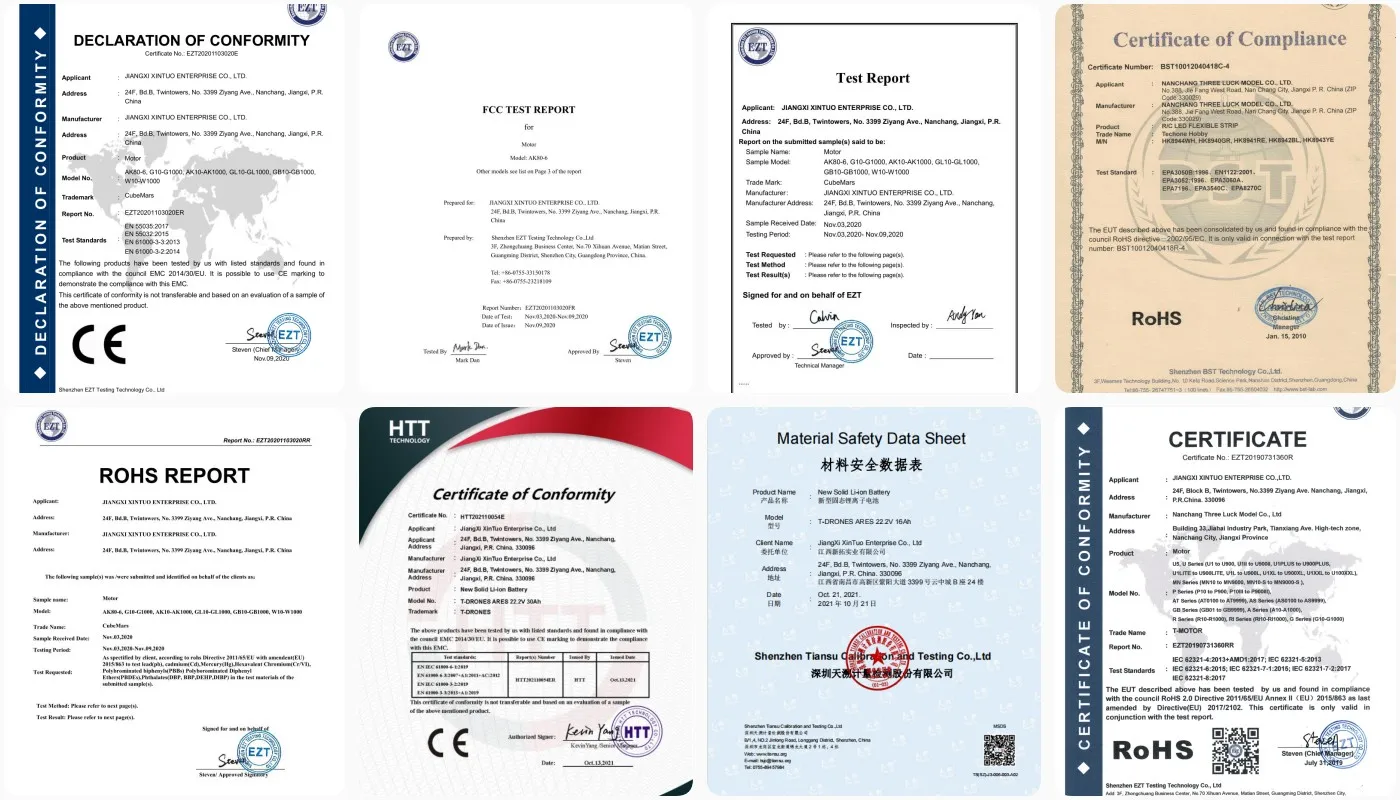

Certifications
Packing & Delivery
FAQ
Q1: Are you factory supplier?
A: Yes,we are factory with more than 25 years experience. We can do both OEM and ODM. We have our own R&D team.
Q2: What is your MOQ?
A: MOQ is 1 pcs.
Q3: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place format orders.
Q4: How long is the delivery time?
A: In general, the delivery time is 3 to 7 working days.
Q5: What is your guarantee term?
A: The warranty period for our products is one year along with technical support and free return.
Q6: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcome to visit our factory to learn and check the robot motor.
Q7: What are the payment methods?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card.
Pls feel free to send inquiry for more details, we are on-line 24 hours for you!!!
Pls feel free to send inquiry for more details, we are on-line 24 hours for you!!!
