24V 48V 96V Wind Turbine 1.5kw 2kw 5kw Wind Turbine Generator with Solar Energy
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1600767231474):
Product Overview
Description
You May Like
You May Like
Specification
Model | RX-1500H3 | RX-2000H3 | RX-5000H3 |
Rated power | 1500w | 2000w | 5000W |
Rated voltage | 24v-220v | 48v/96V | 120V/220V/240V/380V |
Start-up wind speed | 2.0m/s | 2.0m/s | 3m/s |
Rated wind speed | 12.5m/s | 11m/s | 10m/s |
Survival wind speed | 40m/s | 45m/s | 35m/s |
Top net weight | 30kg | 40kg | 280kg |
Blades length | 950mm | 2300mm | 2600mm |
Number of blades | 3/5 | 3 | 3 |
Blades material | Reinforced glass fiber | Nylon (PA6) fiber | Fiberglass-Reinforced Plastic |
generator | Three-phase AC permanent magnet synchronous generator | Three-phase AC permanent magnet synchronous generator | Three-phase permanent magnet synchronous generator |
Control system | Electronic-magnet &automatically adjust the windward Angle | Electronic-magnet &automatically adjust the windward Angle | Electromagnetic brake / Mechanical yaw |
Working temperature | -40℃-80℃ | -40℃-70℃ | -40℃-80℃ |
Recommended for
--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Wiring Diagram

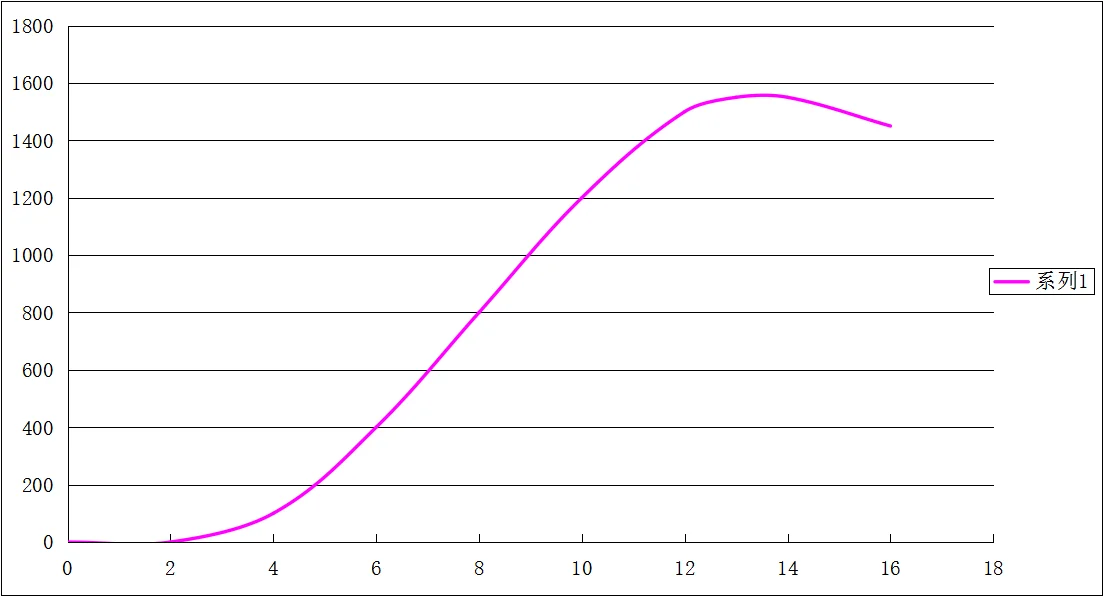

Power curve
Project Photos Show
