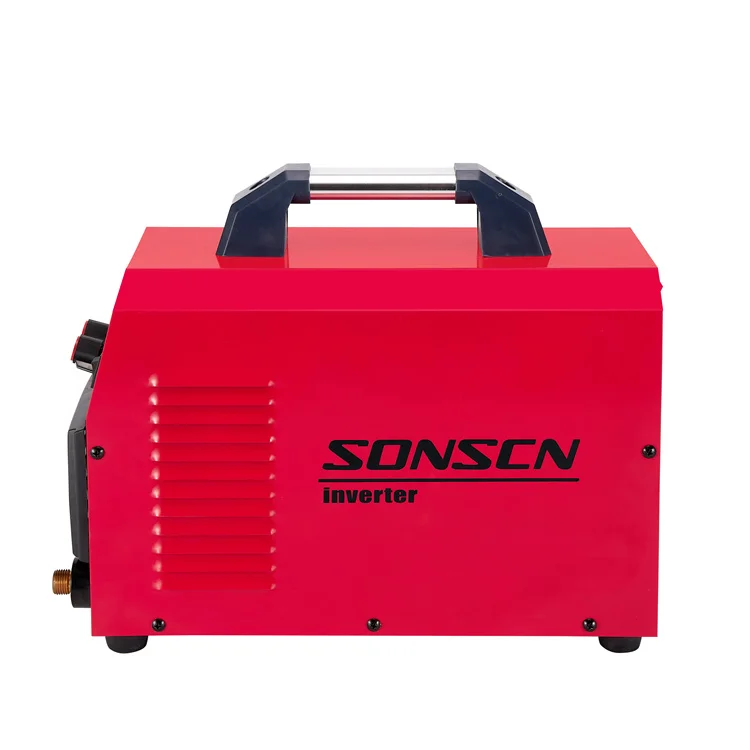

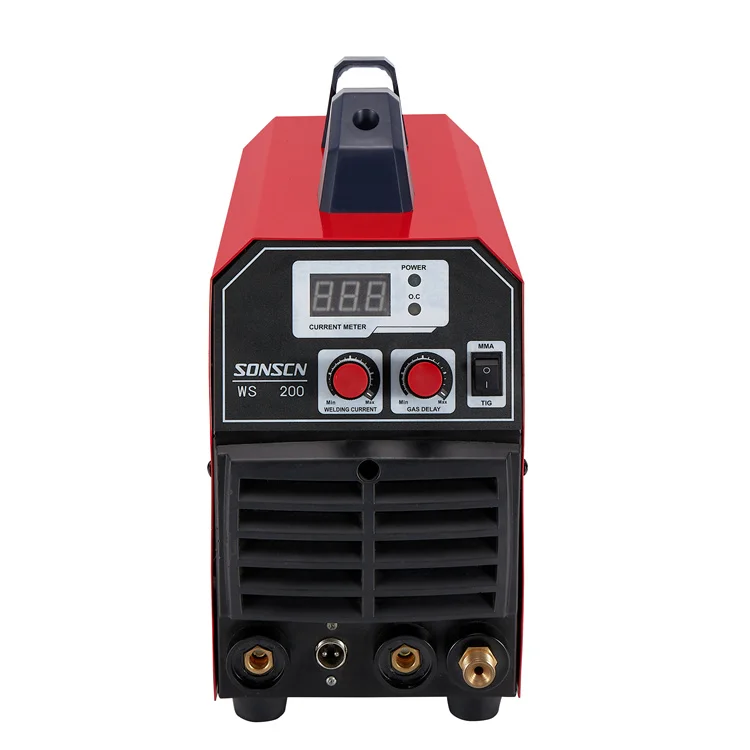

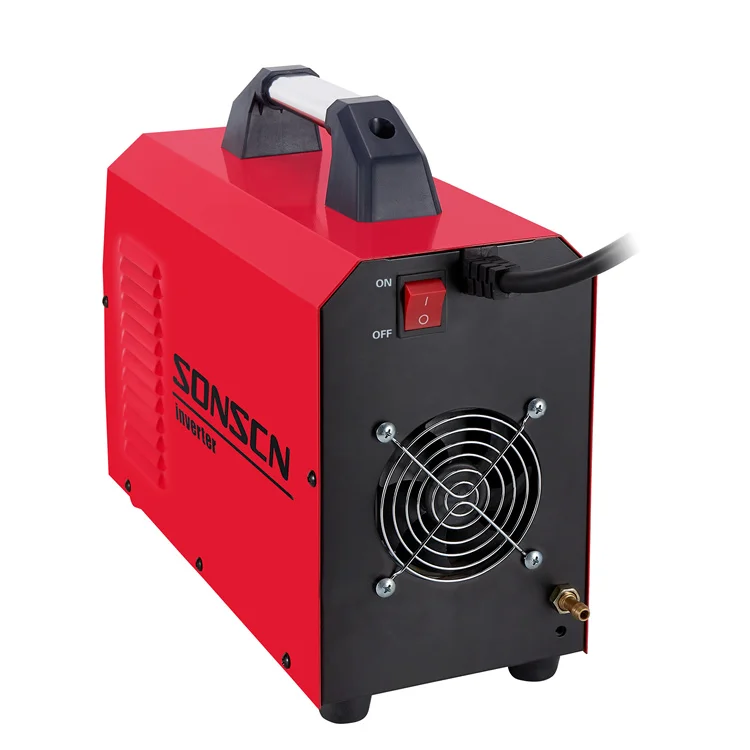

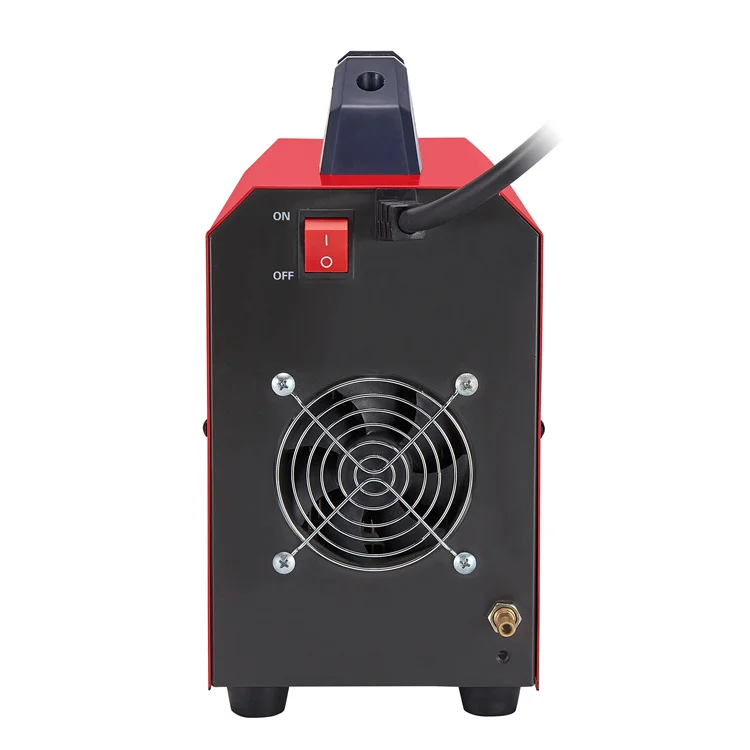

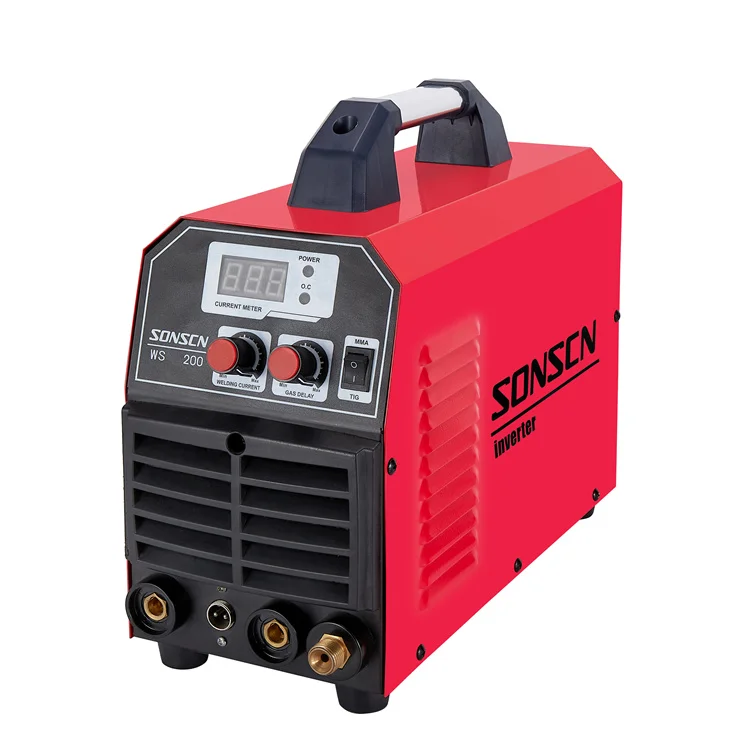

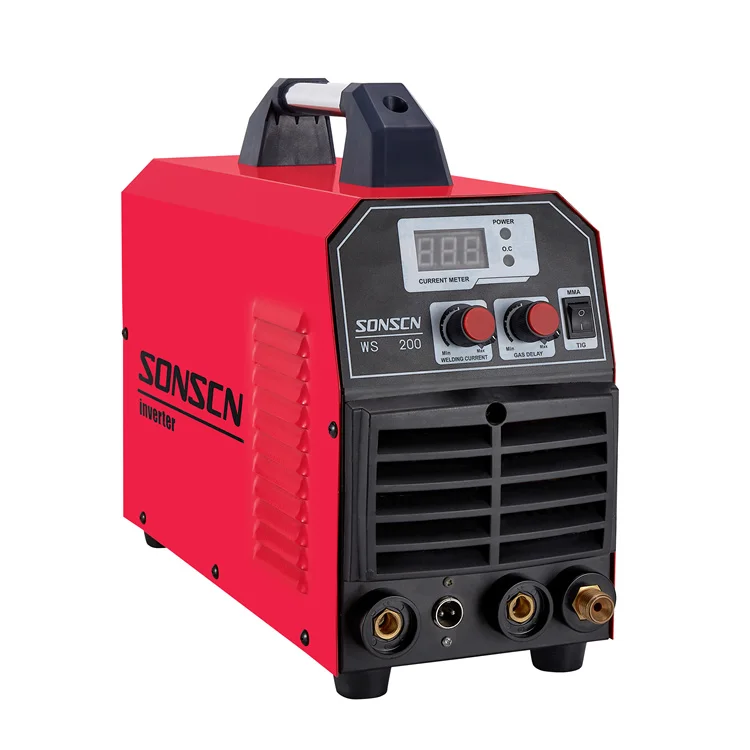

ac dc arc welders tig mma 250 amp welding machine

Product Overview

Description



Model	WS-250	WS-200	WS-180	WS-160
Input voltage	50/60hz(1ph) 230V±10%	50/60hz(1ph) 230V±10%	50/60hz(1ph) 230V±10%	50/60hz(1ph) 230V±10%
No-load voltage	80V	80V	80V	80V
Rated input current	Max.46A	Max.42A	Max.36.8A	Max.30A
Input power	Max.9kw	Max.6.6kw	Max.5.8kw	Max.5kw
Duty cycle	60%	60%	60%	60%
Current range	10-250A	10-200A	10-180A	10-160A
Welding rod	1.5-5mm	1.5-4mm	1.5-4mm	1.5-4mm
Dimensions	39.5x15x30cm	39.5x15x30cm	39.5x15x30cm	39.5x15x30cm
Weight	8.5kgs	8kgs	7.5kgs	7kgs
Protection class	IP21	IP21	IP21	IP21
Trademark	OEM/SONSCN	OEM/SONSCN	OEM/SONSCN	OEM/SONSCN







Actual output current and duty cycle:

1. Maximum output current should be no lower as Technical data. Maximum current or full load means maximum current at which following condition is right: Uoutput=20+(0,04*Ioutput).

2. Duty cycle of any cycle at full load should be same as in Technical data. Test at a temperature of 25 degrees. Duty cycle is the ratio of the time of work under load for the time of a complete cycle. Complete cycle time is 10 minutes.

3. If time of work under full load of first cycle is longer than 15 minutes, then duty cycle is 100%

4. Every model should have temperature protection at fast recovery diodes radiator.



Characteristic

1. ARC initiation pulsation thermal arc initiation design, excellent arc initiation performance.

2. Unique output characteristics protection design, more suitable for filler wire.

3. Easy arc initiation, stable current and has no noise.

4. Protection for over voltage, over current.

5. Automatic voltage pulsation compensation capability.

6. Fast, small splash, do not stick to slip, excellent weld appearance.

7. Portable, easy to carry, suitable for DIY and family use.

8. Anti-sticking

9. Possibility of high frequency HF or LIFT arc striking.

10.Advanced arc force,hot start and anti-stick function.



Click Here >>>>> Contact Us To Get More Informations

Click Here >>>>> Contact Us To Get More Informations

View More HD Pictures>>



Click Here >>>>> Contact Us To Get More Informations

Q:How do we keep our prices competitive? A:We have relationships with a large number of suppliers and can find the best source of materials to consistently save your cost, meet your development schedule, fulfill your prototyping or mass production needs.

Q:Could you offer Form A or C/O ?   A:It's totally not a problem. We can prepare relative documents to foreign affairs office or other office  to apply for this certificate.

Q:Are you factory or trading company? A:We are a factory, we provide OEM services.

Q:Where are your factory ? A: Yongkang City, Zhejiang, China

Q: What kind of certificate you have? A: CE and CCC,  All kinds of certificates can be supply based on large purchase quantity.

Q:How long will it take if asking for the samples?  A: General speaking, 3 working days after get the payment.

Q:What is your lead time for the mass products such as 5000 units per item? A: It is about 15-35 days after getting the advanced payment.

Q:What is your payment terms? A: T/T, by cash, western union, or L/C.

Q: What are your market reach throughout the region?  A:Our markets around the world in every corner, we have 17 years of experience in this industry.

Q:What is your main product line in made? A:We mainly produce inverter arc welders, TIG welders, Jumper starter and UPS. etc
