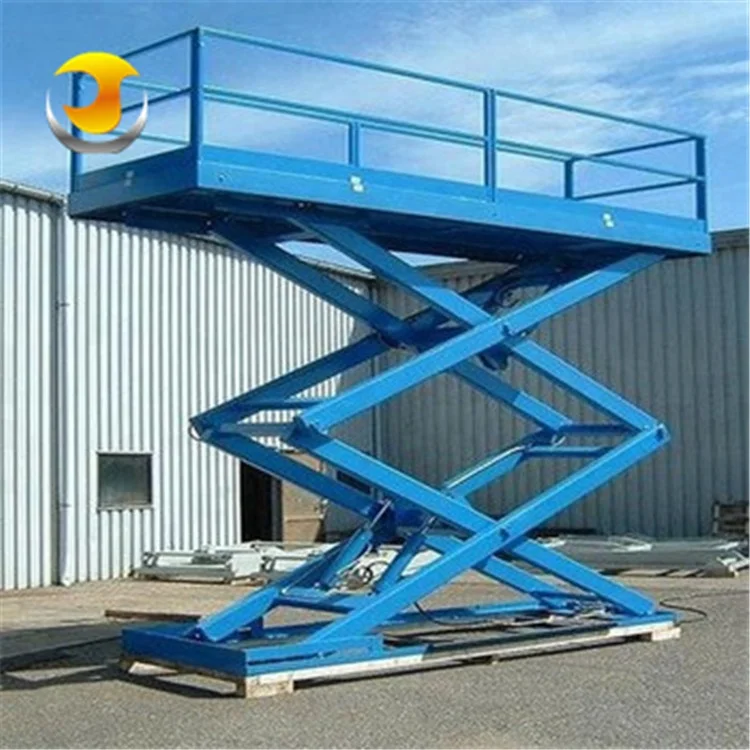

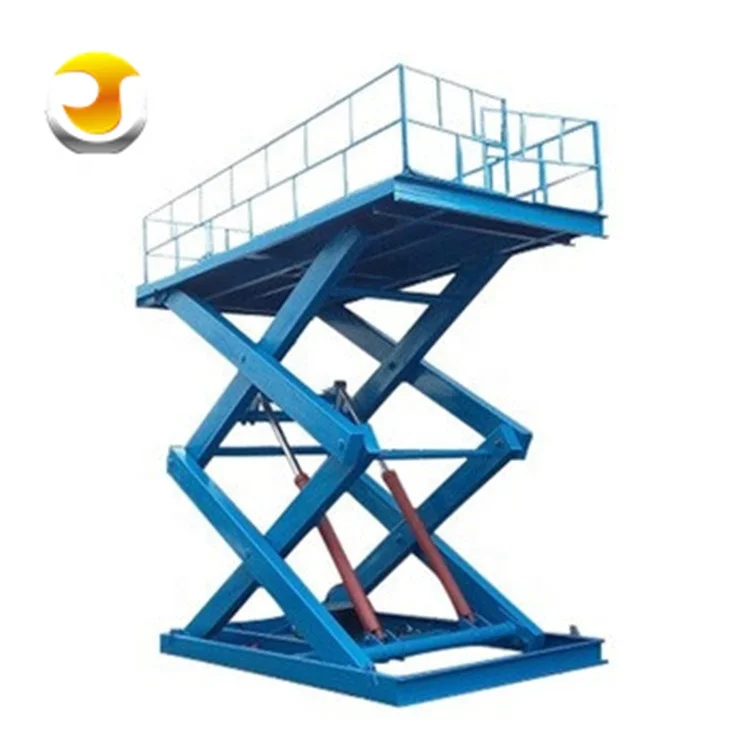

Factory hot selling 4 ton 5 ton Hydraulic Scissor car lifting platform
- Category: >>>
- Supplier: Shandong Tavol Machinery Co. Ltd.
Share on (1600767264767):
Product Overview
Description
Products Description
4 ton 5 ton Hydraulic Scissor car lifting platform

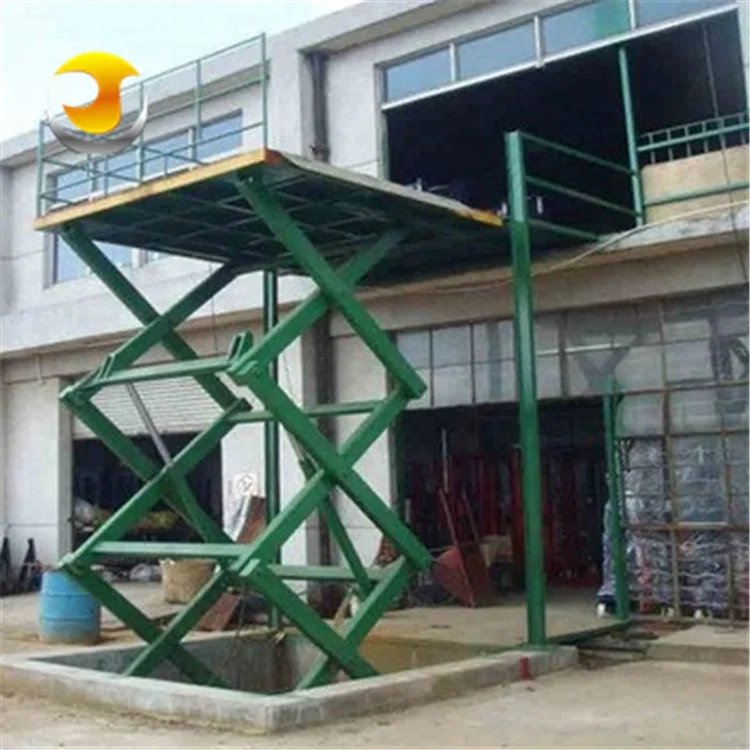

Stationary scissor lift is used for transporting goods between the building floors, It is mainly used in workshop,warehouse,underground garage storage between car lift and other places need to lift goods up and down. Its hydraulic system has fall protection device, overload protection device. emergency falling device when power is off.It has strong structure, large loading capacity, smooth movements, easy to install and maintain, it is economical and practical cargo transportation equipment.
Stationary scissor lift tables used high-strength steel frame structure and can load from 1T to 10T and the size and equipment size can be customized according to user needs.
Scissor lift tables provide a level grade for loading and unloading any vehicle, irrespective of their bed heights. Also safe ground level access is provided with minimal loss of time and more efficient use of space. Concrete ramps take up valuable space, and can be come slippery and unsafe when wet.
Our scissor lift tables offer a simple push button operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, safety support legs, safety roller curtains, portal rails, etc
Stationary scissor lift tables used high-strength steel frame structure and can load from 1T to 10T and the size and equipment size can be customized according to user needs.
Scissor lift tables provide a level grade for loading and unloading any vehicle, irrespective of their bed heights. Also safe ground level access is provided with minimal loss of time and more efficient use of space. Concrete ramps take up valuable space, and can be come slippery and unsafe when wet.
Our scissor lift tables offer a simple push button operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, safety support legs, safety roller curtains, portal rails, etc
Product Parameter
Type | Lift height (MM) | Mix height (MM) | Raise weight (Kg) | Platform size (mm) | Power (KW) | Weight(KG) |
SJG2-4.8 | 4800 | 760 | 2000 | 4000*2000 | 5.5 | 4500 |
SJG4.5-3.5 | 3500 | 700 | 4500 | 3600*2000 | 5.5 | 3800 |
SJG5-5.5 | 5000 | 950 | 5000 | 5000*1600 | 7.5 | 6200 |
SJG3-7.2 | 7200 | 1280 | 3000 | 2000*1000 | 11 | 8800 |
SJG0.5-5 | 5000 | 950 | 500 | 1900*1500 | 3 | 1300 |
SJG1-3.3 | 3300 | 680 | 1000 | 2200*1500 | 4 | 2500 |
SJG1-6 | 6000 | 850 | 1000 | 2500*2500 | 4 | 3300 |
SJG2-4.5 | 4500 | 750 | 2000 | 1600*1600 | 4 | 3600 |
Feature of fixed type scissor lift :

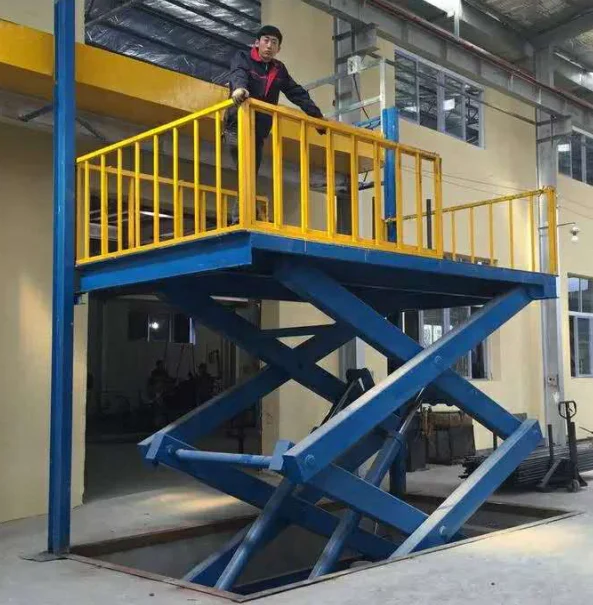

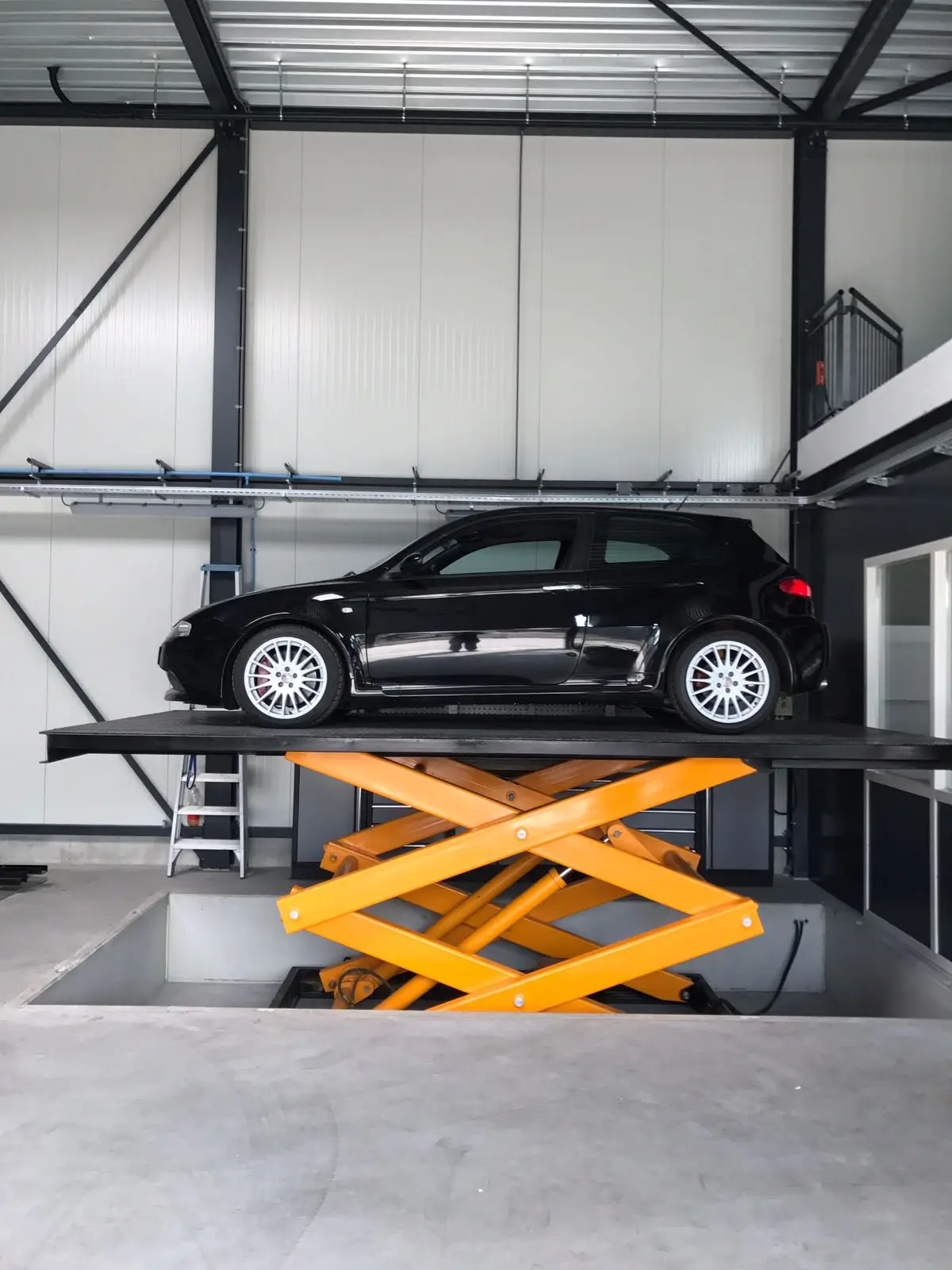

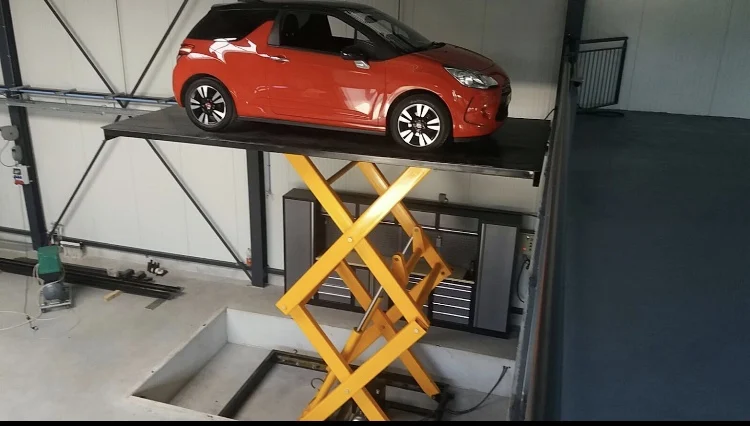

1.It is Installed in the pit,when falls down,it will not occupy space.
2.The control panels are available at the designated floors and on the lift platform.You can also choose the remote control
3.Great load capacity, anti-skid platform, stable scissor structure.
1.It is Installed in the pit,when falls down,it will not occupy space.
2.The control panels are available at the designated floors and on the lift platform.You can also choose the remote control
3.Great load capacity, anti-skid platform, stable scissor structure.
Safety device of fixed type scissor lift :
1.Sensitive overload protection device and locking device for falling down
2.Explosion –proof valve: prevent the hydro oil pipe from cracking.
3.Overflow valve: it will prevent the pressure too high when the machine rises up.
4.Emergency decline valve: it can let the machine falls down when power is off.
5.Safety bar: it will prevent the platform struck the goods or person when it falls down.
1.Sensitive overload protection device and locking device for falling down
2.Explosion –proof valve: prevent the hydro oil pipe from cracking.
3.Overflow valve: it will prevent the pressure too high when the machine rises up.
4.Emergency decline valve: it can let the machine falls down when power is off.
5.Safety bar: it will prevent the platform struck the goods or person when it falls down.
Product Details
Company Profile
Tavol Group is an Esteemed, Leading Disciplined and Quality Manufacturer and Service Provider for the Cranes, Agricultural and Materials Handling Machinery for the Industry over 20 Years.
Tavol Group is Located Under the World Famous Mountain “Taishan”, with Six Different Machinery Manufacture Plant, Passed the ISO9001, CE, SGS, BV, MADRID Brand Certificate and Production License of Special Equipment.
Tavol Group also Invested in a High frequency Vibration Sensor Company Since 2019, In the Next Stage, Tavol Group will focus on the High Technology and High Efficiency Agricultural Equipment Designs and Manufactures, Let us Wait and See.
Tavol Group is Located Under the World Famous Mountain “Taishan”, with Six Different Machinery Manufacture Plant, Passed the ISO9001, CE, SGS, BV, MADRID Brand Certificate and Production License of Special Equipment.
Tavol Group also Invested in a High frequency Vibration Sensor Company Since 2019, In the Next Stage, Tavol Group will focus on the High Technology and High Efficiency Agricultural Equipment Designs and Manufactures, Let us Wait and See.
Our services
1. Once provide us the requirements, the details technical data and CAD drawing will be provided soon.
2. Strict quality control system, supervision the work to ensure the best lift for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
5. If needed, senior engineers could supply installation guide for you on line.
2. Strict quality control system, supervision the work to ensure the best lift for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
5. If needed, senior engineers could supply installation guide for you on line.
FAQ
If you are interested in our products,please contact us with following parameters when you free:
1. Load Capacity?(ton)
1. Load Capacity?(ton)
2. Lift height?(m)
3. Power supply: in china is 380V/50Hz/3phase ,Your request?
4. Platform size:(m*m)
3. Power supply: in china is 380V/50Hz/3phase ,Your request?
4. Platform size:(m*m)
