4 mm automatic spring forming machine producing wire hose clamp and double wire pipe clips
- Category: >>>
- Supplier: Dongguan Guangjin Cnc Equipment Co. ltd.
Share on (1600767287841):
Product Overview
Description

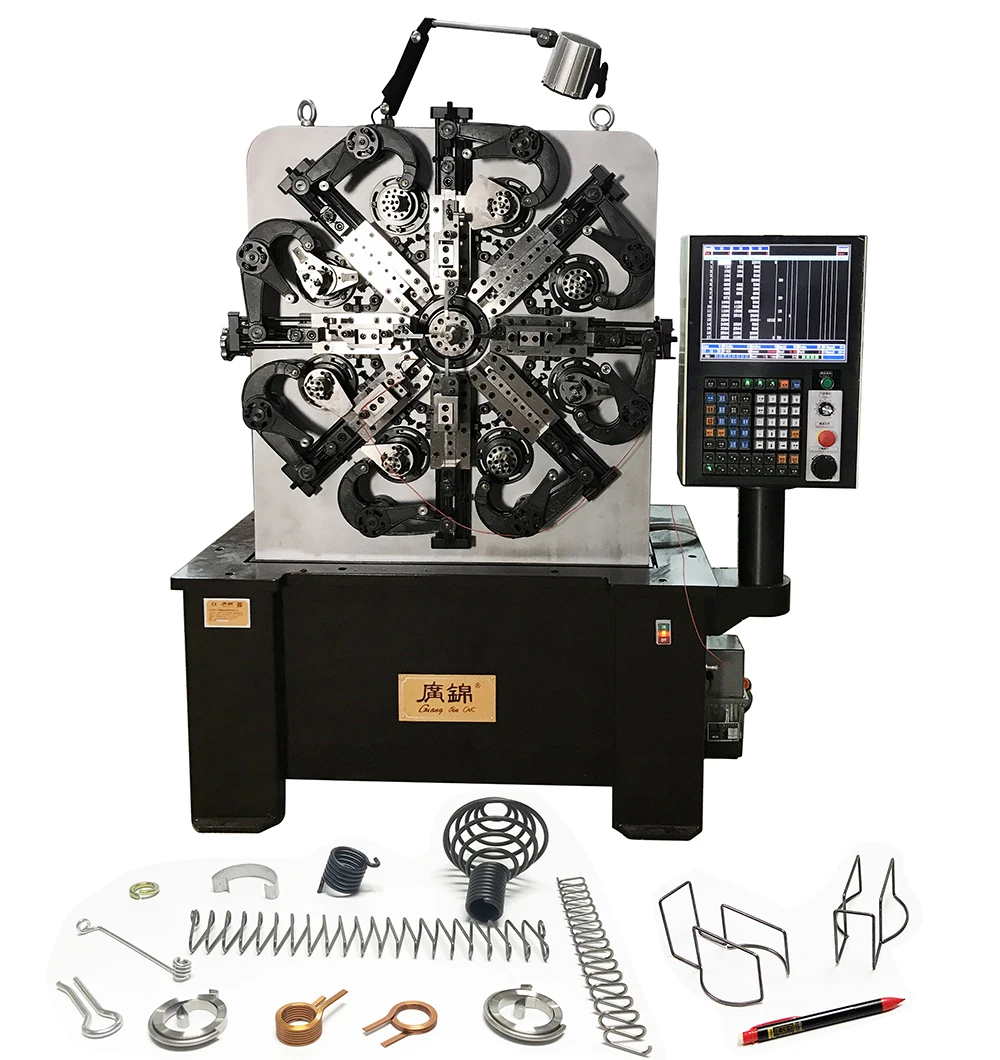

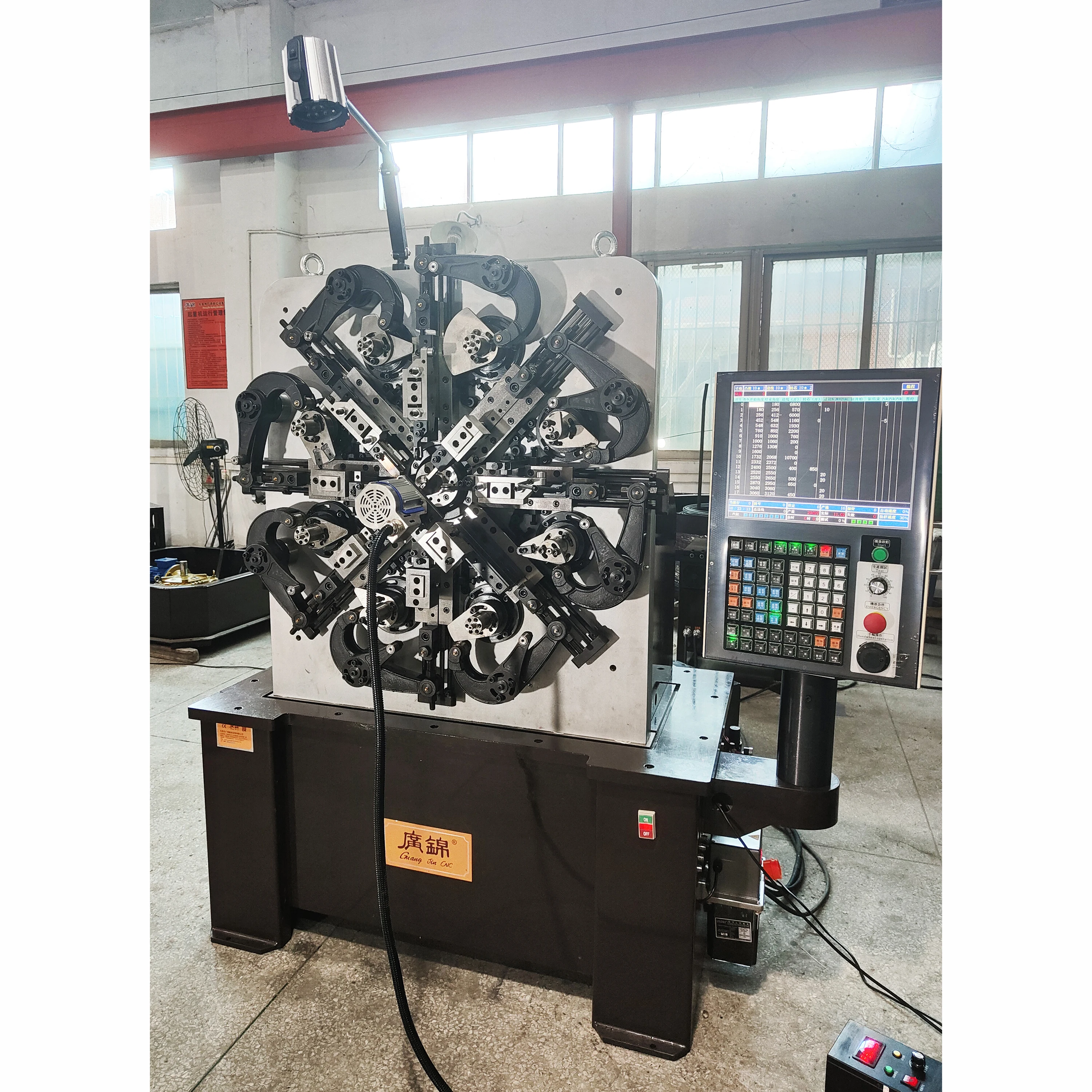

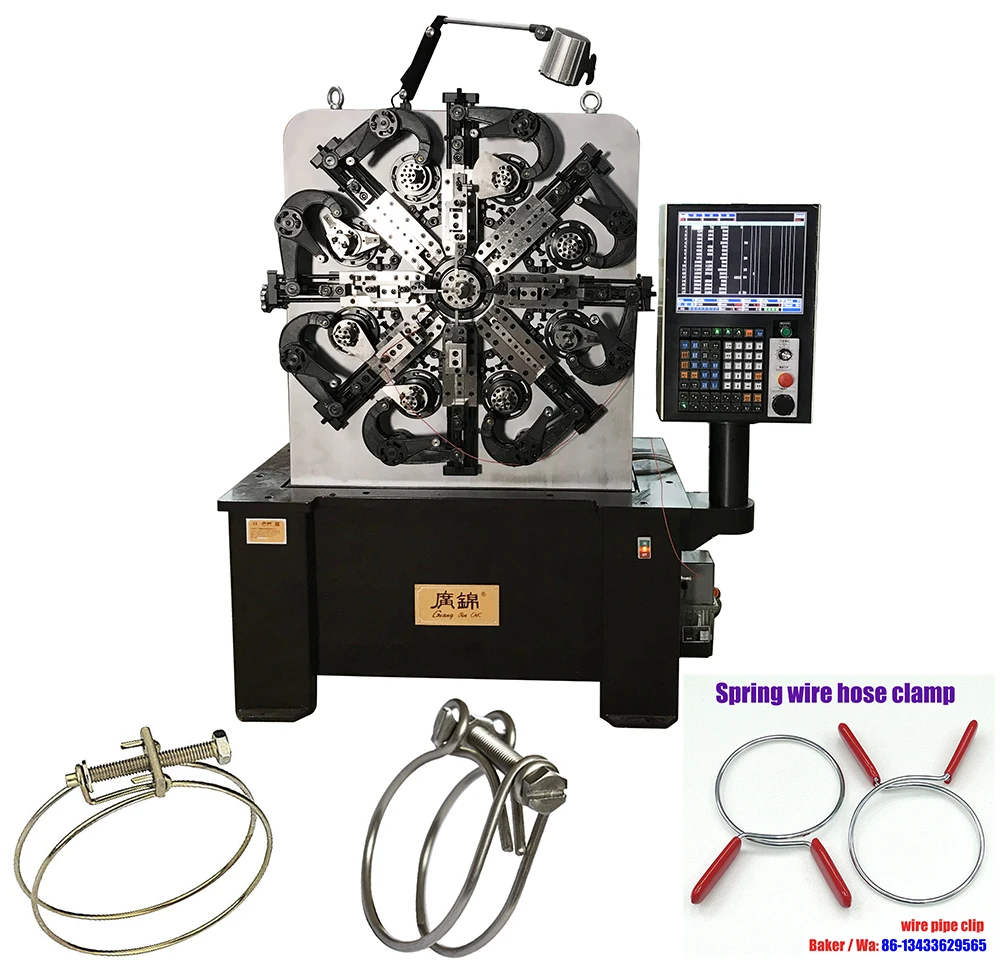

4 axis CNC spring forming machine making double wire hope clamp and pipe clips
Model: GJ-35G
Producing:
spring wire clips
single wire hose clamp

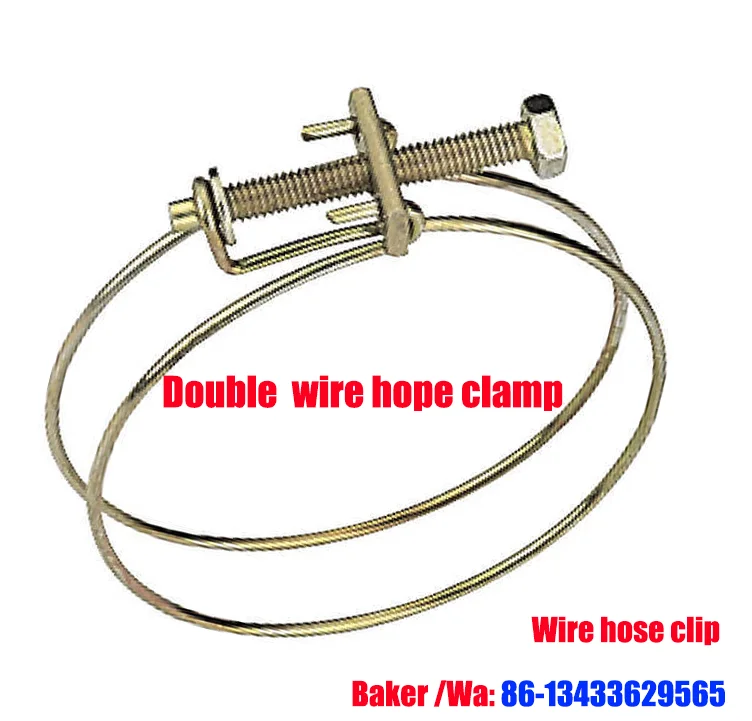

self compensating double wire clamps.
Product Description
F A Q
1. Are your manufacturer or trading on this machine ?
- we are spring machine manufacturer, yes, factory.
- selling brand new them world wide ,
- using our own brand: Guang Jin / GJ
2. What usually included as 1 set machine ?
- Main machine + wire decoiler + specified vary size coiling tools.
- as one set , under HS Code: 84633000.00.
3. What about your after sales service & support ?
- We have a complete telling them at File QGSP
4. Do you have agent in India ?
- Yes, we have.
- GuangJin had sold machines to over 23 countries
- and with experienced for tech support.
6. I need some more videos for xx springs,
- In our site sampling most at regular shape, maybe no much those video,
- Our clients made them lot, i guess.
7. Can you make Set-up for my springs on this machie ?
Yes, for sure, once we reached a deal.
8. Please tell about which make controller and servo motor ?
- almost all our machine using: Arcuchi and Sanyo.
- some as Hust and Sanyo.
9. Has the machine tested before shipping ?
- yes, we will complete the below 3 test in sequence
- t1: Run-In, also called warm-up, 48--96 hours.
- t2: Wire feeding accuracy test.
- t3: Set-up for one product sampling.
10. What should I do if there is a problem during machine using ?
- a. Let's set a time for video calling at your machine site.
- b. Please recorda video or some pictures to telling question / problem clear.
- c. both a or b, English please, if Chinese speaking, best.
11. What is GuangJin Advantages VS many of machine traders ?
- Rapid Response at after sales service , almost as all time: Monday to Saturday, 7:00--21:00
- Most traders: Monday to Friday, and need at least 2 Hous delay.
As a long-term production-oriented factory,
We insist on stable and unified material standards,
All key parts and hardwares have a strict, long-term and stable supply chain system
We will not change suppliers in pursuit of cheaper costs.
Technical Parameters
| Model | GJ-35G |
| Feeding Wire Diameters | From 0.8 mm to 4.0 mm |
| Axis | 4 axis |
| Outside Diameter | Max Φ 60mm |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~75m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Cam rotation speed | 0~75 RPM |
Wire feed servo motor Cam servo motor Quill servo motor Spin servo motor | 5kw 5kw 1kw 1kw |
| Power AC | 3phase,380v±10%V50HZ |
| Dimensions(L*W*H)mm | 770*1350*1800 |
| Weight | 1200kg |
Dongguan GuangJin CNC Equipment Co., Ltd.
( Factory: Spring Coiling and Wire Forming Machine )
Sales: Baker Liu / WA: +8613433629565
Add: Dongguan City, South China, 523052.
Our machines making:

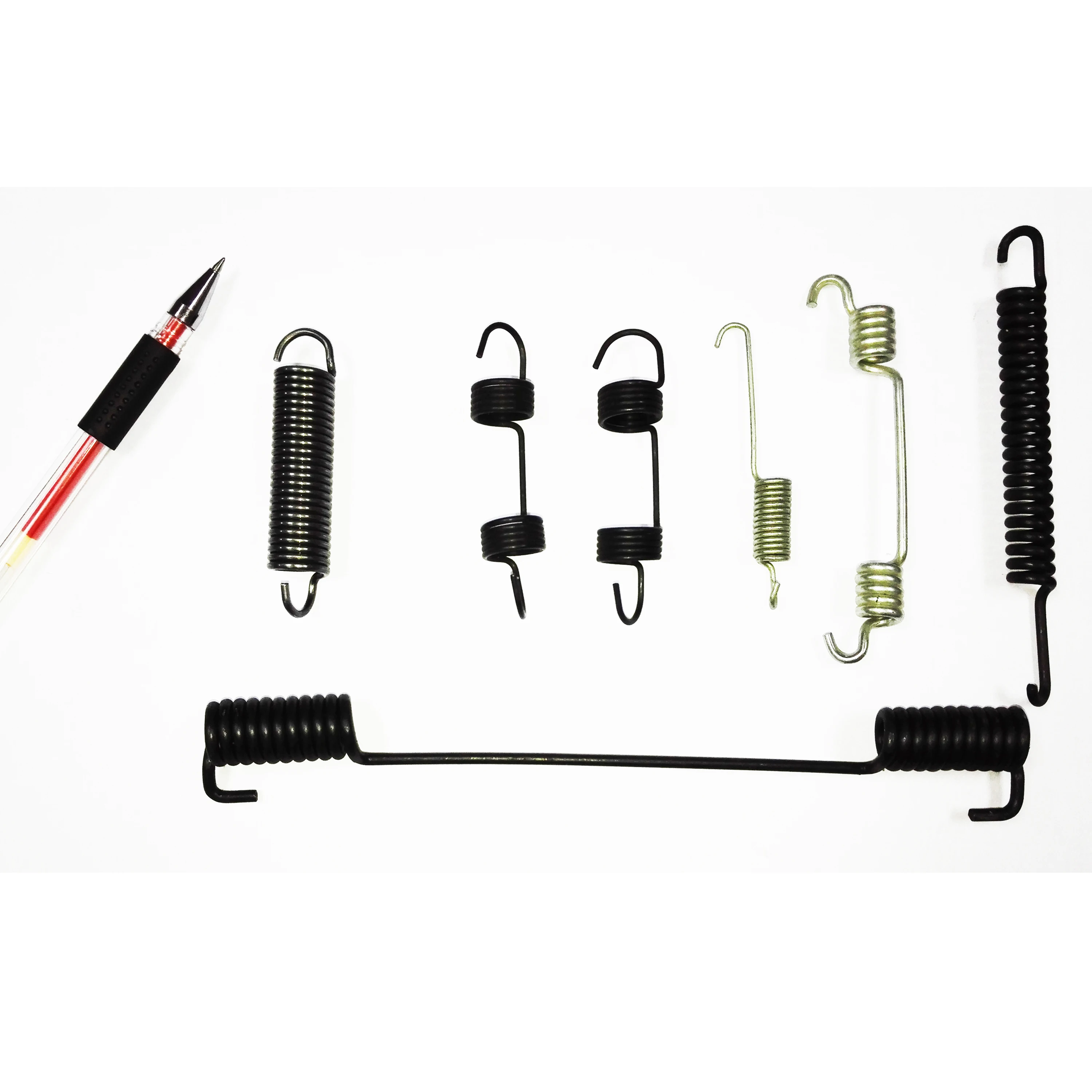

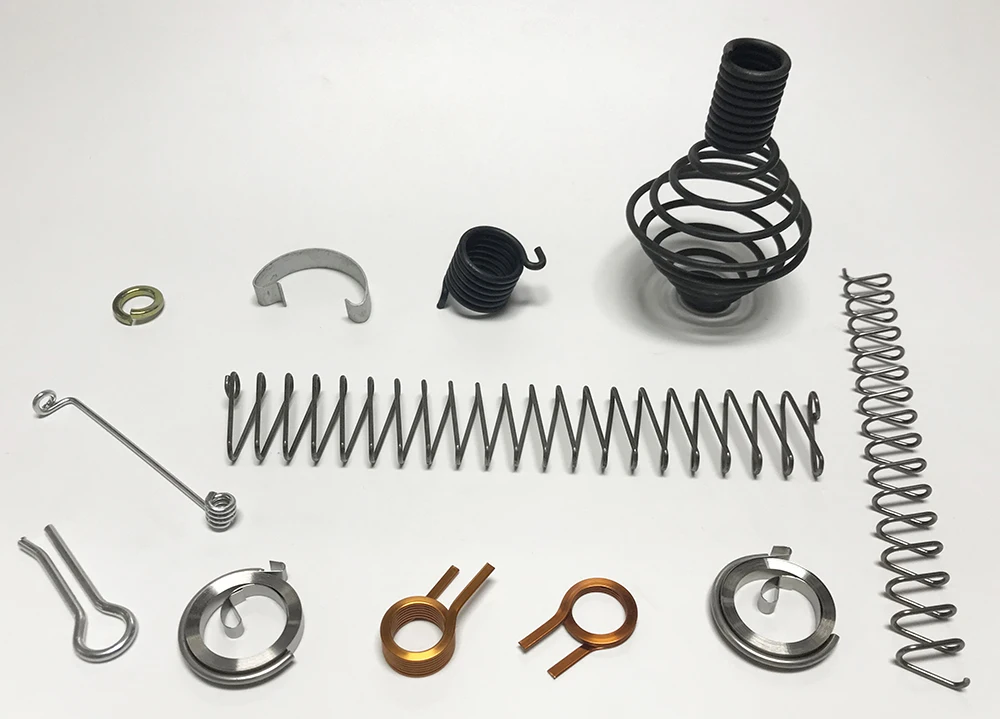

1. Vary type springs, Conveyor Belt, Constant Force,
2. Customized wire forming products. C-Washer
3. Fishing snap, fish clasp, Flat spiral, Garter,
4. O-Ring, Oil seal, Wire Pin
5. Slant spring, Rake teeth.
6. Trigger sprayer spring.
