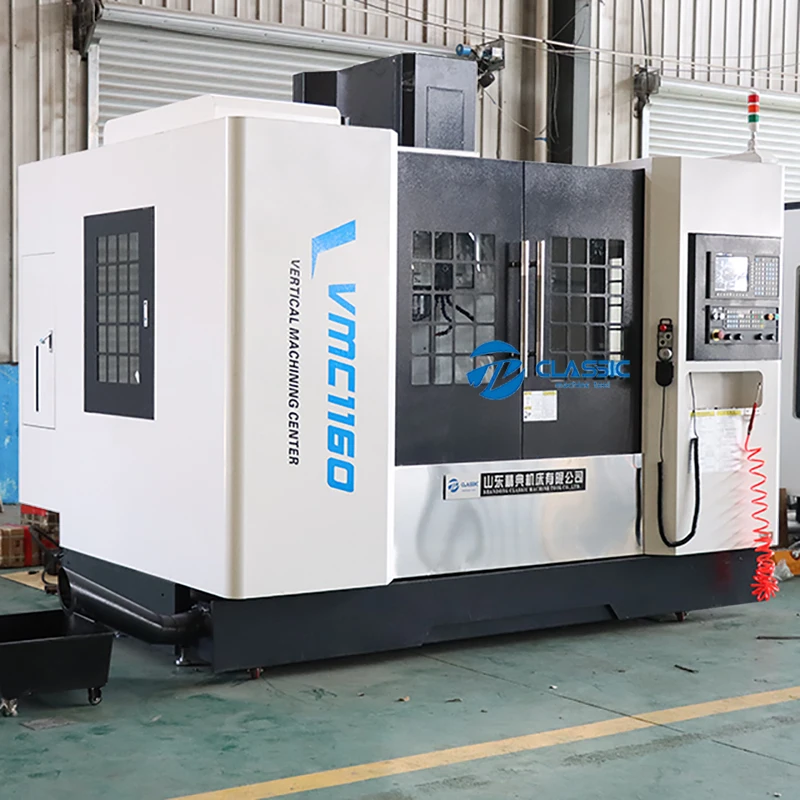

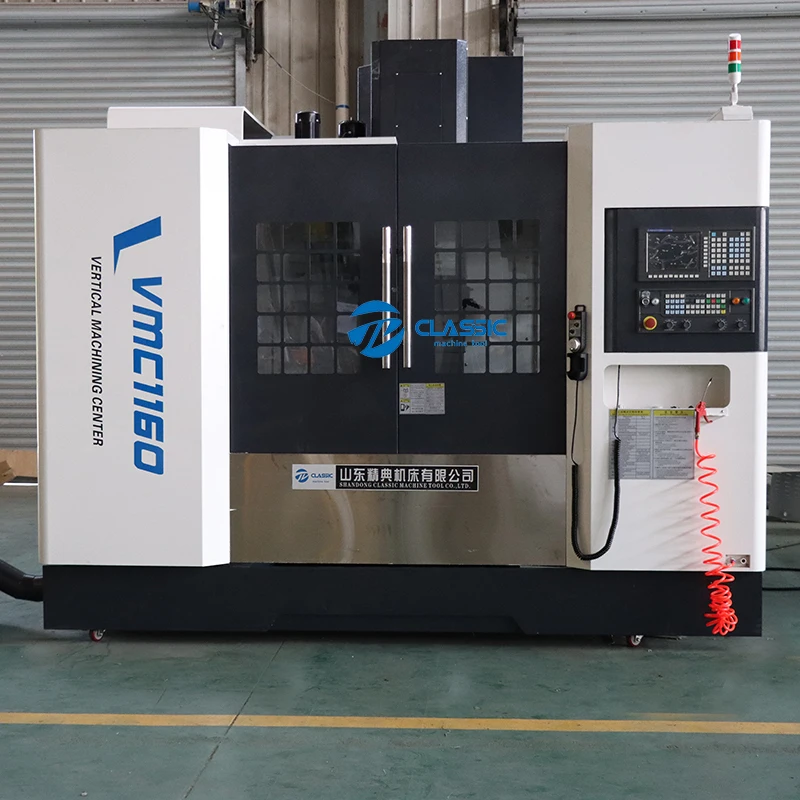

VMC1160 Vertical 5 Axis CNC Machining Center Price with Fanuc Control System
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600767307684):
Product Overview
Description
Products Description
Product Application
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Vertical machining center is mainly used for plate, plate, shell parts, mold and other high precision, working procedure, shape more complex parts, it can be finished in a clamping continuous milling, drilling, expansion, reaming, boring, tapping and two-dimensional three-dimensional curved surface, precise machining of the inclined plane, processing to realize programmed, shorten the production cycle, thus to make the good economic benefits.

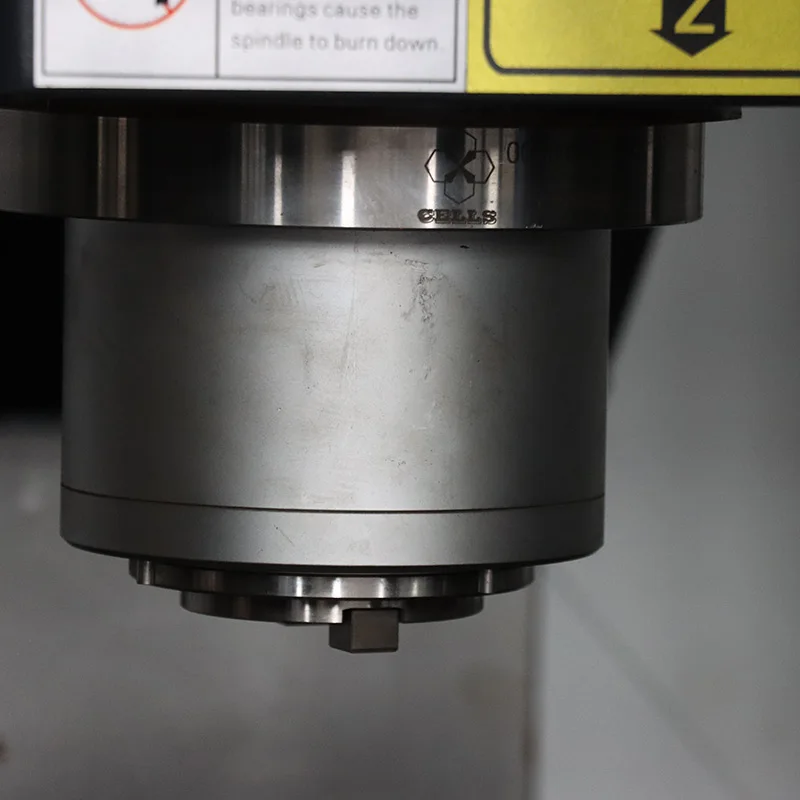

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Working table | Table size | 1200×600mm |
T-slot | 5-18-100mm | |
Max loading capacity of table | 1000kg | |
Travel | X、Y、Z axis travel | 1100×600×600mm |
Distance from spindle nose to table | 120-720mm | |
Distance from spindle center to vertical guide way surface | 600mm | |
Feed | Rapid movement speed X、Y、Z | 24/24/24m/min |
Feed rate of cutting X、Y、Z | 1~10000mm/min | |
Three axis | X Y Z axis motor torque | 23/23/23NM |
X Y Z axis linear guide rail width | 45mm | |
X Y Z lead screw size | 4012 | |
X Y Z sliding block no. | 6/4/6 | |
Spindle | Spindle taper | BT40 |
Spindle speed | 8000rpm | |
Spindle power | 11kw | |

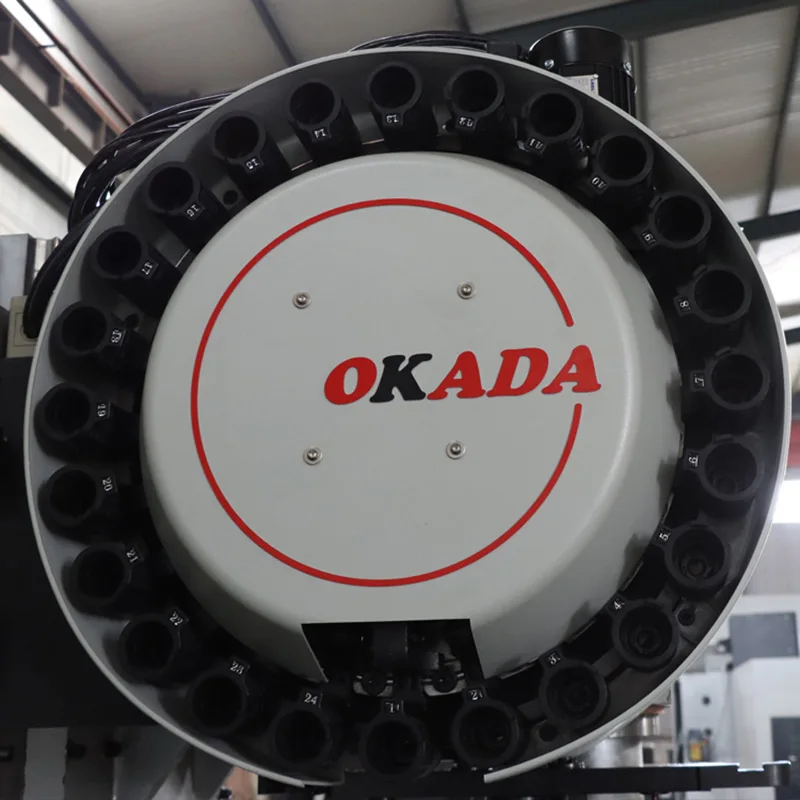

Tool magazine | Tools capacity | 24T |
Max tool weight | 8kg | |
Max length | φ78/300mm | |
Tool magazine type | Arm type | |
Precision | Positioning accuracy X/Y/Z | 0.016mm |
Repeated positioning accuracyX/Y/Z | 0.006mm | |
Machine tool | Machine size | 2550*3200*2650mm |
Casting material model | HT300 | |
Machine hardness | 45rkc | |
Machine weight | 7300kg |
Standard Accessories:
Serial number | Name | Specifications or markings | Quantity |
1 | Spring chuck handle | MAS BT40-ER32-100L | 1 |
2 | Spring chuck | 1 | |
3 | Rivet | P40T-1-MAS403 | 1 |
4 | Hook wrench | 1 | |
5 | Allen wrenches | 1 | |
6 | Adjustable horn and bolts | 4 |
The functional parts table:
Serial number | Name | model | Origin | Quantity |
1 | Spindle unit | BT40 | Taiwan posn | 1 |
2 | Pressed cylinder | Taiwan Haocheng | 1 | |
3 | ATC | 16 | Taiwan okada | 1 |
4 | X Ball Screws | Taiwan Hiwin | 1 | |
5 | y Ball Screws | Taiwan Hiwin | 1 | |
6 | Z Ball Screws | Taiwan Hiwin | 1 | |
7 | Screw bearings | china | 3 | |
8 | guide | X, Y,Z all is ball line | Taiwan Hiwin | 3 |

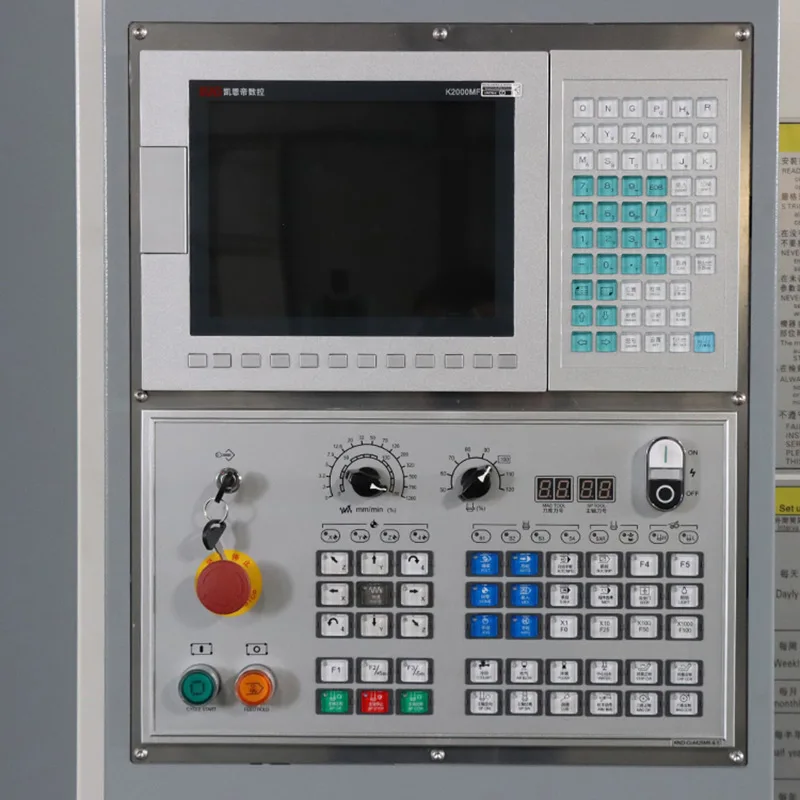

9 | control system | Knd/gsk | 1 | |
10 | Three axes Motor and drive | MAXSINE | 1 | |
11 | Cooling the pump | PMY-25-5 | china | 1 |
12 | Lubrication system | Single wire damping | Taiwan Hurun | 1 |
13 | Pneumatic system | Taiwan Airtac | 1 |
Detailed Images
Details Display
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
