Multi channel power measuring AC din rail 3 phase RJ12 plug in Lora energy meter
- Category: >>>
- Supplier: Jiangsu Sfere Electric Co. Ltd.
Share on (1600767327607):
Product Overview
Description
Product Description
Product Name: 12 circuits single phase power measuring din rail RJ12 easy installation multi channel energy meter

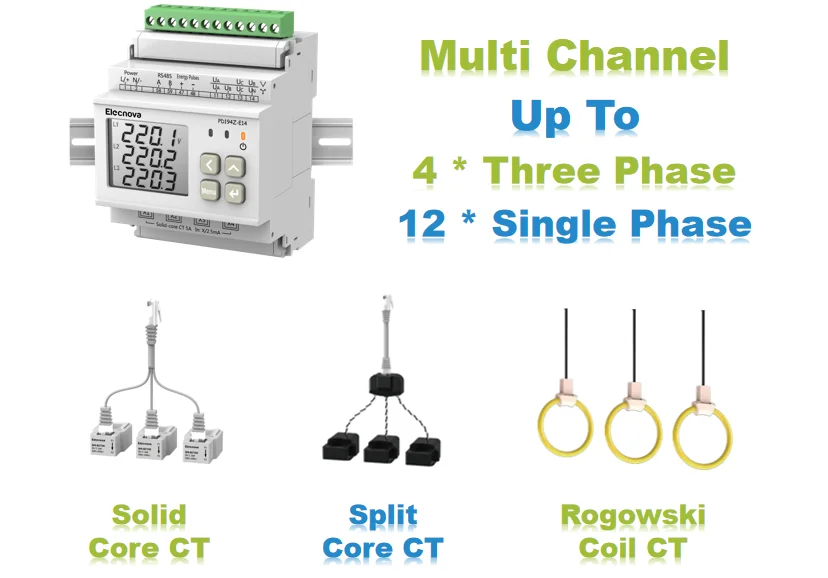

Elecnova PD194Z-E14 is a DIN rail multed multi channel energy meter, it can be equipped with different external modules for D/I, R/O and variety wireless communciation . It is used to monitor and control single phase or three phase power system upto 12 channels. They also support limit alarm, analog output, digital input, relay output and communication functions. All the measured data and status can be read through RS485 communication interface with Modbus-RTU protocol.

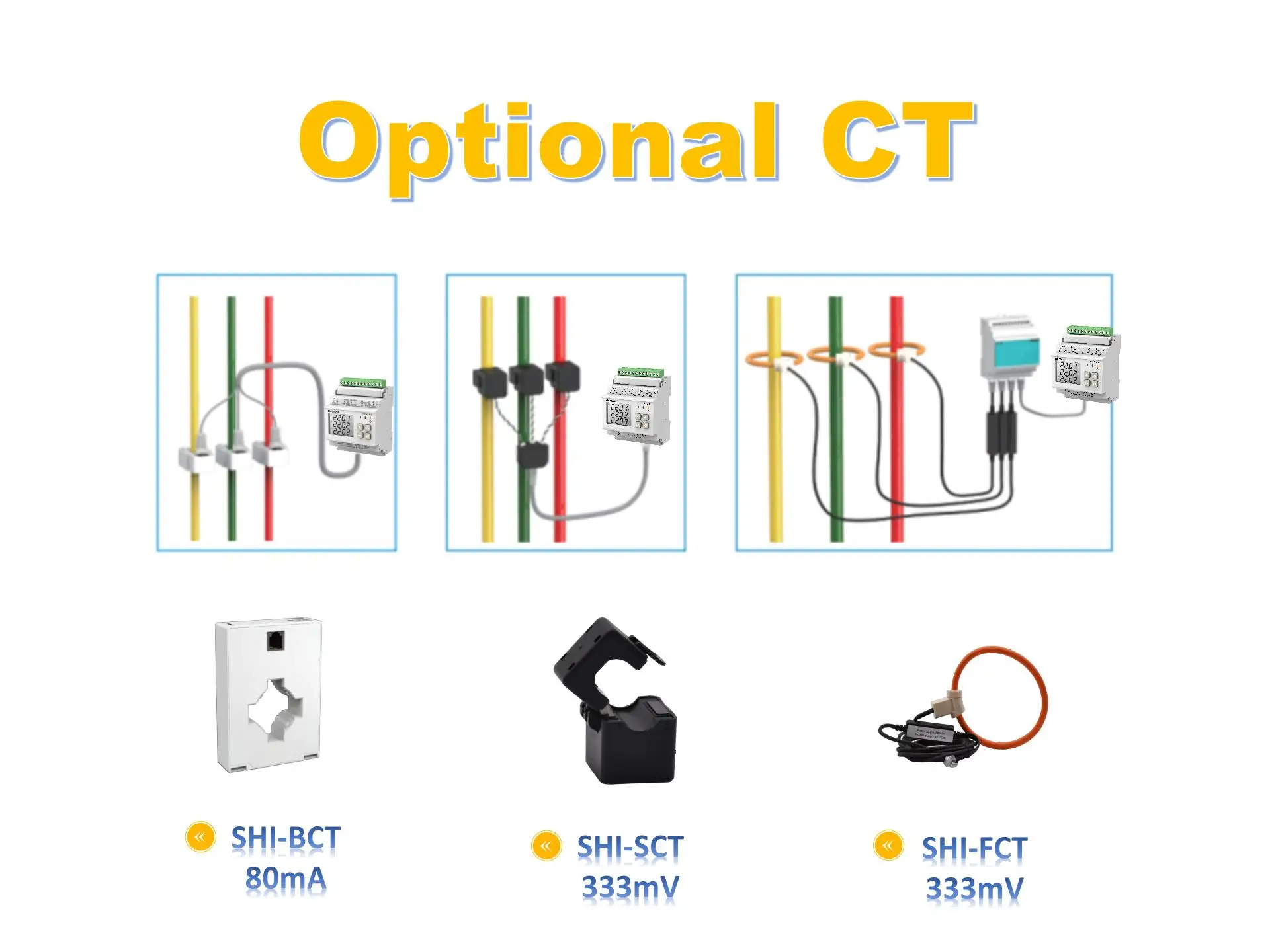

Compatible CT

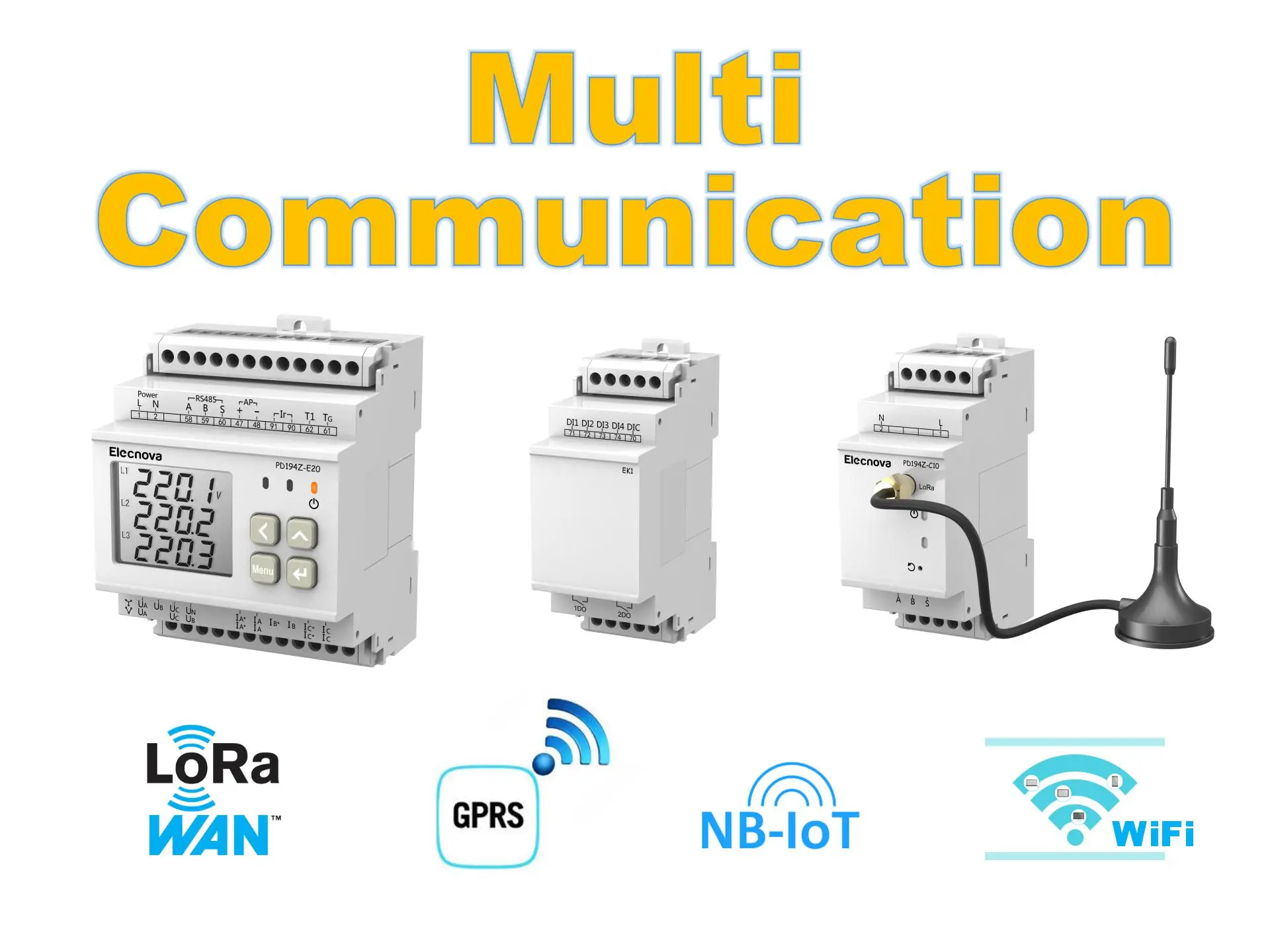

Wireless Module
Technical parameters
Display mode | LCD | |
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.5% | |
F | ±0.01Hz | |
±KWh | Class 0.5S | |
±Kvarh | Class 2 | |
Voltage Input | Rated value | AC100V, AC380V |
Overload | Continuous:1.2Vn Instantaneous:2Vn/10s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Current Input | Rated value | AC1A AC5A |
Overload | Continuous:1.2In Instantaneous:2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20MΩ | |
Residual Current Input | AC 1mA | |
Auxiliary Power Supply | Working Range | AC 80~270V 50/60HZ ,DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485,Modbus-RTU ,2-wire,up to 9600bps | |
Energy Pulse Output | 1 photocoupler output,pulse width (80±20%)ms | |
Optional Module(EK1) | Digital Inputs | Dry digital inputs,Isolation:≥2kvac |
Relay outputs | Contact rated at AC 250/5A or DC 30V/5A | |
Environment Conditions | Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kvac |
