Habotest HT5910 Digital Rcd loop Tester Resistance Electrical Instrument
- Category: >>>
- Supplier: Shenzhen Habotest Instrument Technology Company Limited
Share on (1600767333448):
Product Overview
Description
Products Description
Habotest HT5910
Digital Rcd loop Tester Resistance Electrical Instrument
Features
Multifunctional for measuring the trip current, trip time, loop resistance of switch leakage, and the voltage, frequency of
on-line voltage, RCD(earth leakage switch), AUTORAMP(triggered current).
Functional features of the measurement of jump-off current, jump-off time, contact voltage, loop resistance.
Up to 1000 sets of test results can be stored, convenient for further inquiry.

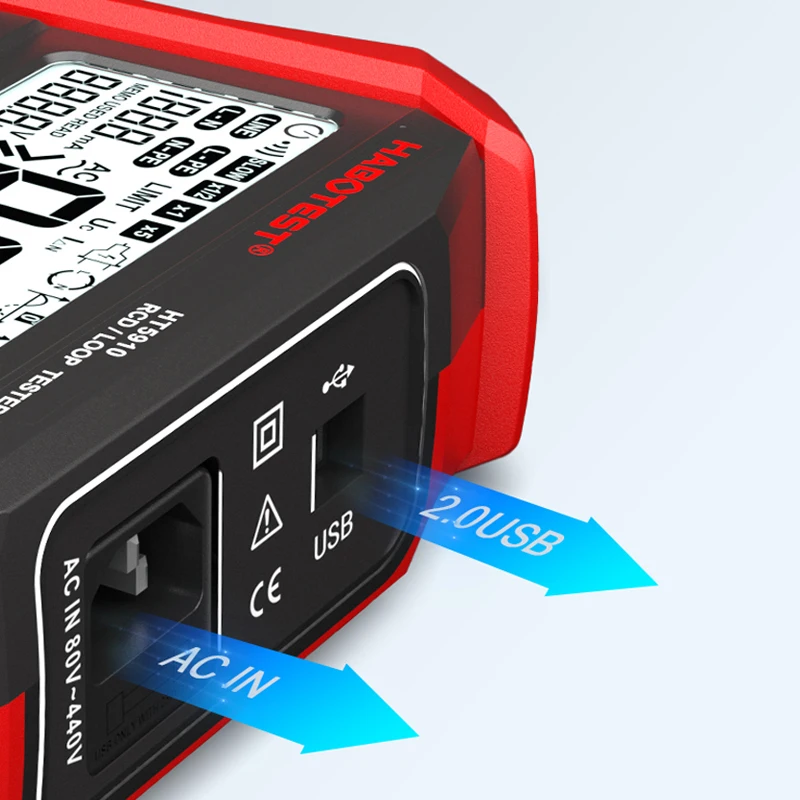

Data stored in the host can be uploaded to a PC via the USB 2.0 interface.
The compact portable resistance tester is easy to use and has stable performance.

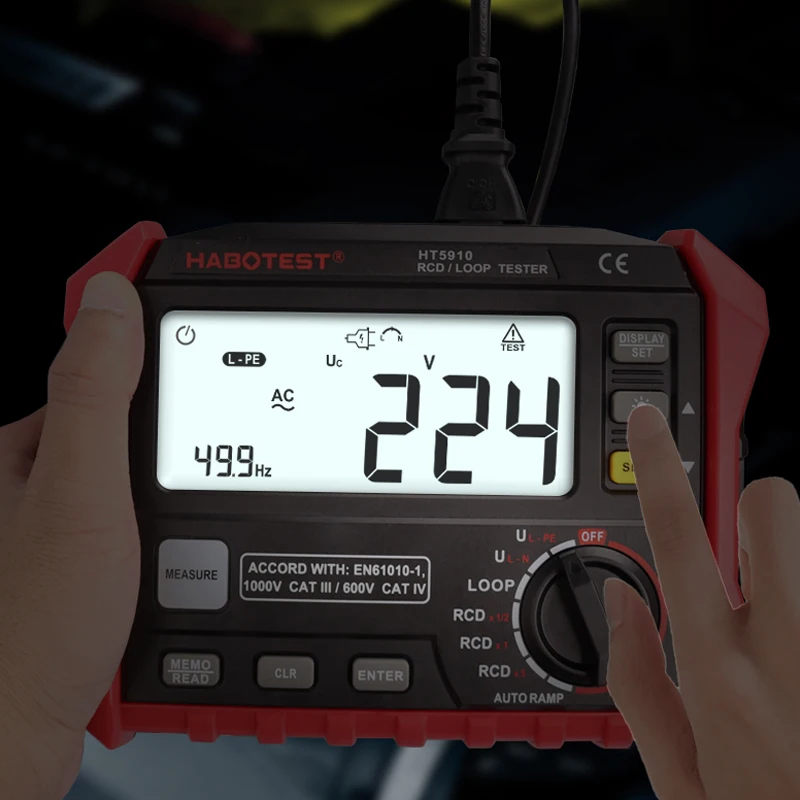

4.7-inch LCD screen with backlight for conveniently checking the test result in the low lit condition.
Powered by 6pcs 1.5V AA batteries(not included), with low battery indication.
Perfect for the electricians to do testing, inspection, and repairing.
Multifunctional for measuring the trip current, trip time, loop resistance of switch leakage, and the voltage, frequency of
on-line voltage, RCD(earth leakage switch), AUTORAMP(triggered current).
Functional features of the measurement of jump-off current, jump-off time, contact voltage, loop resistance.
Up to 1000 sets of test results can be stored, convenient for further inquiry.
Data stored in the host can be uploaded to a PC via the USB 2.0 interface.
The compact portable resistance tester is easy to use and has stable performance.
4.7-inch LCD screen with backlight for conveniently checking the test result in the low lit condition.
Powered by 6pcs 1.5V AA batteries(not included), with low battery indication.
Perfect for the electricians to do testing, inspection, and repairing.
Specifications
Material: ABS
AC Phase: Voltage Measurement: 0~440V
Frequency Measurement: DC, 45~65Hz
Test Current Magnification: 0.5, 1, and 5
Fast/Slow Current Test Gears: 10, 30, 100, 300, 500mA
Safety Level: CAT III 1000V, CAT IV 600
Max. Common Mode Voltage: 600V AC RMS
Display Type: LCD display
Range Selection: Fully automatic range
Frequency Detection: Automatic
Over-range Display: ">"
Power Consumption: 100mW
Operating Temperature & Altitude: 0~40℃, 2000m
Storage Temperature & Altitude: -20~70℃, 12000m
Power Supply: 8 * 1.5V AA battery
Item Size: 190 * 140 * 68mm / 7.48 * 5.51 * 2.68in
Item Weight: 948g / 33.47oz
Package Weight: 1544g / 54.47oz
Package Size: 33.5 * 27 * 9cm / 13.19 * 10.63 * 3.54in
AC Phase: Voltage Measurement: 0~440V
Frequency Measurement: DC, 45~65Hz
Test Current Magnification: 0.5, 1, and 5
Fast/Slow Current Test Gears: 10, 30, 100, 300, 500mA
Safety Level: CAT III 1000V, CAT IV 600
Max. Common Mode Voltage: 600V AC RMS
Display Type: LCD display
Range Selection: Fully automatic range
Frequency Detection: Automatic
Over-range Display: ">"
Power Consumption: 100mW
Operating Temperature & Altitude: 0~40℃, 2000m
Storage Temperature & Altitude: -20~70℃, 12000m
Power Supply: 8 * 1.5V AA battery
Item Size: 190 * 140 * 68mm / 7.48 * 5.51 * 2.68in
Item Weight: 948g / 33.47oz
Package Weight: 1544g / 54.47oz
Package Size: 33.5 * 27 * 9cm / 13.19 * 10.63 * 3.54in
Material | ABS |
AC Phase | Voltage Measurement: 0~440V |
Frequency Measurement | DC, 45~65Hz |
Test Current Magnification | 0.5, 1, and 5 |
Fast/Slow Current Test Gears | 10, 30, 100, 300, 500mA |
Safety Level | CAT III 1000V, CAT IV 600 |
Max. Common Mode Voltage | 600V AC RMS |
Display Type | LCD display |
Range Selection | Fully automatic range |
Frequency Detection | Automatic |

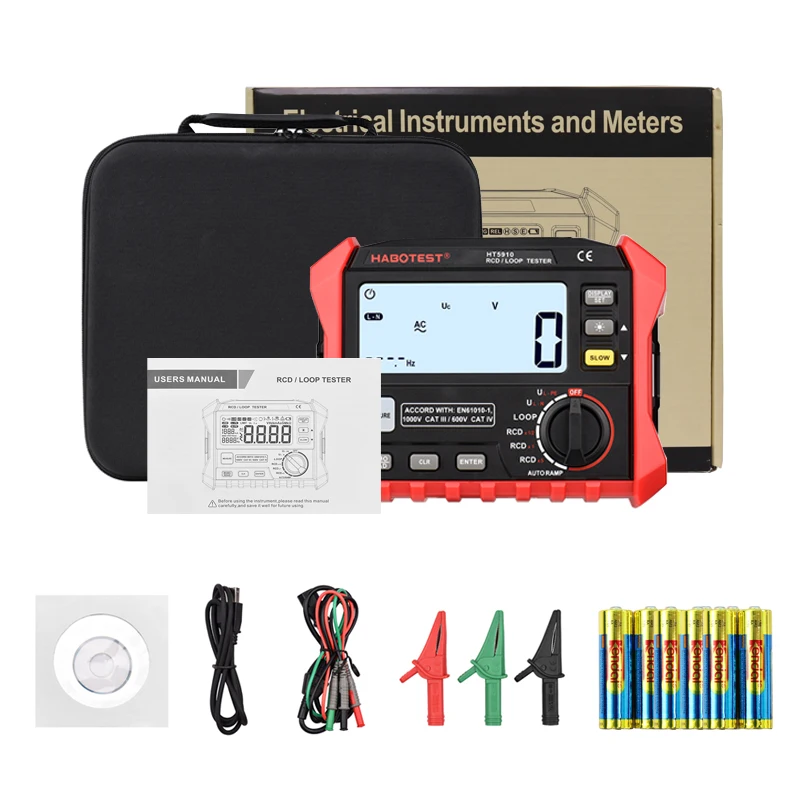

Packing List
1 * Tester
1 * Test Lead
3 * Clip
1 * USB Cable
1 * CD
1 * Storage Case
1 * Test Lead
3 * Clip
1 * USB Cable
1 * CD
1 * Storage Case
