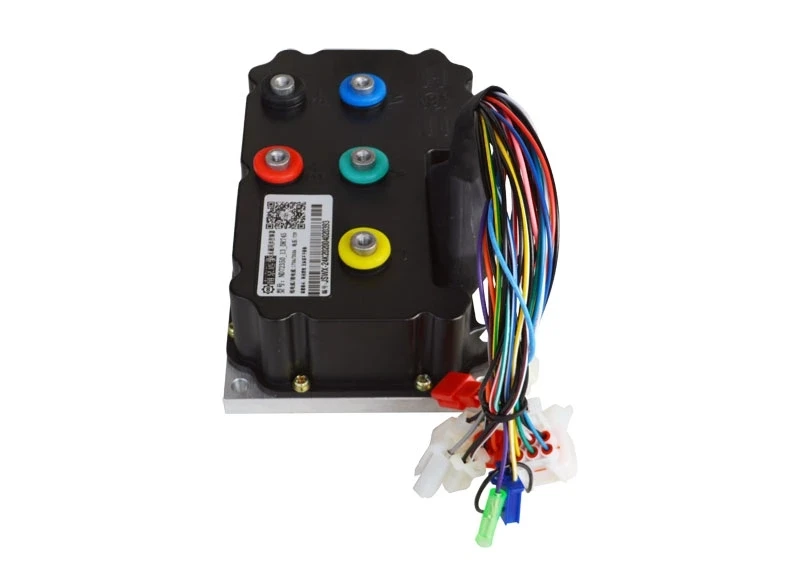

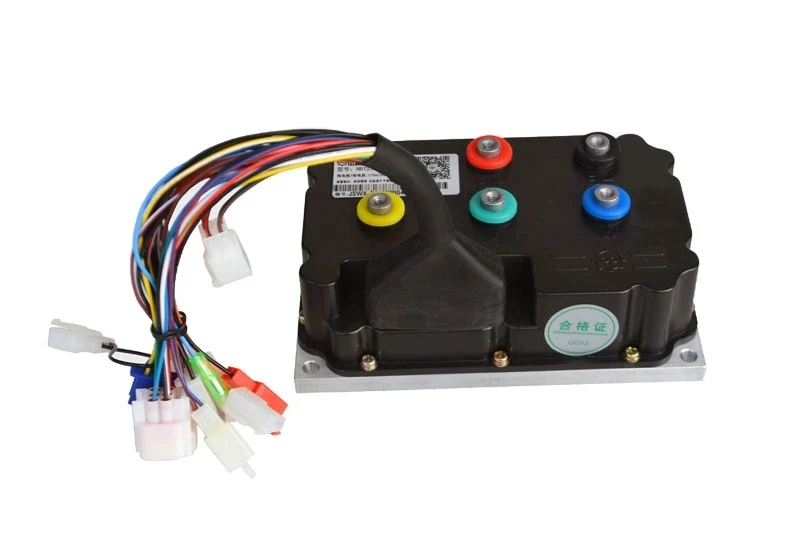

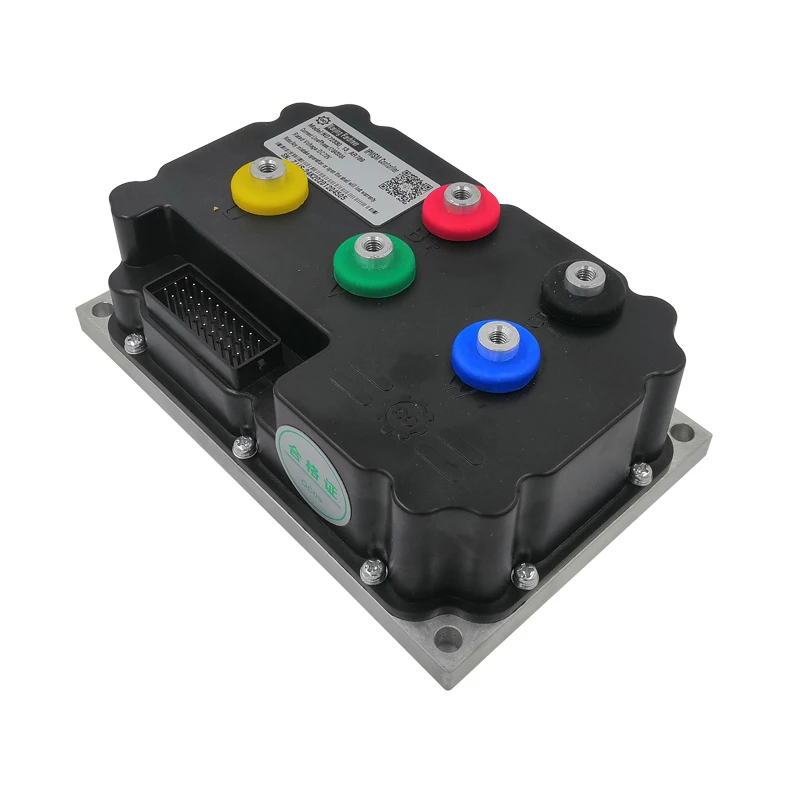

Sine Wave FOC BLDC Motor Controller ND72530

The Controller package included parts as below,

1 Controller ND72530
1 Bluetooth mould for Cell Phone(The controller is easy program and monitor via Phone by App)
1 Complete wiring
1 Software(Will be sent by Email)

Main Specification:
1. Controller Type: Sine Wave FOC Controller
2. Model Number: ND72530
3. Max. Bus Current:180A
4. Max. Phase Current:660A
5. Working Voltage:48V/60V/72V
6. Compatible Motor Power: 3000W-5000W

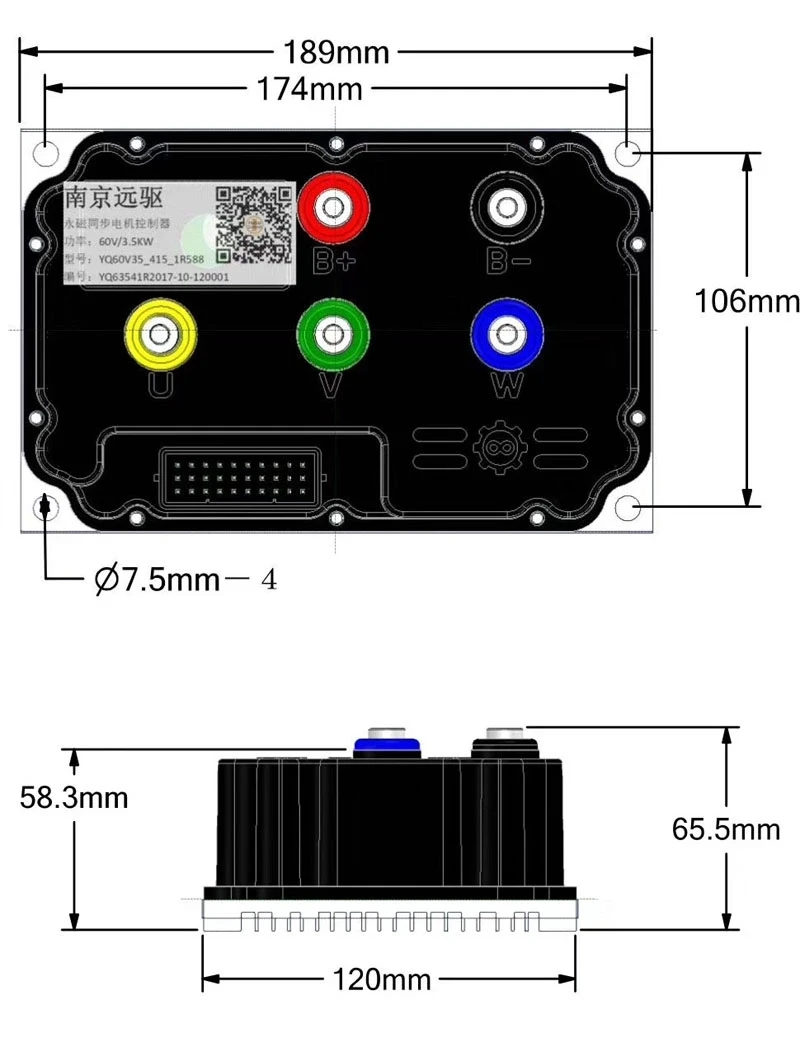

6. Size: 189mm*121mm*63.5mm
7. Weight:1.7KGS

Features:
The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.

Rich software parameter configuration:
* Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online.
* The maximum speed of forward and backward, economic speed can be set.
* The overall bus current and phase current can be set.
* The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.

Perfect protection function:
Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
