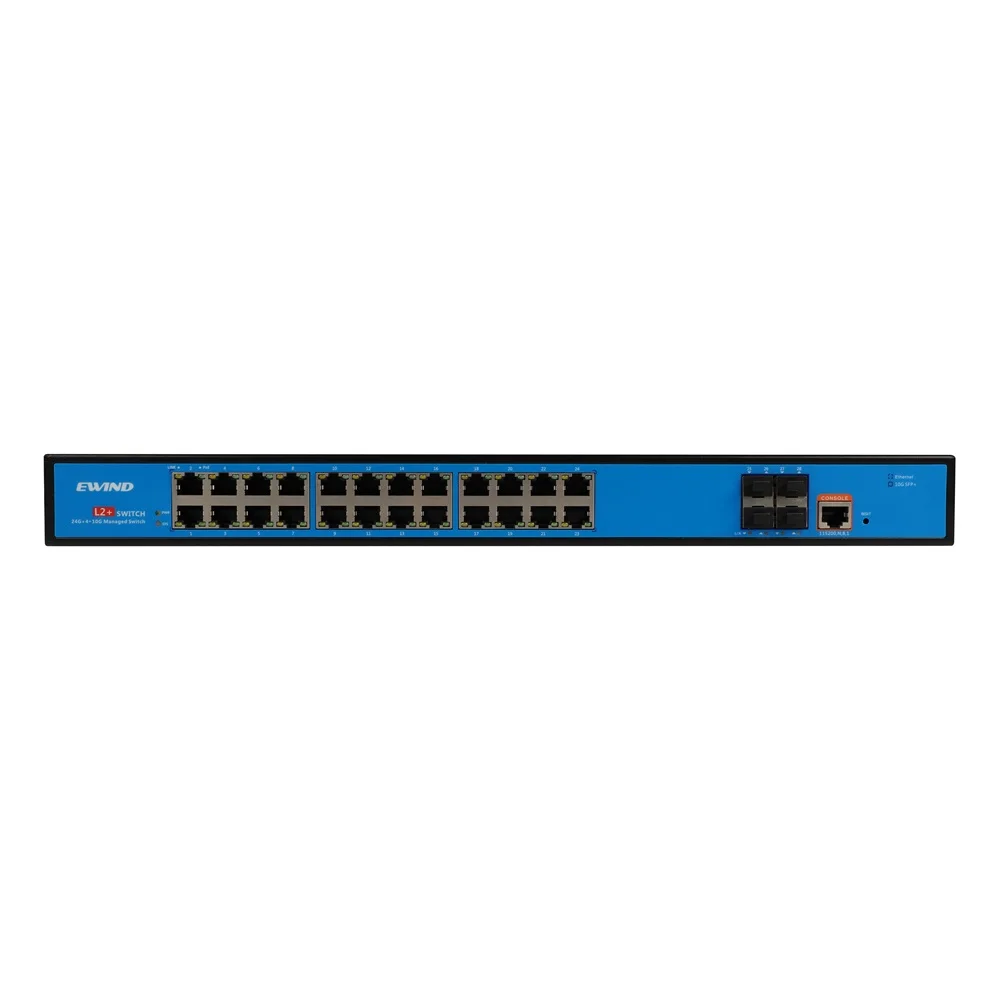

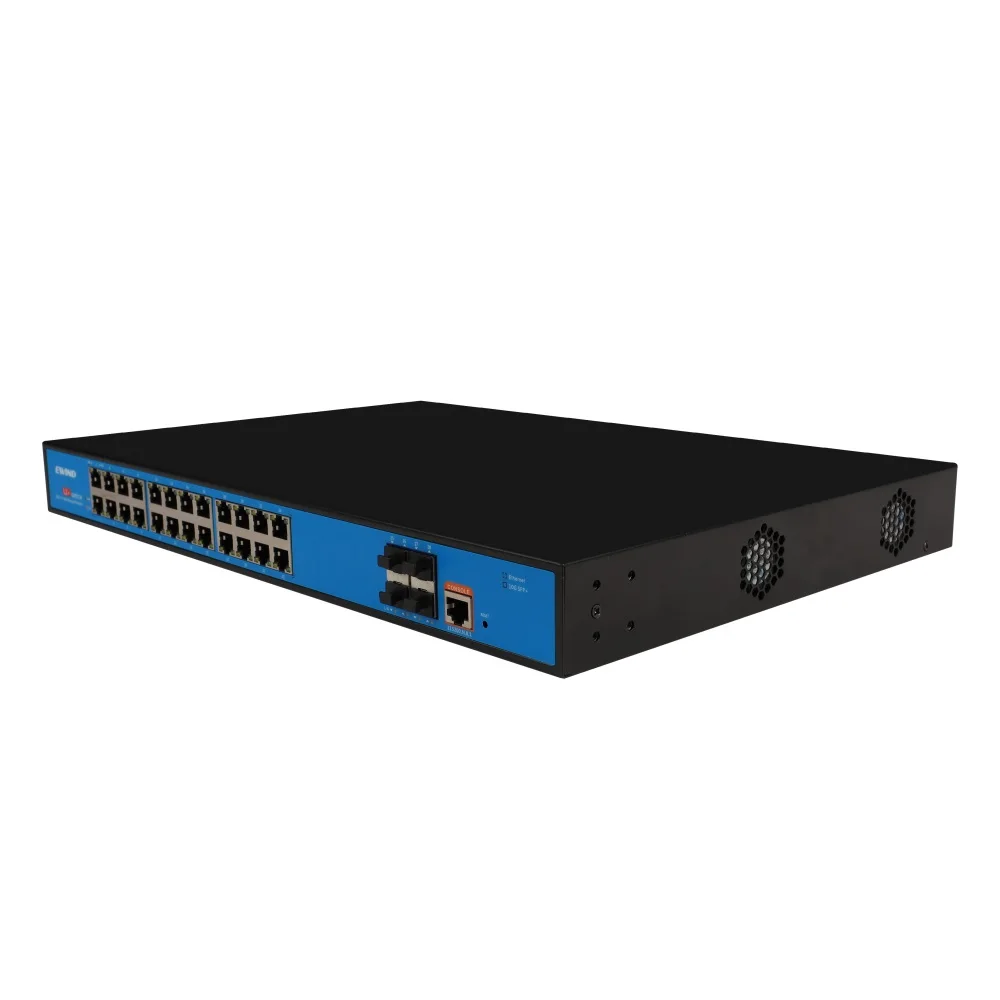

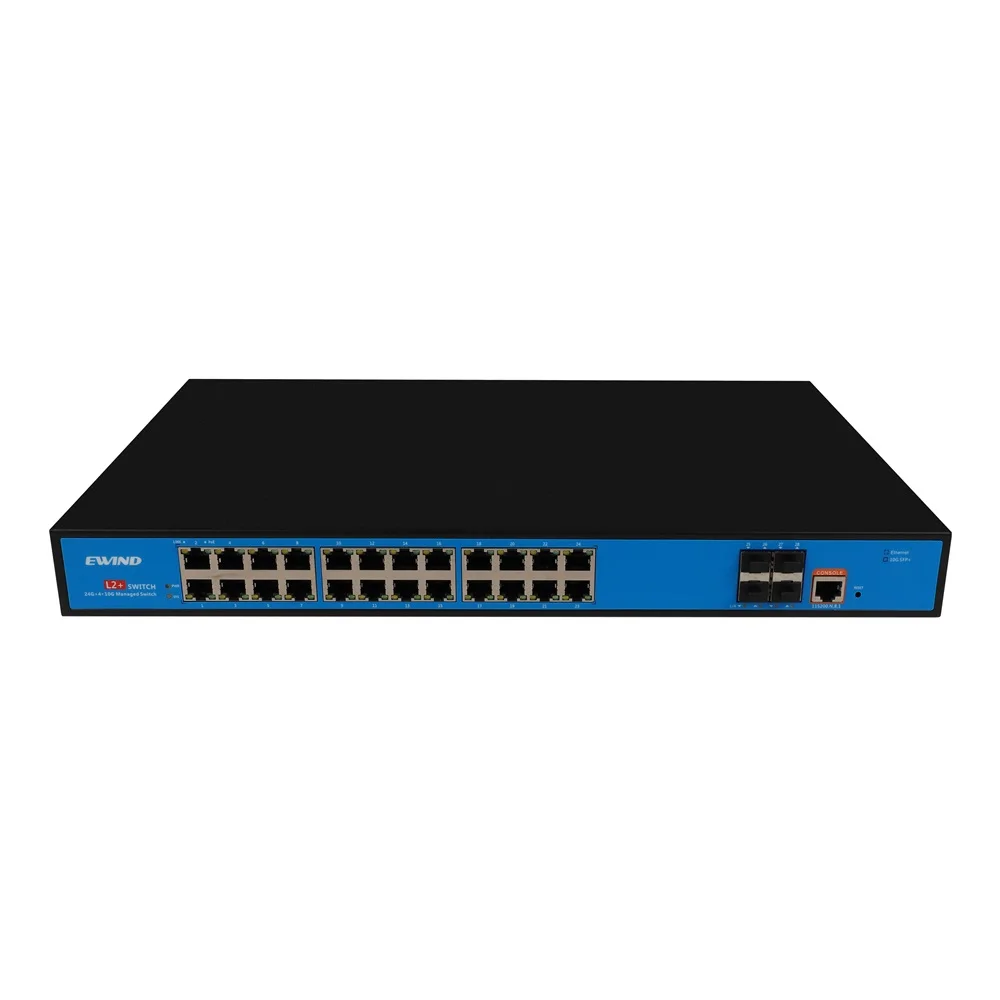

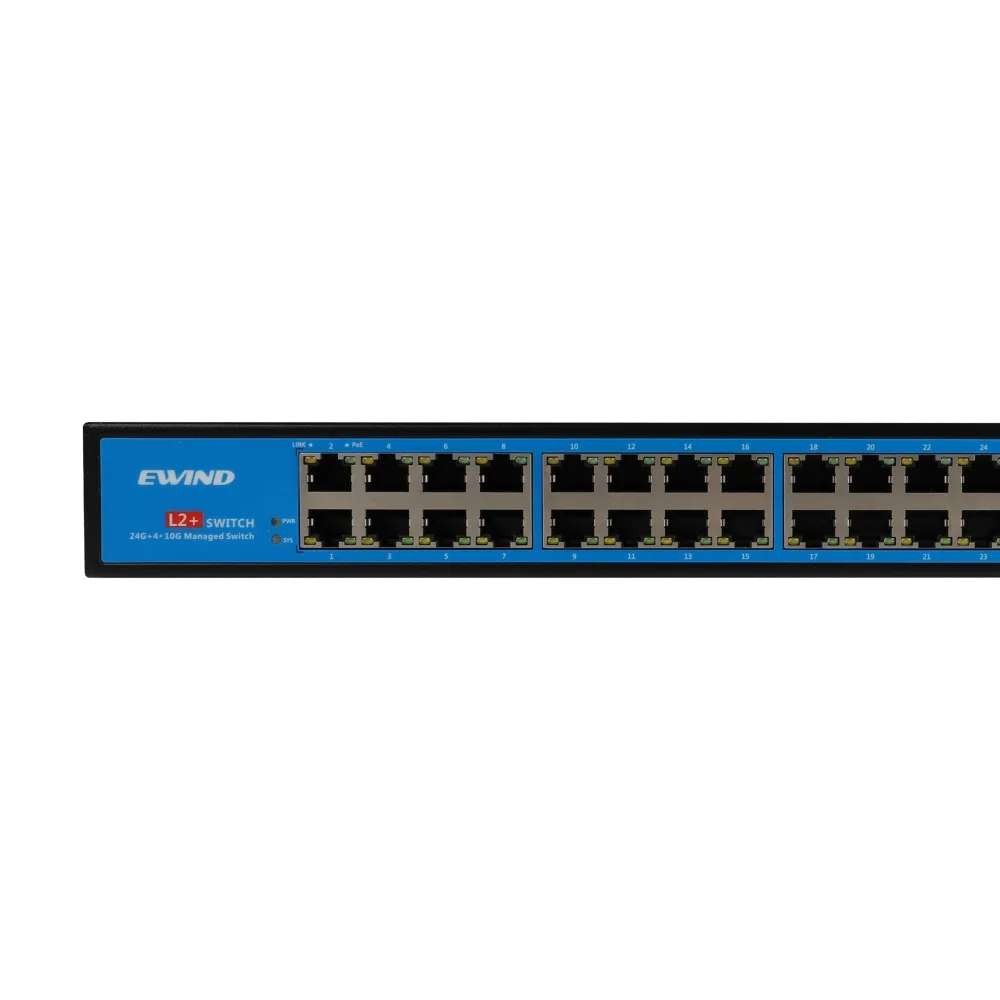

24 ports Network Switch Layer 3 Managed Ethernet Switch with 10G Uplink Support IPv4/IPv6 soft routing function
- Category: >>>
- Supplier: Shenzhen Ewind Technology Co. Limited
Share on (1600767347985):
Product Overview
Description
24 ports Network Switch Layer 3 Managed Ethernet Switch with 10G Uplink Support IPv4/IPv6 soft routing function
Product Description
Products Specification
Model | EW-S5728GM | ||

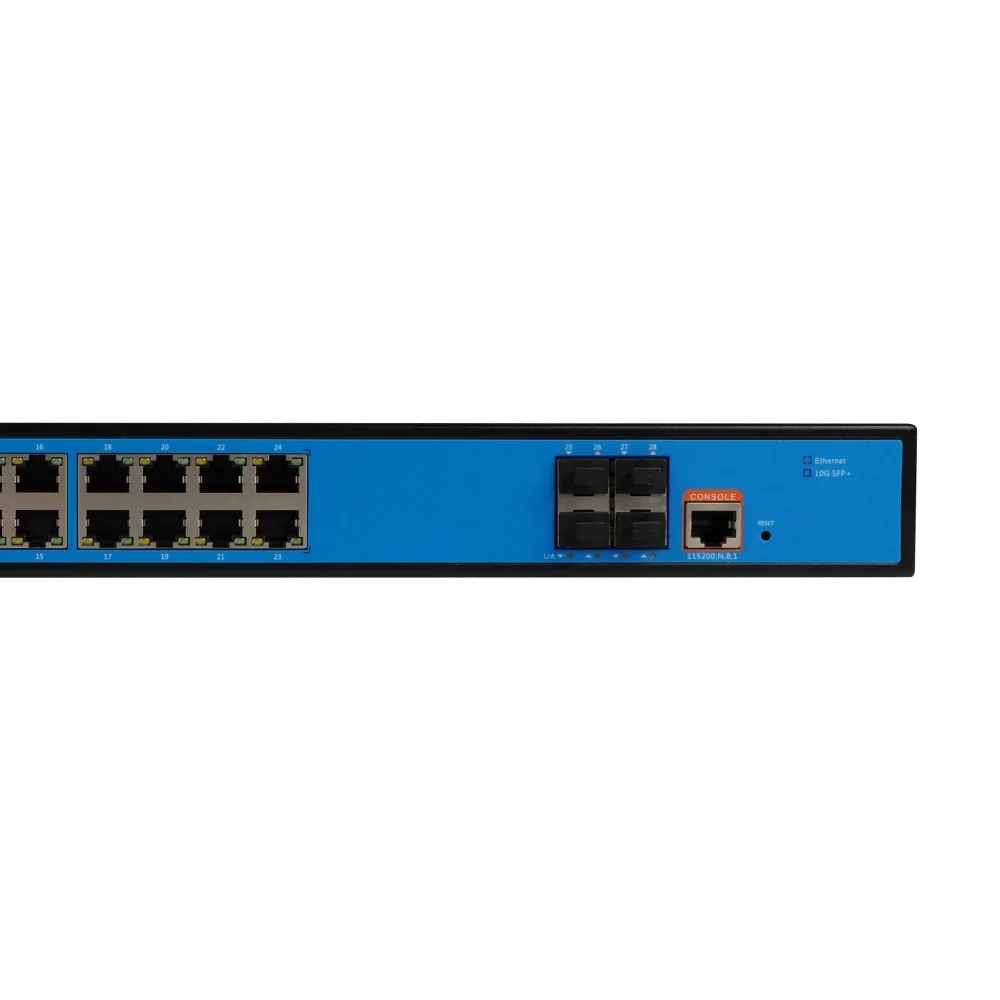

Fixed Port | 24*10/100/1000Base-T/TX RJ45 ports (Data) 4*1/2.5/10G uplink SFP+ fiber slot ports (Data) 1*Console RS232 port (115200,N,8,1) | ||
Ethernet Port | Port 1-24 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive | ||
Network Management Type | L3 | ||
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x | ||
SFP Slot Port | 1G/2.5G/10G SFP fiber interface (Fiber module is not included, need to order separately, module optios include single/multi-mode, single/dual fiber, LC) | ||
Forwarding Mode | Store and Forward (Full Wire Speed) | ||
Switching Capacity | 598Gbps (non-blocking) | ||
Forwarding Mode | 107.14Mpps | ||
MAC | 32K | ||
Buffer Memory | 32M | ||
Twisted Pair Transmission | 10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) | ||
Optical Fiber Cable | Multi-mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | ||
Power Supply | Built-in power supply, AC 100~220V 50-60Hz | ||
Power Supply Pin | Default 1/2(+), 3/6(-) | ||
LED Indicator | Power indicator:PWR(yellow); system indicator:SYS(yellow); Network indicator;Link(yellow); PoE indicator: PoE (green); Fiber port indicator L/A(green) | ||
Reset Button | Support one key to restore factory settings | ||
Operation TEMP / Humidity | -20~+55°C:5%~90% RH non condensing | ||
Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing | ||

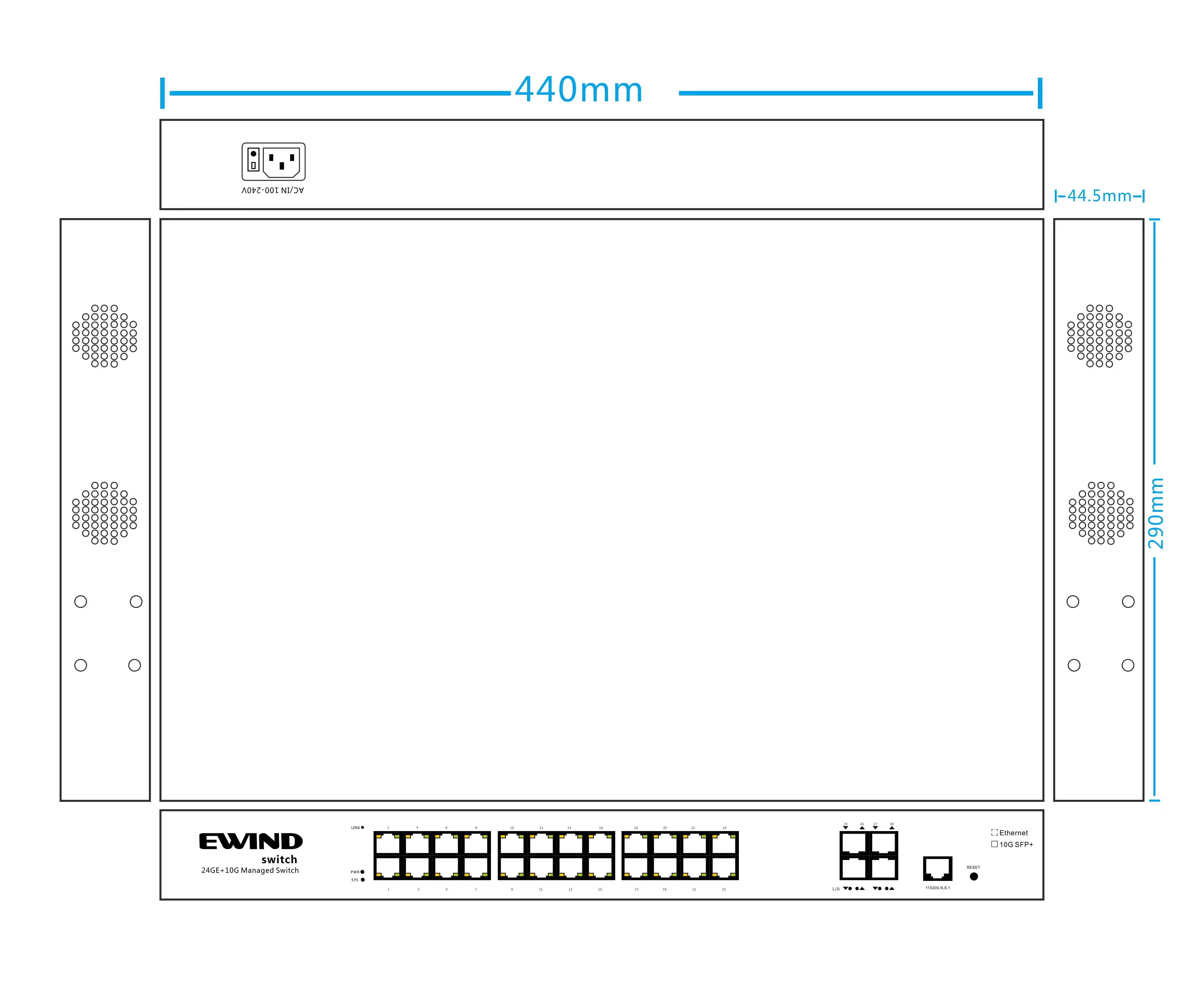

Dimension | 440*290*44.5mm | ||
Net /Gross Weight | <4.5kg / <5kg | ||
Installation | desktop , 19-inch 1U cabinet | ||
lightning protection / protection level | lightning protection: 4KV 8/20us; Protection level: IP30 | ||
Certification | CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS | ||
Warranty | 3 years, lifelong maintenance. | ||
Packing list
CONTENT | QTY | UNIT |
28 Ports L3 Managed Ethernet Switch with 10G uplink (EW-S5728GM) | 1 | SET |
User Guide | 1 | PC |
Warranty Card | 1 | PC |
