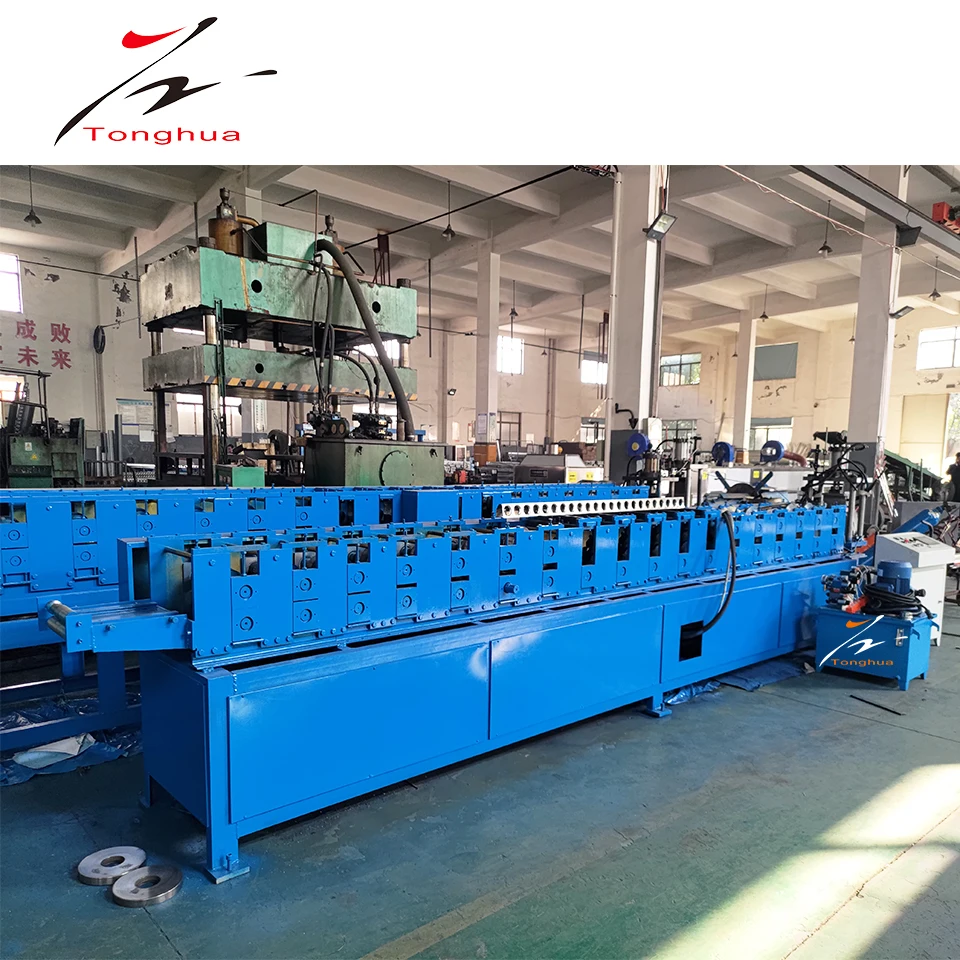

Automatic Solar Support Panel Heater Structure Photovoltaic Bracket Strut Channel Roll Forming Machine
- Category: >>>
- Supplier: Haining Tonghua Import & Export Co. Ltd.
Share on (1600767360435):
Product Overview
Description
Product Description
The components of the 2022 Popular Sale C U roll Forming Machine include: decoiler, roll forming machine body, hydraulic cutting, plc control system, main motor, pump station, receving table.
Equipment features: Suspended C U two profile making machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.
Equipment features: Suspended C U two profile making machine adopts advanced automatic control software, shutter door machine realizes production information management, and the whole machine automatic control system adopts a highly integrated network, which makes the automation system more superior.

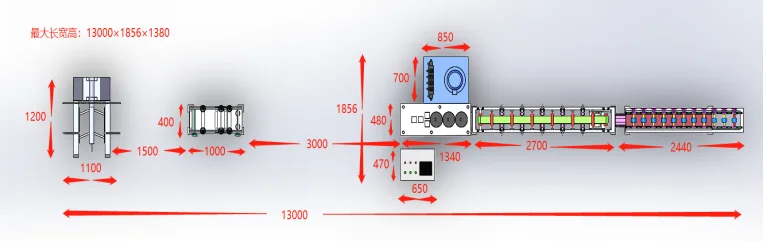

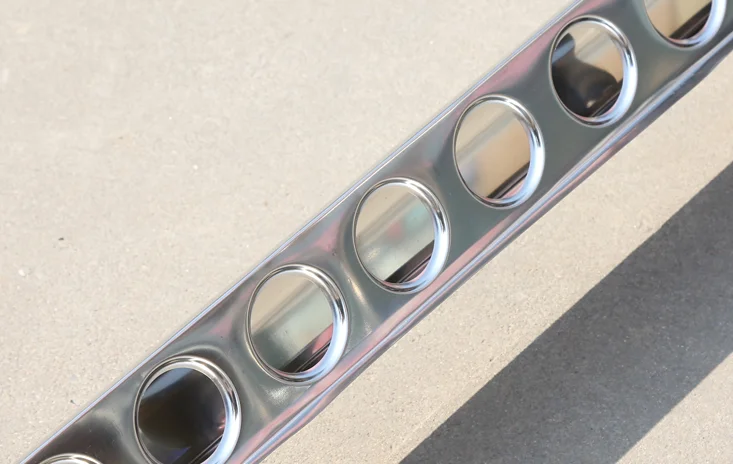

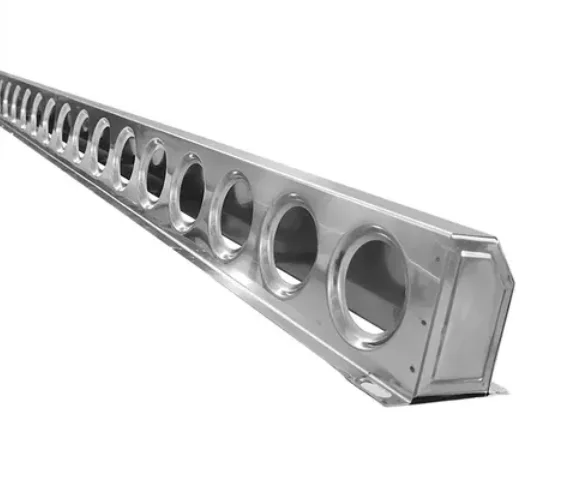

Process flow of production line:
Uncoiling and discharging → guide straightening → servo feeding → hydraulic punching → hydraulic cutting → feeding platform feeding → cold bending forming → qualified products.
Product Paramenters
1. Rollingmaterial and thickness:
3. Description of main components of the production line:
a. Feeding rack: maximum load 2T, manual type.
b. Straightening machine: upper 5-gear roller, lower 6-gear roller, motor power 1.5KW.
c. Servo feeder: servo motor power 1KW; Brand: Taian.
d. Hydraulic punching and cutting system: the motor power is 4KW, the maximum pressure is 25MPa, and the actual maximum working pressure is 10MPa.
e. Mold material: Cr12MoV, heat treatment hardness: HRC58 ～ 60. 8 molds in total
f. Platform feeder: conveyor belt and upper roller are used for feeding, and the motor is 0.35KW. The main function is to feed the material into the molding machine.
4. Forming host:
(1) Linear speed of forming: 10m/min.
(2) Forming pass: 15 passes (upper and lower 15)
(3) Frame wall-panel structure: the wall-panel is 18mm thick A3 plate, which is fixed on the I-beam with screws, and the I- beam is welded to the frame.
(4) Shaft diameter: Ф 38mm, made of 45 # steel
(5) Roll material: gcr15 finish machining, heat treatment.
(6) Transmission: cycloid pinwheel reduction motor 2.2kw, gear transmission mode
(7) One electric control cabinet, with PLC human-machine touch screen interface and motor protection function. Plc brand isDongyuan, and touch screen brand is Villon.
&＝ 1.0-1.5mm material; Q235
&＝ 1.0-1.3mm material; SUS201、SUS304
&＝ 1.0-1.3mm material; SUS201、SUS304
2. Main components of the production line:
a. Feeding rack 1 set
b. Straightener 1 set
c. Servo feeder 1 set
d. Hydraulic punching and cutting system 1 set
e. Hydraulic pump station 1 set
f. Electric control cabinet 1 set
g. Feeding platform machine 1 set
h. Molding machine 1 set
a. Feeding rack 1 set
b. Straightener 1 set
c. Servo feeder 1 set
d. Hydraulic punching and cutting system 1 set
e. Hydraulic pump station 1 set
f. Electric control cabinet 1 set
g. Feeding platform machine 1 set
h. Molding machine 1 set
3. Description of main components of the production line:
a. Feeding rack: maximum load 2T, manual type.
b. Straightening machine: upper 5-gear roller, lower 6-gear roller, motor power 1.5KW.
c. Servo feeder: servo motor power 1KW; Brand: Taian.
d. Hydraulic punching and cutting system: the motor power is 4KW, the maximum pressure is 25MPa, and the actual maximum working pressure is 10MPa.
e. Mold material: Cr12MoV, heat treatment hardness: HRC58 ～ 60. 8 molds in total
f. Platform feeder: conveyor belt and upper roller are used for feeding, and the motor is 0.35KW. The main function is to feed the material into the molding machine.
4. Forming host:
(1) Linear speed of forming: 10m/min.
(2) Forming pass: 15 passes (upper and lower 15)
(3) Frame wall-panel structure: the wall-panel is 18mm thick A3 plate, which is fixed on the I-beam with screws, and the I- beam is welded to the frame.
(4) Shaft diameter: Ф 38mm, made of 45 # steel
(5) Roll material: gcr15 finish machining, heat treatment.
(6) Transmission: cycloid pinwheel reduction motor 2.2kw, gear transmission mode
(7) One electric control cabinet, with PLC human-machine touch screen interface and motor protection function. Plc brand isDongyuan, and touch screen brand is Villon.
Details Images

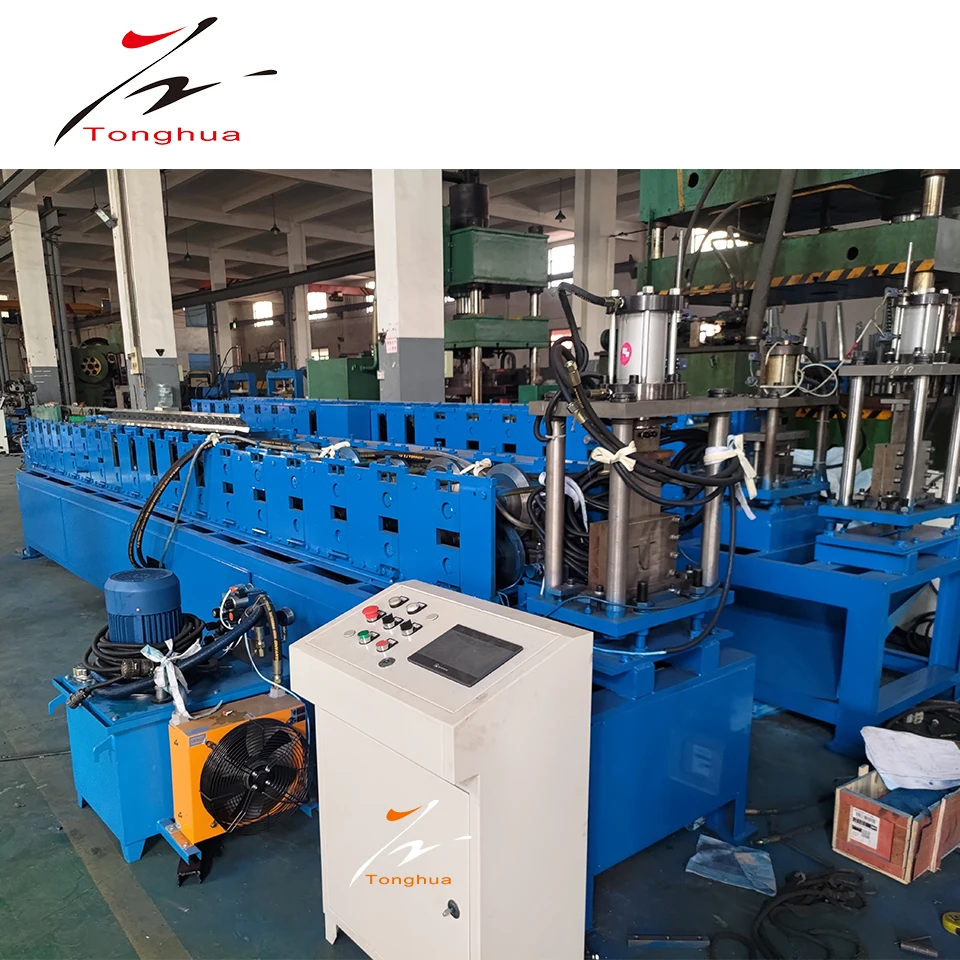

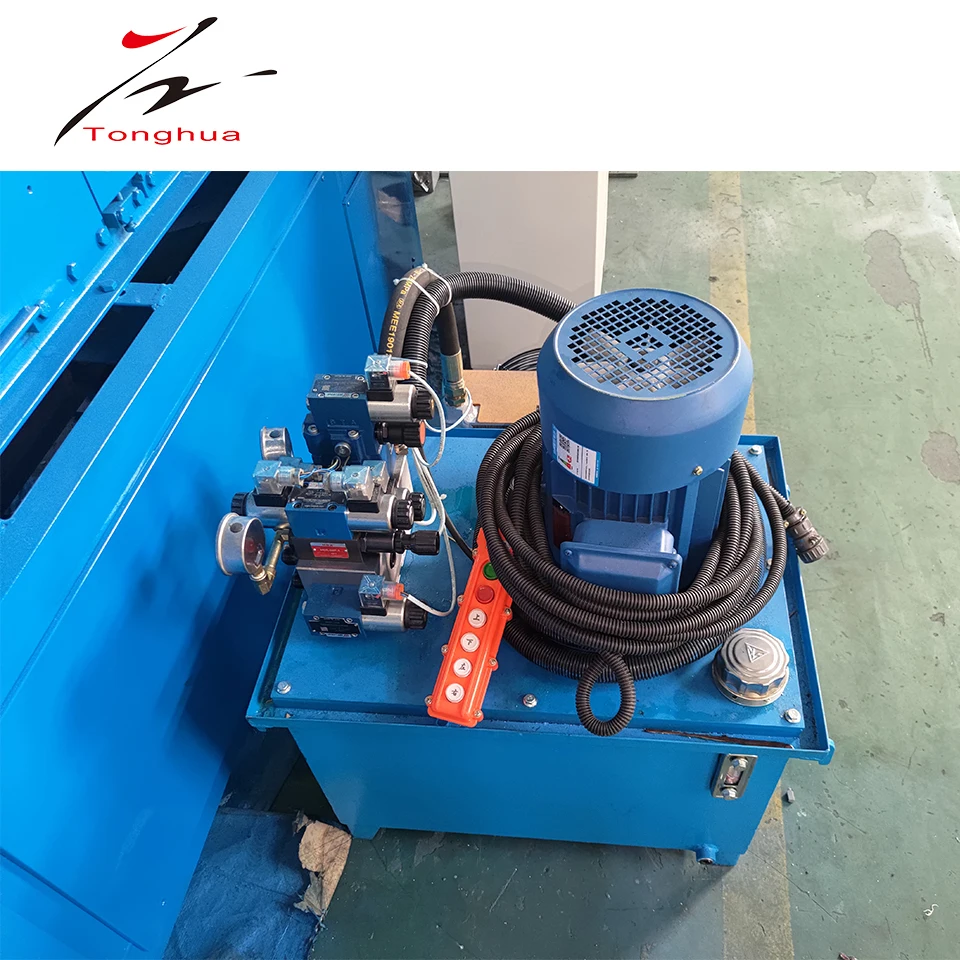

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa

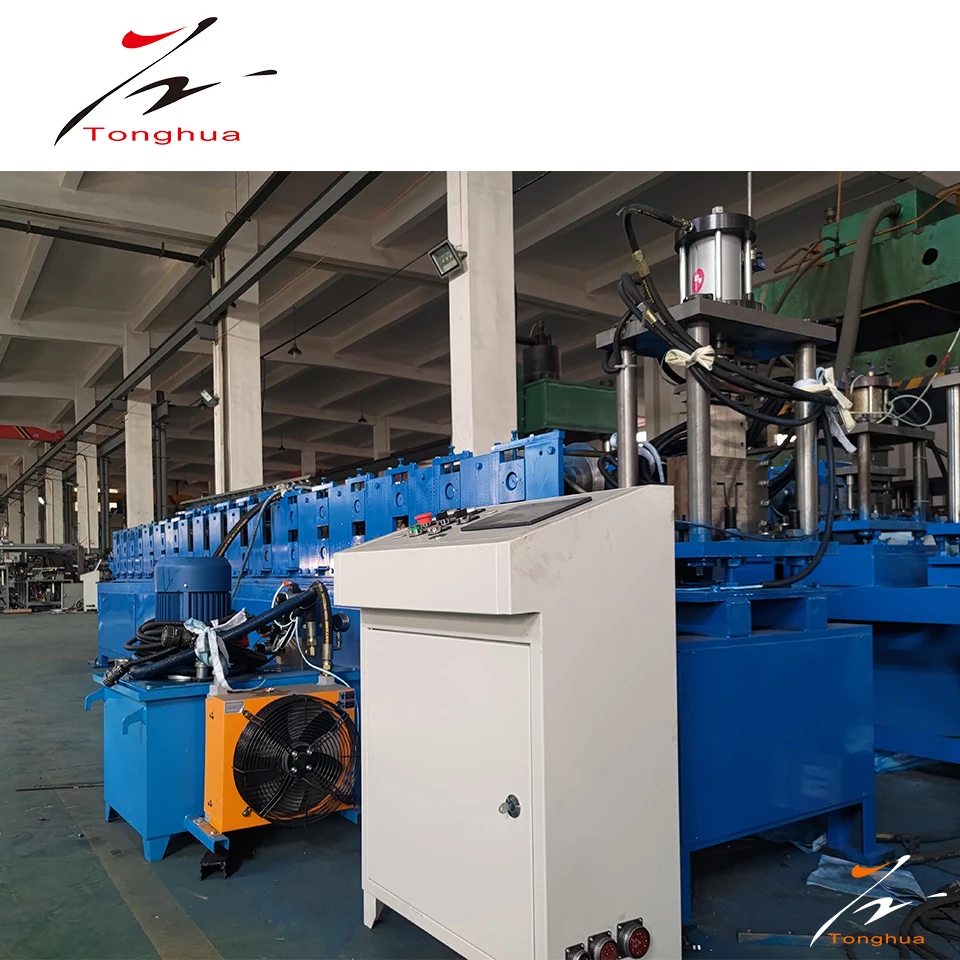

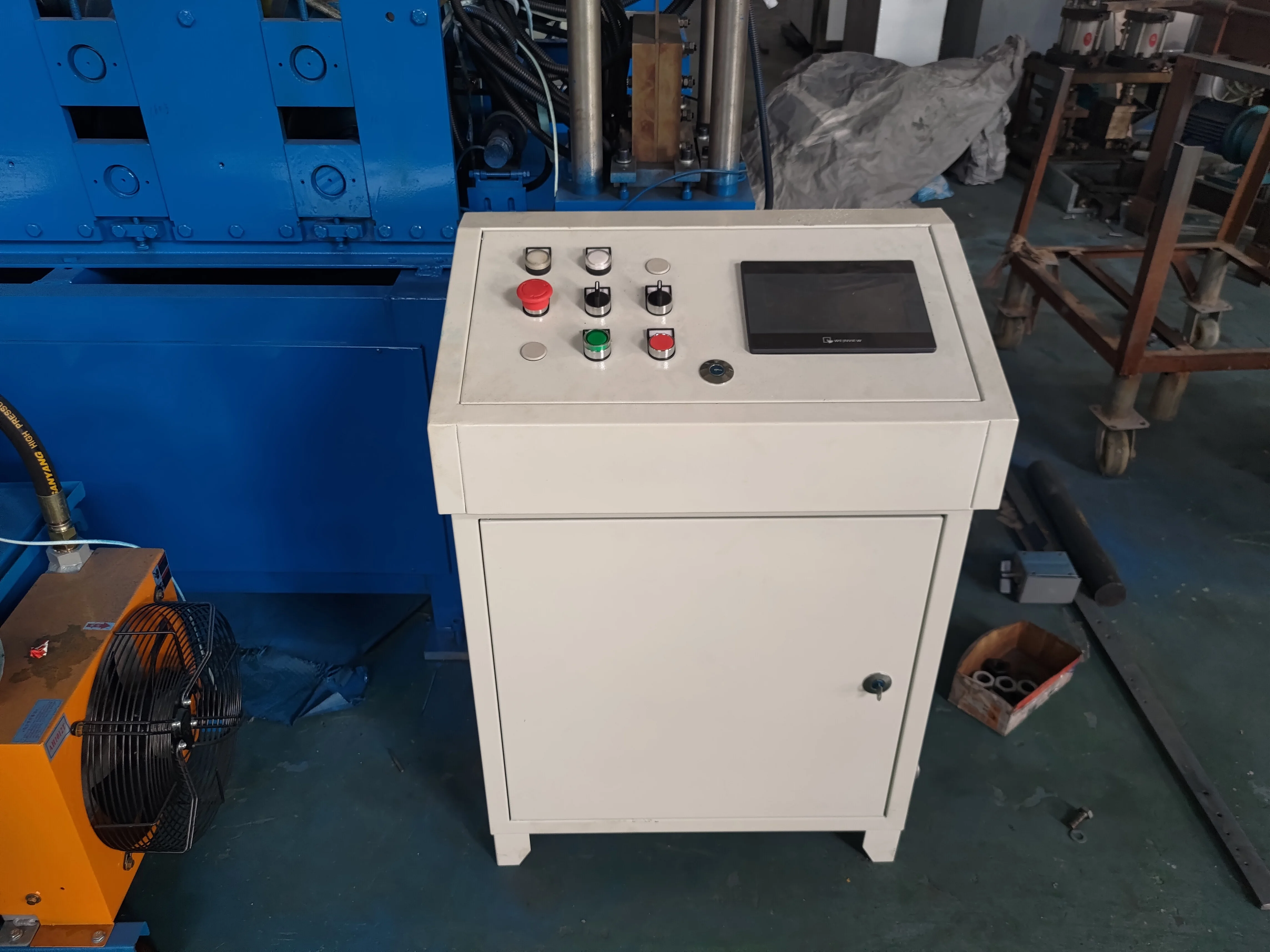

Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily

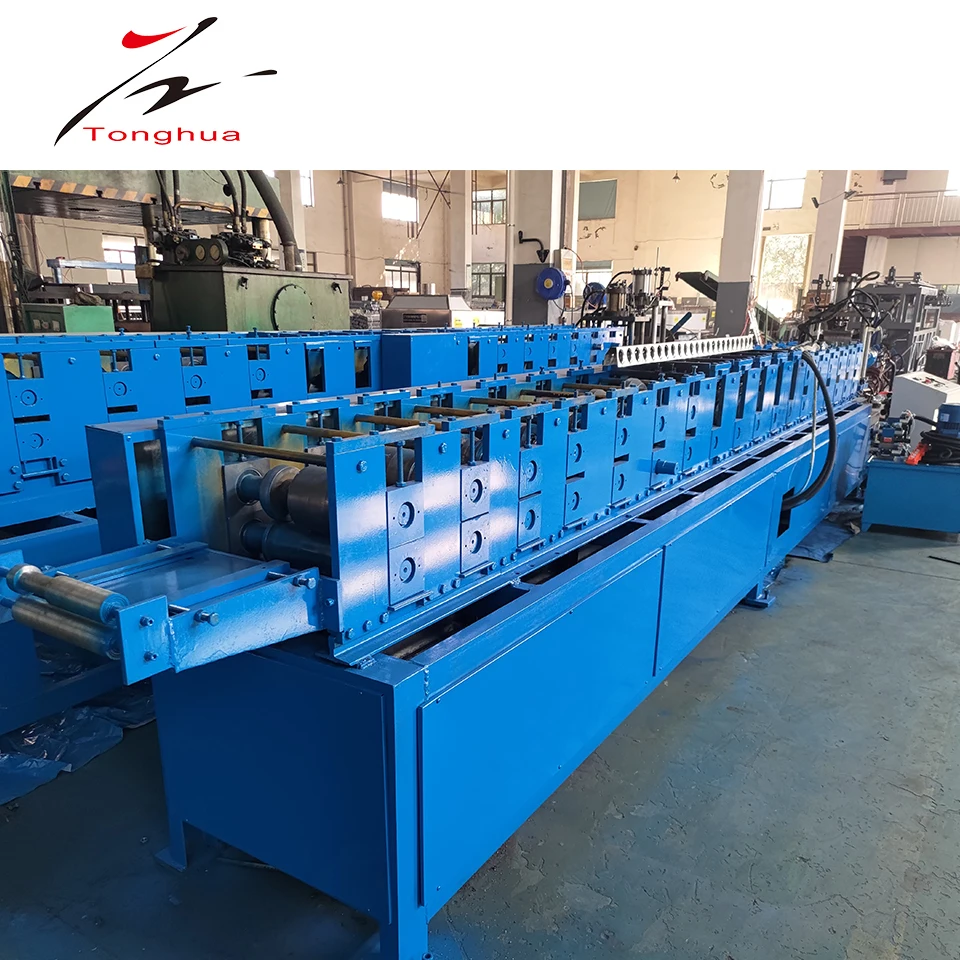

Material of rollers:45# steel, roller surface polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

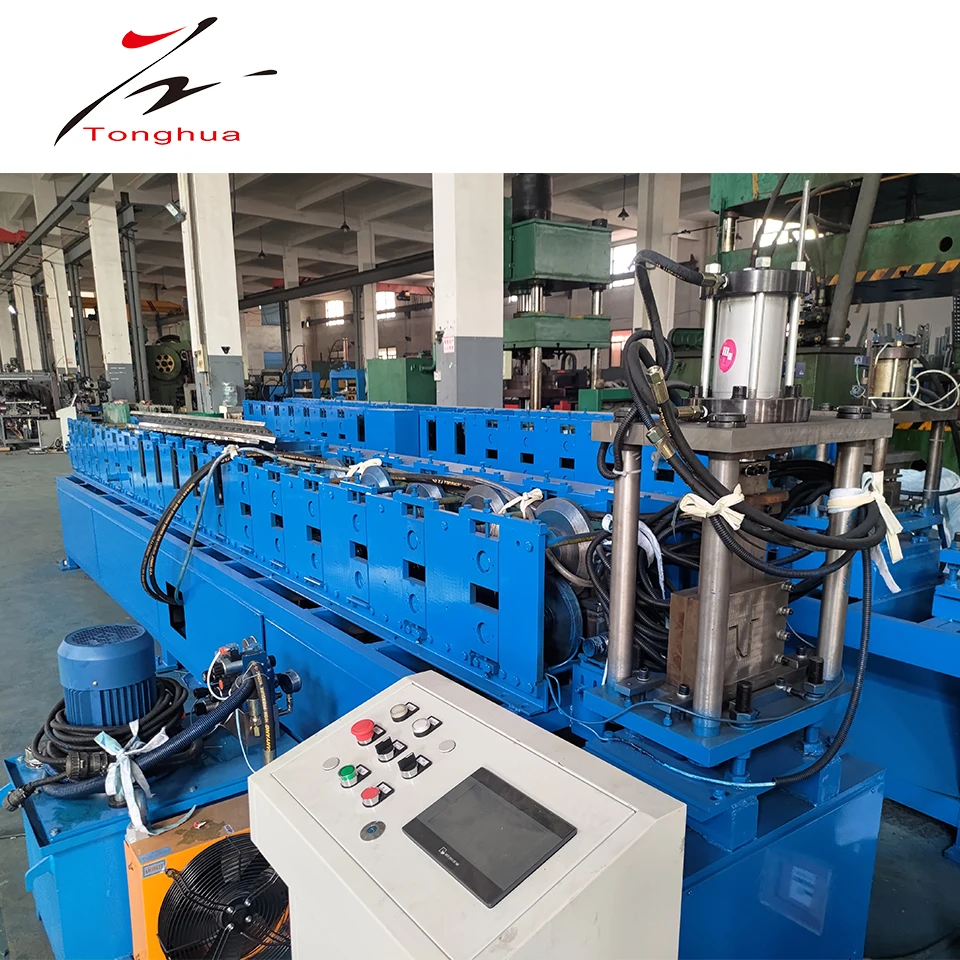

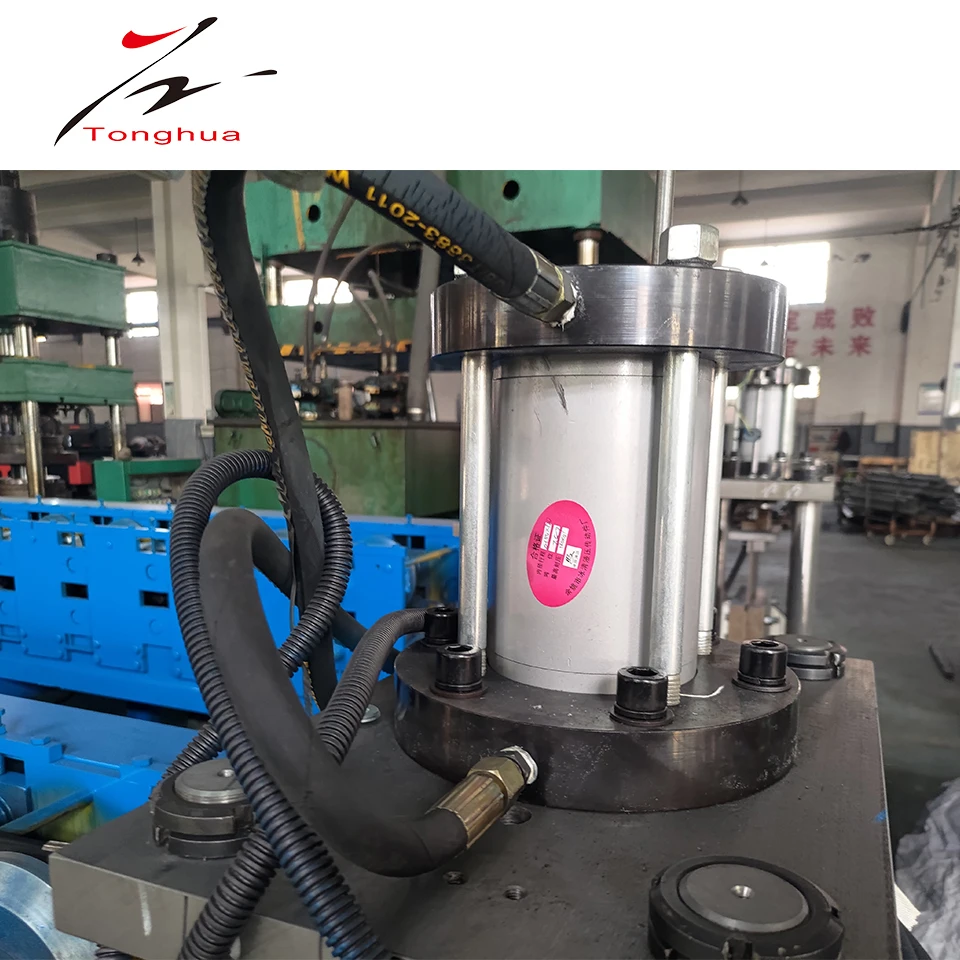

Hydraulic shearing adopts vertical punching shearing, with large shearing force and no burr. It adopts the hydraulic driven and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment. The shear adopts the vertical punching type, the overall frame structure, the slide positioning type.Shear strength is strong, convenient maintenance.
Application
Company Profile
Haining Tonghua is a well-known company with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in solar water heater.
At present, we sell not only solar water heater, but also solar water heater production line, solar water heater parts, and all other solar products.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in solar water heater.
At present, we sell not only solar water heater, but also solar water heater production line, solar water heater parts, and all other solar products.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Certifications
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2008,sell to Western Europe(20.00%),Northern Europe(20.00%),Eastern Europe(20.00%),Southern Europe(15.00%),South America(10.00%),North America(10.00%),Africa(3.00%),Oceania(1.00%),South Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Do you sell only standard machines?
No, our machines are made according to customers’ specifications
4. What’s your delivery time?
Depending on the type of machine, duration of 30 days to45 days from the date of received advance payment
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Zhejiang, China, start from 2008,sell to Western Europe(20.00%),Northern Europe(20.00%),Eastern Europe(20.00%),Southern Europe(15.00%),South America(10.00%),North America(10.00%),Africa(3.00%),Oceania(1.00%),South Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Do you sell only standard machines?
No, our machines are made according to customers’ specifications
4. What’s your delivery time?
Depending on the type of machine, duration of 30 days to45 days from the date of received advance payment
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
6. What will you do if the machine have problem?
Tonghua supply the technical support for the whole life of the equipment Our machine’s warranty is 12 months.In warranty time the spare parts can’t repair, we can send the new parts to replace the ones ,You pay the express cost by yourself. beyond the warranty period, you pay the cost of spare parts and express charge,
