Popular Selling Small MOQ Support 1080P Boot up Logo dvb c hd stb

Compliant with DVB-C Standard Fully

MPEG-4/H.264 Decoded

PAL: 576i/576p/720p/1080i/1080P

NTSC: 480i/480p/720p/1080i/1080P

CAS Supported

USB WIFI Dongle both Internet and Interactive Function

Auto Network Lock as per Different Network Name/ID and Home TS

USB PVR and Time-shift

NIT Auto Detect as per Service ID

STB Guide/Genre as per BAT Table (Bouquet)

Boot-up Logo, Radio Image and Watermark

7-day EPG with Synopsis and Rolling Event

Channel Booking and Editing

Email, Parental Lock and Timer

Audio, Video and Picture Setting

STB Upgrade via USB, OTA or Serial Port

Auto, Manual or Full Channel Search

CPU

Main Chip

GX3113U1/E1

Ecos OS

CPU Frequency

1500DMIPS 660MHz, 32bit

Flash

8MB

DDR3

128MB

Tuner

Brand

MXL608

Input Signal Range

38-100dBuV

Input Impedance

75Ω

Channel Decoding

Standard

DVB-C (ITU-T J.83A/C,Annex B)

Demodulation

16,32,64,128,256QAM

Bandwidth

8M

Video Decoder

Video Decoder

H.264, MPEG-4, MPEG-2, MPEG-1, SP/MP/AP

Video Output

CVBS*1, HDMI1.4

Video Format

PAL/NTSC

Aspect Ratio

4:3/16:9

Resolution

HD&SD to 576P,720P,1080i decode&1080P Display

Audio Decoder

Audio Decoder

MPEG1, MP3, MPEG-4 AAC&AAC+, DRA, AC-3& DD+

Audio Output

HDMI1.4, A-L, A-R

Audio Mode

Left/Right/Stereo

Sampling Frequency

32KHz, 44.1KHz, 48KHz

Front Panel Sample

LED Indicator

Green for Signal, Red for Standby

IR Sensor

38KHz

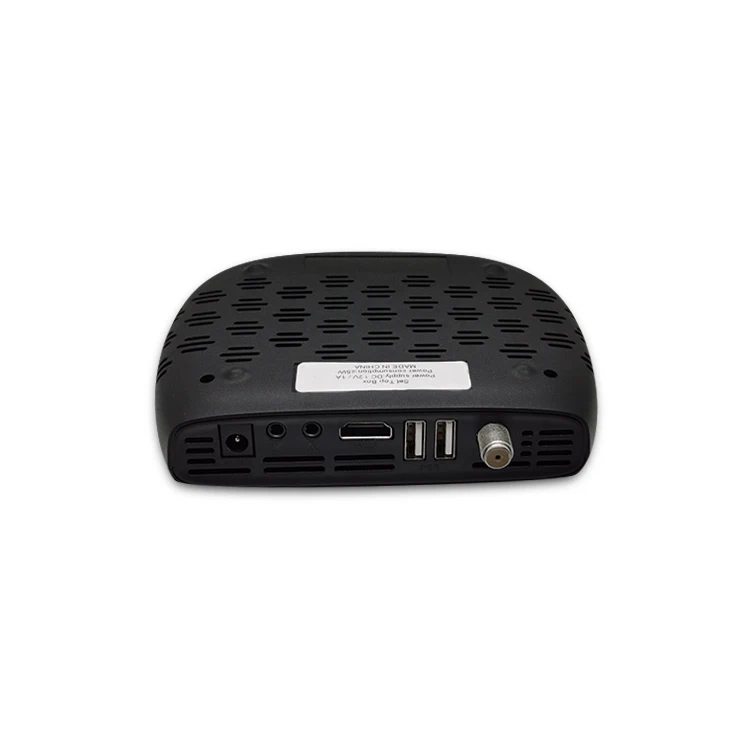

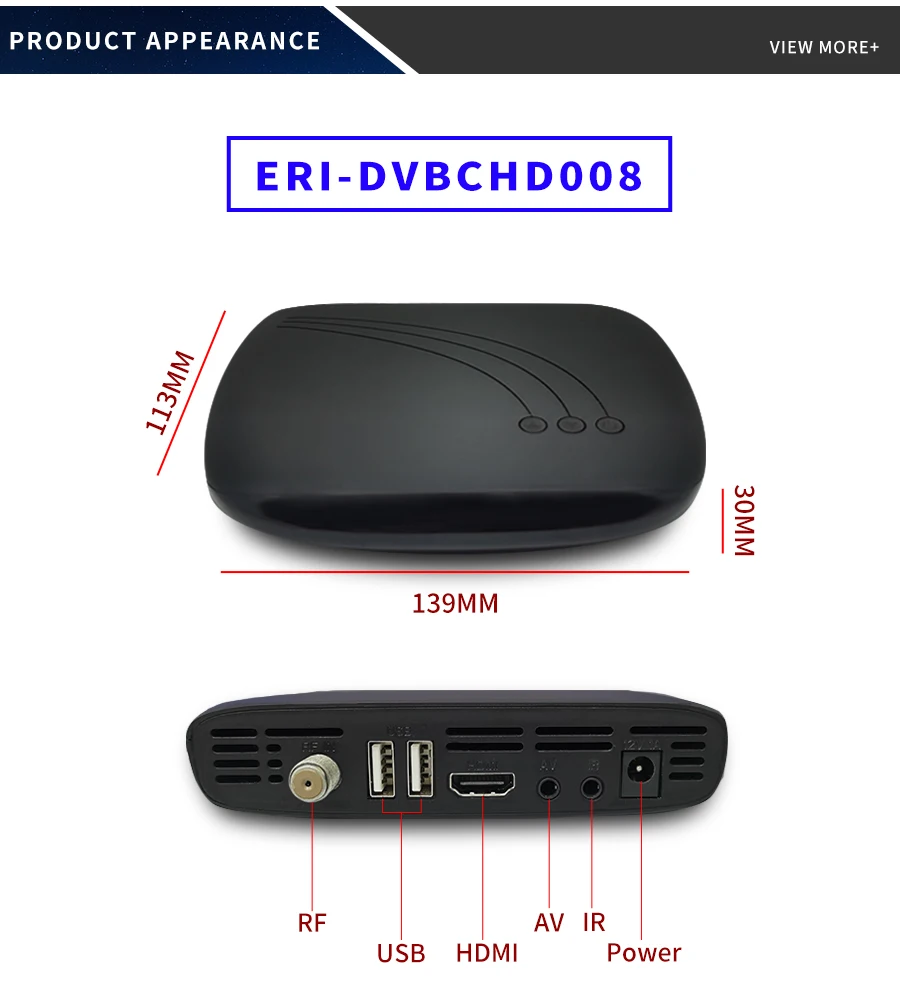

Rear Panel Sample

Cable In

F-Type

RCA Output

1*AV Jack 3.5

USB2.0

2

HDMI

HDMI1.4

IR Extension

1PCS

Power Adaptor Socket

12V=1A

Conditional Access

COB

NSTV/ABV/EnsuritySumavision

Soft CAS

NSTV/ABV/Sumavision

Smart Card

NSTV/ABV/Ensurity/

Environment

Operation Temperature

0℃~75℃

Storage Temperature

-15℃~70℃

Working Power Consumption

7W

Standby Power Consumption

<1W
