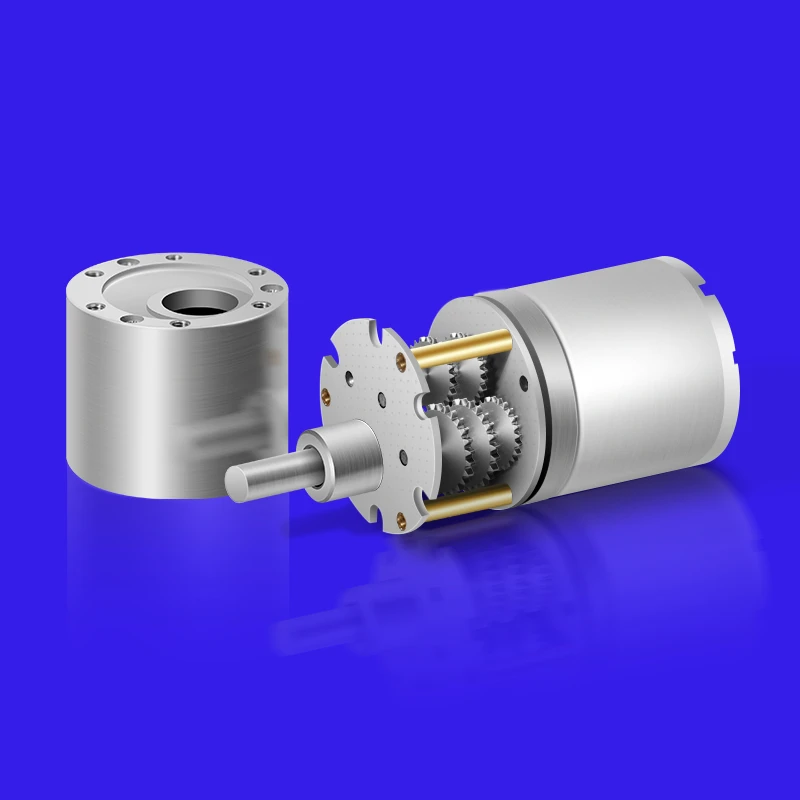

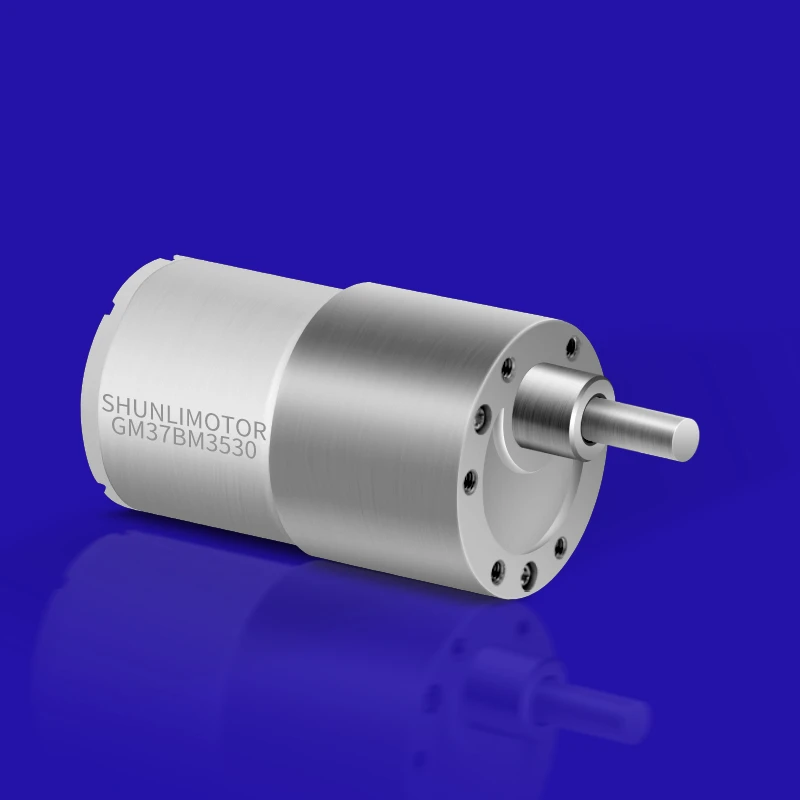

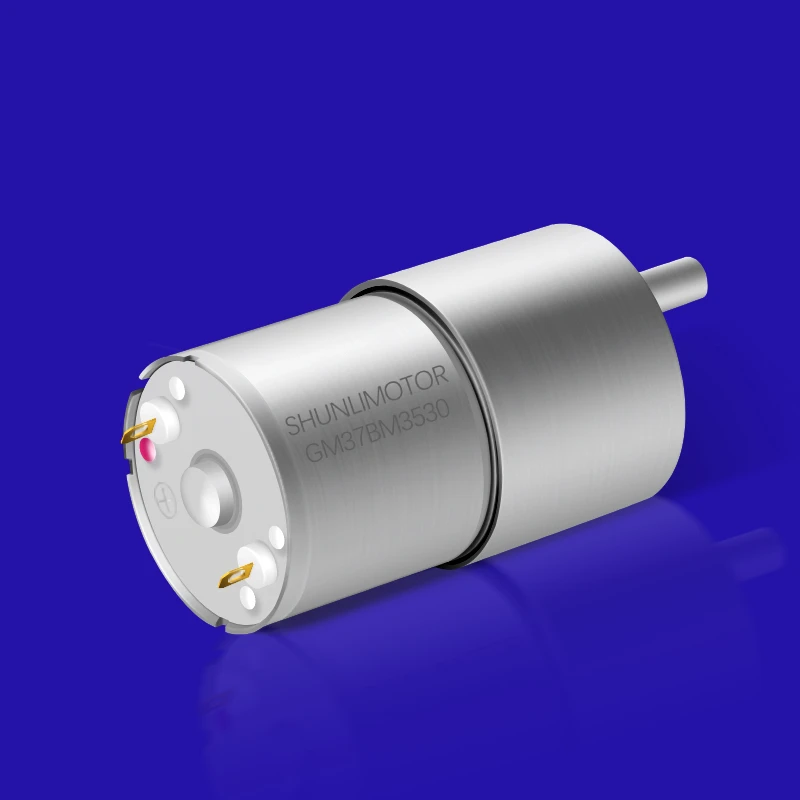

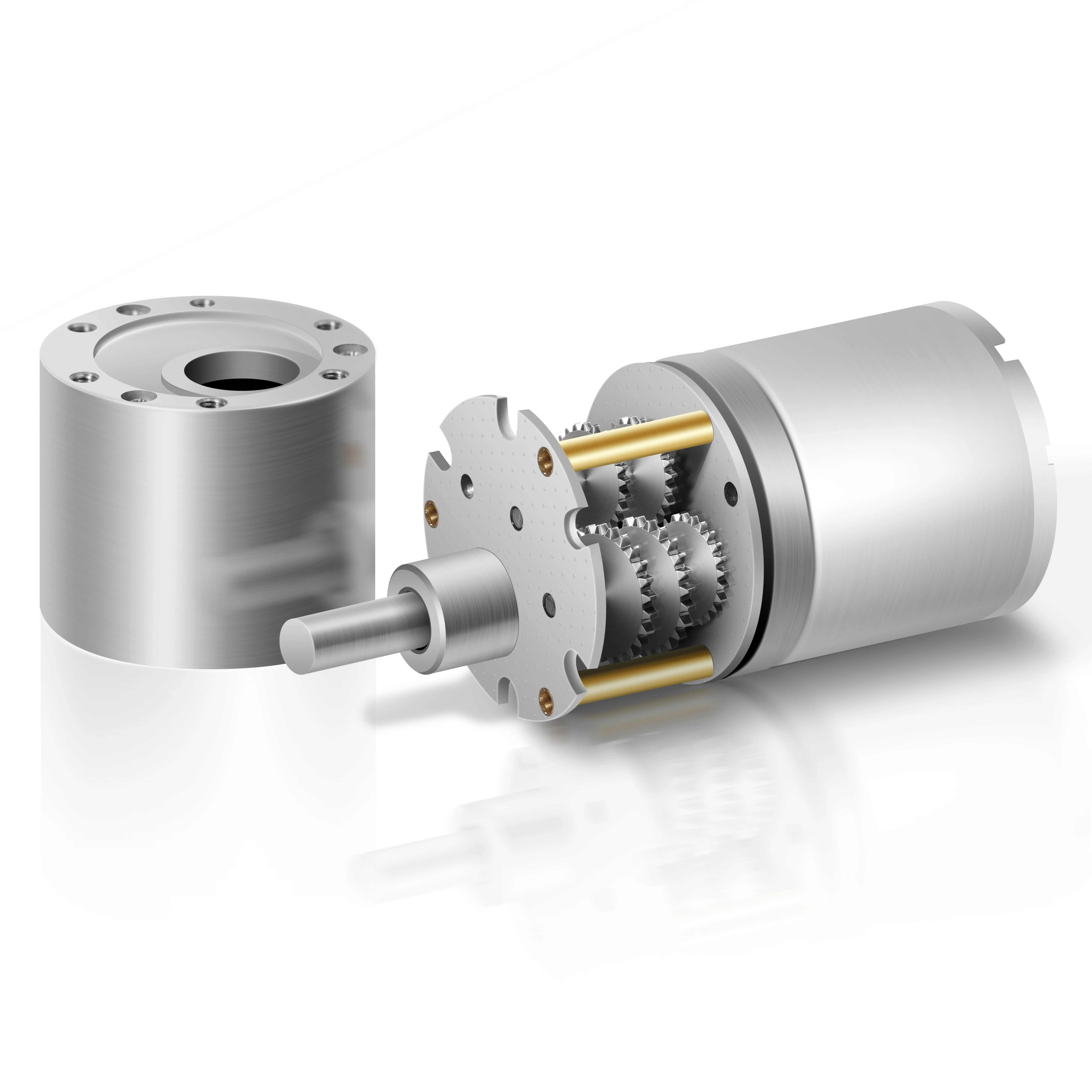

Shunli Custom oem 80rpm 6v 12v 24v electric micro dc gear motor generator motor gear reduction gearbox
- Category: >>>
- Supplier: Shenzhen Shunli Motor Co. Ltd.
Share on (1600767405589):
Product Overview
Description
Promotion
Product Description
High torque 10KG.CM OD 37MM 25MM 24V 12 volt dc gear motor
Product Details
Motor Customized Specification, Please Contact Us.

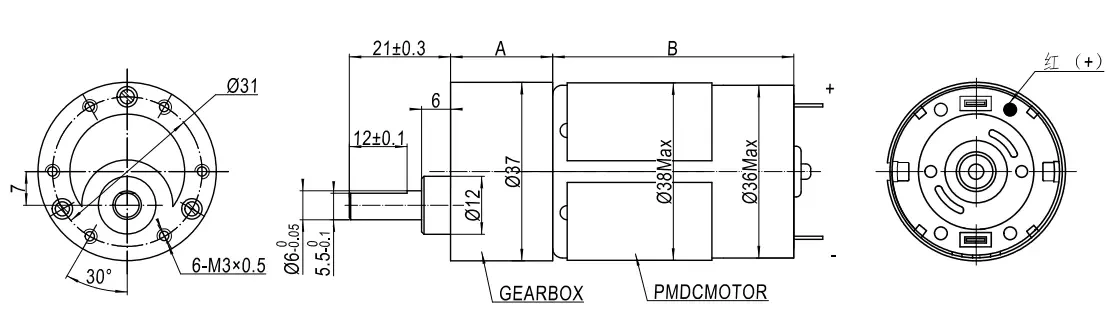

Reference Drawing
------GM37BM545/555/575
------A part: Gearbox length
------B part: Micro dc motor length
Reference Datasheet
Gearbox Technical Date
| Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
| Ratio | 6.25K /10K | 19K / 20K /30K | 38K / 44K / 56K / 60K / 90K | 75K / 88K / 102K / 131K / 168K / 210K / 270K / 56KQ | 263K / 393K / 450K / 506K / 630K / 810K | 113KQ / 170KQ 1200K / 1600K |
| Gearbox Length “A”(mm) | 19 | 21 | 24 | 26.5 | 29 | 31 |
| Max. Rated Torque | 5.0 Kgf.cm | 8.0 Kgf.cm | 12.0 Kgf.cm | 20 Kgf.cm | 30 Kgf.cm | 30 Kgf.cm |
| Max. Gear Broke Torque | 12.0 Kgf.cm | 20.0 Kgf.cm | 30.0 Kgf.cm | 50.0 Kgf.cm | 80.0 Kgf.cm | 80.0 Kgf.cm |
| Gearbox Efficiency | 90%~95% | 85%~90% | 75%~85% | 60%~75% | 45%~60% | 35%~45% |
FAQ
1.Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3.Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
