Ultra thin 2inch 6Sp 3' Used High Pressure Manual CNC ac press Hydraulic Hose Clamping Machine Manufacturer For Sale
- Category: >>>
- Supplier: Oriental Mj Hydraulic Machinery (tianjin) Co. Ltd.
Share on (1600767451641):
Product Overview
Description

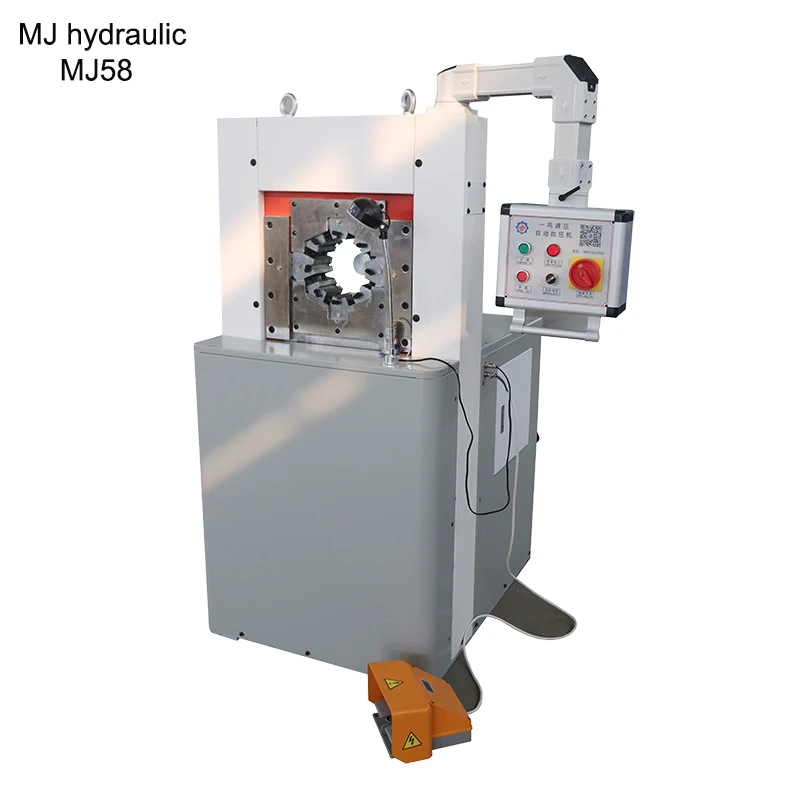

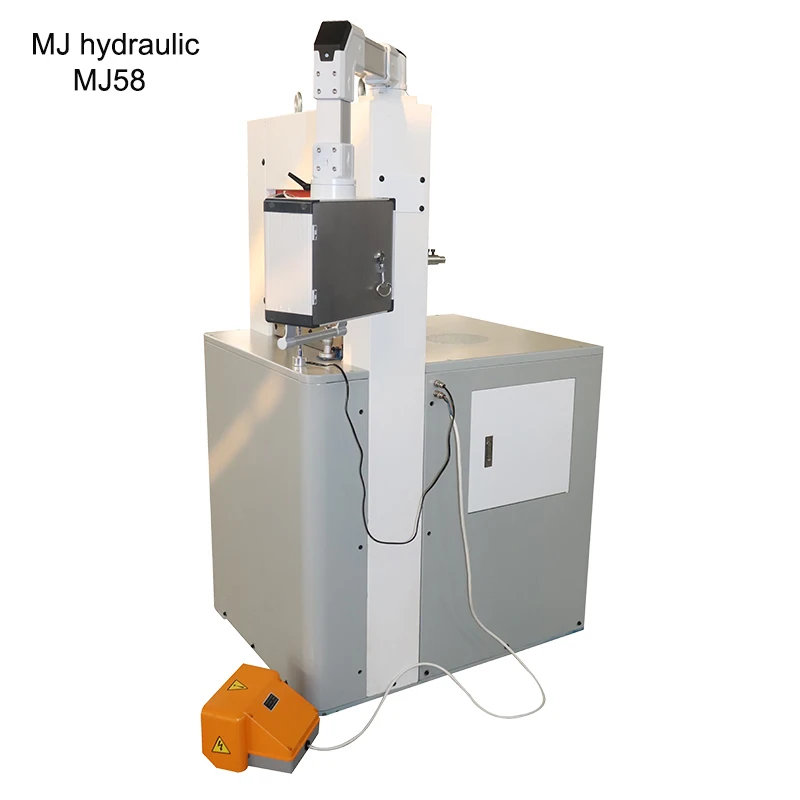

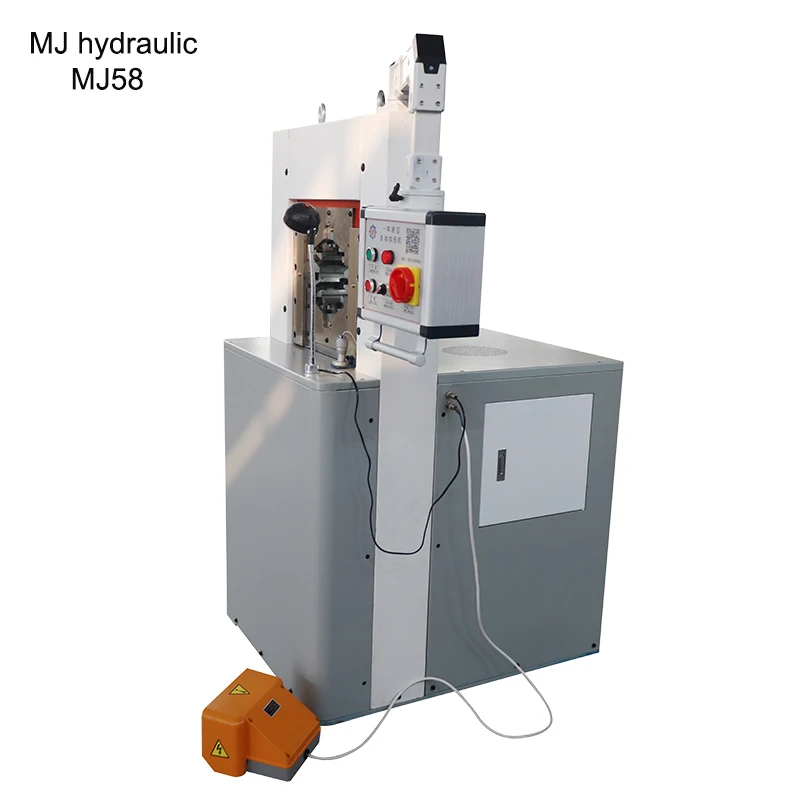

MJ58 hose crimping machine
1. MJ58 hose crimping can crimp ID hose 1/4-3''(6-76mm) and 2inch 6sp.
2. Max opening is 158mm, suitable for crimp elbow fitting, like 45° and 90°, ultra-thin head, large opening, flange joints and special-shaped joints are easy to pass.
3. Mechanical back stop device,EASY POSITIONING.
4. The inside of the slider has a V-shaped positioning design, and the mold can be quickly switched by quick change tool
Crimp inner diameter | 1/4-3inch or 6-76mm 1-4wire or 2'' 6wire |
Crimp outside diameter | 4-90mm |
Max opening | 158mm |
Max opening tolerance | ±53mm |
Power of motor | 5.5KW or customize |
Scale accuracy | 0.01mm |
Oil pump out-let quantity | 10L |
Rated pressure | 31.5MPA |
Voltage | 220V/12V/380v/415v or customize |
Operational way | foot control, button control, automatic |
Dies mould | 15sets |
Dies number | 12. 14. 17. 20. 24. 28. 33. 38. 44. 50. 56. 62. 68. 74. 80 ( regular dies length 90mm ) |
Dimension | L 1000* W 800* H 1630mm |
Light | one work light for free |
Extra parts | one set for free |
Crimp cylinder
2. Specially designed for crimping special-shaped elbows, like 45° and 90°。
3. Mechanical back stop device,EASY POSITIONING
Operation Panel
2. Intergrated button, safe and convenient, instrument display, multiple adjustment
Control way
Button control
Automatic control
Foot control
Custom service: according to your stuff pressed, make suitable dies pattern and machine for you
Options: In addition to the standard die sets, a wide range of special die sets for different diameters, lengths and forms is available. Because the number of pictures displayed is limited, if the picture above does not find the model you want to press, please contact customer service immediately, and we will give you the most professional answer

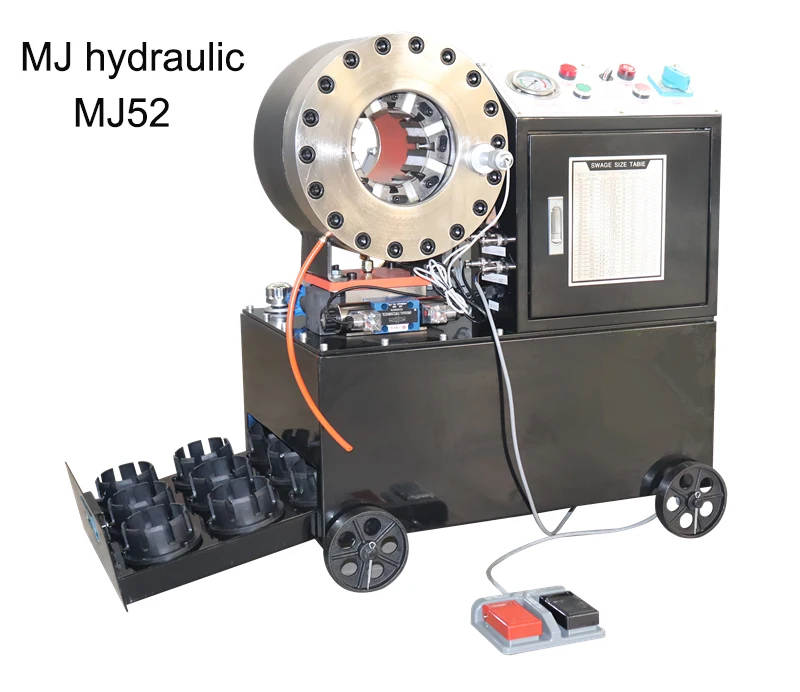

1. Model: MJ52
- Efficient, fast pump- Die set locker，space saving

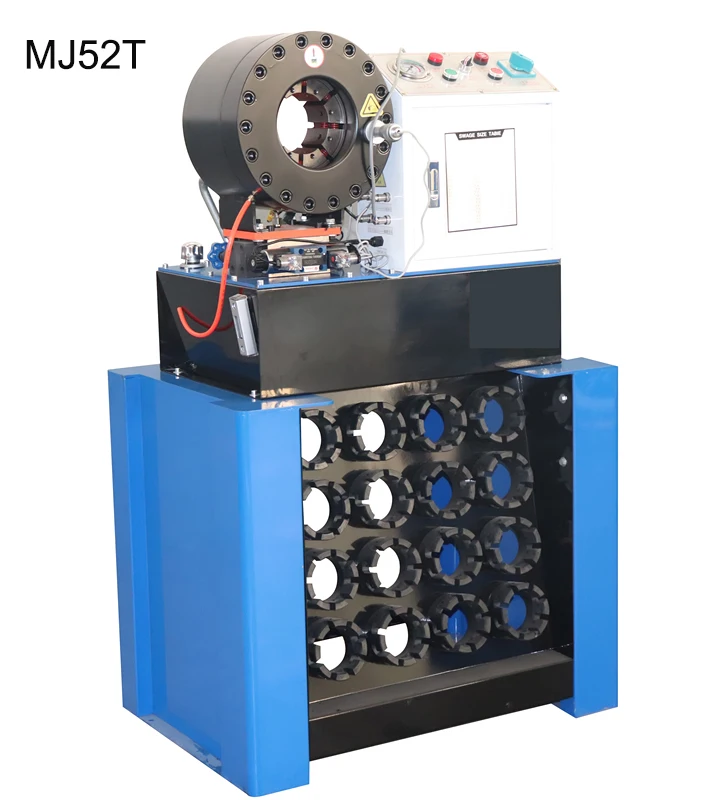

2. Model:MJ52T
- Efficient, fast pump
- dies can be changed quickly by quick change tool
- Die set rack，space saving
3.Model MJ53
- suitable height for standing operation
- Hanging molds on the side, easy to operate and save time
- equip with light for work at dark
4. Model: MJ57
- 12V/24V for operated mobile
- Can crimp 1/4-2inch 4sh
- suitable for working outdoor
5. Model: MJ56
- manual type
- customize 1inch, 1.5inch, 2inch size
6. Hydraulic hose and fitting
- can produt hydraulic hose, air hose, suction hose and so on.
- fitting for JIC, BSP, SAE and so on.
Oriental MJ Hydraulic Machinery（Tianjin）Co.,ltd has always been committed to the research and development of Hydraulic hose& Tubing Processing Equipment, high and low pressure rubber hose, fitting joints, etc., More than 18 years, offering customized solutions gained from research, precision and quality.
The main equipment are manufactured by germany and Japan,specifically set up for this purpose, making it a critical piece to MJhdraulic consistent quality
1. Plastic wrap
- Waterproof and dustproof
2. Bubble film packing bag
- Reduce the friction between the machine and the wooden box
3. Export standard plywood box
- Prevent collision and friction between outside objects and the machines
Q: Are you a factory?
A: Yes, we are a factory. We manufacture all our products and also manufacture for trading company. We can offer factory direct
price to you.
Q: Can you produce product with my own brand?
A: Yes, it''s available except famous brand which are not allowed.
Q: Can you customize 415 V voltage or 110V?
A: Yes, we can customize the voltage according to your demands, like 110V 240V 415V and so on.
Q: Delivery time
A: For most models of our factory machine, they are in stock, and can delivery within 24 hours once receive the payment.
Q: How long does the warranty?
A: For the warranty, it is 3 years, during this time, our factory have promise to provide the free spare parts to customer.
Q: How to pay?
A: You can pay by T/T, credit card, western union, L/C etc. By Alibaba Trade Assurance also is OK, it can ensure your rights and
interests.
A: Yes, we are a factory. We manufacture all our products and also manufacture for trading company. We can offer factory direct
price to you.
Q: Can you produce product with my own brand?
A: Yes, it''s available except famous brand which are not allowed.
Q: Can you customize 415 V voltage or 110V?
A: Yes, we can customize the voltage according to your demands, like 110V 240V 415V and so on.
Q: Delivery time
A: For most models of our factory machine, they are in stock, and can delivery within 24 hours once receive the payment.
Q: How long does the warranty?
A: For the warranty, it is 3 years, during this time, our factory have promise to provide the free spare parts to customer.
Q: How to pay?
A: You can pay by T/T, credit card, western union, L/C etc. By Alibaba Trade Assurance also is OK, it can ensure your rights and
interests.
