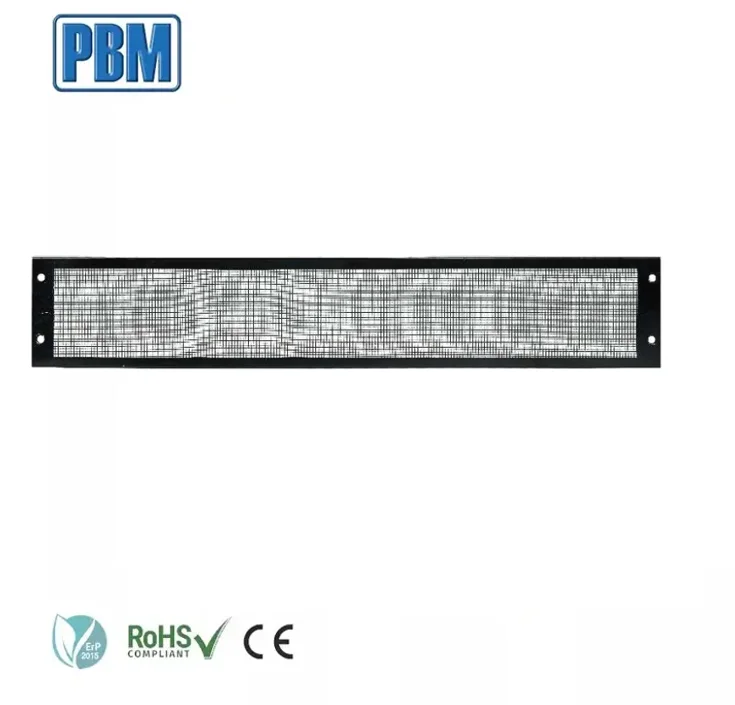

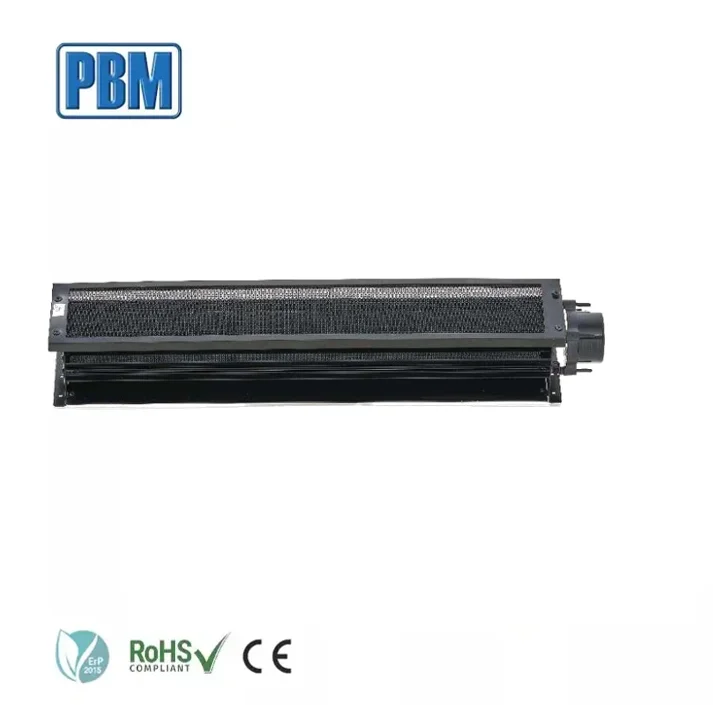

Eco 230VAC 100m3h 30mm 530mm Air Outlet Impeller Cross Flow Ventilation Fan for Fireplace
- Category: >>>
- Supplier: Pbm Motor And Fan (suzhou) Co. Ltd.
Share on (1600767456739):
Product Overview
Description
Products Description
PC30B2A530L
Slim Installation Height and High Air Flow Rate with lowest Noise
PBM tangential blowers combine 30~80mm diameter cross flow impeller with one single piece length maximum to 65mm, with AC and DC power supply EC green technology motor, with aluminum die cast fan frame, with anti-vibration rubber damping pad system, with ball bearing and sleeve bearing, maximum entire tangential fan length goes up to 1190mm at single, double and triple sections harmoniously connected together makes it possible to achieve a very high airflow throughput ratio with extremely low wind noise with quiet three-core sin-wave integrated commutation electronics motor controller circuit and low air flow velocity.
Product Specification
1. General Characters
Model | PC30B2A530L |
Rated Voltage | 230VAC |
Operating Voltage | 187~270 VDC |
Rated Speed | 2400 RPM |
Input Current | 0.14 A |
Input Power | 17 W |
Sound Level | 33 dB(A) |
2. Mechanical
Dimension | 48mm X 72mm X 605mm (see dimension drawing) |
Material of Impeller | Steel |
Impeller Plate | Injection-moulded round sheet-metal plate |
Mounting Position | Any |
Surface of Rotor | Electrophoresis |
Bearing System | NMB ball bearing |
Lead Wire | Red , Black, White AWG22# |
Weight | 837g |
Package | Standard |
3. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
under Locked Rotor | A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
Over Voltage Protection | The circuit will be shut down automatically when input voltage over 30VDC. And re-started when Voltage down to 30VDC below. |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V. |

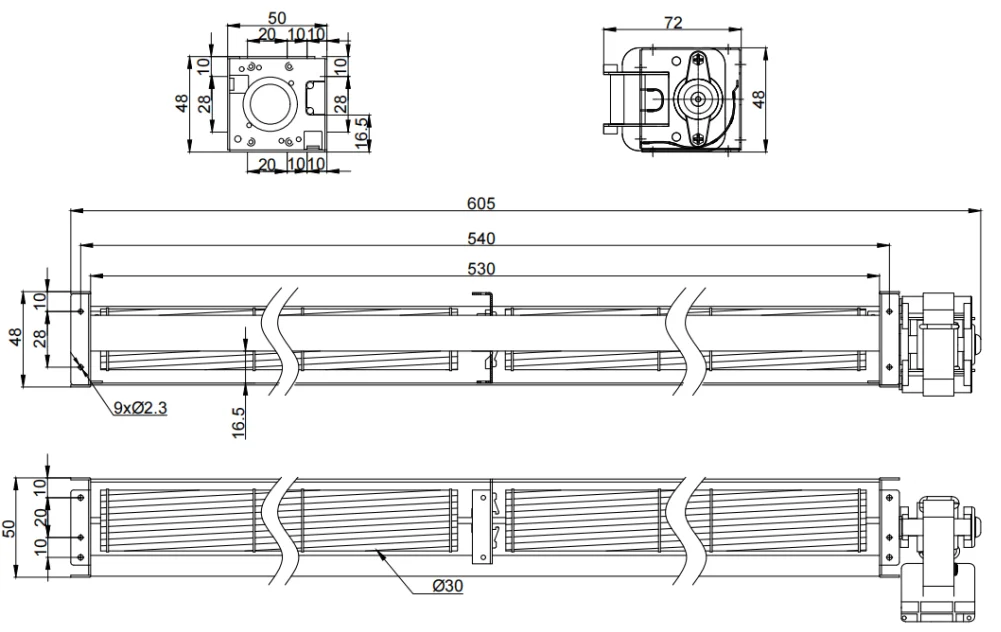

4. Outline Drawing

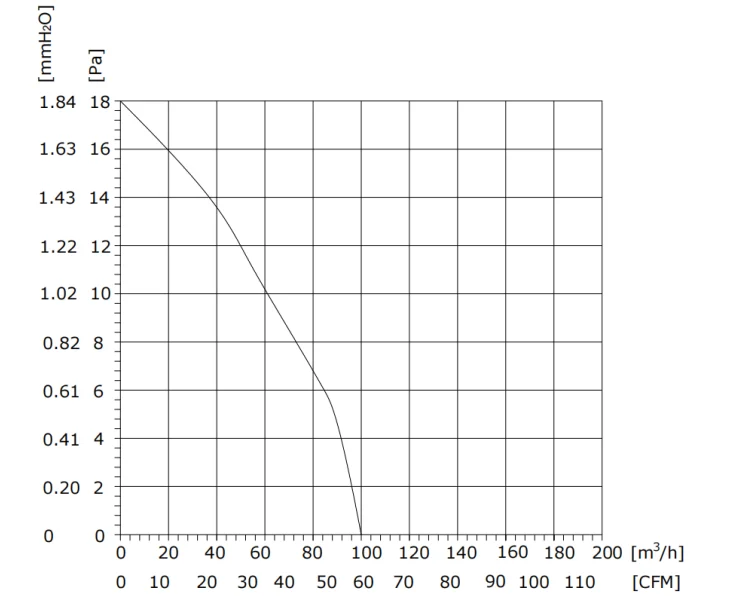

5. Performance Curve
