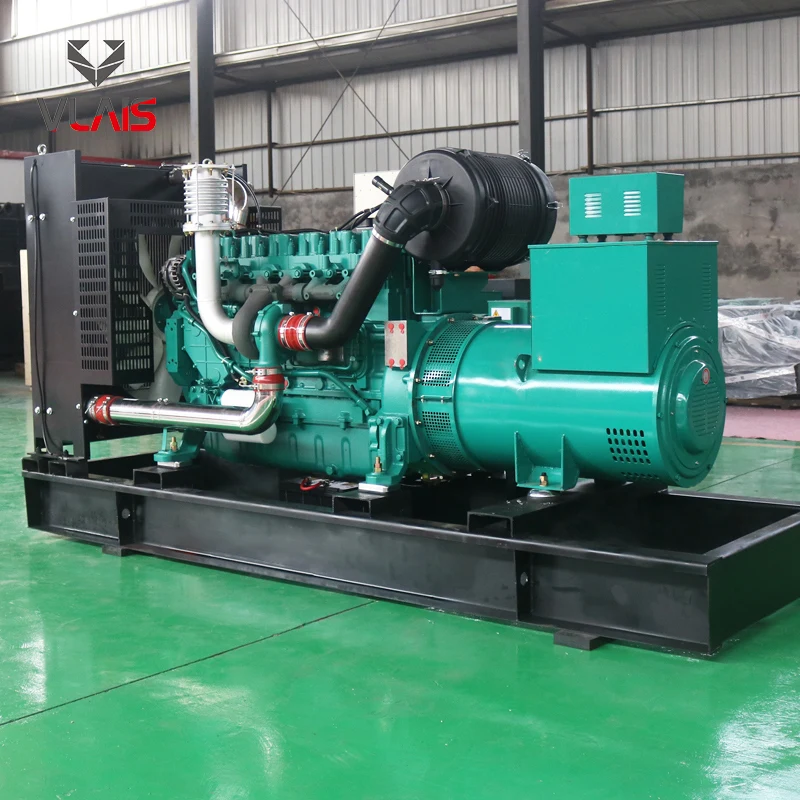

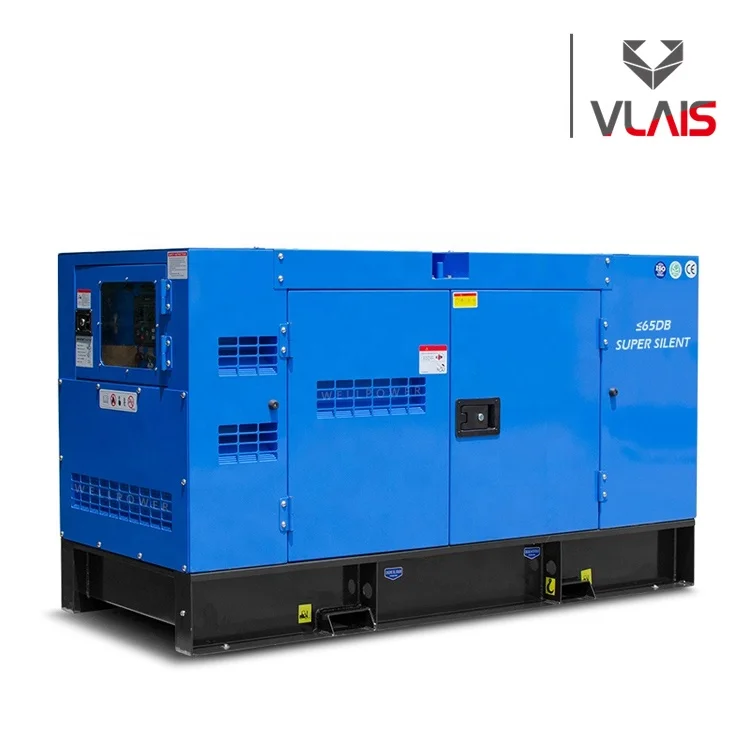

VLAIS 400kW/500kVA 230V/400V/50Hz Three phase Silent diesel generator set with YUCHAI engine powerful for industrial big size
- Category: >>>
- Supplier: Vlais Inc.
Share on (1600767458670):
Product Overview
Description
Product Description
| Diesel Generator Data Sheet | |
| Generator Model | CP-YC500 |
| Rated Power | 400KW/500KVA |
| Rated Voltage | 230V/400V(Voltage can be customized) |
| Frequency | 50HZ |
| Power Factor | COS=0.8 |
| Weight(kg) | 4000KG |
| Cooling Method | Water-cooled |
| Start-up Mode | DC 36V/Electric Start |
| ATS | Can be retrofitted additionally |
| Diesel Engine Data Sheet | |
| Brand | YUCHAI |
| Model | YC6T660L-D20 |
| Number of Cylinder | 6 Cylinder Vertical in Line |
| Speed | 1500RPM(50hz) |
| Cycle | 4 Stroke |
| Aspiration | Turbo charged |
| Cooling Method | Water-cooling |
| Bore*Stroke(mm) | 145*165 |
| Compression Ratio | 14:1 |
| Speed Governor | Electronic |
| Fuel Consumption | 195g/kw h |
| Fuel Tank | 8-10 Running Time(can be customized) |
| Alternator Data Sheet | |
| Brand | Stamford/ Marathon/ Leroysomer |
| Model | CP-544D |
| Connecting Type | Single Phase/Three Phase and Four Wires |
| Exciter Type | Single bearing, brushless, self-excited |
| Protection Grade | IP23 |
| Insulation Class | H |
| Exciter Type | Brushless, Self-excited, AVR Controller |
| Altitude | ≤1000m |
| Controller | |
| Optional Controller Brand | Mebay(Can be upgraded to Deepsea/ComAp/Smartgen) |

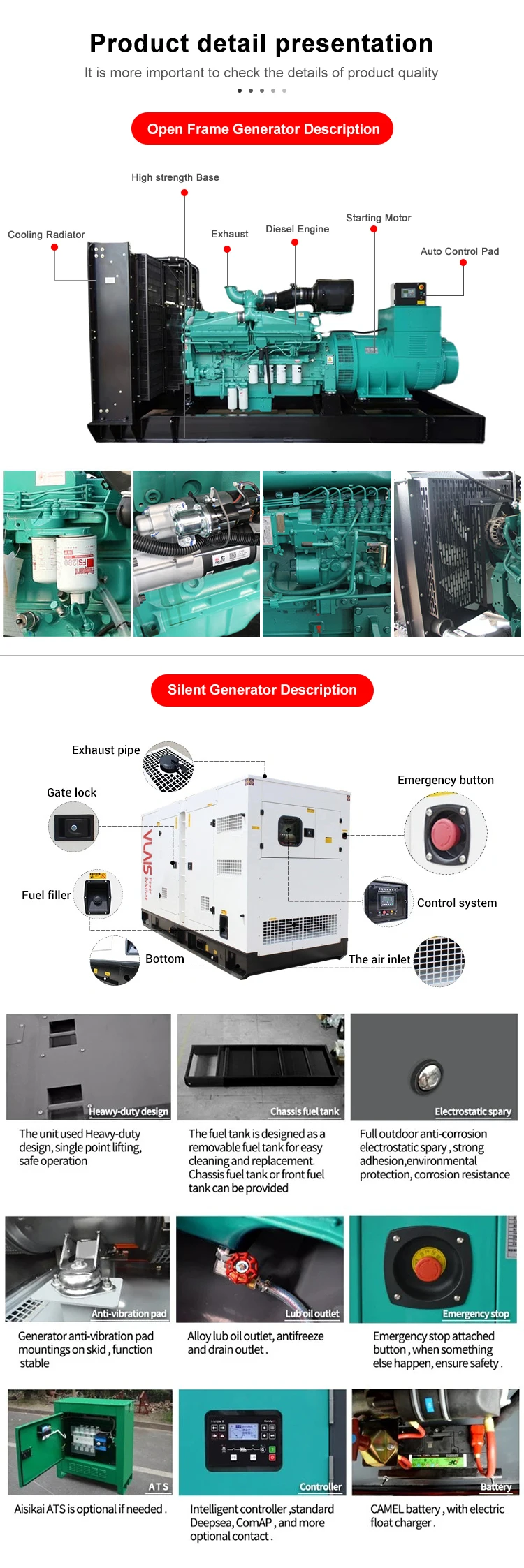

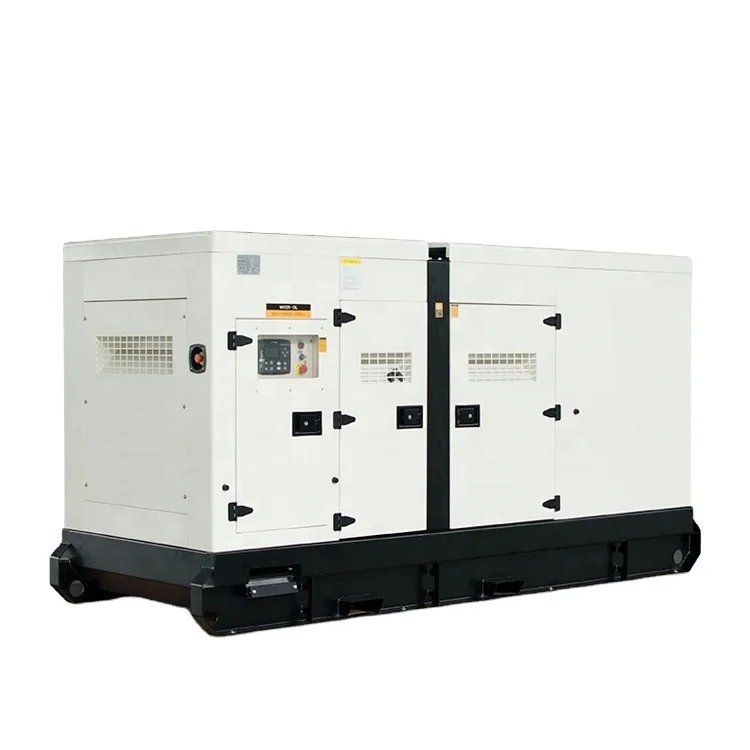

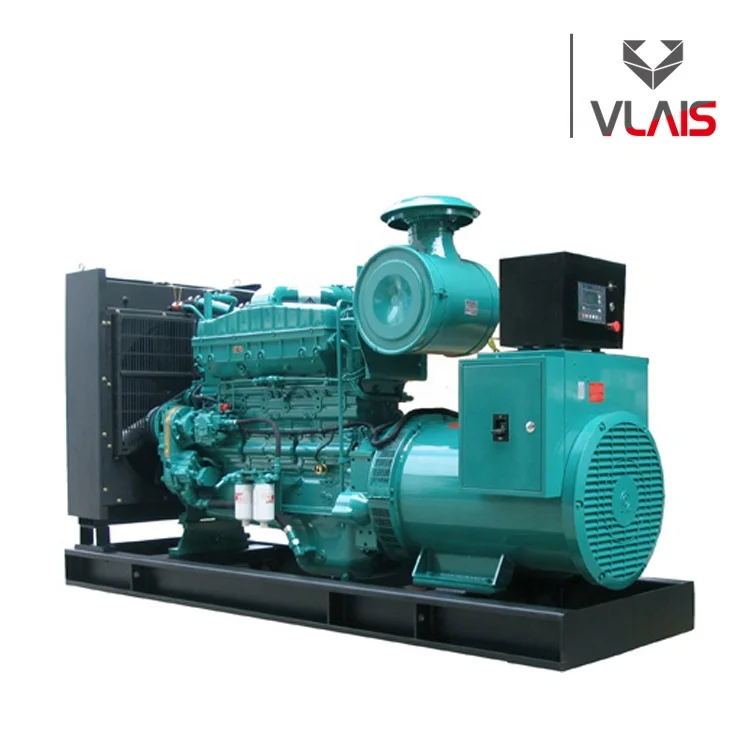

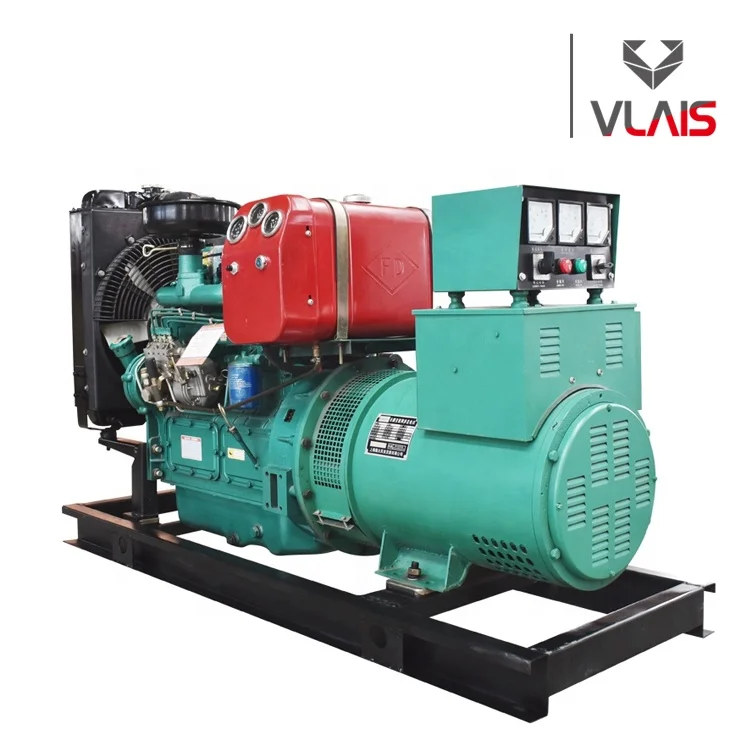

Detailed Images
