Product Overview
Description
Product Description

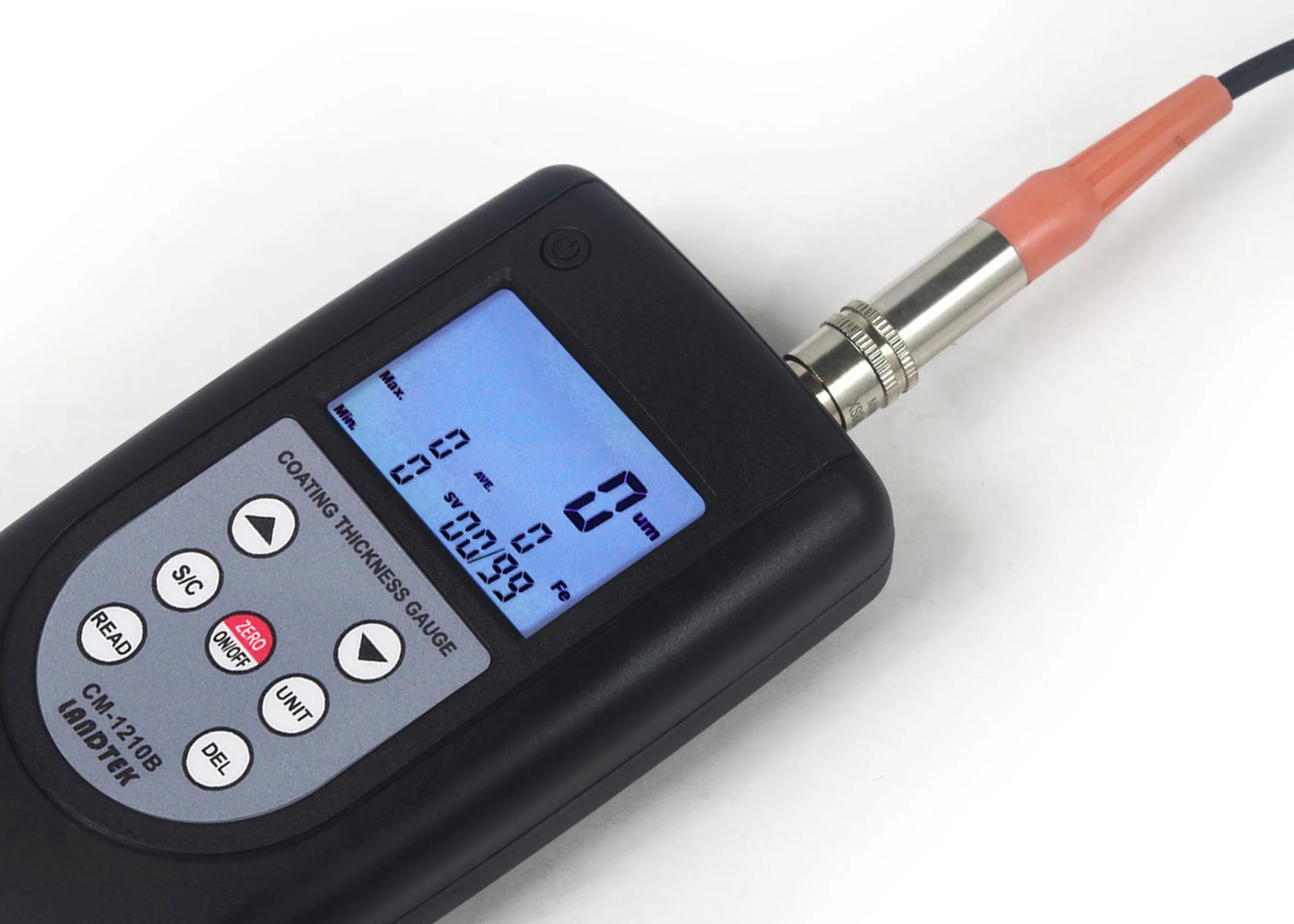

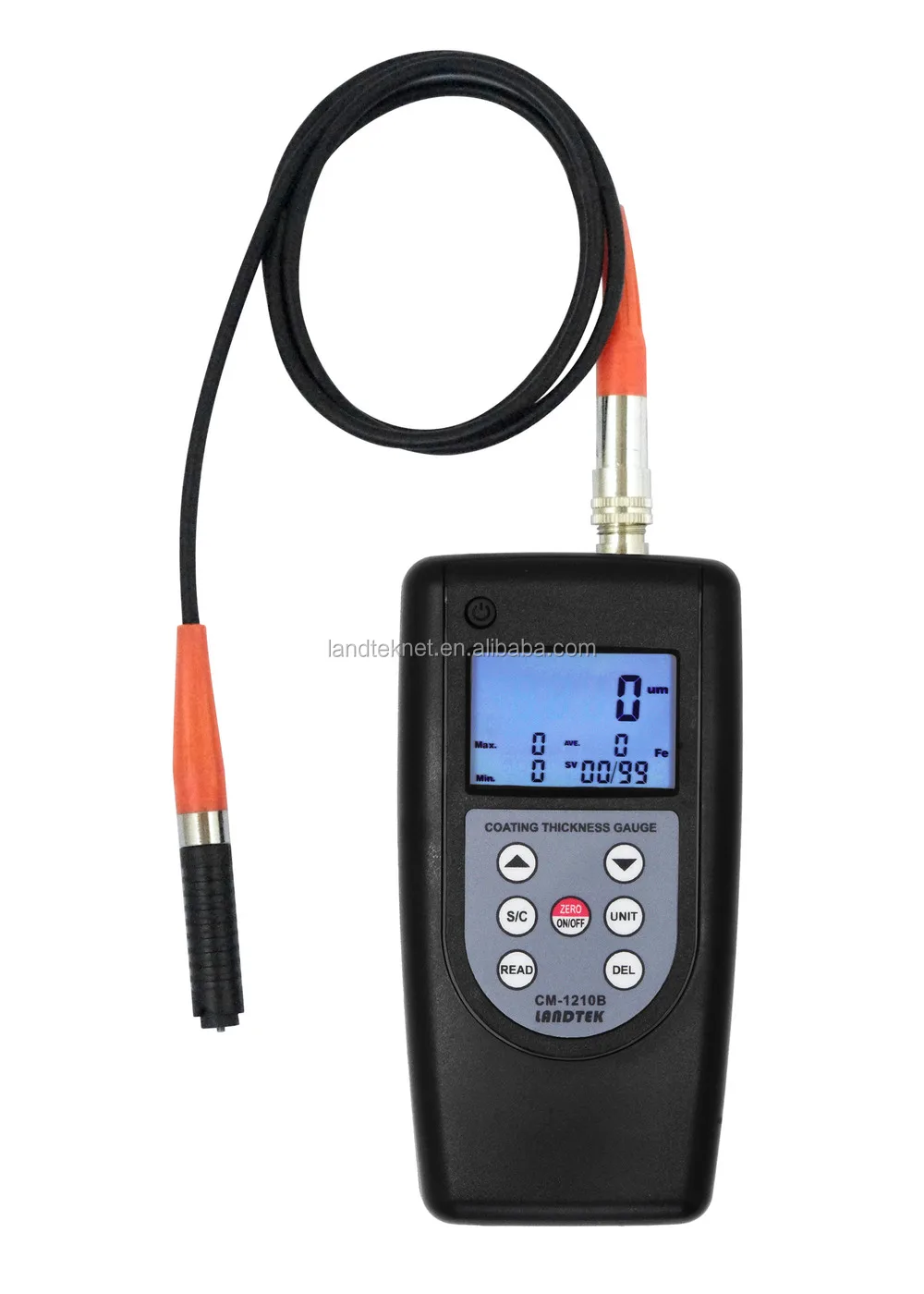

Coating Thickness Gauge CM-1210B
Applications:
Measure the coating on metal.
The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) .
The N probes measure the thickness of non-magnetic coatings on non-magnetic metals.
Features
* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure thecoating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.
Details
Model | CM-1210B |
Operating Principle | Magnetic Induction / Eddy Current (F / NF) |
Measuring Range | 0~2000 um / 0~80 mil |
Resolution | 0.1 um / 1 um |
Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm |
Min. Measuring Area | 6 mm |
Min. Sample Thickness | 0.3 mm |
Accuracy | ± 1~3%n or ± 2.5 um |
Auto Power Off | |
Metric / Imperial | Convertible |
Battery Indicator | Low Battery Indicator |
Operating Conditions | Temp. 0~40 °C, |

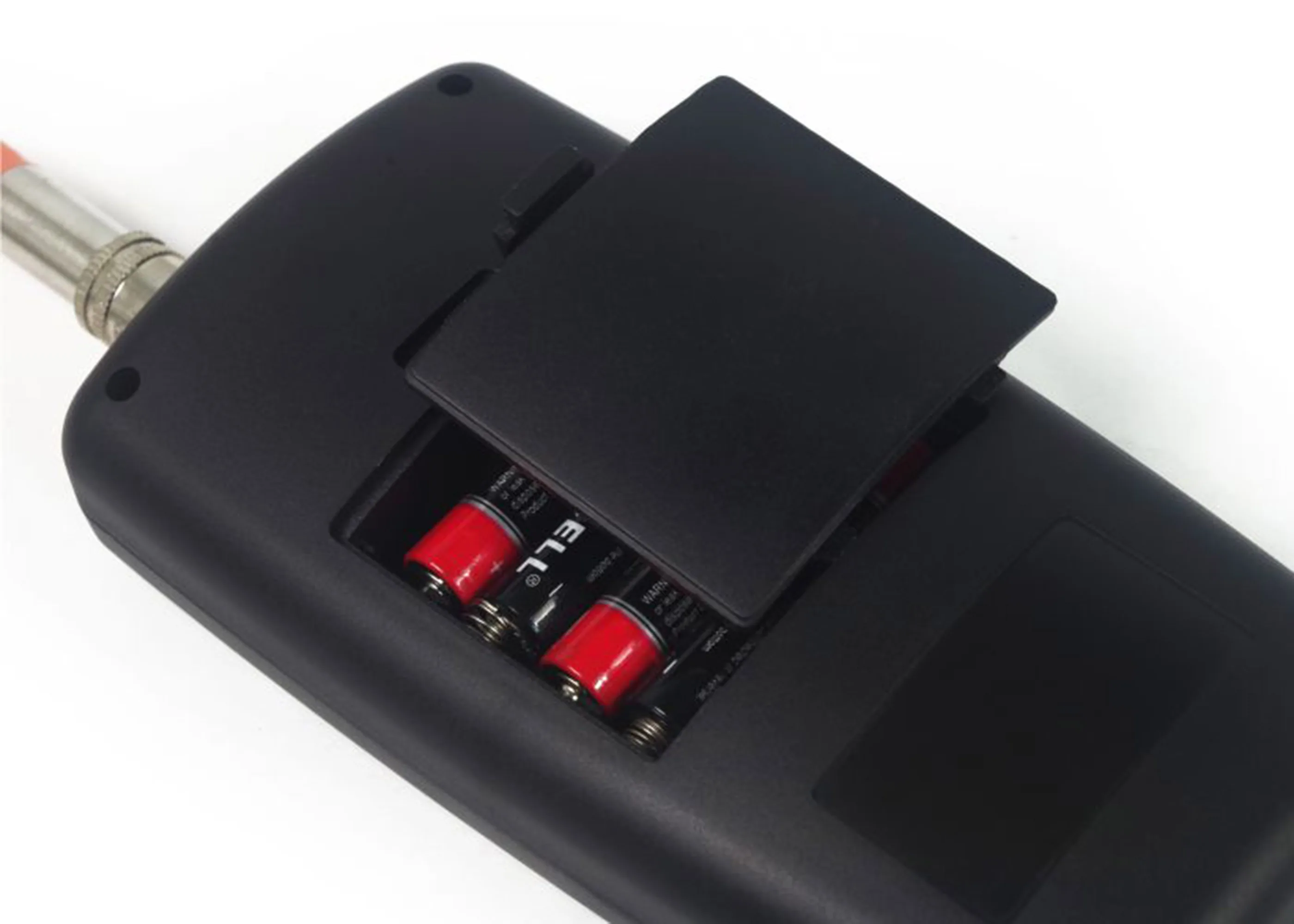

Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
Dimensions | 140 x 72 x 34 mm(5.5x2.8x1.3 inch ) |
Weight | 215 g (Not Including Batteries) |
Accessories:

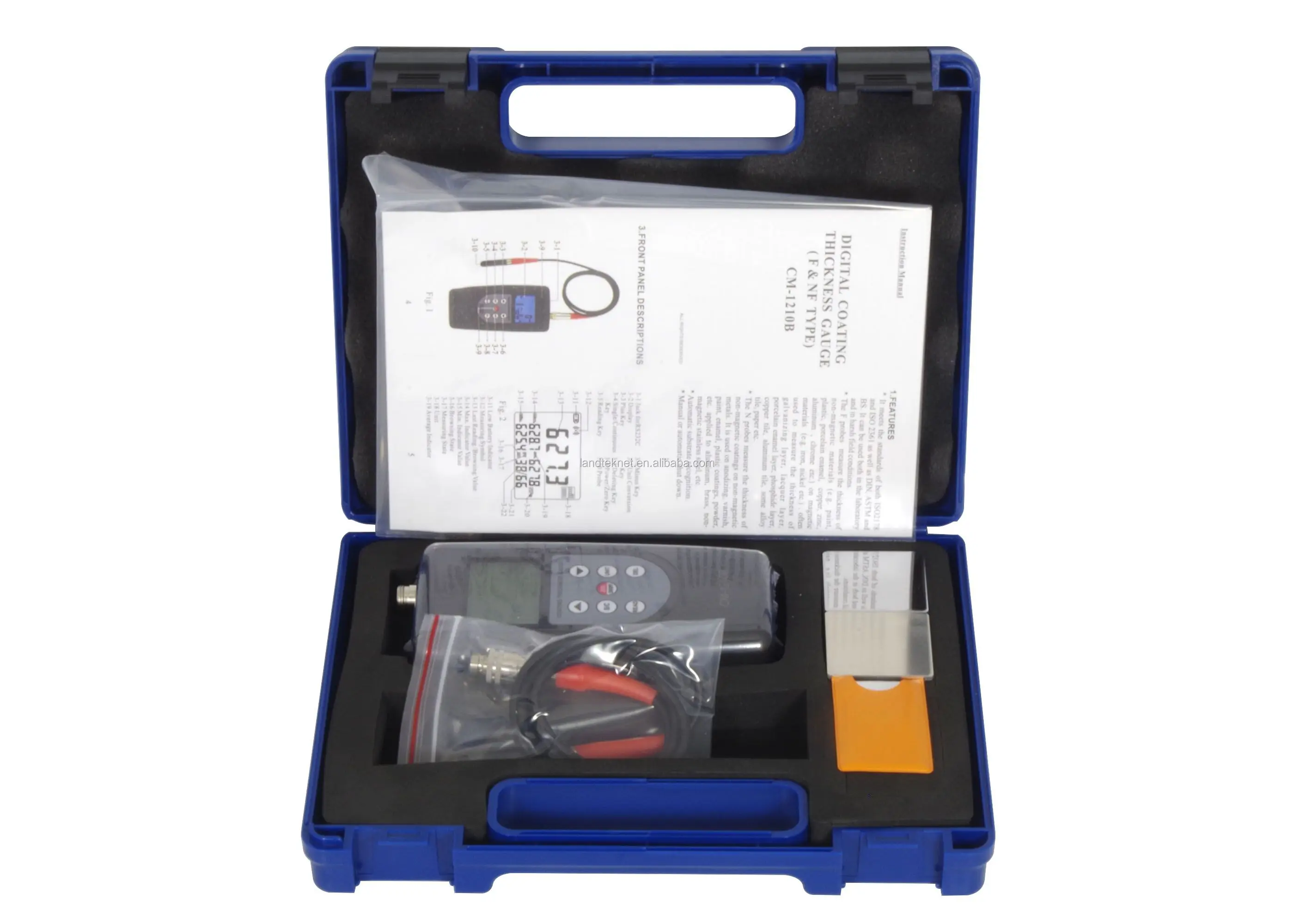

Standard Accessories:
1. Main Unit

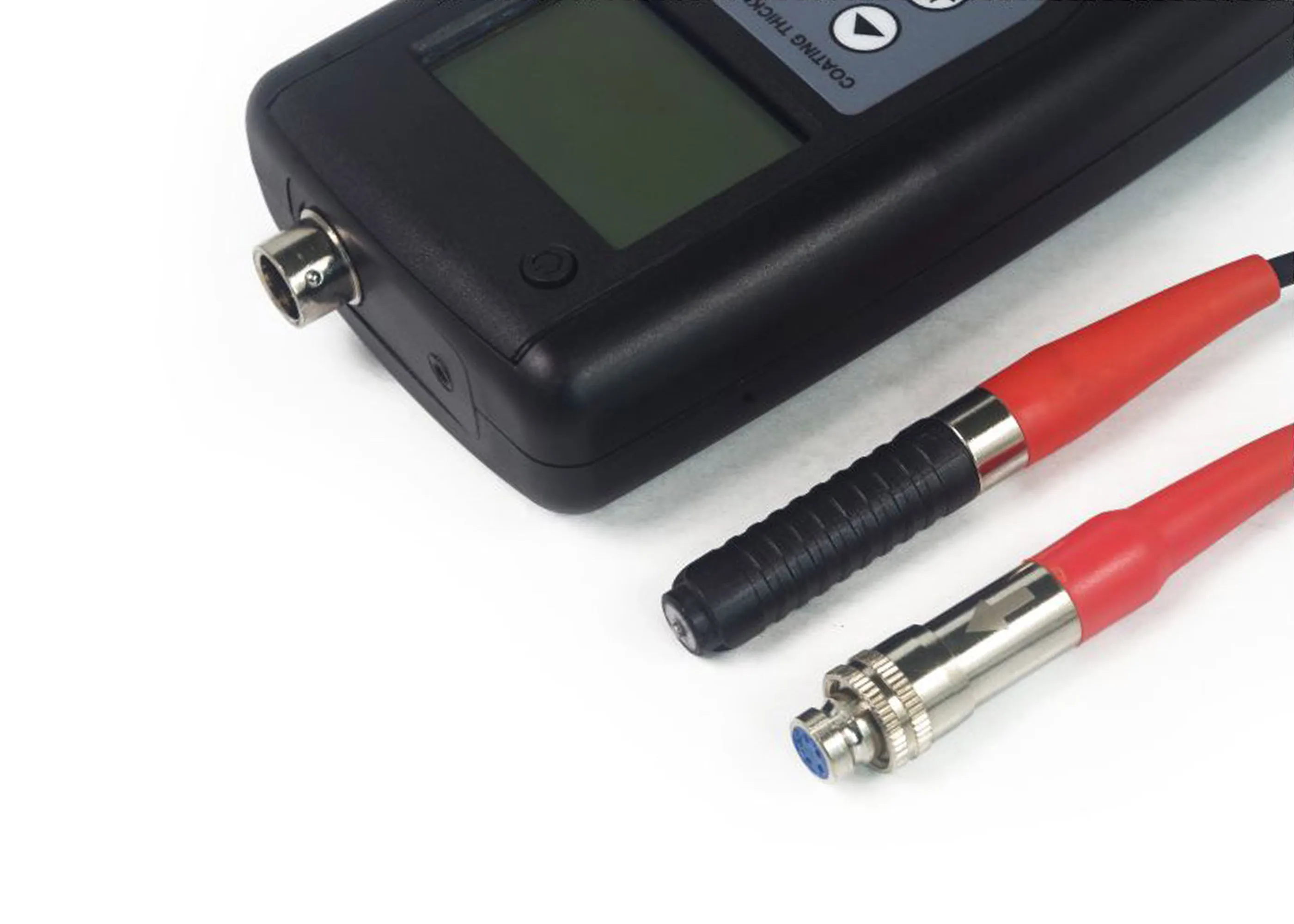

2. Probe (F Type & NF Type)
3. Calibration Base Set (F Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)

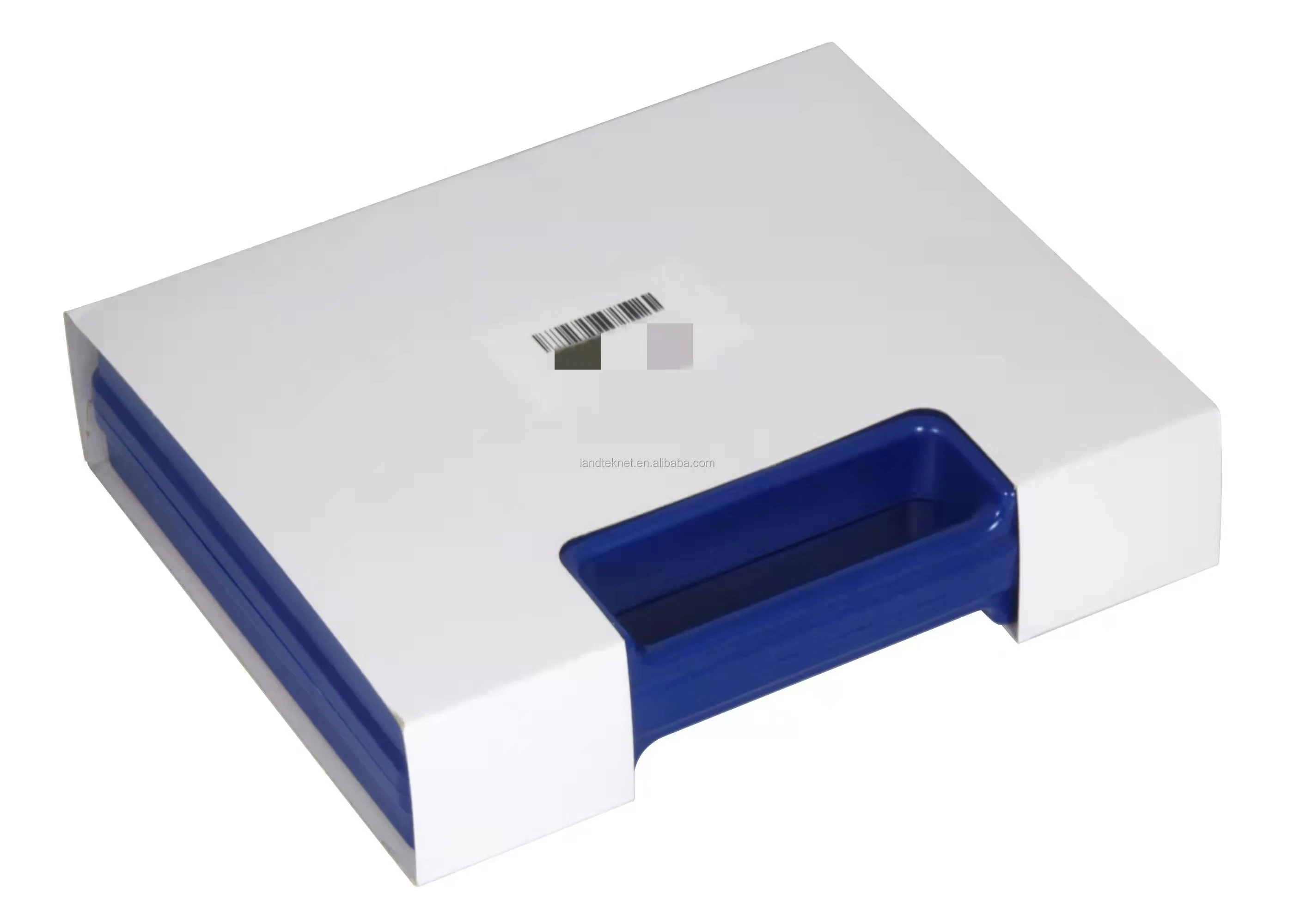

5. Carrying Case
6. Operation Manual
Optional accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data out put with software
Packaging & Shipping
1 unit, the gross weight is 1.0kg. carton size: 27*23*8cm , the volume weight is 1.0kg.
10pcs, the gross weight is 8.0kg. carton size: 45*28*33cm , the volume weight is 9.0kg.
20pcs, the gross weight is 15.0kg. carton size: 45*28*58cm , the volume weight is 16.0kg.
ship by DHL, FEDEX , UPS, AIR, SEA,etc
Our Services
One year after service and supply service forever.
