BJZRZC High Accuracy 4 20mA Pressure Transmitter with Hart
- Category: Pressure Transmitters >>>
- Supplier: Beijing,Zhongruizhicheng,Technology,Co.,Ltd.
Share on:
Product Overview
Description

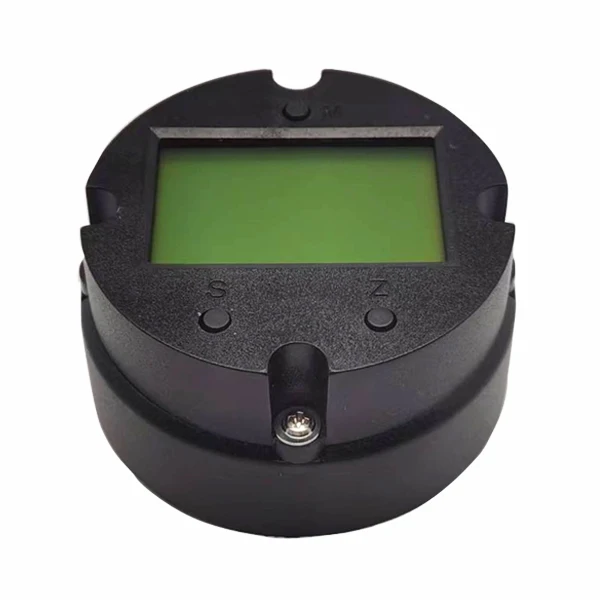

H3051T HART Pressure Transmitter
Appliction | |
Used for | Diffused silicon pressure sensor Ceramic capacitors senso Ceramic piezoresistive load cell, strain gauge, magnetic field sensor Resistor of 2/3/4 wires, etc. |
Specifications | |
Power supply: | 12-32VDC |
Output: | 4-20 mA with HART (2-wire) |
Operating temperature | -20°C~+70°C(with LCD) -40°C~+85°C |
Dimension: | Diameter Φ=62mm |
Resolution: | 0.001%FS |
Mounting hole pitch: | D=55mm |
Weight: | About60g |
FEATURES
1, High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
2,Large range turndown
3, Strong capability for anti-disturbance: Leading military-grade hardware and software anti-disturbance technology, over-voltage protection, surge current, electrostatic shock and lightning protection.
4, Multiple local operation functions: Range Values, PV Unit, Damp, Transfer Function(Linear/Square root ), Zero Trim, Lower Sensor Trim , Upper Sensor Trim and Data Restore.
5, Flexible linearity and temperature compensation: The number of points for compensating temperature and pressure can be changed on demand.

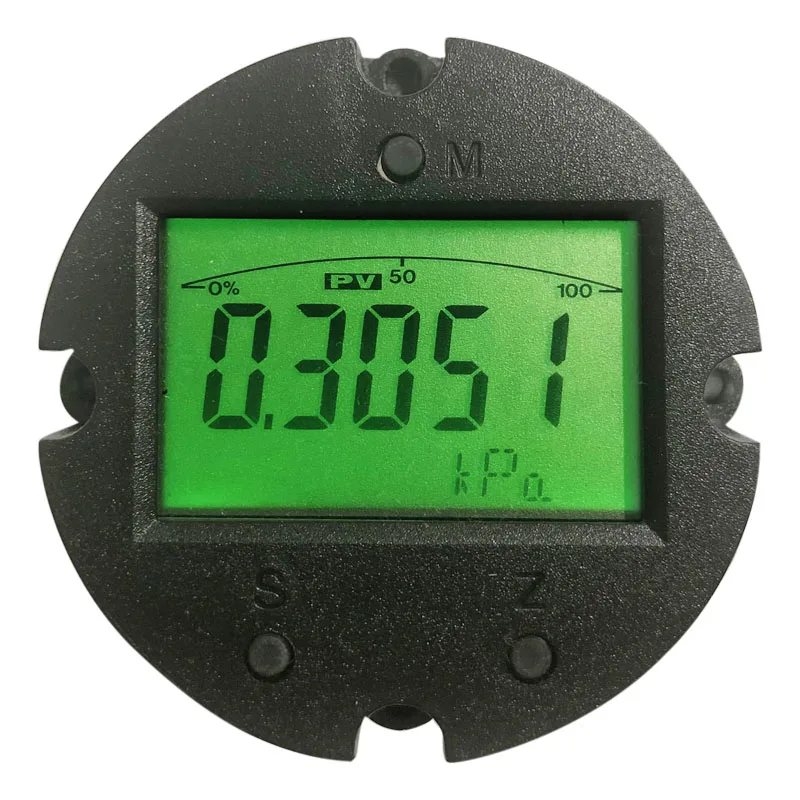

6, 360o rotation LCD display
7, Multiple variables shown on the LCD: More than one variable displayed on the LCD with backlight for dark environment.
8, Data backup and restore
9, Easy to install and reliable with unique design
10, Temperature sensor Pt100 and Pt1000.
