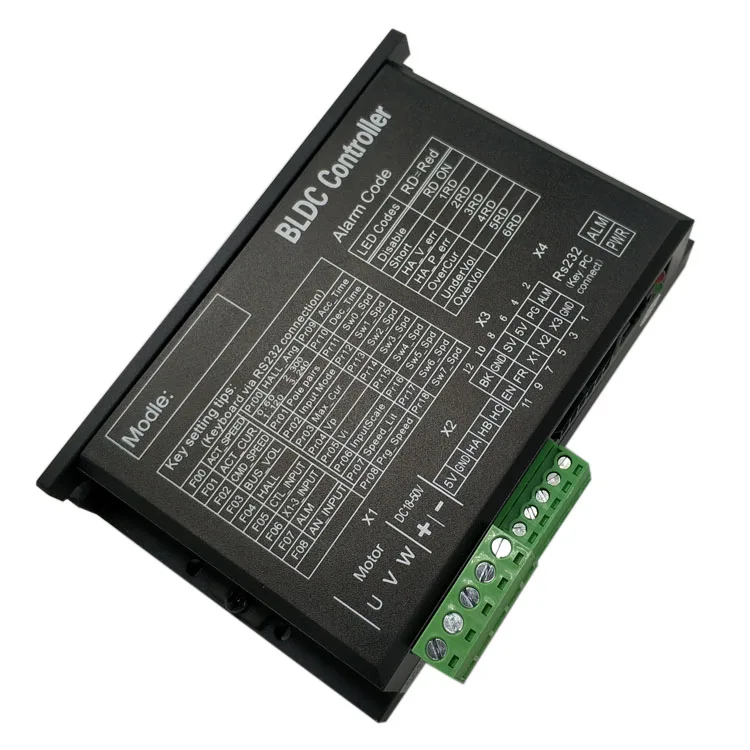

Single channel communication interface Brushless DC Motor drive cost effective controller
- Category: >>>
- Supplier: Hangzhou Mindong Technology Co. Ltd.
Share on (1600767647133):
Product Overview
Description
Product Overview

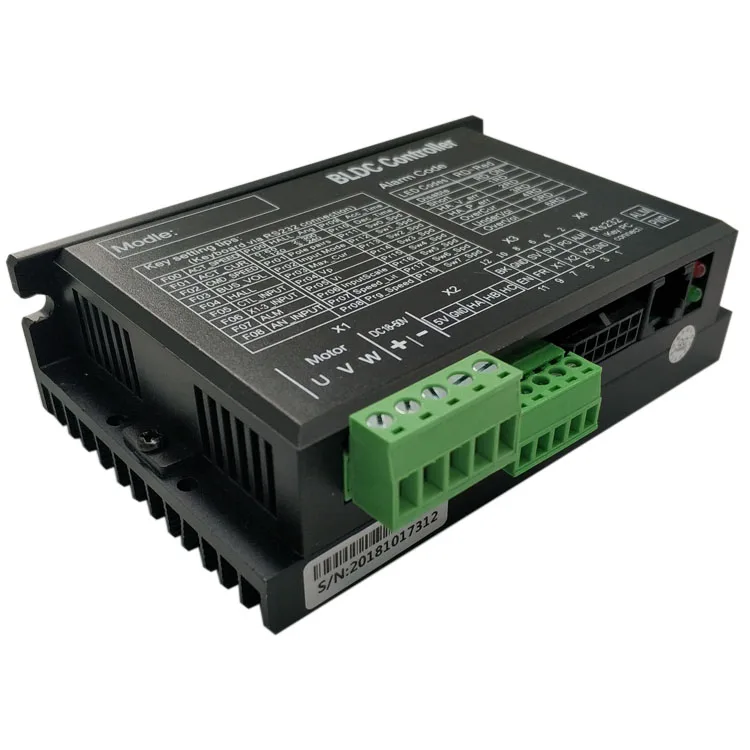

24V Brushless DC Motor Speed Controller
The BLDC driver is a high-performance, multi-functional, low-cost with Hall sensor DC brushless driver. By full digital design it has a flexible and diverse input control, high speed, low noise, perfect hardware and software protection, the driver can connect to computer through the serial communication interface which can achieve PID parameter speed, protection parameters, Motor parameters, acceleration and deceleration time and set some parameters. IO input status, analog input; alarm status and bus voltage can be monitored by this driver.
Product specifications
Item | Parameters |
Model | BLDC driver |
Input voltage | DC18-50V |
Work current | ≤10A |
Motor hall type | 240degree |
Operating mode | Hall speed closed loop |
Speed mode | 0-5v analog input 0-100PWM input(PWM frequency scope 1KHz-20KHz) |
Internal given | Multi-sections of speeds 1, Multi-sections of speeds 2, |
Speed range | 0-6000RPM |
Protective function | Short circuit: When abnormal current is greater than 50A, short circuit protection is produced. Overcurrent: Overcurrent protection occurs when the current exceeds the operating current setting value and continues for a set time. Overvoltage: Overvoltage protection occurs when the voltage exceeds 55V. Under voltage: Under voltage protection when the voltage is below 55V. Hall anomaly: includes phase anomalies and abnormal values. |
Dimensions | 120*76*33(unit: mm) |
Weight | 250g |

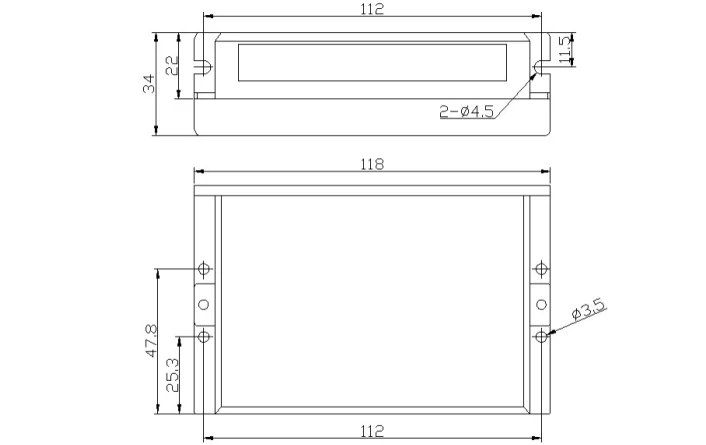

Dimensions
Product Advantages
Easy to Control
Simply Control.Achieving the PC control,parameter adjustment and on-line debugging through analogue input or RS232 and CAN.
Simply Control.Achieving the PC control,parameter adjustment and on-line debugging through analogue input or RS232 and CAN.
Stabilization&Accuracy
The continuous working hours are extremely long and stable performance.It is accurate to control motor in closed loop.
Security
To drive power supply in inner and to control the power photoelectric isolation;the external input to control signal photoelectric
isolation; to provide protection of temperature monitor, over-current and over-voltage so on.
isolation; to provide protection of temperature monitor, over-current and over-voltage so on.
