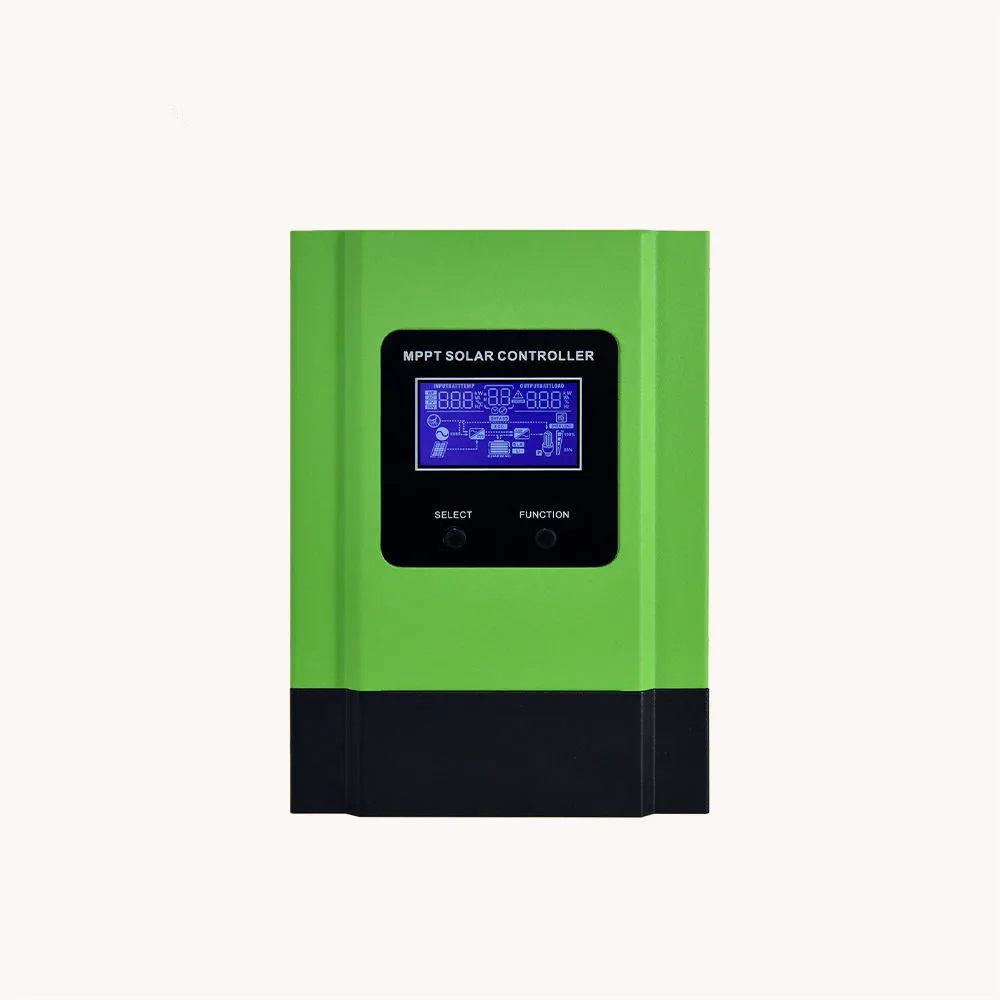

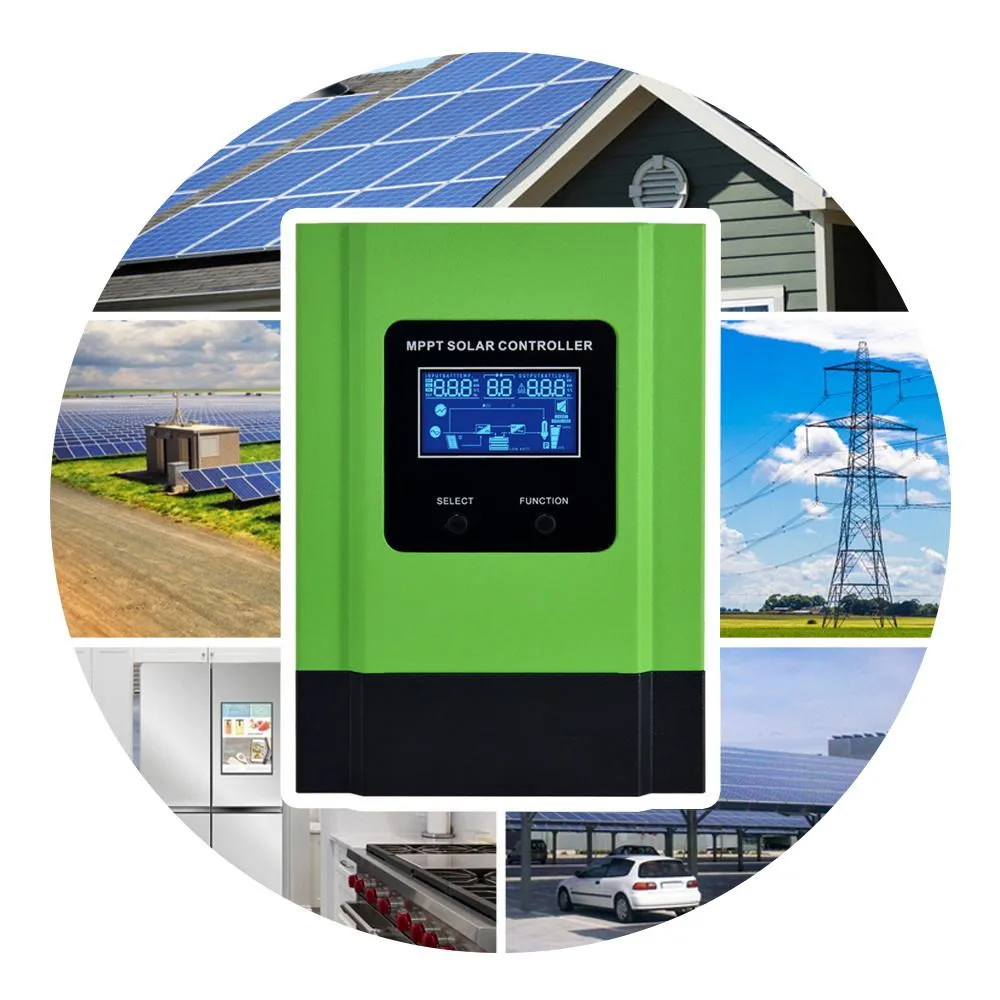

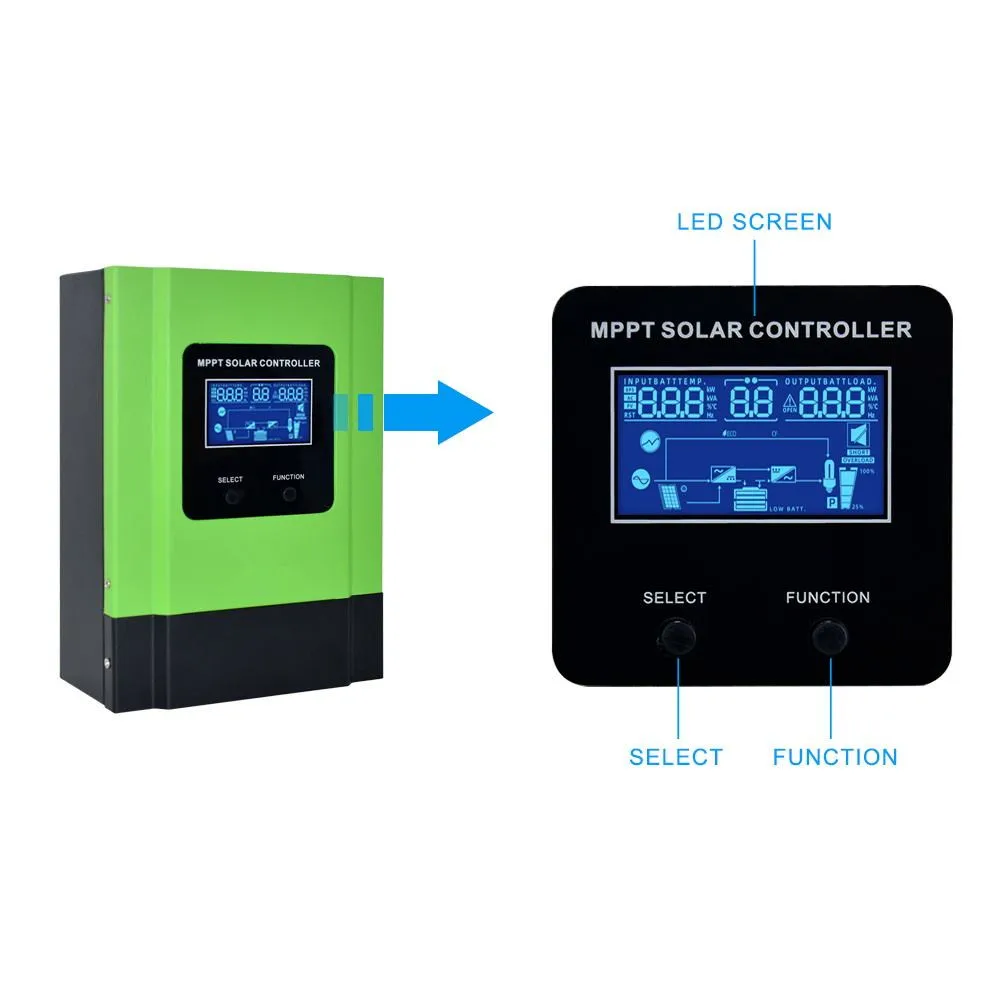

12v/24v/48v/96v Inverter mppt Solar System 20A 30A 40A 50A 60A 80A 100A 120A MPPT Solar Charge Controller
- Category: >>>
- Supplier: Hebei Depurui Import And Export Co. Ltd.
Share on (1600767909178):
Product Overview
Description
PRODUCTS DESCRIPTION
12v/24v/48v/96v Inverter mppt Solar System 20A 30A 40A 50A 60A 80A 100A 120A MPPT Solar Charge Controller
Smart MPPT series | ||||||||||
Model | 20A | 30A | ||||||||
System voltage | 12V/24V/36V/48V(Adaptive) | |||||||||
Nominal current | 20A | 30A | ||||||||
Charging mode | MPPT maximum power point tracking | |||||||||

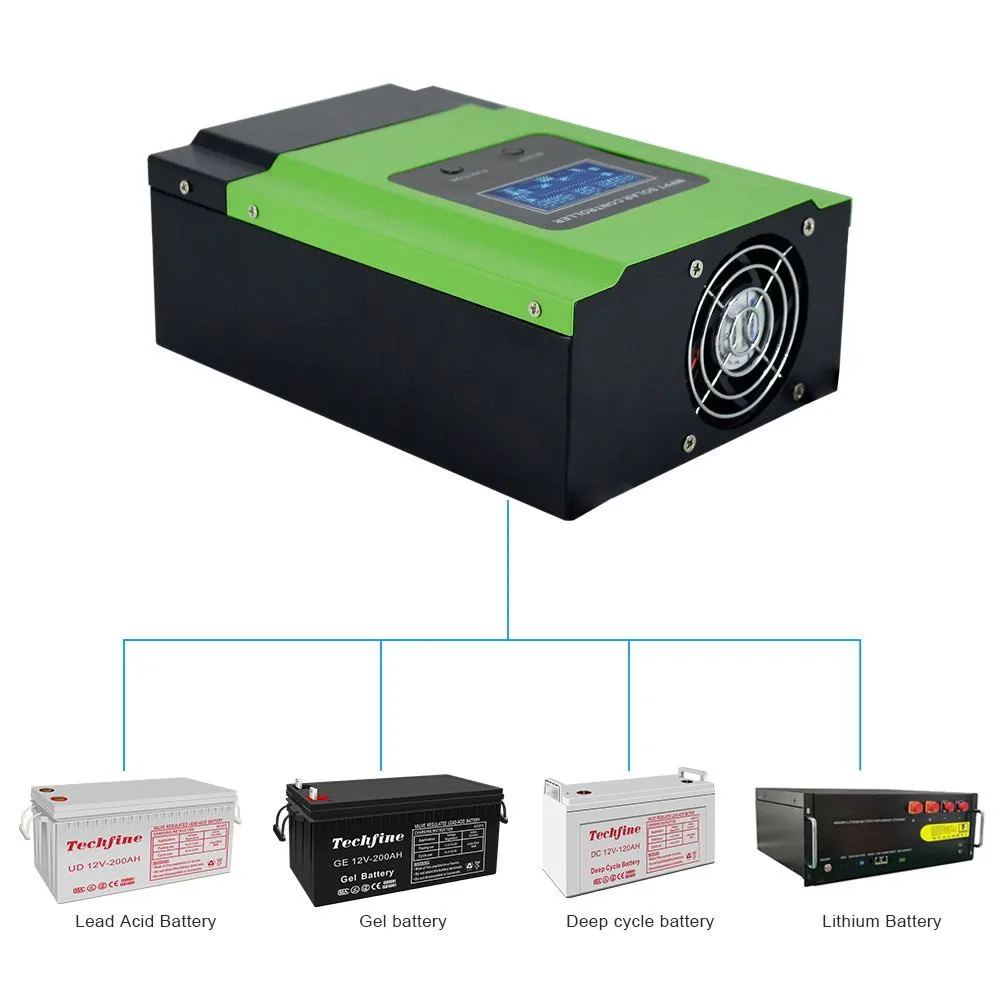

Applicable battery type | Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging) | |||||||||
Charging method | Three stages: constant current, constant voltage, floating charge | |||||||||
PV input maximum open circuit voltage (VOC) | 150V | |||||||||
Starting time | ≤10s | |||||||||
Dynamic response recovery time | ≤500us | |||||||||
Static power | 200mA/12V；100mA/24V；50mA/48V； | |||||||||
MPPT Tracking efficiency | ≥99.5% | |||||||||
Overall efficiency | ≥98% | |||||||||
The controller system identifies the operating voltage range | 12V | 11～64V | ||||||||
24V | ||||||||||
36V | ||||||||||
48V | ||||||||||
Operating voltage range of maximum power point | 12V | 20～150V | ||||||||
24V | 36～150V | |||||||||
36V | 48～150V | |||||||||
48V | 64～150V | |||||||||
Solar panel rated input power | 12V | 260W | 390W | |||||||
24V | 520W | 780W | ||||||||
36V | 780W | 1170W | ||||||||
48V | 1040W | 1560W | ||||||||
Load voltage | Available under 12V/24V working voltage | |||||||||
Nominal load current | 20A | |||||||||
Load control method | Normally on and normally off mode/ time control mode /light control mode | |||||||||
Load undervoltage protection | 10.5V*N (N stands for batteries number) Parameters can be adjustable | |||||||||
Heat-dissipating method | Wind cold | |||||||||
Display | HD LCD backlight display | |||||||||
Protections | Input and output over&low-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current protection | |||||||||
Temperature compensation coefficient | 一3mV/℃/2V | |||||||||
Working temperature | 一20℃～+50℃ | |||||||||
Storage temperature | 一40℃～+70℃ | |||||||||
Accoustic Noise(db) | ≤50dB | |||||||||
Humidity | 0～90%RH | |||||||||
Working altitude | 0～3000M | |||||||||

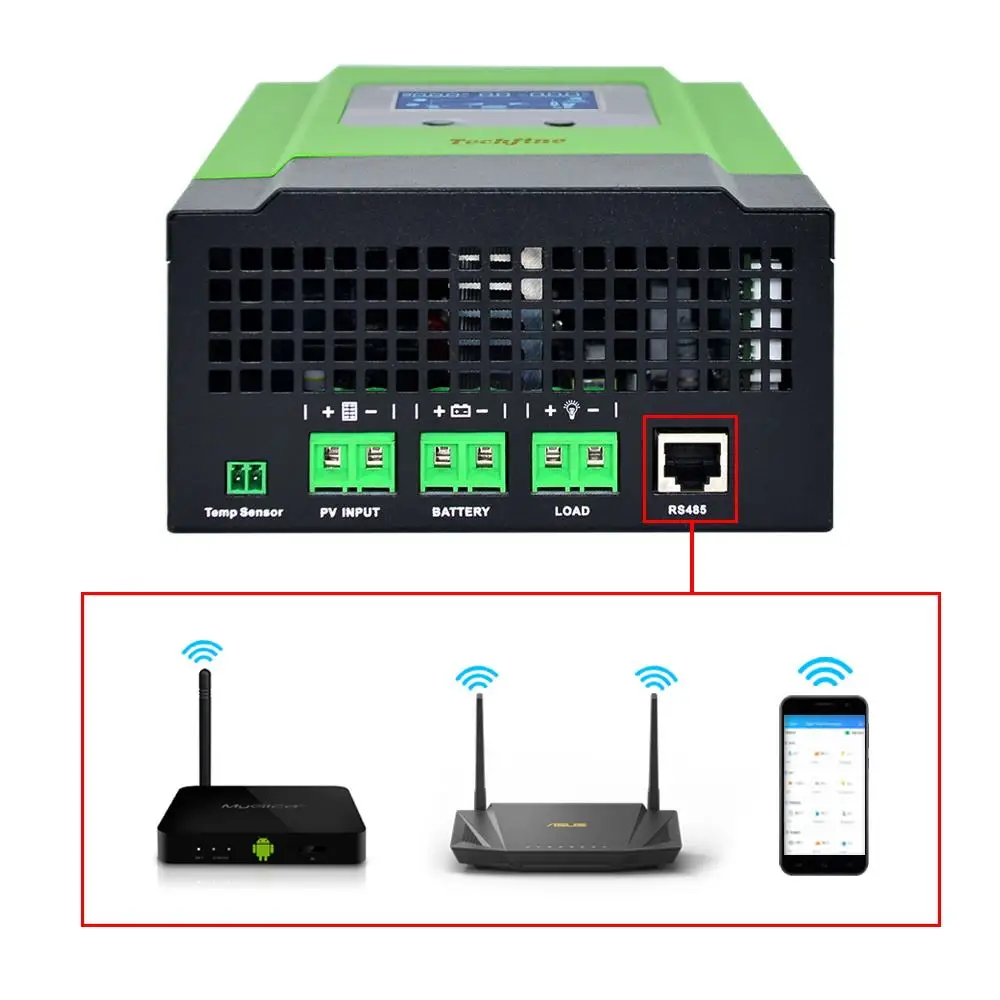

Communication Type | RS485 | |||||||||
Suggested wire specification | 11AWG/4mm² | 9AWG/6mm² | ||||||||
Our Advantages:
❤Automatic equipment production: stan dardizied quality、high efficiency production.❤Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
❤Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection,
Overheating protection, Output short-circuit protection.
❤The maximum utilization rate of solar energy can reach 99%,
With super fast charging algorithm, efficiency increased by 30%
❤ Strictly comply with ISO quality management system , products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
SHOW DETAILS

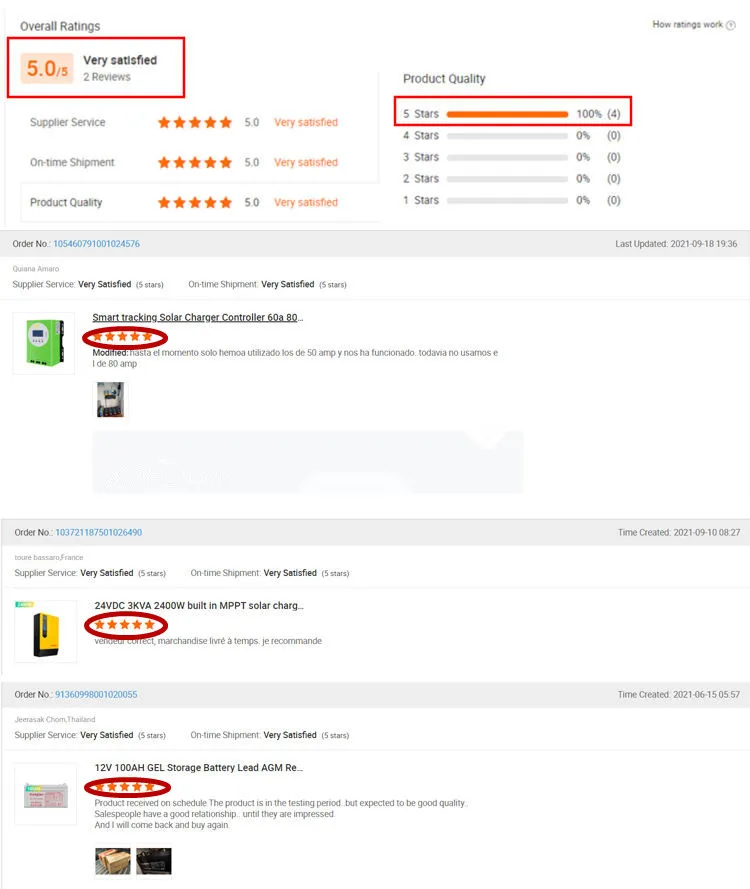

POSTIVE FEEDBACK FROM CLIENTS
DELIVERY AND LOGISTICS

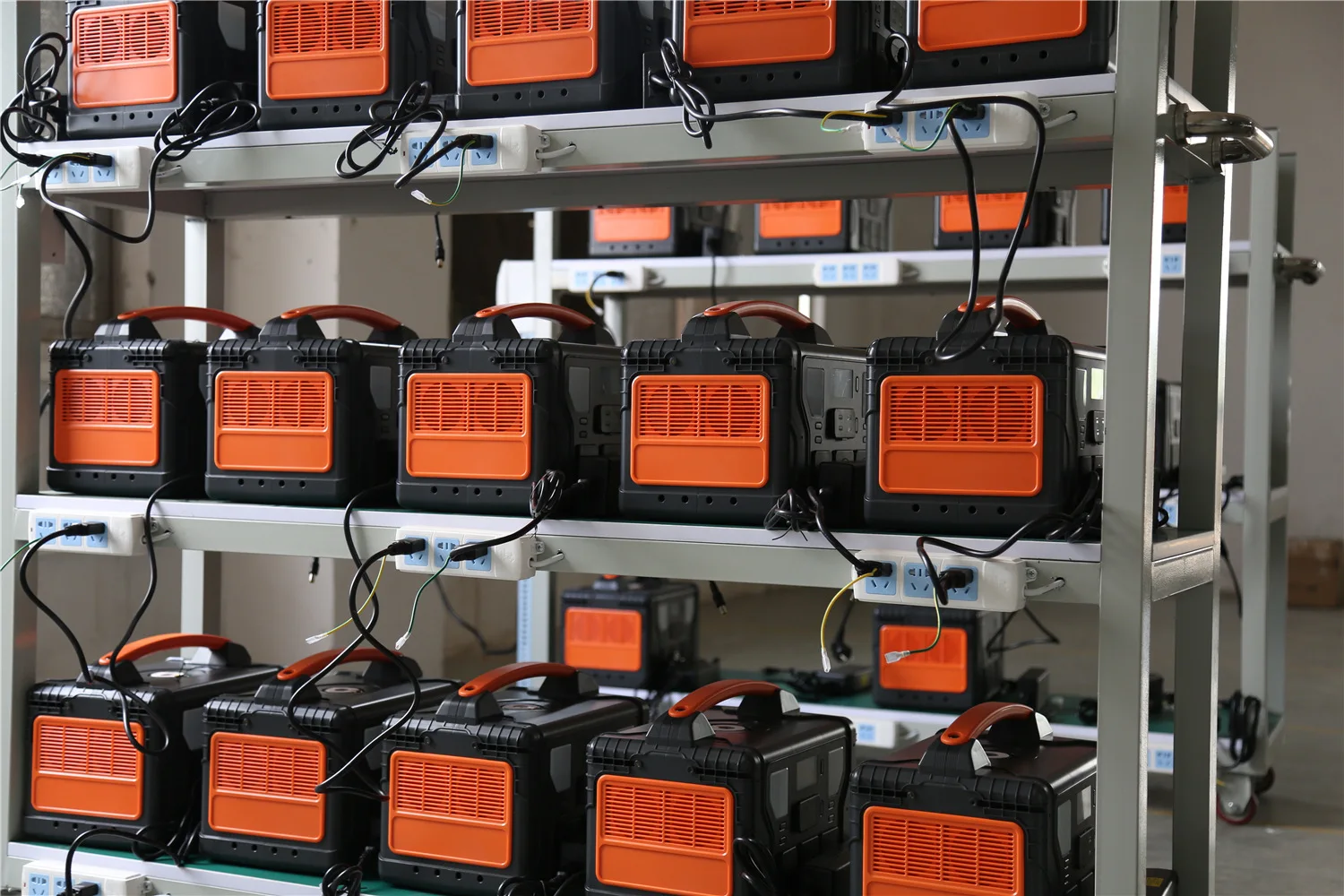

COMPANY PROFILE
Hebei Depurui Import and Export Co.,Ltd is located in ShiJiazhuang City, Hebei Province, China. We are manufacturer of new energy Products: Air source heating and cooling system, Solar Energy Products ( Solar Panels, Solar Inverter, Solar Controller,etc); Wind Power Products (Wind Turbine, Inverter, Controller, etc.) and Energy Storage System (Portable Power Station). New energy has the advantages of cleaning, Environmental friendly, non -pollution, wide distribution, and large reserves. With the continuous progress and development of society, new energy products have been widely recognized by the world. We provide our customers with safe and reliable products, accurate energy-saving system solutions, and make unremitting efforts to improve and protect the human ecological environment.
EXHIBITION
FAQ
Q1: Are you direct manufacturer or only a trade company?
A: Yes. Depuri is a famous manufacturer located in Hebei, China, we have our own factory and have the production experience for more than 10 years. Our products receive love and support from customers at home and abroad.
Q2: Do you accept OEM & ODM?
A: Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. Depuri is a famous manufacturer located in Hebei, China, we have our own factory and have the production experience for more than 10 years. Our products receive love and support from customers at home and abroad.
Q2: Do you accept OEM & ODM?
A: Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q3: What support do you offer to your clients?
A: We can provide product certification requirements for local markets; provide catalogs, technical and Installation support.
Q4: What is your payment terms?
A: Generally, 30% TT in advance, the balance 70% before delivery. We will send you all the details photos of the goods to make sure the goods situation.
Q5: Can I apply to become your distributor/reseller?
A: We can provide product certification requirements for local markets; provide catalogs, technical and Installation support.
Q4: What is your payment terms?
A: Generally, 30% TT in advance, the balance 70% before delivery. We will send you all the details photos of the goods to make sure the goods situation.
Q5: Can I apply to become your distributor/reseller?
A: Yes, we are currently looking for more distributors/resellers across the globe, who can distribute our products in their local countries.
