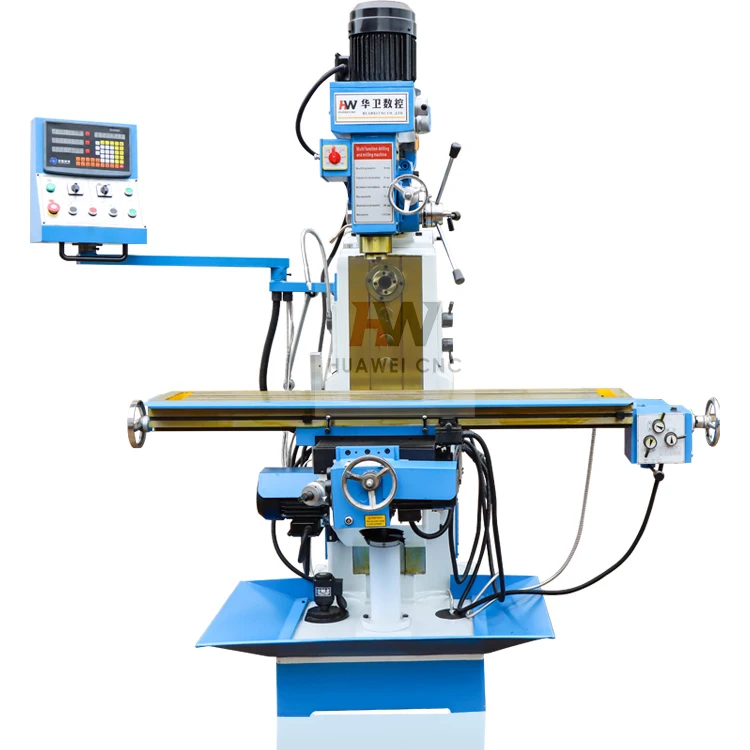

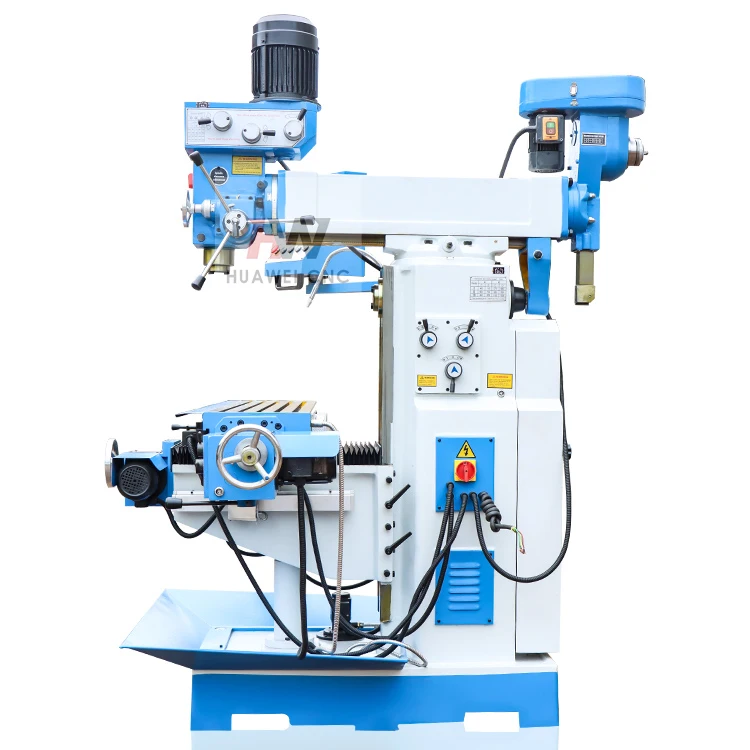

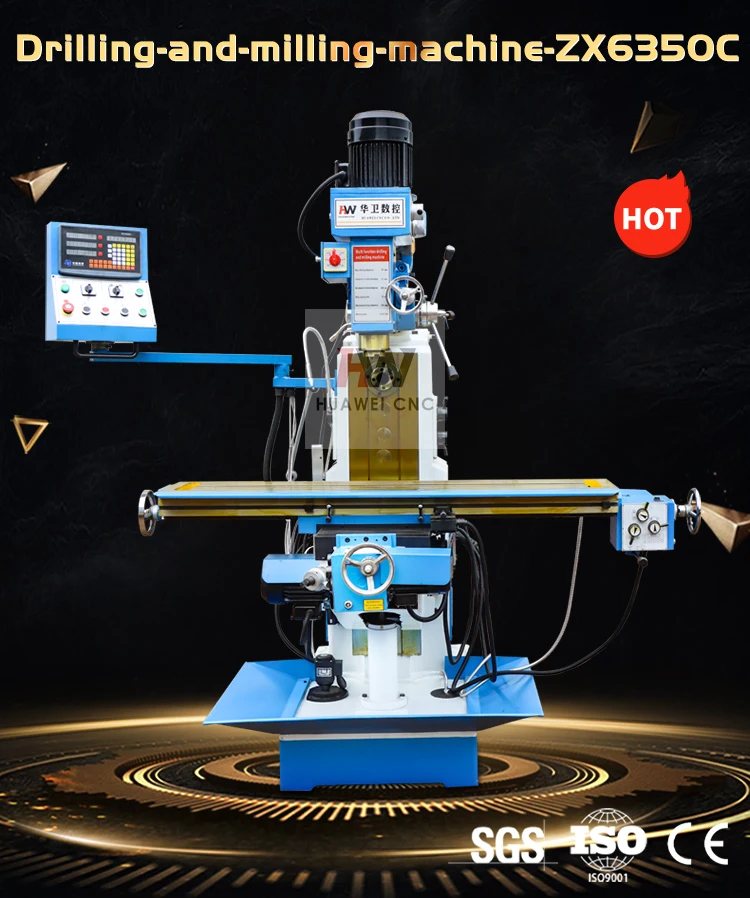

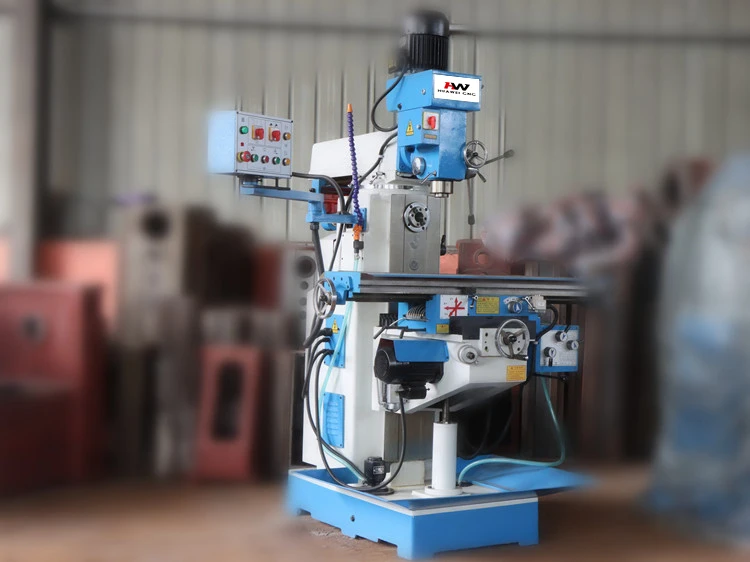

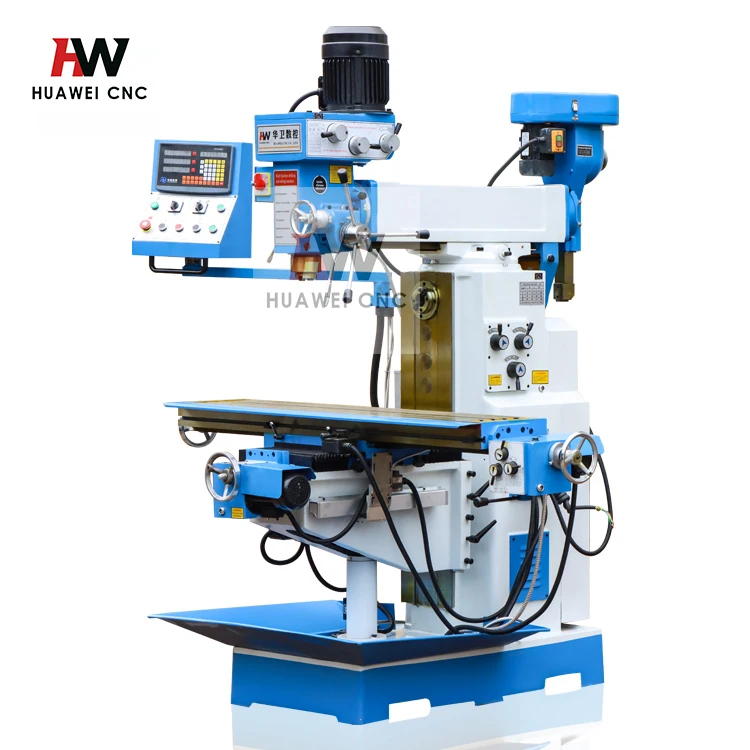

Cheap Factory Price conventional milling machine ZX6350C universal milling machine
- Category: >>>
- Supplier: Shandong Huawei Intelligent Equipment Co. Ltd.
Share on (1600768075977):
Product Overview
Description
Product Description
Cheap Factory Price horizontal/vertical milling machine drilling milling machine zx6350c
Product main technical parameters:
Specifications(mm) | ZX7550CW |
Max. drilling dia.(mm) | 50 |
Max. end milling width(mm) | 100 |
Max. vertical milling dia.(mm) | 25 |
Max.boring dia.(mm) | 120 |
Max. tapping dia.(mm) | M16 |
Distance from spindle nose to table surface(mm) | 90-490 |
Vertical spindle taper | MT4 |
Horizontal spindle taper | ISO40 |
Spindle speed range(r.p.m) | 115-1750(V) 80-1300(H) |
Spindle travel(mm) | 120 |
Table size(mm) | 1000×240 |
Table travel(mm) | 600×230 |
Table feed speed(mm/min) | X:16-480 |

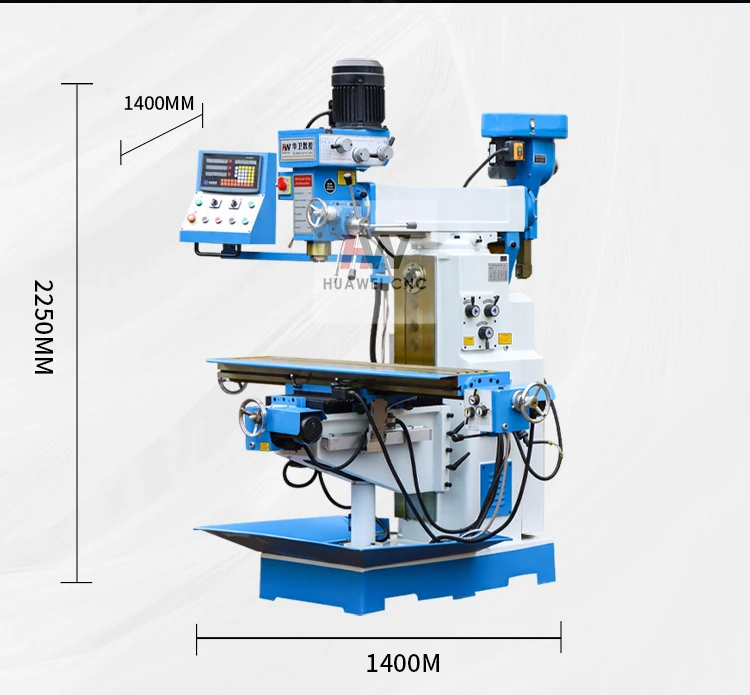

Overall dimensions (mm) | 1280×1285×2080 |
Spindle motor power (kw) | 1.5/2.2(V) 2.2(H) |
Machine weight (kg) | 900/1000 |
The main performance characteristics:
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
Milling head can be rotated 45 degrees,
DRO supplied at extra cost.
Application:
Universal milling and drilling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
Milling head can be rotated 45 degrees,
DRO supplied at extra cost.
Application:
Universal milling and drilling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
Prouct characteristics
The machine spindle
115-1750(V)
80-1300(H)
80-1300(H)

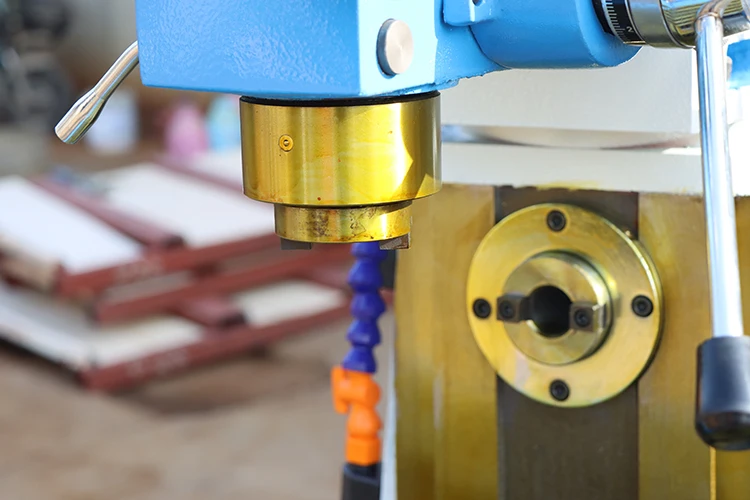

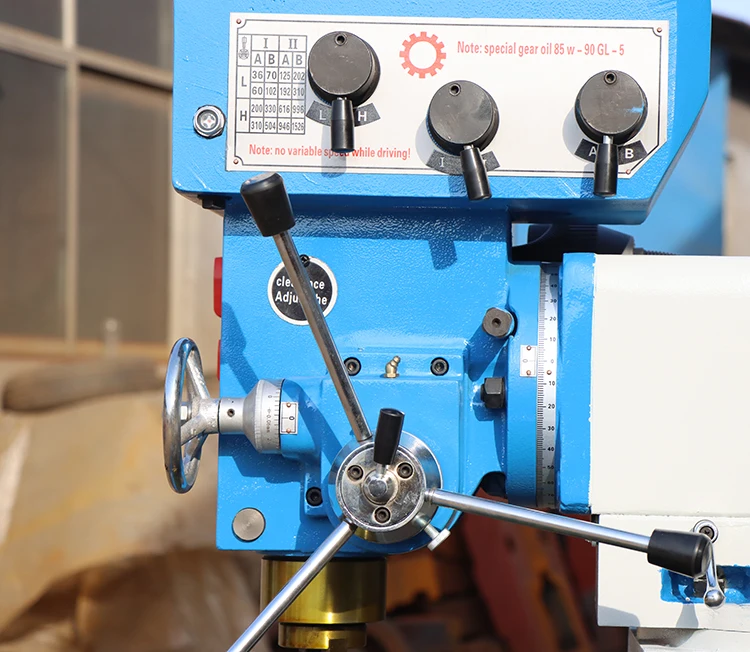

gear drilling milling head
gear type drilling milling head
can be rotated 45 degrees

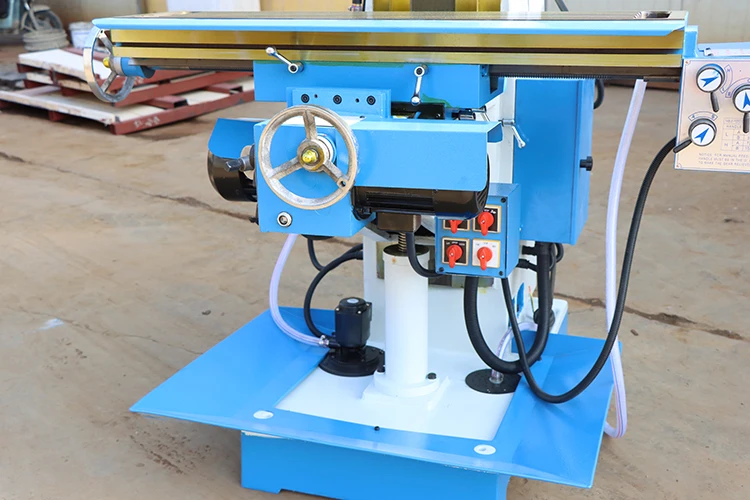

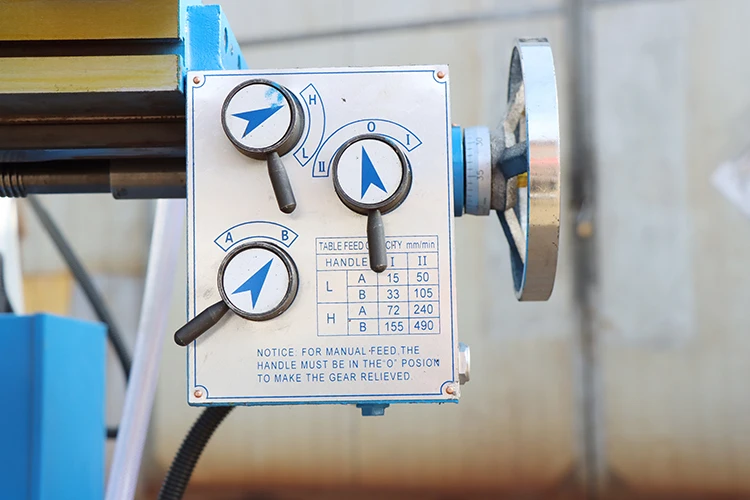

worktable feed
standard :x axis auto feed
optional:y axis auto feed
optional:z axis electric lifting

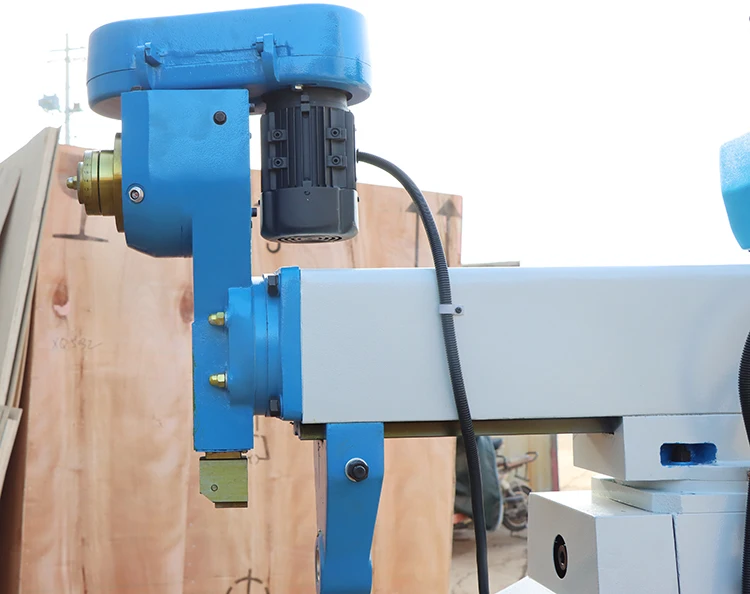

optional:Slotting machine head

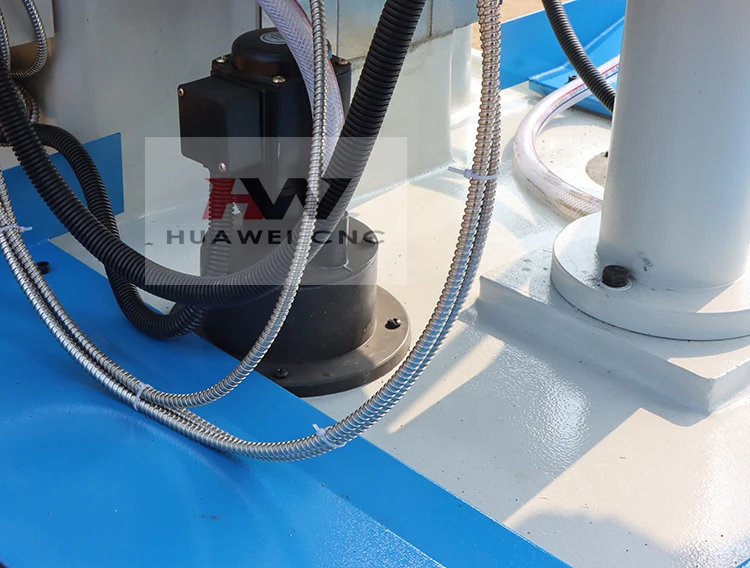

standard :Machine cooling water pump
